Bosch GBM 10 RE univ. 2speed impact drill: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10 RE: 29 positions on 1 sheet

Bosch GBM 10 RE parts list (1 sheet)

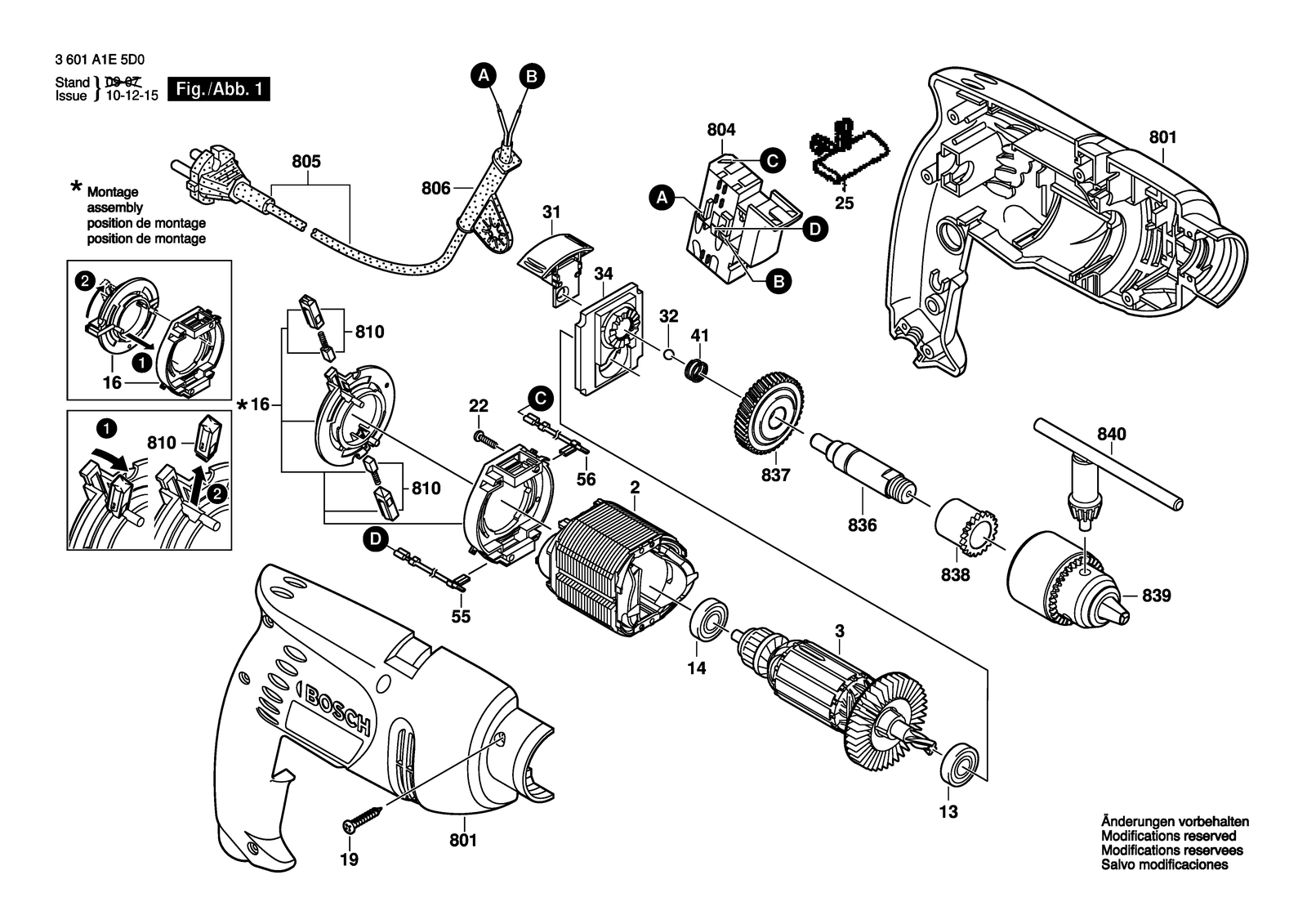

Bosch GBM 10 RE parts diagram, sheet 1
No.Part numberPart name
133130900020Groove ball bearing 8X22X7 608-2Z/C3
143130900020Groove ball bearing 8X22X7 608-2Z/C3
16F000612063Brush Plate
199618087099Screw 4X16 MM
2F000607007Pole Shoe 127V
2F000607024Pole Shoe 220V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
25F000608027Change-Over Switch
3F000605037Armature 127V
3F000605039Armature With Fan 220V, R/l
31F000603044Plug
321903230010Ball DIN 5401-5,5MM-III-ST
34F000613048Bearing Bracket
412604616006Compression Spring
55F000610028Connecting Cable
56F000610031Connecting Cable
801F000601272Motor Housing Blue
804160720034ESwitch 127V
8042607200623Switch
805F000609274Power supply cord BR 2,00M 2 X 1,00MM H05 Vvf
805F000609280Power supply cord SAM 2,00M 2 X 1,00MM H05 Vvf
805F000609286Power supply cord AR 2,00M 2 X 0;75MM H05 Vvf
8062600707059Grommet Ø6,9 MM
810F000611030Carbon-Brush Set
836F000619048Spindle
837F000617034Cylindrical Gear
8382600301066Porous Bearing
839F000632274Chuck 10"
840F000632059Chuck Wrench
