Bosch GBM 10 RE

Bosch GBM 10 RE drill: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10 RE: 24 positions on 1 sheet

Bosch GBM 10 RE parts list (1 sheet)

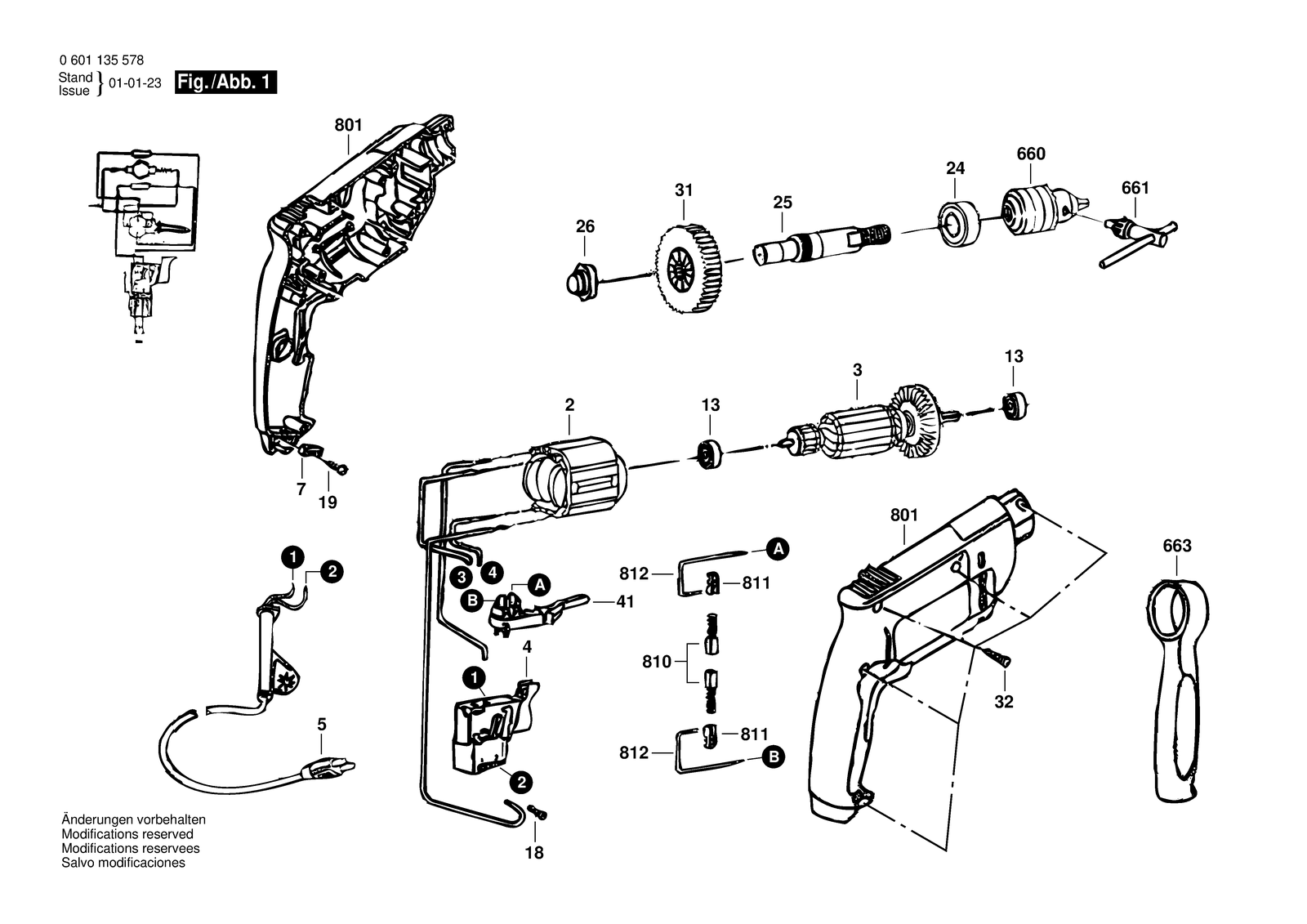

Bosch GBM 10 RE parts diagram, sheet 1
No.Part numberPart name
131900905029Ball Bearing 8X22X7
182603410001Socket head cap screw M3X6,5-4.8
199618087099Screw 4X16 MM
29618088953Field 220V
29618088956Pole Shoe 127V
249618081609Groove ball bearing
259618087183Spindle Bearing
269618086692Sintered-Metal Bushing
39618088954Armature With Fan 220V
39618088957Armature 127V
319618086704Cylindrical Gear
329618087099Screw 4X16 MM
42607200187Switch
42607200357Switch
41F000608012Change-Over Switch
59618087135Power supply cord
59618087136Power supply cord
661F000632059Chuck Wrench
6639618086864Handle
72601035001Cable Clip
8019618088955Housing
8109618086870Carbon Brush
8119618086695Brush Holder
8129618089207Connecting Cable
