Bosch GBM 10 E

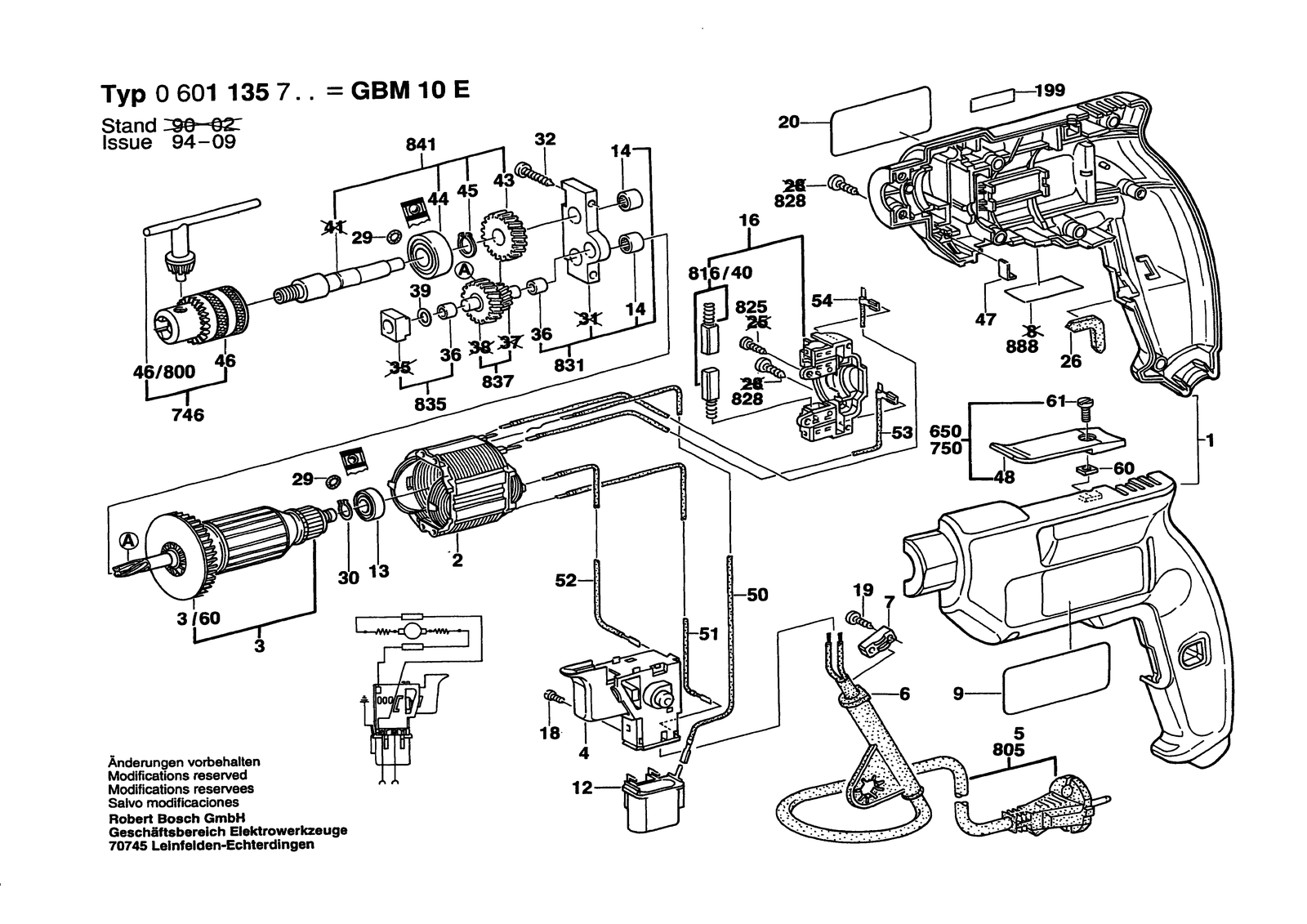

Bosch GBM 10 E drill: exploded parts diagram, 1 sheet, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10 E: 61 positions on 1 sheet
Bosch GBM 10 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104316 | Housing Section Blue |
| 12 | 2607329114 | Suppression Filter |
| 12 | 2607329138 | Suppression Capacitor |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 16 | 2605807052 | Brush Plate |
| 16 | 2605807055 | Brush Plate |
| 16 | 2605807060 | Brush Plate |
| 16 | 2609992606 | Brush Plate |
| 16 | 2609992618 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 199 | 1601110265 | Reference Plate |
| 2 | 2604220423 | Field 220-240V |
| 2 | 2604220446 | Field 100V |
| 20 | 2601118572 | Reference Plate Shadow Side |
| 20 | 2601118578 | Reference Plate Shadow Side |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 3 | 2604010778 | Armature 100V |
| 3 | 2604010779 | Armature 115V |
| 3 | 2604010780 | Armature 230-240V |
| 3/60 | 1619P11262 | Fan |
| 30 | 2600209004 | Spacer Ring |
| 32 | 2910611096 | Tapping Screw DIN 7983 ST4,2X32-C-H |
| 36 | 2600917004 | Needle bearing |
| 39 | 2600100627 | Shim 0,3 MM |
| 4 | 1617200089 | Switch |
| 4 | 2607200205 | Switch |
| 43 | 2606320046 | Cylindrical Gear Z=27 |
| 44 | 1900905232 | Groove ball bearing 6200-2Z DIN 625 |
| 45 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604420032 | Power supply cord GB 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2604448103 | Earth Conductor |
| 51 | 2604448045 | Cable Black L=98 MM |
| 52 | 2604448060 | Cable White L=173 MM |
| 53 | 2604448130 | Connecting Cable White L=88 MM |
| 54 | 2604448123 | Connecting Cable White L=73 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 60 | 2915121004 | Square Nut DIN 562-M4-04 |
| 61 | 2910091120 | Pan head screw DIN 85-M4X10-4.8 |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 746 | 1608571054 | Key Chuck Ø1-10 Mm, 1/2"-24UNF |
| 750 | 2608040050 | Channel End-Plate Black |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 825 | 2910611007 | Tapping Screw DIN 7981-B2,9X16-C-H |
| 828 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 831 | 2605807920 | Bearing Bracket |
| 835 | 2600917903 | Bearing Piece |
| 837 | 2606311906 | Toothed Shaft Z=12/24 |
| 841 | 2606135912 | Drilling Spindle Lefthand Threads 1/2", M6 |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601118576 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118577 | Manufacturer's nameplate Sunny Side |
