Bosch GBM 10

Bosch GBM 10 drill: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10: 17 positions on 1 sheet

Bosch GBM 10 parts list (1 sheet)

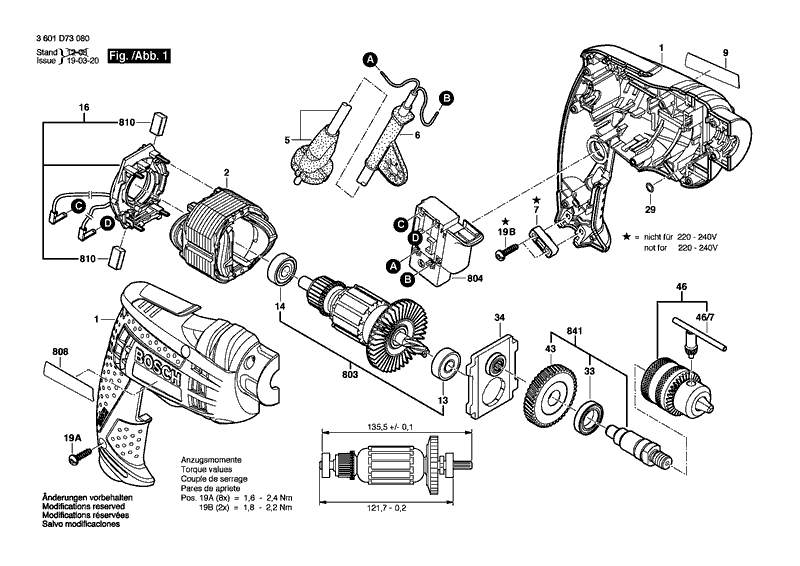

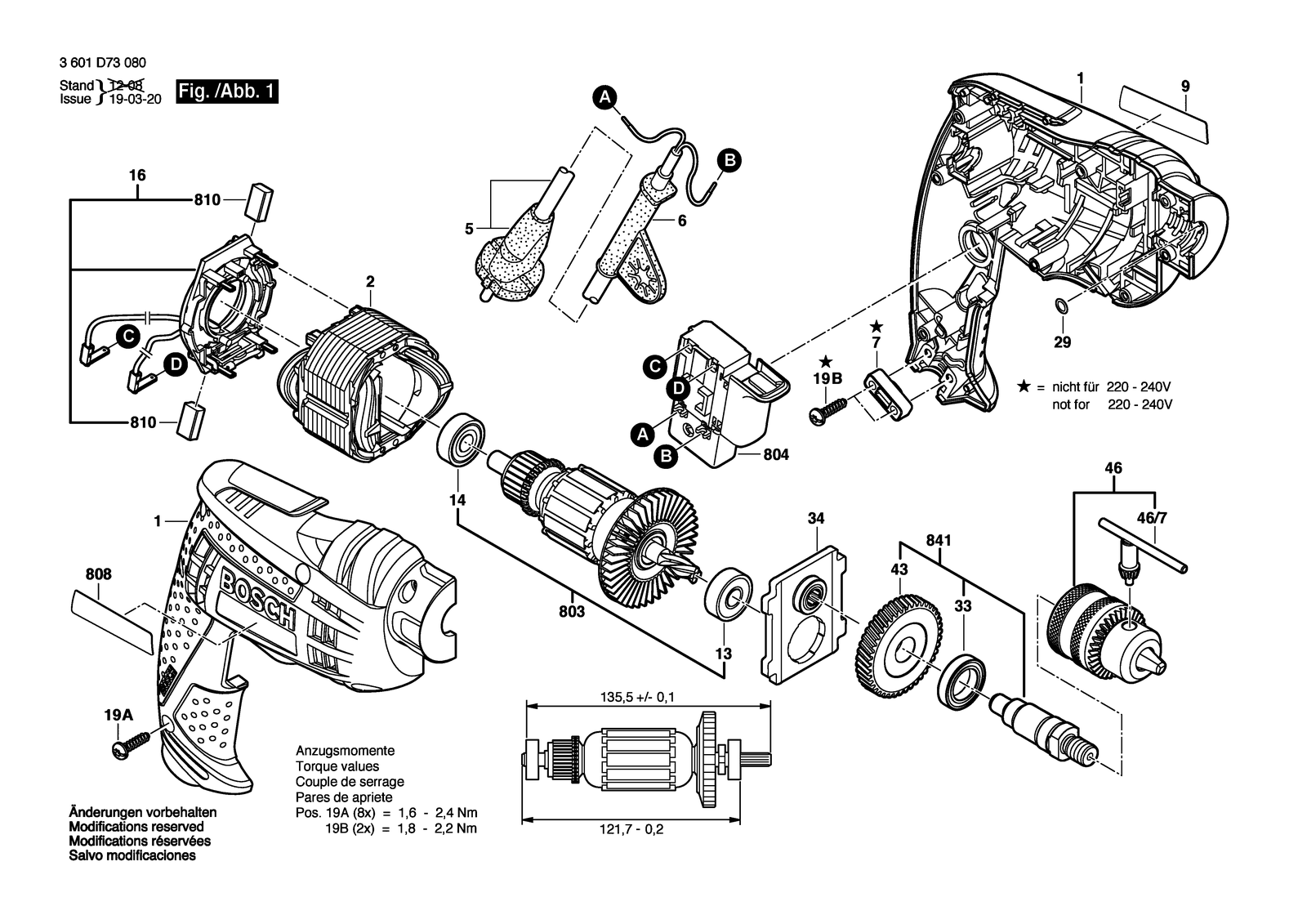

Bosch GBM 10 parts diagram, sheet 1
No.Part numberPart name
12609100641Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162609120356Brush Plate
22609120296Field 220-240V
291900210000O-Ring 5,0X1,5 MM
342609199158Bearing Bracket
461608571079Chuck Ø1,0-10 Mm, 3/8"
46/72607950007Chuck Wrench SG2
51604460262Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460245Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
62600707059Grommet Ø6,9 MM
8031619PS1130Armature set
8041607200508On-Off Switch Black
8102610391290Carbon-Brush Set
8412609120406Spindle Assembly
