Bosch GBM 10-2

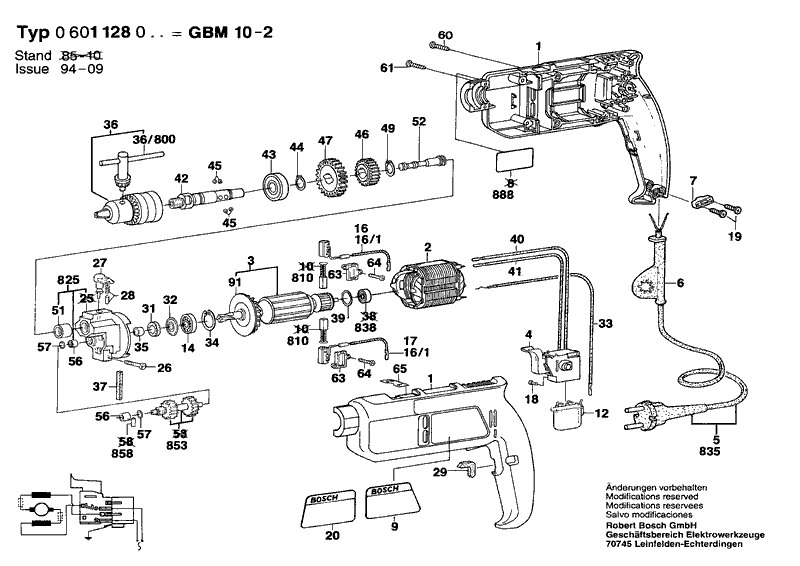

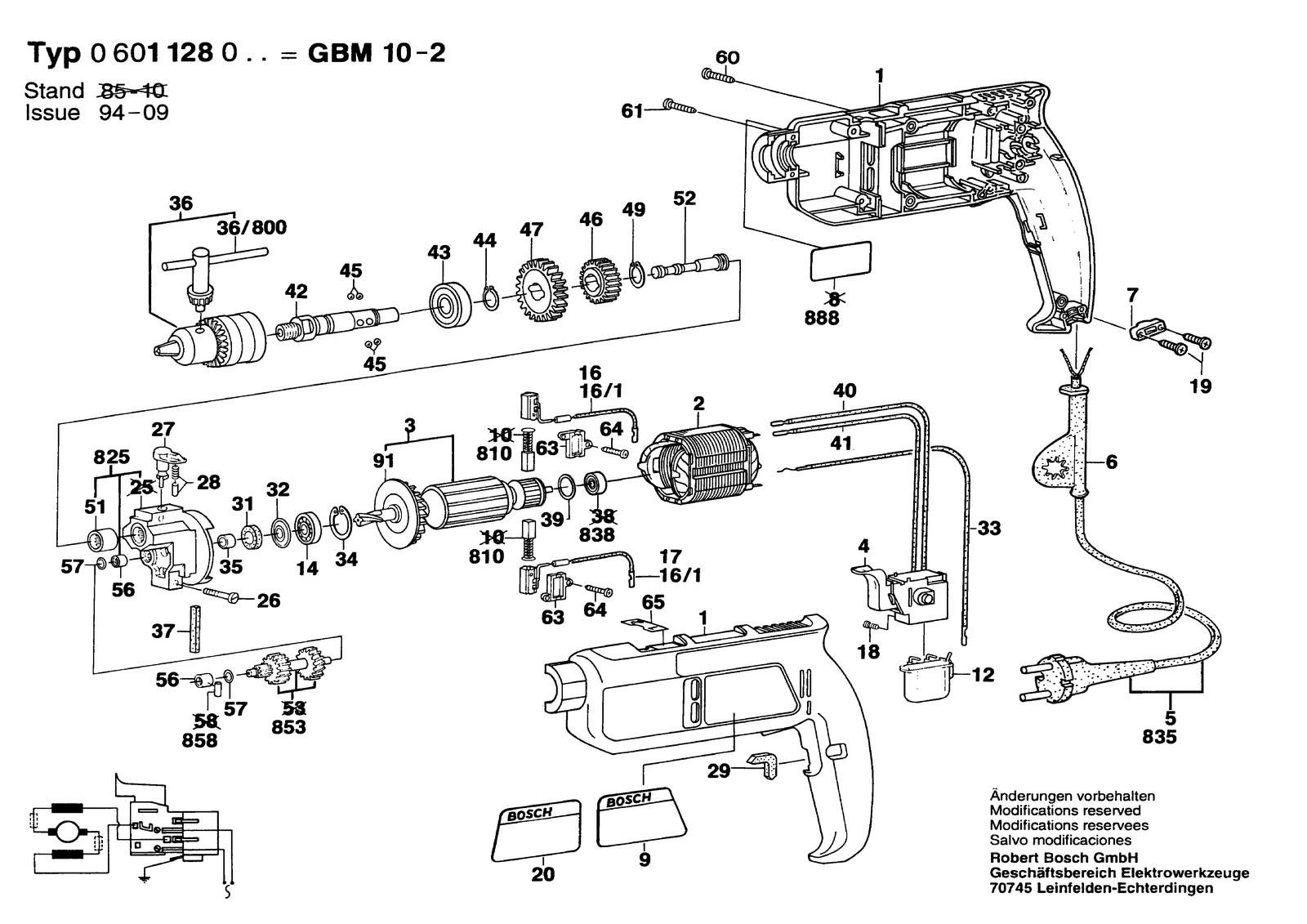

Bosch GBM 10-2 drill: exploded parts diagram, 1 sheet, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10-2: 68 positions on 1 sheet
Bosch GBM 10-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104212 | Housing Section Blue |
| 12 | 2607329114 | Suppression Filter |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604465054 | Suppression Filter |
| 16/1 | 2604449026 | Brush Holder |
| 17 | 2604465054 | Suppression Filter |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 2 | 2604220411 | Field 240V |
| 2 | 2604220421 | Field 110-115V |
| 2 | 2604220422 | Field 110-115V |
| 2 | 2604220423 | Field 220-240V |
| 20 | 2601110440 | Reference Plate |
| 20 | 2601110442 | Sticker |
| 26 | 2603435005 | Cyl Head tapping screw |
| 27 | 2602026042 | Rotary Knob |
| 28 | 2600590006 | Ratchet Cap |
| 29 | 2601022000 | Damping Plate |
| 3 | 2604010553 | Armature 230-240V |
| 3 | 2604010561 | Armature With Fan 100V |
| 3 | 2604010562 | Armature 110-115V |
| 31 | 2600108002 | Felt Washer |
| 32 | 2600500002 | Cupped Washer |
| 33 | 2604448097 | Earth Conductor |
| 34 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 35 | 2600400008 | Receptacle |
| 36 | 1608571054 | Key Chuck Ø1-10 Mm, 1/2"-24UNF |
| 36 | 1608572007 | Keyless Chuck Ø1-10 Mm, 1/2" |
| 36/800 | 2607950007 | Chuck Wrench SG2 |
| 37 | 2601005009 | Felt Strip |
| 39 | 1900210012 | O-Ring 15X2 MM |
| 4 | 2607200260 | Switch |
| 40 | 2604448000 | Connecting Cable White L=154 MM |
| 41 | 2604448018 | Connecting Cable White L=124 MM |
| 42 | 2606135017 | Drilling Spindle 1/2"-20 Unf |
| 43 | 1900905163 | Groove ball bearing 17X35X10 |
| 44 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 45 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 46 | 2606317051 | Cylindrical Gear Z=35 |
| 47 | 2606317050 | Cylindrical Gear Z=48 |
| 49 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 5 | 2604460053 | Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460056 | Power supply cord |
| 5 | 2604460061 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460141 | Power supply cord |
| 51 | 2600910000 | Needle bearing |
| 52 | 2603105035 | Control Shaft |
| 56 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 57 | 2600100607 | Shim 0,3 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 60 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 61 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 63 | 2601015054 | Brush Plate |
| 64 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 65 | 2601110445 | Sticker |
| 7 | 2601035001 | Cable Clip |
| 810 | 2604321905 | Carbon-Brush Set |
| 825 | 2605807911 | Bearing Bracket |
| 835 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 853 | 2606100912 | Spindle With Gear Z= 9/22/21 |
| 858 | 1900210129 | O-Ring 28X3 MM |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601110439 | Sticker |
| 91 | 2606610022 | Fan |
