Bosch GBM 10

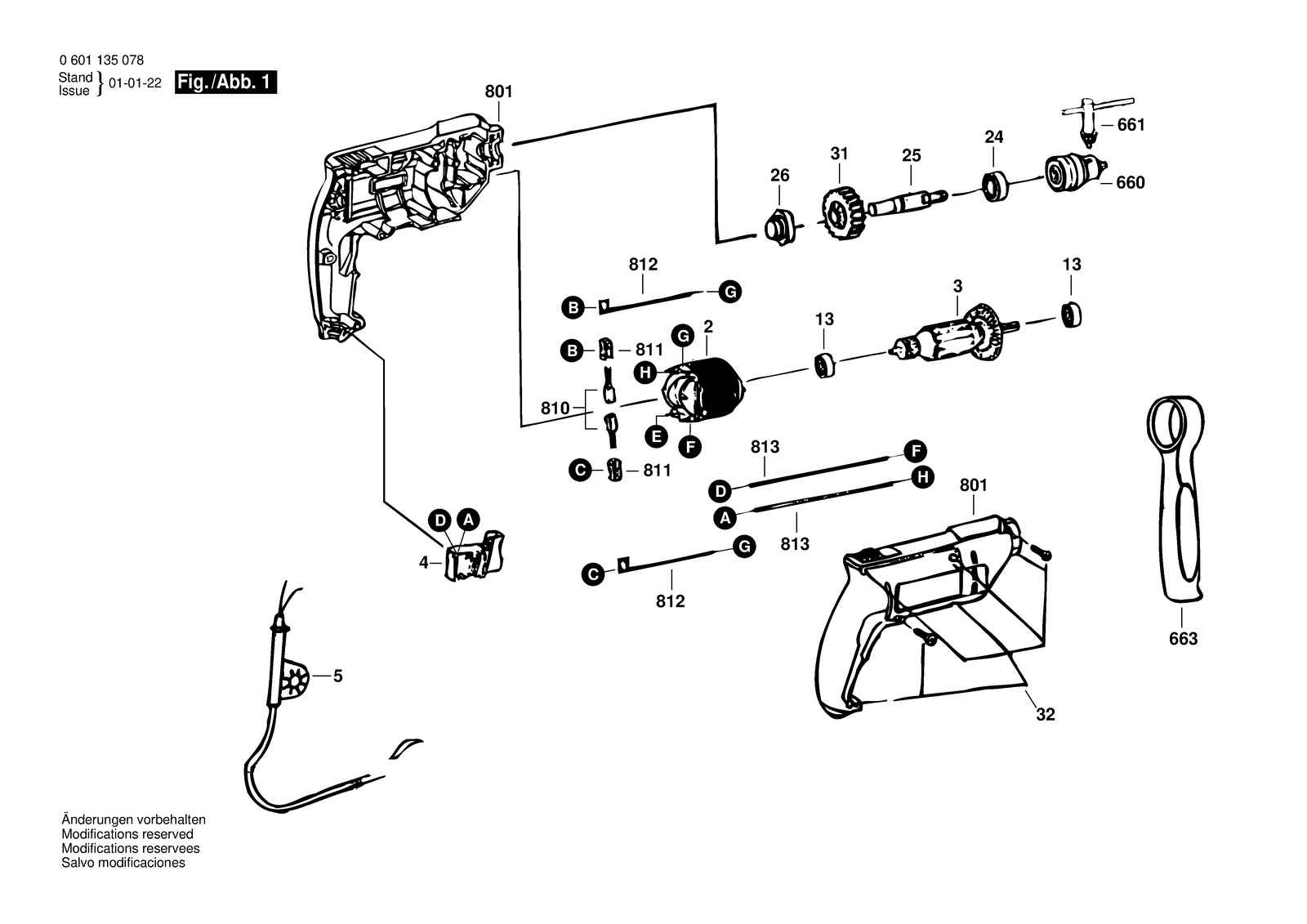

Bosch GBM 10 drill: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10: 21 positions on 1 sheet
Bosch GBM 10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1900905029 | Ball Bearing 8X22X7 |
| 2 | 9618086991 | Pole Shoe 127V |
| 2 | 9618086993 | Pole Shoe 220V |
| 24 | 9618081609 | Groove ball bearing |
| 25 | 9618087183 | Spindle Bearing |
| 26 | 9618086692 | Sintered-Metal Bushing |
| 3 | 9618086795 | Armature With Fan 127V |
| 3 | 9618086800 | Armature With Fan 220V |
| 31 | 9618086704 | Cylindrical Gear |
| 32 | 9618087099 | Screw 4X16 MM |
| 4 | 9618086703 | Switch |
| 5 | 9618087135 | Power supply cord |
| 5 | 9618087136 | Power supply cord |
| 660 | 1608571079 | Chuck Ø1,0-10 Mm, 3/8" |
| 661 | F000632059 | Chuck Wrench |
| 663 | 9618086864 | Handle |
| 801 | 9618086793 | Housing |
| 810 | 9618086870 | Carbon Brush |
| 811 | 9618086695 | Brush Holder |
| 812 | 2604448018 | Connecting Cable White L=124 MM |
| 813 | 2604448018 | Connecting Cable White L=124 MM |
