Bosch GBM 10

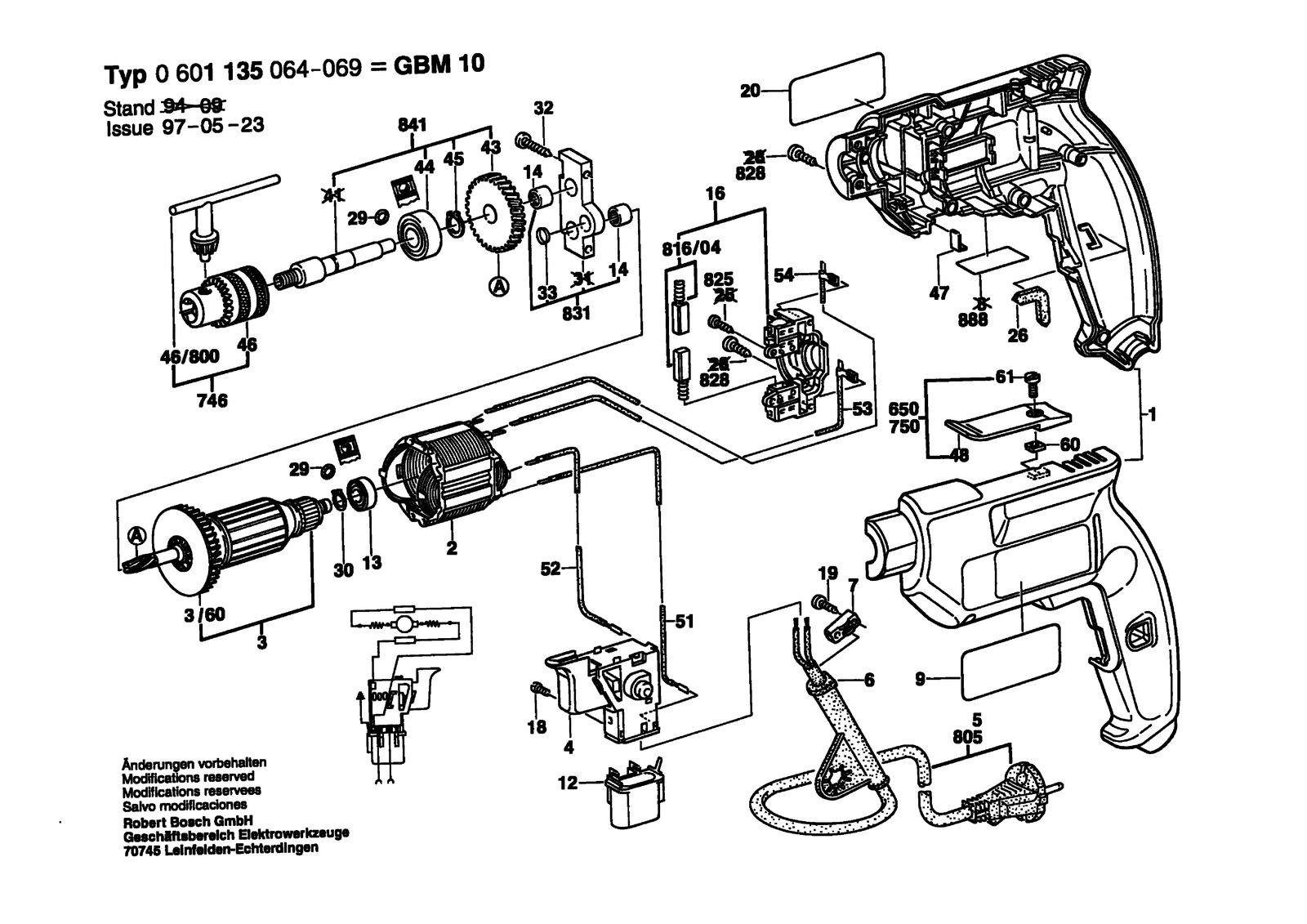

Bosch GBM 10 drill: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10: 55 positions on 1 sheet
Bosch GBM 10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104316 | Housing Section Blue |
| 12 | 2607329114 | Suppression Filter |
| 12 | 2607329138 | Suppression Capacitor |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 16 | 2605807052 | Brush Plate |
| 16 | 2605807055 | Brush Plate |
| 16 | 2605807057 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 2 | 2604220396 | Field 100V |
| 2 | 2604220398 | Field 240V |
| 2 | 2604220399 | Field 240V |
| 2 | 2604220484 | Field 115V |
| 20 | 2601118572 | Reference Plate Shadow Side |
| 29 | 2600210036 | O-Ring 5,0X1,75 MM |
| 3 | 2604010782 | Armature 100V |
| 3 | 2604010783 | Armature 115V |
| 3 | 2604010784 | Armature 230-240V |
| 3/60 | 1619P11262 | Fan |
| 30 | 2600209004 | Spacer Ring |
| 32 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 33 | 2605500111 | Sealing cap |
| 4 | 2607200260 | Switch |
| 4 | 2607200362 | On-Off Switch |
| 43 | 2606320021 | Cylindrical Gear Z=46 |
| 44 | 1900905232 | Groove ball bearing 6200-2Z DIN 625 |
| 45 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 46/800 | 2607950007 | Chuck Wrench SG2 |
| 47 | 2601330005 | Pressure Plate |
| 5 | 1604460431 | Power supply cord |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460145 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460282 | Power supply cord I / BR 2,65M 2 X 1,0MM H05 Vv-F |
| 51 | 2604448129 | Connecting Cable Black L=83 MM |
| 52 | 2604448060 | Cable White L=173 MM |
| 53 | 2604448130 | Connecting Cable White L=88 MM |
| 54 | 2604448123 | Connecting Cable White L=73 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 60 | 2915121004 | Square Nut DIN 562-M4-04 |
| 61 | 2910091120 | Pan head screw DIN 85-M4X10-4.8 |
| 7 | 2601035001 | Cable Clip |
| 746 | 1608571054 | Key Chuck Ø1-10 Mm, 1/2"-24UNF |
| 750 | 2608040050 | Channel End-Plate Black |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321916 | Carbon-Brush Set |
| 825 | 2910611007 | Tapping Screw DIN 7981-B2,9X16-C-H |
| 828 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 831 | 2605807921 | Bushing |
| 841 | 2606135913 | Drilling Spindle 1/2",1/4 |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601110954 | Sticker Sunny Side |
