Bosch GBM 10

Bosch GBM 10 universal one-speed drill: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBM 10: 35 positions on 1 sheet

Bosch GBM 10 parts list (1 sheet)

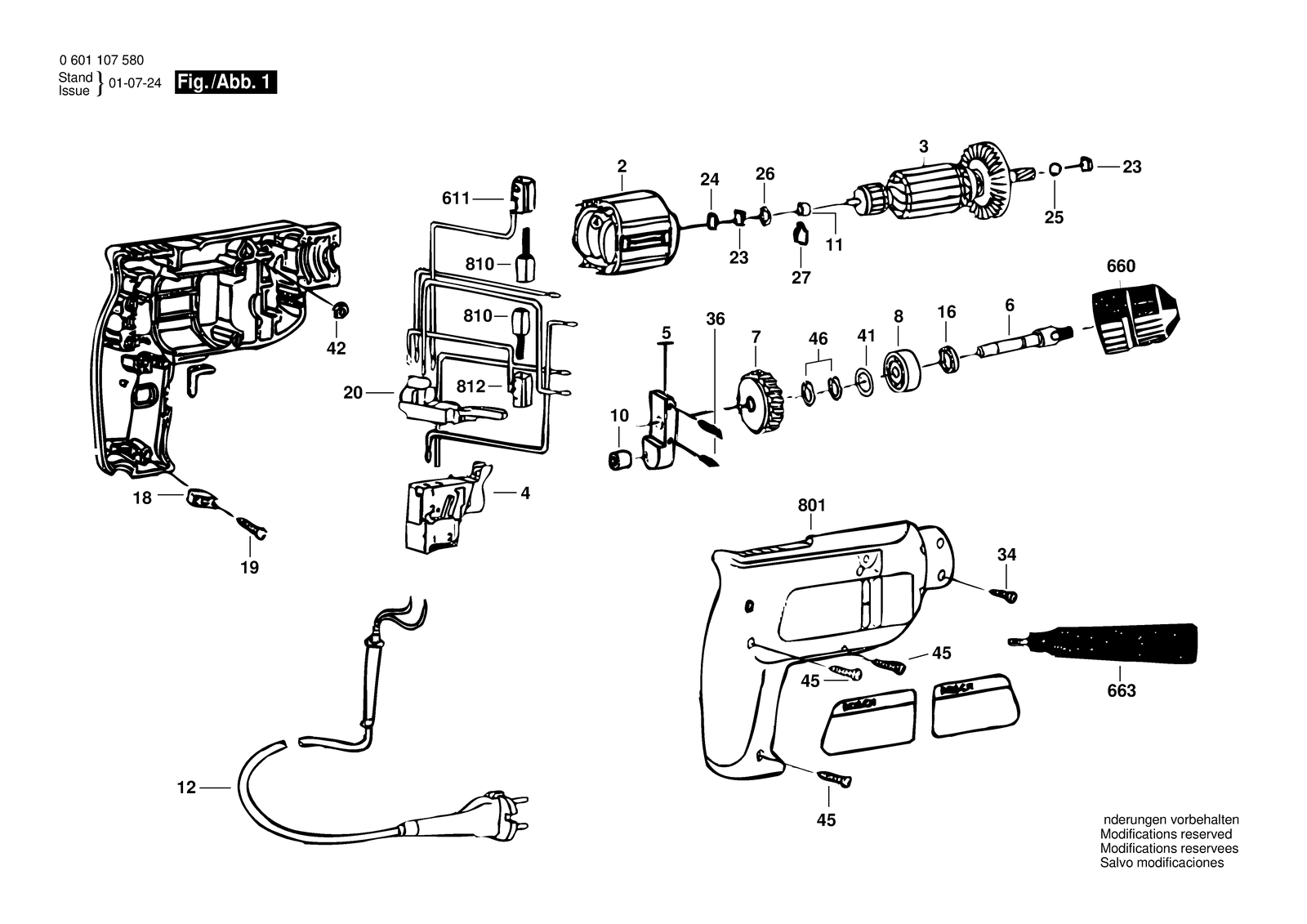

Bosch GBM 10 parts diagram, sheet 1
No.Part numberPart name
10F000600231Needle bearing
111900301004Sintered-Metal Bushing
129618089009Power supply cord
129618089010Power supply cord
169618083190Ring
182601035001Cable Clip
199618087099Screw 4X16 MM
29618086569Pole Shoe 220V
29618086570Pole Shoe 220V
202607200198Change-Over Switch
231601000013Pressure Plate 1,5 MM
242601000018Intermediate Plate 0,3 MM
251903230009Ball DIN 5401-5 G28
261610210014O-Ring 8,0X2,5 MM
272601020005Lubricating Felt
39618086768Armature With Fan 220V
39618086769Armature With Fan 220V
342910211007Tapping Screw DIN 7971-BZ2,9X16
369618084983Screw
42607200187Switch
42607200357Switch
419618083183Washer Thick 0,2 MM
419618083184Washer Thick 0,3 MM
419618083185Washer Thick 0,5 MM
422915011007Hex Nut DIN 934-M6-8-A
459618087099Screw 4X16 MM
462916650001Spring retaining ring DIN 471-10X1MM-FST
59618083219Support
69618086222Drilling Spindle
6119618086121Brush Holder
72606320021Cylindrical Gear Z=46
81900905232Groove ball bearing 6200-2Z DIN 625
8019618086575Motor Housing
8101607014117Carbon Brush
8122604449030Brush Holder
