Bosch GBL 800 E blower: exploded parts diagram, 2 sheets, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBL 800 E: 49 positions on 2 sheets

Bosch GBL 800 E parts list (2 sheets)

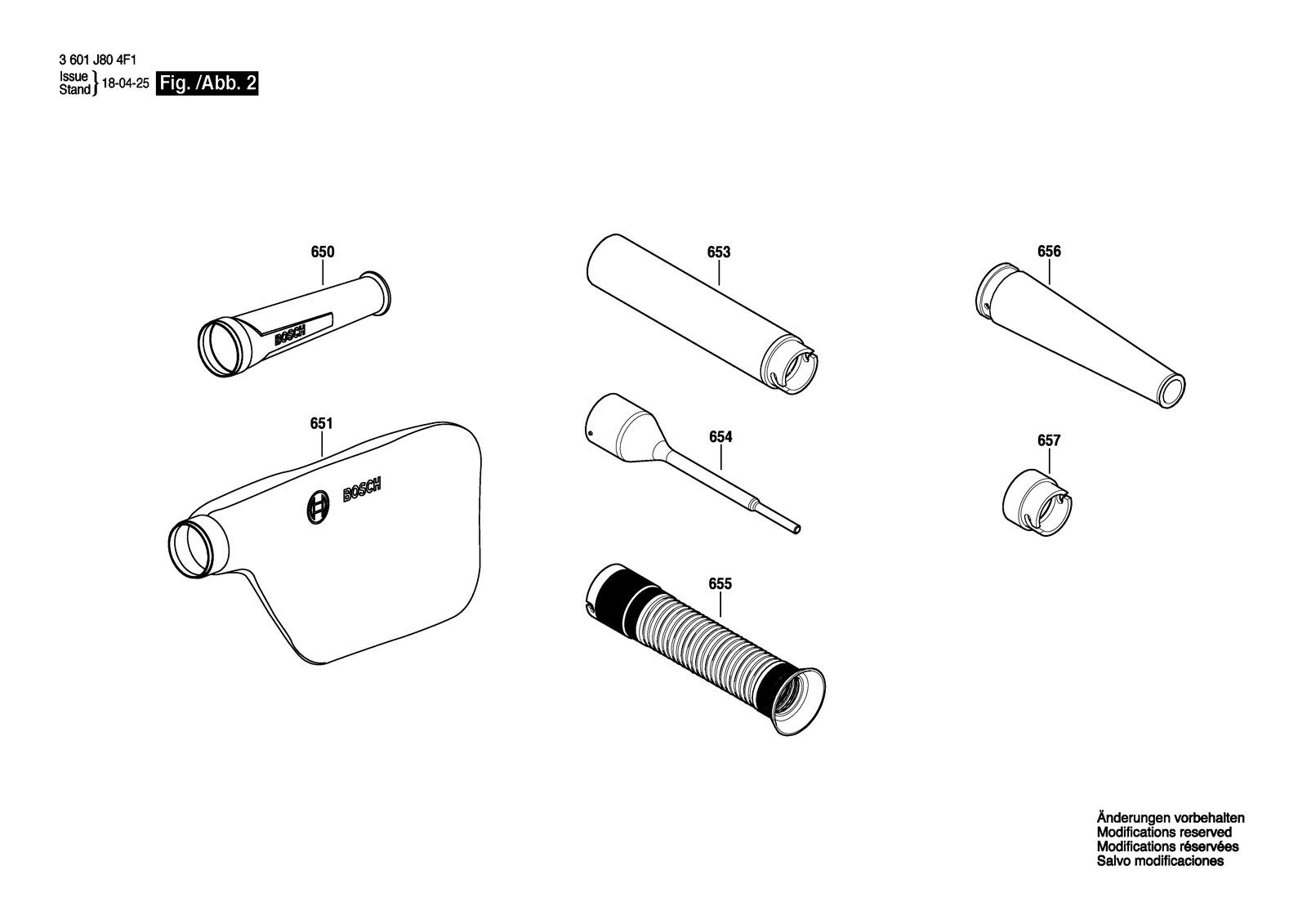

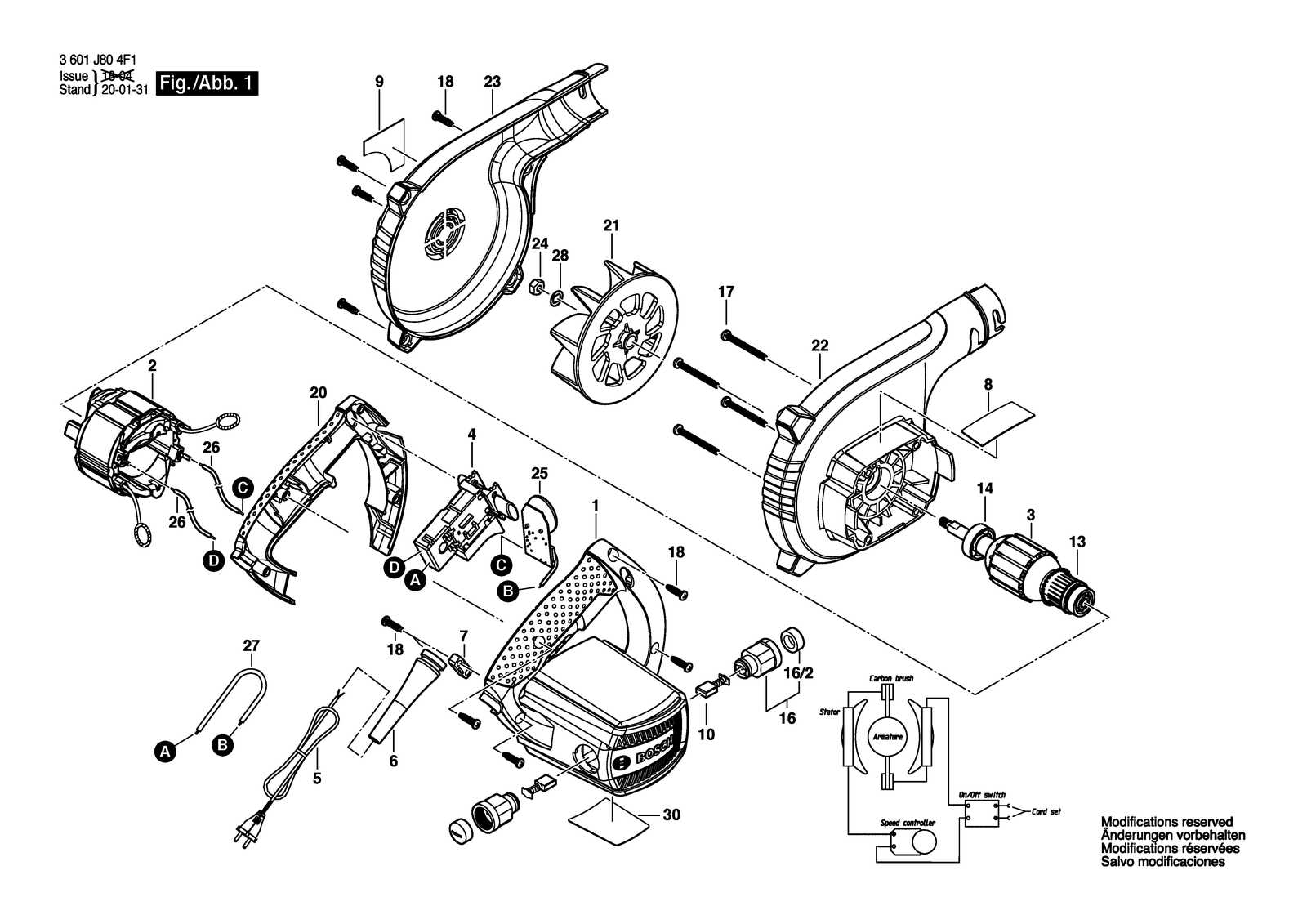

Bosch GBL 800 E parts diagram, sheet 1Bosch GBL 800 E parts diagram, sheet 2
No.Part numberPart name
1160510829BMotor Housing
101604321129Carbon Brush
131900905018Ball Bearing 7X22X7
141900905025Ball Bearing 9X26X8
161600A00187Brush Holder
16/2F002G31065Insulating Cap
172914201712Screw 4X40MM
18F002G31025Screw
21604220439Field 220-240V
201605132159Handle
211606610156Fan
221600A0015NFan Housing
231600A0015PFan Cover
241613300006Hex Nut M6
251607233593Controller
251607233594Controller
261600A00FT2Connecting Cable
271604413008Connecting Cable
281600100036Cover Disc
31604010B1EArmature 230V
31604010B1GArmature 220-230V
301600A00B7YWarning Label
301601118D21Warning Plate
301601118N89Warning Plate
42607200637On-Off Switch
51604460244Power supply cord GB 230V 4,15M 2 X 1,0MM H05RN-F
51604460245Power supply cord CN 2,65M 2 X 0,75MM H05 Vv-F
51604460264Power supply cord EU 230V 4,15M 2X0,75 MM H05VV-F
51604460287Power supply cord I/br 4,15M 2 X 1,0MM H05VV-F
5160446072MPower supply cord
52610915891Power supply cord
5F002G30101Power supply cord Ind
62600703017Grommet Ø6,4-Ø7,2X76 MM
62600703019Grommet Ø8,7-Ø9,6X76 MM
6501605190265Nozzle
6511605411034Dust Bag
6531619PA9088Extension Tube
6541619PA9089Nozzle
6551619PA9228Flexible Connection
6561619PA9087Nozzle
6571600A01595Adapter
72601035001Cable Clip
8160111A171Type Label
8160111A5YCNameplate
8160111A5YDNameplate
86082942F9ZNameplate
91601118N81Manufacturer's nameplate GBL 800 E
9160111C0ZMLabel GBL 800 E Heavy Duty
9160111C2L1Label GBL 82-270
