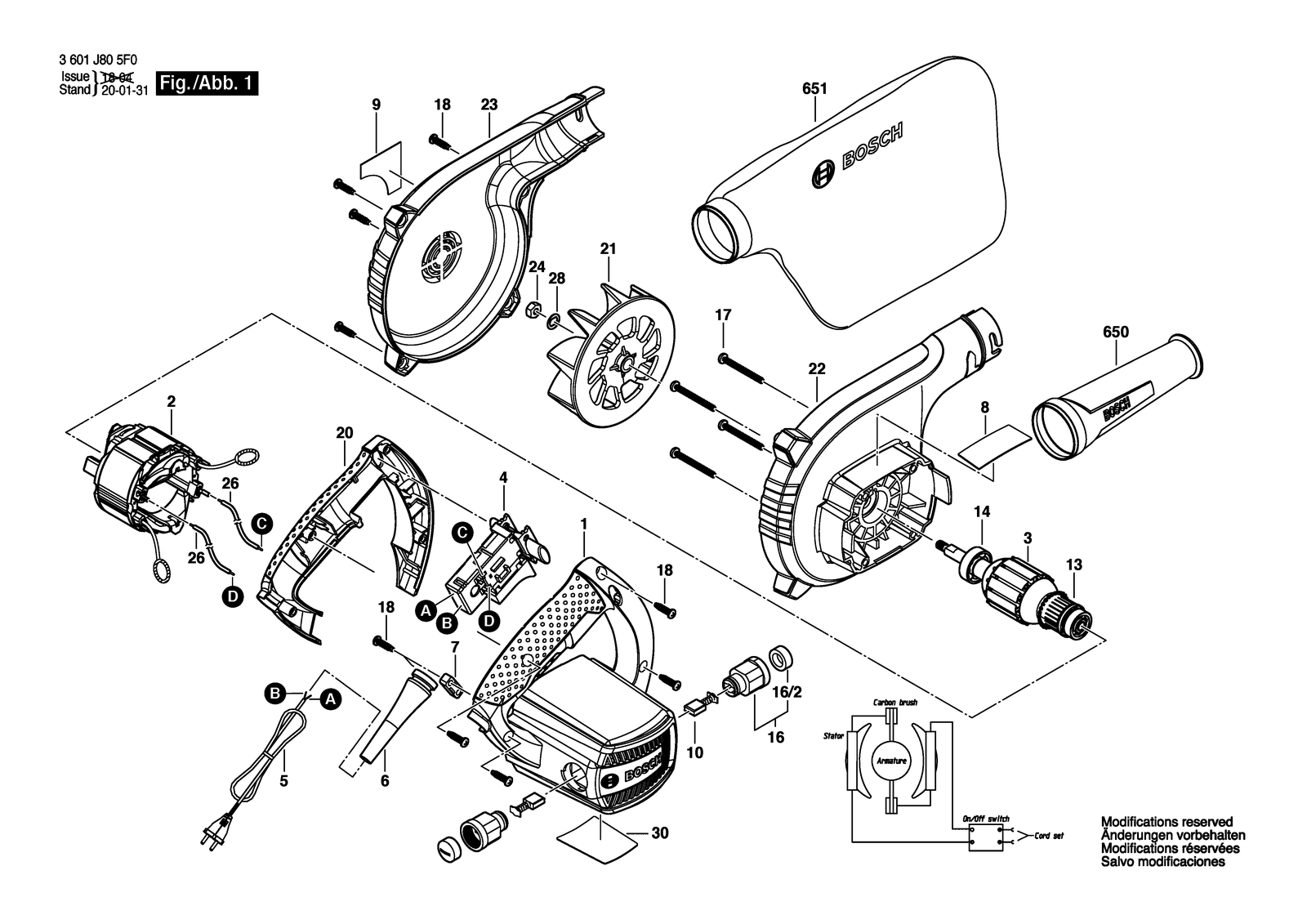

Bosch GBL 620 blower: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBL 620: 31 positions on 1 sheet
Bosch GBL 620 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160510829C | Motor Housing |
| 10 | 1604321129 | Carbon Brush |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 1900905025 | Ball Bearing 9X26X8 |
| 16 | 1600A00187 | Brush Holder |
| 16/2 | F002G31065 | Insulating Cap |
| 17 | 2914201712 | Screw 4X40MM |
| 18 | F002G31025 | Screw |
| 2 | 160422056J | Field |
| 20 | 160513215A | Handle |
| 21 | 160661016T | Fan |
| 22 | 1600A0015N | Fan Housing |
| 23 | 1600A0015P | Fan Cover |
| 24 | 1613300006 | Hex Nut M6 |
| 26 | 1600A00FT2 | Connecting Cable |
| 28 | 1600100036 | Cover Disc |
| 3 | 1604010B92 | Armature |
| 3 | 1604010BA6 | Armature |
| 30 | 1601118N89 | Warning Plate |
| 4 | 2607200637 | On-Off Switch |
| 5 | 1604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05RN-F |
| 5 | 1604460264 | Power supply cord EU 230V 4,15M 2X0,75 MM H05VV-F |
| 5 | F002G30101 | Power supply cord Ind |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 650 | 1605190265 | Nozzle |
| 651 | 1605411034 | Dust Bag |
| 7 | 2601035001 | Cable Clip |
| 8 | 160111A5BY | Nameplate |
| 8 | 160111A5Y9 | Nameplate |
| 8 | 160111A5YA | Nameplate |
| 9 | 160111C2A4 | Label GBL 620 |
