Bosch GBL 550

Bosch GBL 550 manual blower: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBL 550: 46 positions on 1 sheet

Bosch GBL 550 parts list (1 sheet)

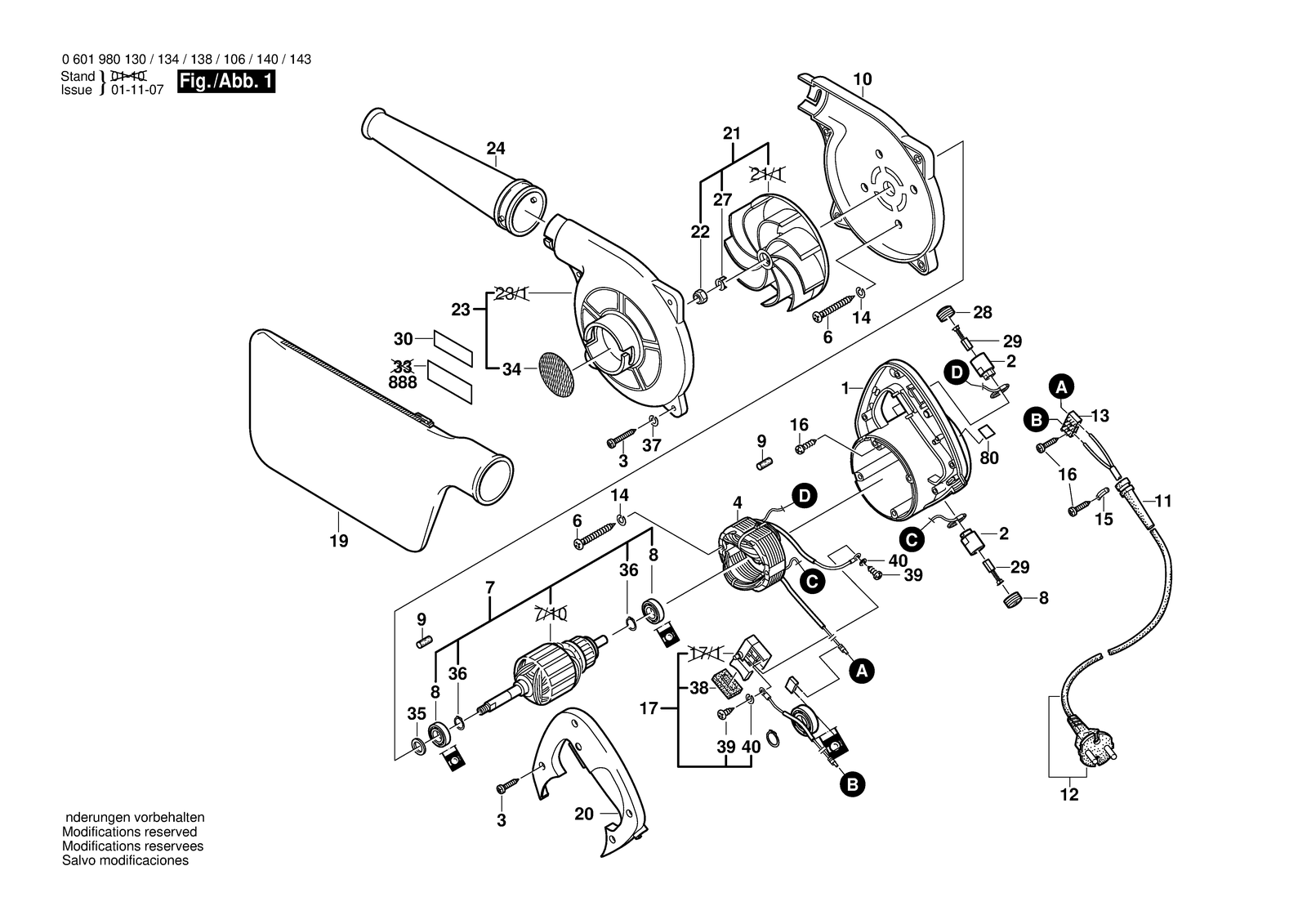

Bosch GBL 550 parts diagram, sheet 1
No.Part numberPart name
11609203379Motor Housing Blue
101609203387Blower Casing Blue
111609203388Grommet
121609203389Power supply cord L=4M
121609203463Power supply cord
121609203466Power supply cord
121609203604Power supply cord
121609203D30Power supply cord
131609203390Connecting terminal
141609203391Spring Lock Washer Ø 5,3 MM
151609203392Cable Clip
161609203393Tapping Screw 3X12 MM
171609203479On-Off Switch
191609203396Dust Bag Black
21609203380Brush Holder
201609203397Gripper Pan Blue
211609203483Fan Wheel
221609203399Hex Nut M6
231609203484Blower Casing
241609203401Blast Nozzle
271609203402Plain Washer
281609203403Screw Cap
291609203405Carbon-Brush Set
291609203465Carbon-Brush Set
31609203381Tapping Screw 4X18 MM
301601118472Manufacturer's nameplate
301601118565Manufacturer's nameplate
341609203406Protective Grille Black
351609203407Friction Washer 8,2X12,6X1,MS
361609203408Grip Ring
371609203409Spring Washer 4,2 MM
381609203410Foam Plastics Gray
391609203411Countersunk-Head Screw M3X4 MM
41609203382Field 220-240V
41609203461Field 115V
41609203467Field 100V
401609203412Spring Washer 3,2 MM
61609203383Tapping Screw 5X38 MM
71609203480Armature 220-240V
71609203481Armature 115V
71609203482Armature 100V
81609203385Groove ball bearing
801611110855Sticker
803601119137Warning Plate Caution
888160111A3H4Nameplate
91609203386Holding Pin
