Bosch GBH 8-65 DCE
Bosch GBH 8-65 DCE rotary hammer: exploded parts diagram, 2 sheets, 132 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

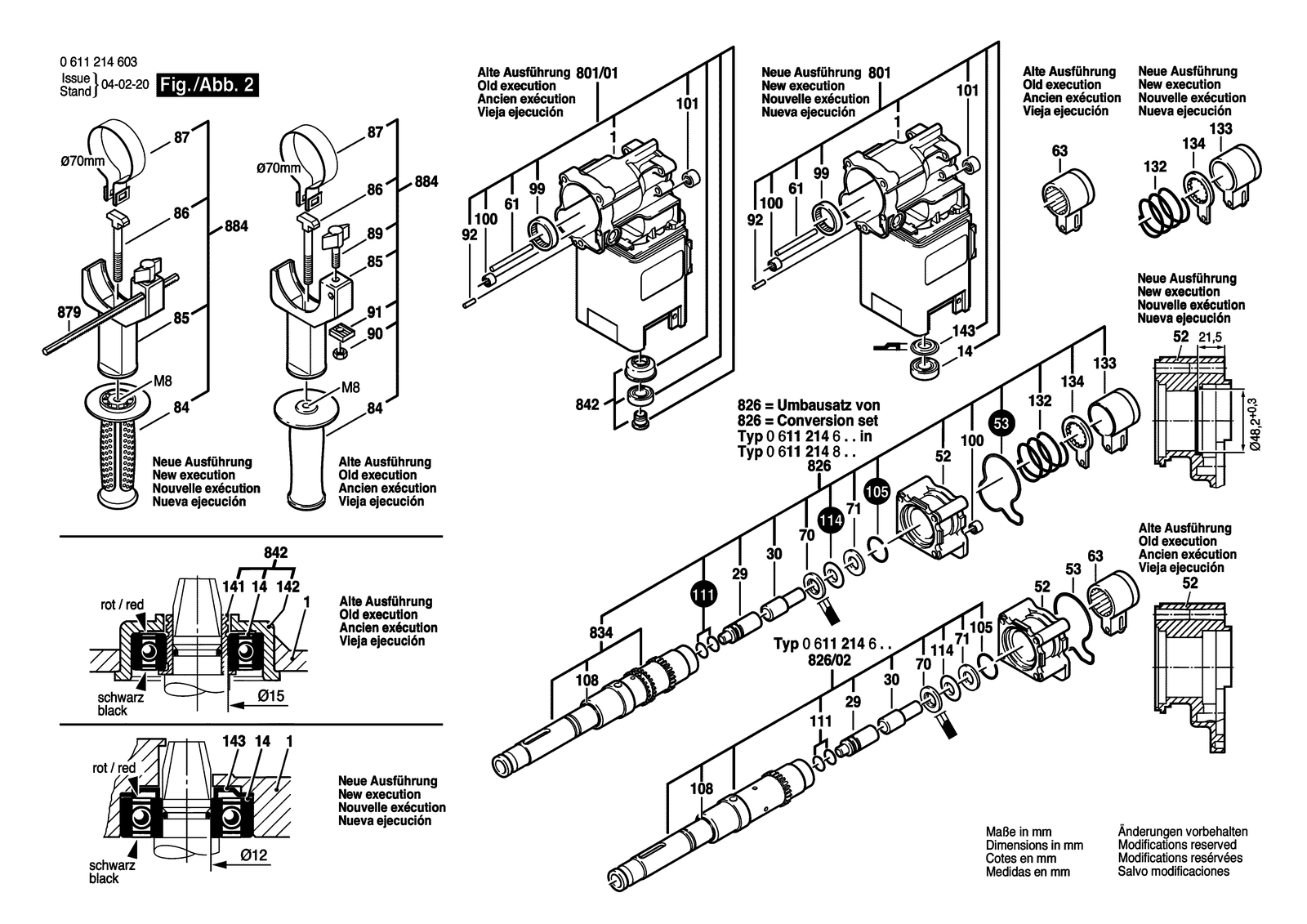

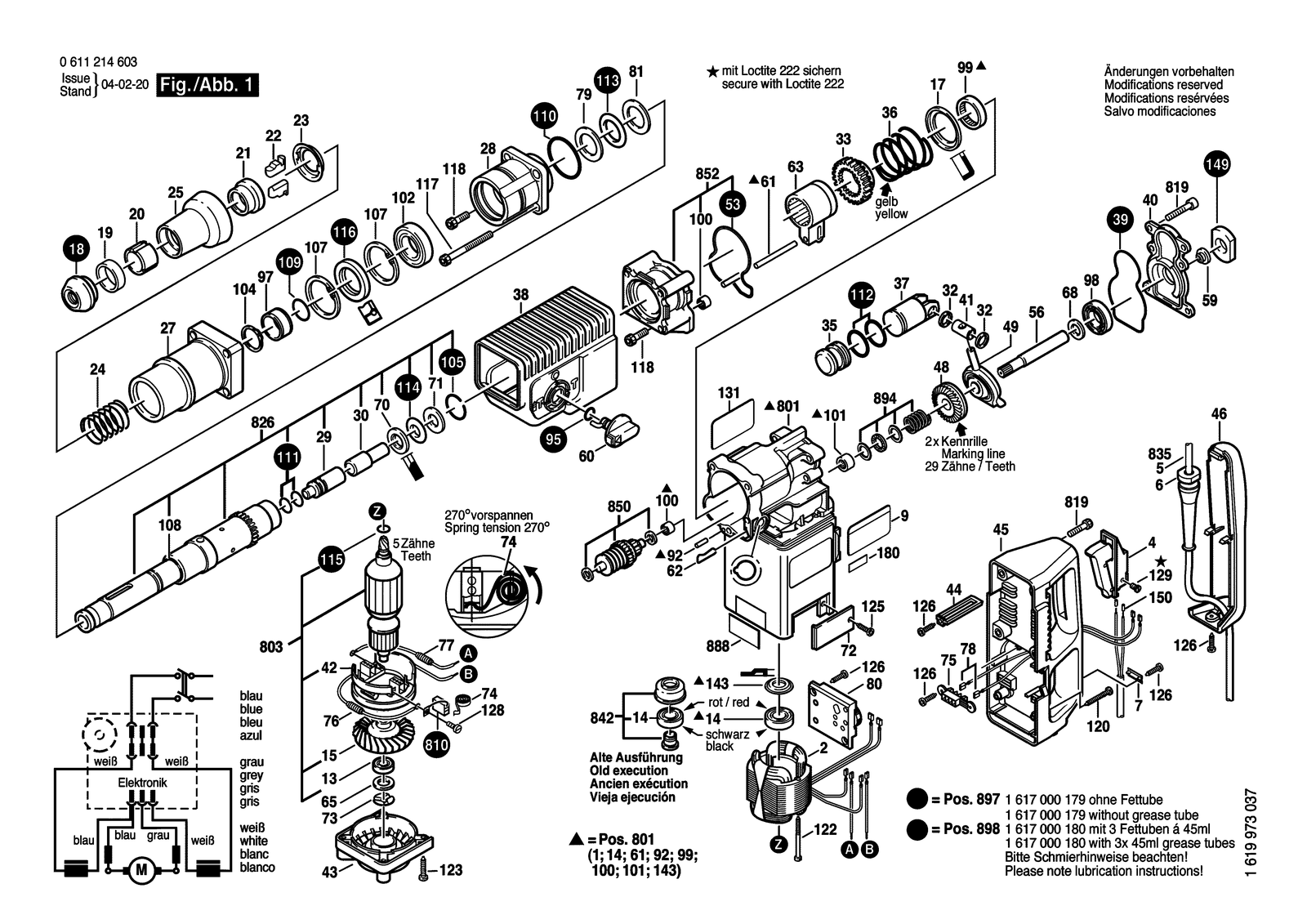

All parts of Bosch GBH 8-65 DCE: 132 positions on 2 sheets
Bosch GBH 8-65 DCE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 101 | 2600910000 | Needle bearing |
| 102 | 1900900276 | Groove ball bearing 30X55X13 |
| 104 | 2916650017 | Spring retaining ring DIN 471 30X1,5 MM |
| 105 | 1610116004 | Spring retaining ring |
| 107 | 2916660024 | Spring retaining ring 55X2MM, DIN 472 |
| 108 | 2916550014 | Retaining ring 30X2 DIN7993-B30 |
| 109 | 1610210100 | O-Ring 27,0X1,5 MM |
| 110 | 1600210004 | O-Ring 54,0X3,0 MM |
| 111 | 1610210098 | O-Ring 16,0X2,5 MM |
| 112 | 1610210109 | O-Ring 26,0X4,0 MM |
| 113 | 1610210099 | O-Ring 30,0X8,0 MM |
| 114 | 1610210093 | O-Ring 17,0X8,0 MM |
| 115 | 1610210118 | O-Ring 10,0X1,0 MM |
| 116 | 1610283020 | Rotary shaft lip seal |
| 117 | 2910141262 | Hex Socket Head Cap Screw DIN 912-M8X80-8.8 |
| 118 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 120 | 2910211038 | Tapping Screw DIN 7971-ST4,8X38-F |
| 122 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 123 | 2910211236 | Tapping Screw DIN 7971-ST4,8X25-C |
| 125 | 2910601118 | Tapping Screw DIN 7972-B3,9X13 |
| 126 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 128 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 129 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 13 | 1610905009 | Groove ball bearing 9X26X8 |
| 131 | 1611110598 | Manufacturer's nameplate |
| 131 | 1611110707 | Manufacturer's nameplate |
| 132 | 1614619009 | Compression Spring |
| 133 | 1610390028 | Guide Bushing |
| 134 | 1610200018 | Retaining snap ring |
| 14 | 1610905015 | Groove ball bearing 15X32X9 |
| 143 | 2916120023 | Sealing disk 14,4-6201 Zjv Nilos |
| 149 | 1610108014 | Felt Disc |
| 15 | 1616610067 | Fan |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 17 | 1610500013 | Friction Washer |
| 18 | 1610508017 | Protective Cap |
| 180 | 3601119137 | Warning Plate Caution |
| 19 | 1610202016 | Cylinder Sleeve |
| 2 | 1614220100 | Field 110V |
| 2 | 1614220101 | Field 230-240V |
| 20 | 1610390015 | Spacer Tube |
| 21 | 1610520001 | Stop Sleeve |
| 22 | 1612300027 | Stopping Device |
| 23 | 1610290025 | Indexing Disk |
| 24 | 1614616009 | Compression Spring |
| 25 | 1610591009 | Protection Sleeve |
| 27 | 1615190028 | Protective Cap |
| 28 | 1615805062 | Bearing Flange |
| 29 | 1613124037 | Striker Pin |
| 30 | 1613124038 | Striker Pin |
| 32 | 1610101616 | Supporting Disc Thick 1,5 MM |
| 33 | 1616317041 | Cylindrical Gear Z=32/57 |
| 35 | 1618710055 | Striker |
| 36 | 1614621001 | Compression Spring |
| 37 | 1618700060 | Hammer Piston |
| 38 | 1615190027 | Covering hood Black |
| 39 | 1611015030 | Sealing Frame |
| 4 | 1617200040 | On-Off Switch |
| 40 | 1615808059 | Bearing cover |
| 41 | 1613219001 | Piston Pin |
| 42 | 1614336005 | Brush Holder |
| 43 | 1615808068 | Bearing cover Blue |
| 44 | 1611015032 | Frame |
| 45 | 1615133027 | Handle Black |
| 46 | 1615500269 | Handle Cover Black |
| 48 | 1616333025 | Crown Gear Z=29 |
| 49 | 1615819011 | Drive bearing |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460022 | Power supply cord J 5M 2 X 1,25MM Pvc |
| 5 | 1614460041 | Power supply cord |
| 53 | 1611015031 | Sealing Frame |
| 56 | 1613060012 | Toothed Shaft Z=10 |
| 59 | 1610591010 | Plug |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 1612026033 | Clamp Handle Black/red |
| 61 | 2917550138 | Straight Pin 5M6X70 Riko DIN 6325 |
| 62 | 1614680003 | Holding Spring |
| 63 | 1617000957 | Toolholder |
| 65 | 1610101617 | Supporting Disc Thick 2,5 MM |
| 68 | 1610101618 | Shim Thick 0,3 MM |
| 68 | 1610101621 | Shim Thick 0,1 MM |
| 7 | 1611034019 | Fastening Clamp |
| 7 | 1611034020 | Fastening Clamp |
| 70 | 1610103019 | Stop Disc |
| 71 | 1610101014 | Stop Disc |
| 72 | 1615500284 | Sealing cap Blue |
| 73 | 1610210082 | Clamping Ring |
| 74 | 1614652000 | Spiral Spring |
| 75 | 1615190011 | Socket Housing |
| 76 | 1617328016 | Suppression Filter Blue |
| 77 | 1617328017 | Suppression Filter Gray |
| 78 | 1614431022 | Connecting Cable White L=35 MM |
| 79 | 1610102623 | Supporting Disc Thick 3,0 MM |
| 80 | 1617233016 | Control device 230-240V |
| 80 | 1617233017 | Control device 110V |
| 801 | 1617000967 | Assembly Of Service Parts Blue |
| 803 | 1614011054 | Armature 230-240V |
| 803 | 1614011055 | Armature 100-110V |
| 81 | 1610102630 | Supporting Disc Thick 3,0 MM |
| 810 | 1617014110 | Carbon-Brush Set |
| 819 | 1617000123 | Hex Socket Head Cap Screw DIN 912-M6X25-10.9 |
| 826 | 1617000957 | Toolholder |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 1612025019 | Auxiliary Handle M8 |
| 842 | 1617000966 | Assembly Of Service Parts |
| 85 | 1618040055 | Support clamp Ø70 MM |
| 850 | 1617000934 | Spur Wheel Clutch |
| 852 | 1617000803 | Bearing Flange |
| 86 | 1613490001 | T-Head Bolt M8X80 MM |
| 87 | 1611316008 | Clamping Band Ø70 MM |
| 879 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 884 | 1612025035 | Auxiliary Handle Ø70 MM |
| 888 | 160111A3H3 | Nameplate |
| 89 | 1613480010 | Wing Screw M6X30 MM |
| 894 | 1617000169 | Needle-Roller Assembly |
| 897 | 1617000179 | Wear and Tear Part Set |
| 898 | 1617000180 | Wear and Tear Part Set |
| 9 | 1611110599 | Manufacturer's nameplate |
| 9 | 1611110706 | Manufacturer's nameplate |
| 90 | 1613300006 | Hex Nut M6 |
| 91 | 1611030010 | Clamping Plate |
| 92 | 2917550118 | Straight Pin 5M6X12 Riko DIN 6325 |
| 95 | 1900210114 | O-Ring 15X3 MM |
| 97 | 1610202014 | Inner Ring |
| 98 | 1610900023 | Groove ball bearing |
| 99 | 1610910068 | Needle bearing |
