Bosch GBH 7-46 DE
Bosch GBH 7-46 DE rotary hammer: exploded parts diagram, 2 sheets, 129 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

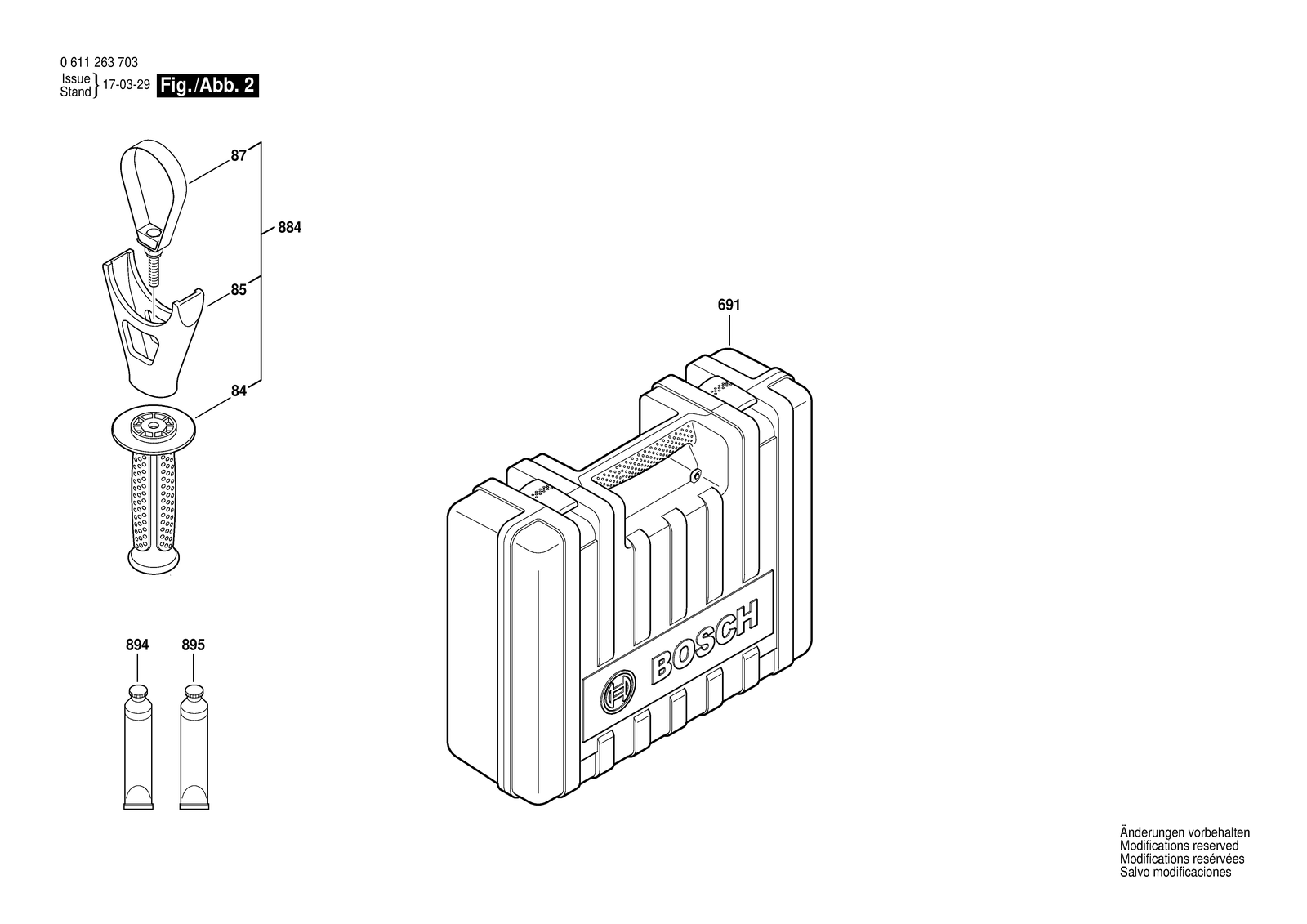

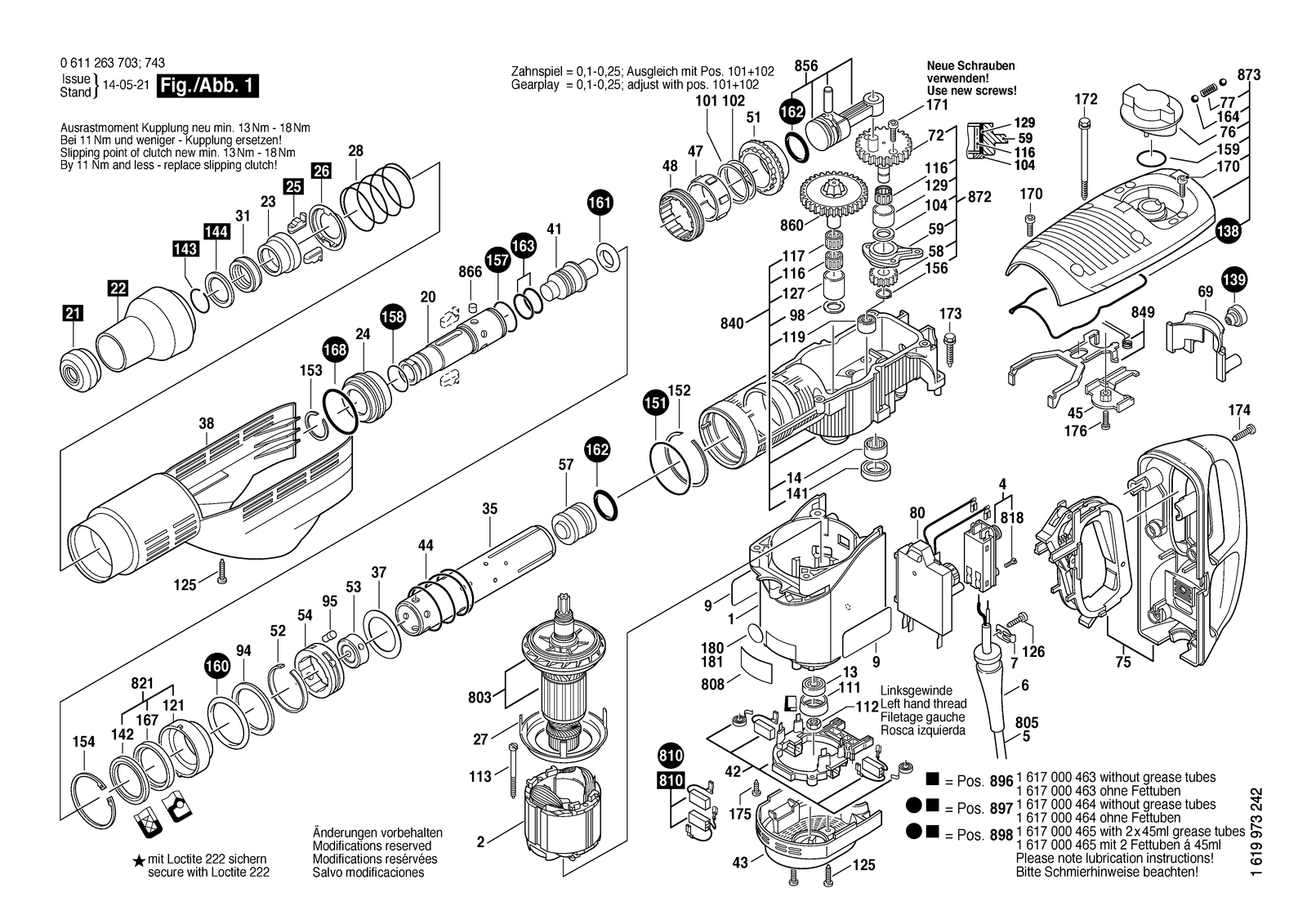

All parts of Bosch GBH 7-46 DE: 129 positions on 2 sheets
Bosch GBH 7-46 DE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108131 | Motor Housing Blue |
| 101 | 1610102049 | Shim Thick 0,45 MM |
| 102 | 1610102048 | Shim Thick 0,3 MM |
| 104 | 1610190027 | Stop Disc |
| 111 | 1610290046 | Bushing |
| 112 | 1613300007 | Hex Nut |
| 113 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 116 | 1610913029 | Needle-Roller Assembly |
| 117 | 1610913011 | Needle-Roller Assembly Ø10 MM |
| 119 | 1610910081 | Needle-Roller Bearing |
| 121 | 1610328016 | Bushing |
| 125 | 1613435011 | Torx Oval-Head Screw 4,8X19 |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 127 | 1610300060 | Bushing |
| 129 | 1610300067 | Bushing |
| 13 | 1610900026 | Groove ball bearing 8X24X8 |
| 138 | 1611015047 | Sealing Frame |
| 139 | 1610508050 | Plug |
| 14 | 1610910096 | Needle-Roller Bearing |
| 141 | 1610290028 | Rotary shaft lip seal |
| 142 | 1610290050 | Rotary shaft lip seal |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 144 | 1610103021 | Supporting Disc |
| 151 | 1610210148 | O-Ring 60,0X2,0 MM |
| 152 | 1614601029 | Retaining ring |
| 153 | 1614601028 | Retaining ring |
| 154 | 1610119011 | Spring retaining ring |
| 156 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 157 | 1610210142 | O-Ring 31,0X1,5 MM |
| 158 | 1610210139 | O-Ring 30,0X2,5 MM |
| 159 | 1610210141 | O-Ring 27,0X2,5 MM |
| 160 | 1610210140 | O-Ring 46,0X7,0 MM |
| 161 | 1610210145 | O-Ring 18,0X8,0 MM |
| 162 | 1610210109 | O-Ring 26,0X4,0 MM |
| 163 | 1610210144 | O-Ring 22,0X3,0 MM |
| 164 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 167 | 1610290051 | Rotary shaft lip seal |
| 168 | 1610210149 | O-Ring 46,0X5,0 MM |
| 170 | 2914551164 | Microencapsulated Screw |
| 171 | 1613414021 | Microencapsulated Screw |
| 172 | 1613435028 | Screw and washer assembly |
| 173 | 1613433001 | Screw and washer assembly 6,3X32 |
| 174 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 176 | 1613435029 | Thread-forming tap. Screw Silver M5X16-TORX,T25 |
| 180 | 1611110D21 | Sticker |
| 180 | 3601119137 | Warning Plate Caution |
| 181 | 1611110880 | Warning Plate |
| 181 | 1611110D20 | Sticker |
| 2 | 1614220124 | Field 220-240V |
| 2 | 1614220140 | Field 100-110V |
| 2 | 1614220141 | Field 110-120V |
| 20 | 1618597072 | Toolholder |
| 21 | 1610508035 | Protective Cap |
| 22 | 1610591021 | Protection Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 24 | 1610500021 | Headed Bush |
| 25 | 1612300027 | Stopping Device |
| 26 | 1610290025 | Indexing Disk |
| 27 | 1610591023 | Air-Deflector Ring |
| 28 | 1614621004 | Compression Spring |
| 31 | 1610290049 | Damping Ring |
| 35 | 1615806156 | Hammer Pipe |
| 37 | 1610102047 | Support Disc |
| 38 | 1615190142 | Covering hood |
| 4 | 1617200048 | Switch |
| 41 | 1613124080 | Striker Pin |
| 42 | 1614336026 | Brush Holder |
| 43 | 1615500305 | Fan Cover |
| 44 | 1614621005 | Compression Spring |
| 45 | 1610591039 | Sealing plate |
| 47 | 1619990149 | Spacer Ring |
| 48 | 1619990151 | Clutch Sleeve |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460348 | Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460449 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460047 | Power supply cord IL 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460056 | Power supply cord J 5M 2 X 1,25MM Gummi |
| 5 | 1614460070 | Power supply cord SAM 4,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1614460075 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460086 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460094 | Power supply cord BR 220V 4,15M 2 X 1,0MM H07 Rn-F |
| 51 | 1616333035 | Crown Gear Z=45 |
| 52 | 1614601056 | Retaining ring |
| 53 | 1610231000 | Guide Bushing |
| 54 | 1610190033 | Spacer Tube |
| 57 | 1618710083 | Striker |
| 58 | 1616317056 | Cylindrical Gear Z=17 |
| 59 | 1615805067 | Bearing Pedestal |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 69 | 1610099006 | Retaining Bracket |
| 691 | 161543851A | Carrying Case |
| 7 | 1601302018 | Fastening Clamp |
| 72 | 1616317067 | Eccentric Cog Wheel |
| 75 | 1615132102 | Handle Black |
| 76 | 1612026100 | Shift-Lever Knob Black |
| 77 | 1614610010 | Compression Spring |
| 80 | 1617233042 | Speed governor 220-240V |
| 80 | 1617233043 | Speed governor 100-120V |
| 803 | 1614010213 | Armature 220-240V |
| 803 | 1614010218 | Armature 110-120V |
| 803 | 1614010219 | Armature 100V |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000487 | Carbon-Brush Set 10 X 1 617 014 135 |
| 810 | 1617014135 | Carbon-Brush Set |
| 818 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 821 | 1617000824 | Bushing |
| 84 | 160202507H | Auxiliary Handle |
| 840 | 1617000872 | Impact Mechanism Housing |
| 849 | 1617000826 | Control Fork |
| 85 | 1618040071 | Support clamp |
| 856 | 1617000873 | Hammer Piston |
| 860 | 1617000828 | Spur Wheel Clutch Z=13/47 |
| 866 | 1617000406 | Roller Set |
| 87 | 1617000834 | Clamping Band Ø77 Mm, M8 |
| 872 | 1617000874 | Eccentric Cog Wheel |
| 873 | 1617000875 | Housing Cover |
| 884 | 1612025051 | Auxiliary Handle Ø77 Mm, M8 |
| 894 | 1615430015 | Grease Tube 225 Ml |
| 895 | 1615430002 | Grease Tube 225 Ml |
| 896 | 1617000463 | Service box |
| 897 | 1617000464 | Wear and Tear Part Set |
| 898 | 1617000465 | Wear and Tear Part Set |
| 9 | 1611110D11 | Sticker |
| 94 | 1610290052 | Support Disc |
| 95 | 1613120018 | Driving Pin |
| 98 | 1610101015 | Shim ring Thick 1,0 MM |
