Bosch GBH 6-42 C
Bosch GBH 6-42 C rotary hammer: exploded parts diagram, 3 sheets, 118 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

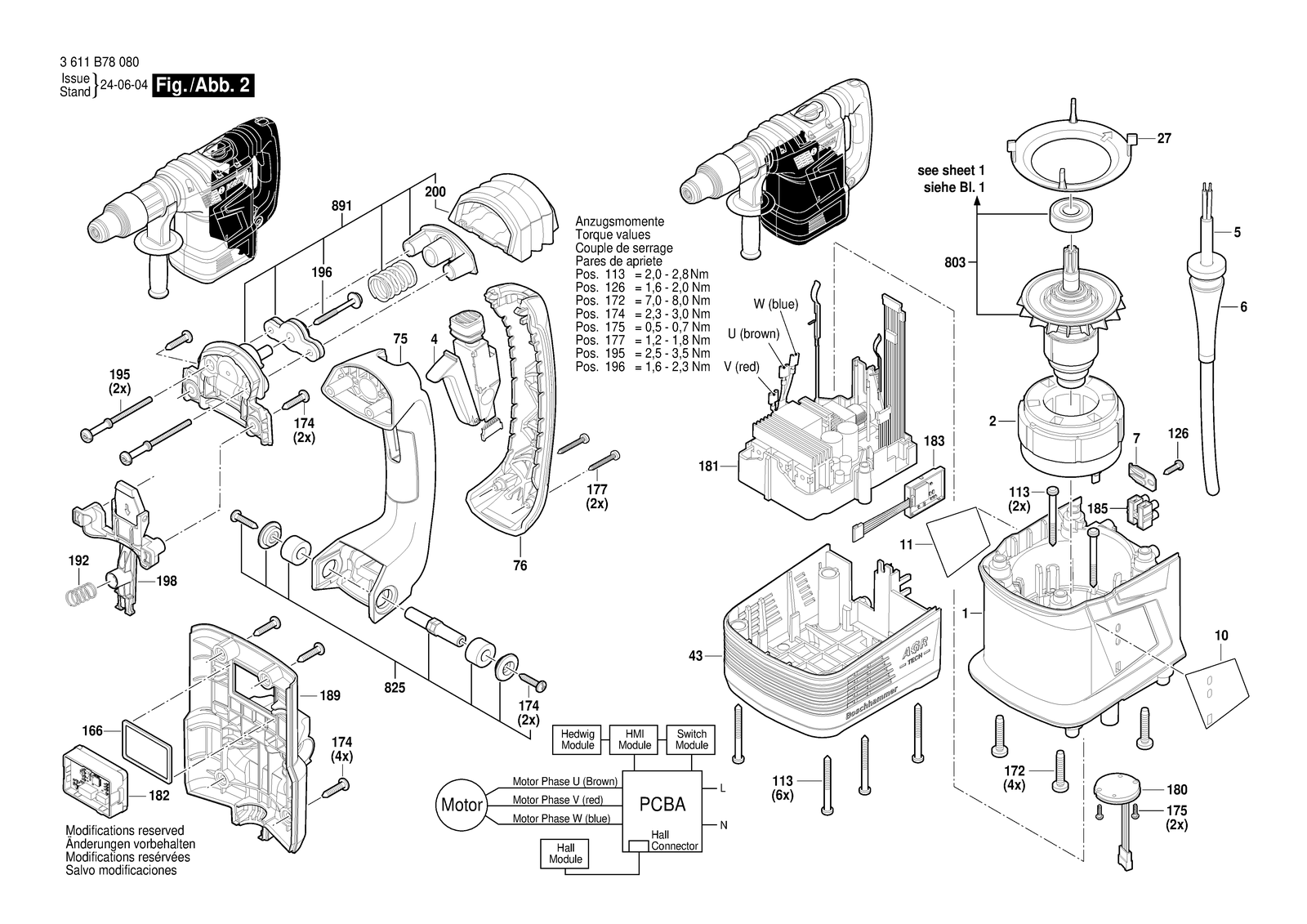

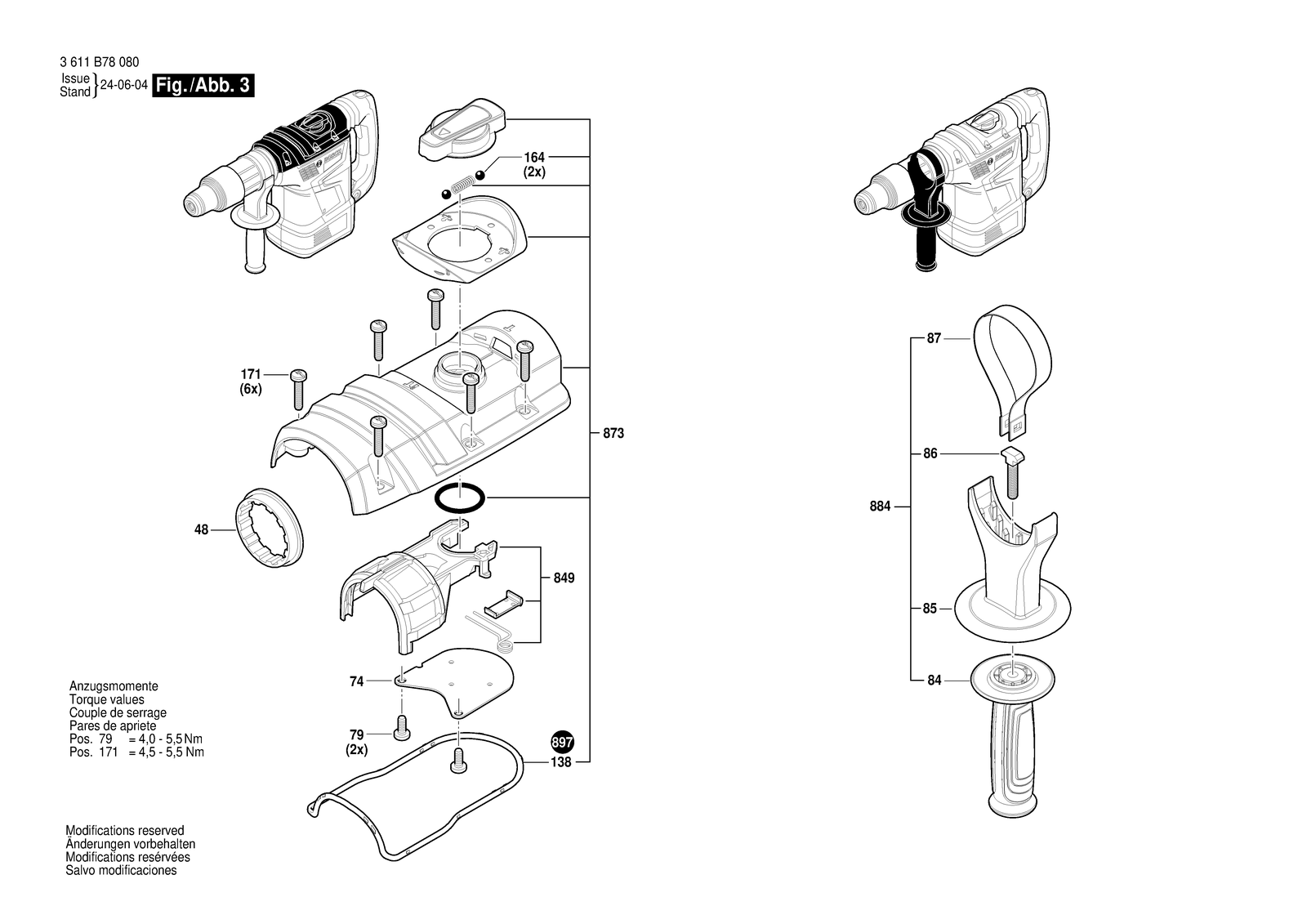

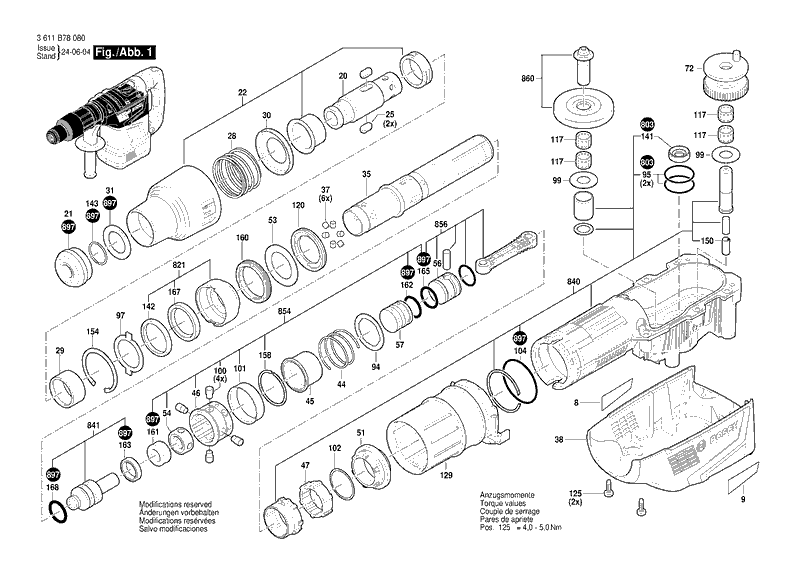

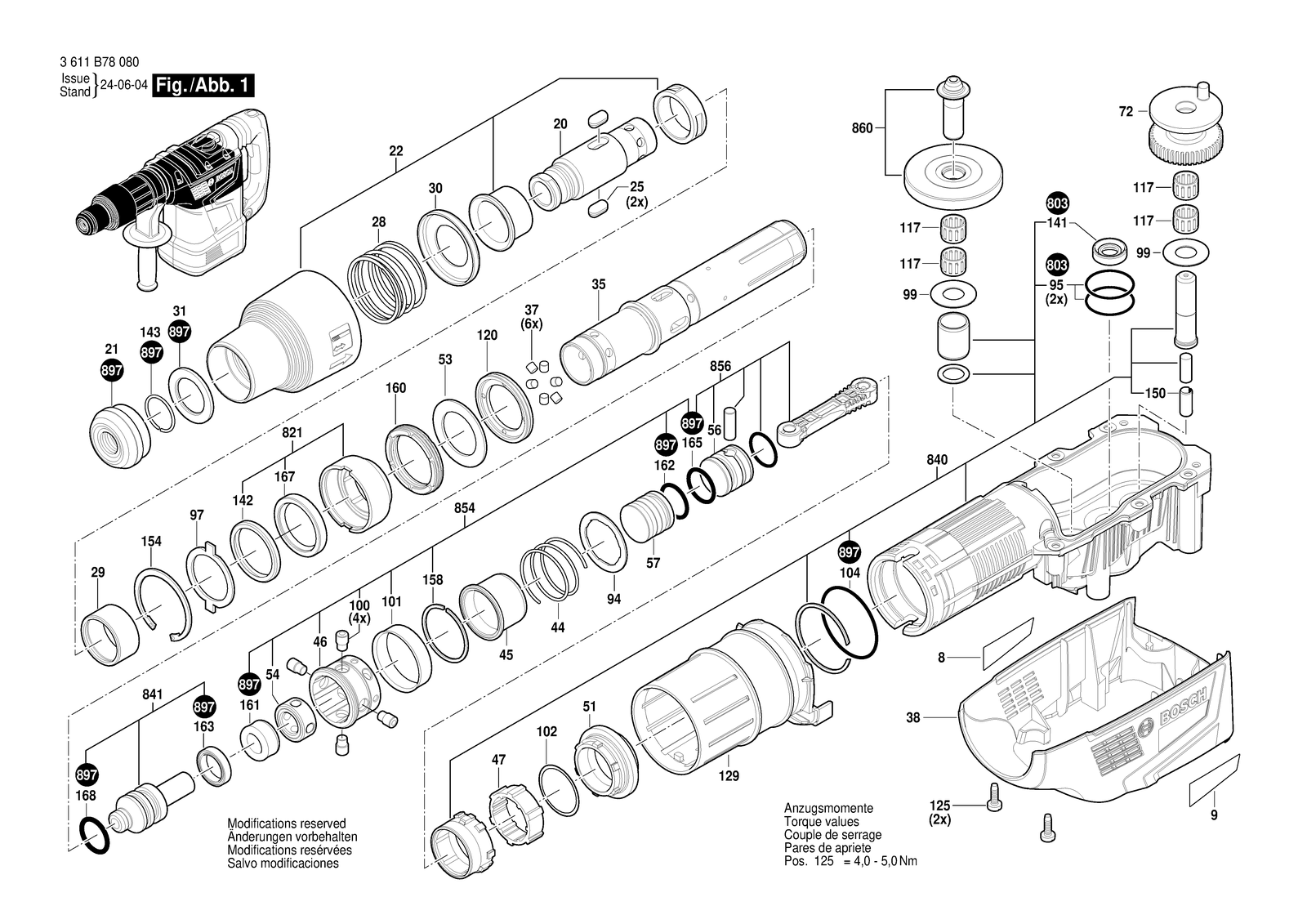

All parts of Bosch GBH 6-42 C: 118 positions on 3 sheets
Bosch GBH 6-42 C parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PS0799 | Motor Housing |
| 10 | 1619PS0812 | Sticker |
| 100 | 1613120022 | Driving Pin |
| 101 | 1619P11332 | Retaining snap ring |
| 102 | 1610102057 | Shim 0,3 MM |
| 102 | 1610102058 | Shim 0,2 MM |
| 104 | 1610210160 | O-Ring 52,0X2,0 MM |
| 11 | 1619PS0813 | Sticker |
| 113 | 3603435037 | Tapping Screw |
| 117 | 1619P07713 | Needle-Roller Assembly |
| 120 | 1610590019 | Stop Sleeve |
| 125 | 1613435014 | Torx Oval-Head Screw Silver M5X16-TORX,T25 |
| 126 | 2603490022 | Screw 4X16 |
| 129 | 1619P10181 | Holding Sleeve |
| 138 | 1619P10252 | Sealing Frame |
| 141 | 1619PS0822 | Rotary shaft lip seal |
| 142 | 1619P10106 | Rotary shaft lip seal |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 150 | 2917790174 | Slotted Spring Pin |
| 154 | 2916660023 | Spring retaining ring DIN 472 52X2MM |
| 158 | 1614601070 | Retaining ring |
| 160 | 1610290095 | Damping Ring |
| 161 | 1600A02AM8 | Damping Ring |
| 162 | 1610210204 | O-Ring 22,5X3,5 MM |
| 163 | 1610290065 | Seal Ring |
| 164 | 1903230011 | Ball DIN 5401-6 G28 |
| 165 | 1610210079 | O-Ring 22,0X4,0 MM |
| 166 | 1619PS0823 | Sealing Ring |
| 167 | 1610283033 | Rotary shaft lip seal |
| 168 | 1610210144 | O-Ring 22,0X3,0 MM |
| 171 | 1613435016 | Torx Oval-Head Screw Silver M5X20-TORX,T25 |
| 172 | 1613435013 | Torx Oval-Head Screw Silver M6X30-TORX,T30 |
| 174 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 175 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 177 | 1619P07821 | Screw Silver |
| 180 | 1619PS0824 | Electronic Module |
| 181 | 1619PS0825 | Electronic Module |
| 182 | 1619PS0826 | Electronic Module |
| 182 | 1619PS1114 | Electronic Module |
| 183 | 1619PS0827 | Module |
| 185 | 1619P11754 | Terminal Block |
| 189 | 1619PS0828 | Bearing Pedestal |
| 192 | 1614611019 | Compression Spring |
| 195 | 1613490015 | Torx Oval-Head Screw |
| 196 | 1613435019 | Screw and washer assembly |
| 198 | 1619PS0829 | Control Lever |
| 2 | 1619PS0800 | Stator |
| 20 | 1619PS0814 | Toolholder |
| 200 | 1610284000 | Bellows |
| 21 | 1619P07829 | Protective Cap |
| 22 | 1619P10160 | Protection Sleeve |
| 25 | 1619P17266 | Stopping Device |
| 27 | 1619PS0815 | Air-Deflector Ring |
| 28 | 1614621000 | Compression Spring |
| 29 | 1619P10163 | Bushing |
| 30 | 1619P10162 | Supporting Disc |
| 31 | 1619P07743 | Supporting Disc |
| 35 | 1619P14626 | Hammer Pipe |
| 37 | 1619P10377 | Cylindrical Roller |
| 38 | 1619PS0816 | Covering hood |
| 4 | 1619PS0801 | Switch |
| 43 | 1619PS0817 | Fan Cover |
| 44 | 1619P10381 | Compression Spring |
| 45 | 1610499070 | Control Bushing |
| 46 | 1619PS0818 | Perforated Ring |
| 47 | 1610300064 | Gear Sleeve |
| 48 | 1616334012 | Clutch Sleeve |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460449 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460040 | Power supply cord |
| 5 | 1614460075 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460086 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460098 | Power supply cord |
| 5 | 1619P15735 | Power supply cord 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 51 | 1619P12336 | Crown Gear |
| 53 | 1610290068 | Support Disc |
| 54 | 1619P11329 | Guide Bushing |
| 56 | 1618700094 | Hammer Piston |
| 57 | 1618710091 | Striker |
| 6 | 1619P07722 | Grommet |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302019 | Fastening Clamp |
| 72 | 1600A014S9 | Eccentric Cog Wheel |
| 74 | 1619PS0819 | Guide Plate |
| 75 | 1619PS0820 | Handle |
| 76 | 1619PS0821 | Handle Cover |
| 79 | 1613435015 | Torx Oval-Head Screw Silver M5X12-TORX,T25 |
| 8 | 1619PS0802 | Nameplate |
| 8 | 1619PS0803 | Nameplate |
| 8 | 1619PS0804 | Nameplate |
| 8 | 1619PS0805 | Nameplate |
| 8 | 1619PS0806 | Nameplate |
| 8 | 1619PS0808 | Nameplate |
| 8 | 1619PS0809 | Nameplate |
| 8 | 1619PS0810 | Nameplate |
| 8 | 1619PS1247 | Nameplate |
| 803 | 1619PS0501 | Rotor |
| 821 | 1619P10749 | Bushing |
| 825 | 1619PS0512 | Bearing Shaft |
| 84 | 160202509C | Auxiliary Handle |
| 840 | 1619PS0502 | Impact Mechanism Housing |
| 841 | 1619PS0503 | Striker Pin |
| 849 | 1617000839 | Control Fork |
| 85 | 1619P07774 | Support clamp |
| 854 | 1619PS0504 | Guide Bushing |
| 856 | 1619PS0505 | Hammer Piston |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 860 | 1619P10766 | Spur Wheel Clutch |
| 87 | 1619P07776 | Clamping Band |
| 873 | 1619PS0506 | Housing Cover |
| 884 | 1619PS0507 | Auxiliary Handle |
| 891 | 1619PS0511 | Spring Pack |
| 897 | 1619PS0508 | Wear and Tear Part Set |
| 9 | 1619PS0811 | Manufacturer's nameplate |
| 94 | 1610102056 | Friction Washer |
| 95 | 1610210173 | O-Ring 32,0X1,5 MM |
| 97 | 1610031005 | Locking washer |
| 99 | 1610102059 | Support Disc |
