Bosch GBH 5-40
Bosch GBH 5-40 rotary hammer: exploded parts diagram, 2 sheets, 133 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

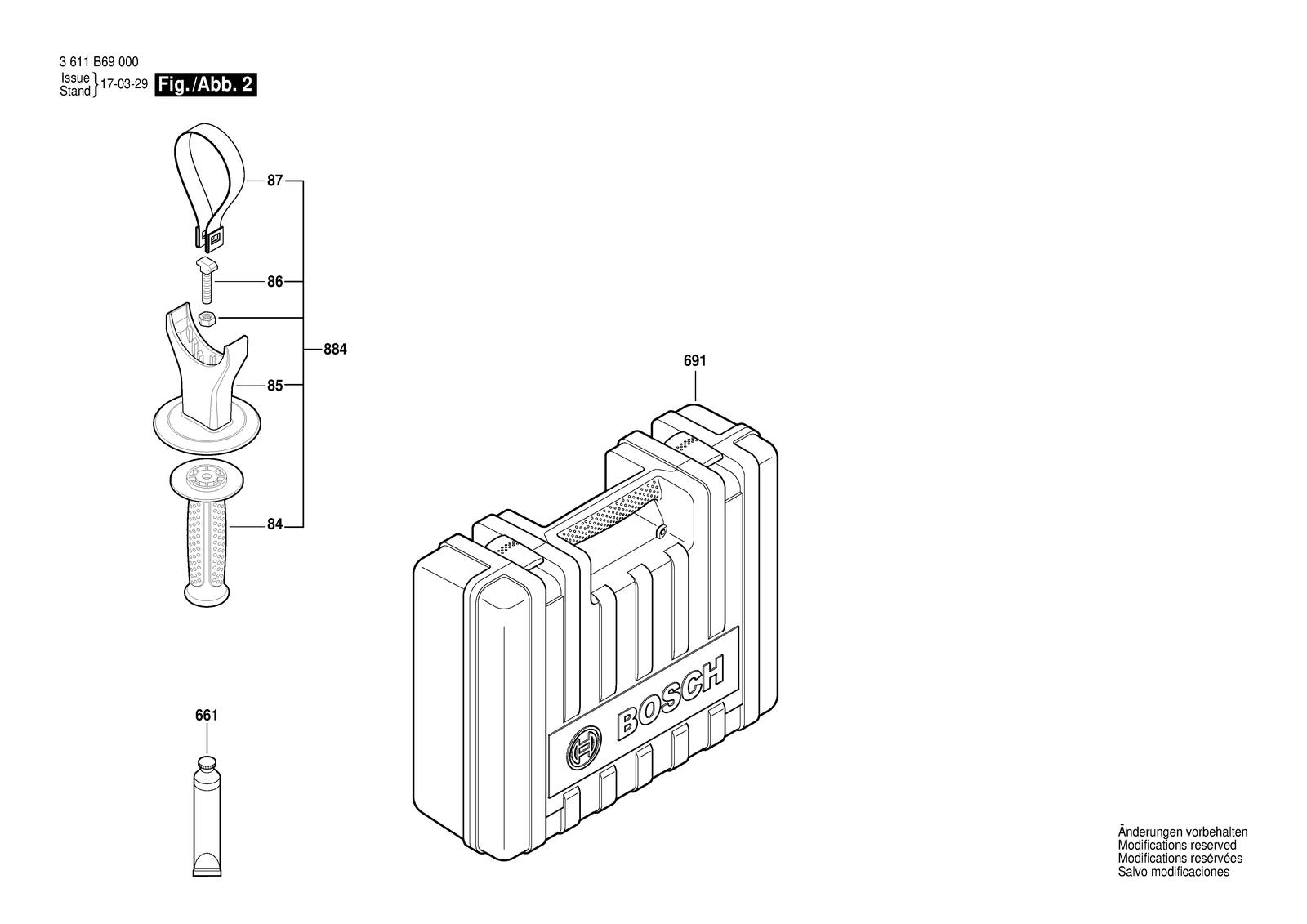

All parts of Bosch GBH 5-40: 133 positions on 2 sheets
Bosch GBH 5-40 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P07704 | Motor Housing |
| 10 | 160111C1L2 | Manufacturer's nameplate |
| 10 | 1619P31090 | Manufacturer's nameplate |
| 100 | 1613120022 | Driving Pin |
| 101 | 1610499073 | Retaining snap ring |
| 102 | 1610102057 | Shim 0,3 MM |
| 102 | 1610102058 | Shim 0,2 MM |
| 104 | 1610210160 | O-Ring 52,0X2,0 MM |
| 111 | 1610290064 | Bushing |
| 112 | 1619P10179 | Ring Magnet |
| 113 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 117 | 1610913004 | Needle-Roller Assembly Ø13 MM |
| 117 | 1610913029 | Needle-Roller Assembly |
| 120 | 1610590019 | Stop Sleeve |
| 125 | 1613435014 | Torx Oval-Head Screw Silver M5X16-TORX,T25 |
| 126 | 2603490022 | Screw 4X16 |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 129 | 1619P10181 | Holding Sleeve |
| 130 | 1619P10182 | Cover |
| 138 | 1611015053 | Sealing Frame |
| 141 | 1610290066 | Rotary shaft lip seal |
| 142 | 1610290069 | Rotary shaft lip seal |
| 142 | 1619P10106 | Rotary shaft lip seal |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 145 | 1610119012 | Spring retaining ring |
| 150 | 2917790174 | Slotted Spring Pin |
| 154 | 2916660023 | Spring retaining ring DIN 472 52X2MM |
| 158 | 1614601070 | Retaining ring |
| 160 | 1610290095 | Damping Ring |
| 161 | 1610290094 | Damping Ring |
| 162 | 1610210204 | O-Ring 22,5X3,5 MM |
| 163 | 1610290065 | Seal Ring |
| 165 | 1610210079 | O-Ring 22,0X4,0 MM |
| 167 | 1610283033 | Rotary shaft lip seal |
| 168 | 1610210144 | O-Ring 22,0X3,0 MM |
| 171 | 1619P07816 | Torx Oval-Head Screw Silver M5X16-TORX, T25 |
| 172 | 1613435013 | Torx Oval-Head Screw Silver M6X30-TORX,T30 |
| 173 | 2603490022 | Screw 4X16 |
| 173 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 174 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 175 | 1619P00228 | Screw |
| 175 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 176 | 1613435012 | Torx Oval-Head Screw Silver M4,8X25-TORX,T25 |
| 177 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 178 | 1604412069 | Connecting Cable |
| 178 | 1619P10286 | Connecting Cable |
| 179 | 1619P07815 | Screw |
| 2 | 1614220200 | Field 115V |
| 2 | 1619P08323 | Field 220-240V |
| 2 | 1619P08324 | Field 110V |
| 20 | 1619P10164 | Toolholder |
| 21 | 1619P07829 | Protective Cap |
| 22 | 1619P10160 | Protection Sleeve |
| 25 | 1619P07742 | Stopping Device |
| 27 | 1619P07739 | Air-Deflector Ring |
| 28 | 1614621000 | Compression Spring |
| 29 | 1619P10163 | Bushing |
| 30 | 1619P10162 | Supporting Disc |
| 31 | 1619P07743 | Supporting Disc |
| 34 | 1619P10165 | Flange |
| 35 | 1619P10167 | Hammer Pipe |
| 37 | 1619P10377 | Cylindrical Roller |
| 38 | 1619P10168 | Covering hood |
| 4 | 1619P10396 | Switch |
| 42 | 1619P07754 | Brush Holder |
| 43 | 1619P10171 | Fan Cover |
| 44 | 1619P10381 | Compression Spring |
| 45 | 1610499070 | Control Bushing |
| 46 | 1600A029MC | Perforated Ring |
| 46 | 1619P10172 | Perforated Ring |
| 47 | 1610300064 | Gear Sleeve |
| 48 | 1616334012 | Clutch Sleeve |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460047 | Power supply cord IL 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460070 | Power supply cord SAM 4,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1614460086 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460094 | Power supply cord BR 220V 4,15M 2 X 1,0MM H07 Rn-F |
| 51 | 1619P12336 | Crown Gear |
| 53 | 1610290068 | Support Disc |
| 54 | 1610231002 | Guide Bushing |
| 54 | 1619P11329 | Guide Bushing |
| 57 | 1618710091 | Striker |
| 6 | 1619P07722 | Grommet |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 69 | 1610099004 | Retaining Bracket |
| 691 | 16054381D1 | Carrying Case |
| 7 | 1601302019 | Fastening Clamp |
| 72 | 1600A014S9 | Eccentric Cog Wheel |
| 74 | 1611921001 | Guide Plate |
| 75 | 1619P10176 | Handle |
| 76 | 1611091006 | Connecting terminal 2-POLE |
| 76 | 1619P11754 | Terminal Block |
| 79 | 1613435015 | Torx Oval-Head Screw Silver M5X12-TORX,T25 |
| 80 | 1619P09589 | Speed governor |
| 80 | 1619P09590 | Speed governor |
| 803 | 1604010BE0 | Armature |
| 803 | 1619P10769 | Armature 220-240V |
| 803 | 1619P10864 | Armature 110V |
| 803/13 | 1610900026 | Groove ball bearing 8X24X8 |
| 803/14 | 1610905041 | Groove ball bearing 12X32X10 |
| 808 | 160111A5YM | Nameplate |
| 808 | 1619P10874 | Nameplate |
| 808 | 1619P10875 | Nameplate |
| 808 | 1619P10876 | Nameplate |
| 808 | 1619P10877 | Nameplate |
| 808 | 1619P10881 | Nameplate |
| 808 | 1619P10882 | Nameplate |
| 81 | 1619P10177 | Handle Cover |
| 811 | 1617014138 | Carbon-Brush Set |
| 817 | 1614652004 | Spiral Spring |
| 821 | 1619P10749 | Bushing |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 1612025060 | Auxiliary Handle Black M8 |
| 840 | 1619P10770 | Impact Mechanism Housing |
| 841 | 1619P10752 | Striker Pin |
| 849 | 1617000839 | Control Fork |
| 85 | 1619P07774 | Support clamp |
| 854 | 1619P10847 | Guide Bushing |
| 856 | 1619P10765 | Hammer Piston |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 860 | 1619P10766 | Spur Wheel Clutch |
| 87 | 1619P07776 | Clamping Band |
| 873 | 1619P10767 | Housing Cover |
| 884 | 1619P07778 | Auxiliary Handle |
| 897 | 1619P10768 | Wear and Tear Part Set |
| 9 | 160111C1L3 | Manufacturer's nameplate |
| 9 | 1619P31089 | Manufacturer's nameplate |
| 94 | 1610102056 | Friction Washer |
| 95 | 1610210173 | O-Ring 32,0X1,5 MM |
| 97 | 1610031005 | Locking washer |
| 99 | 1610102059 | Support Disc |
