Bosch GBH 4 DFR
Bosch GBH 4 DFR rotary hammer: exploded parts diagram, 2 sheets, 124 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

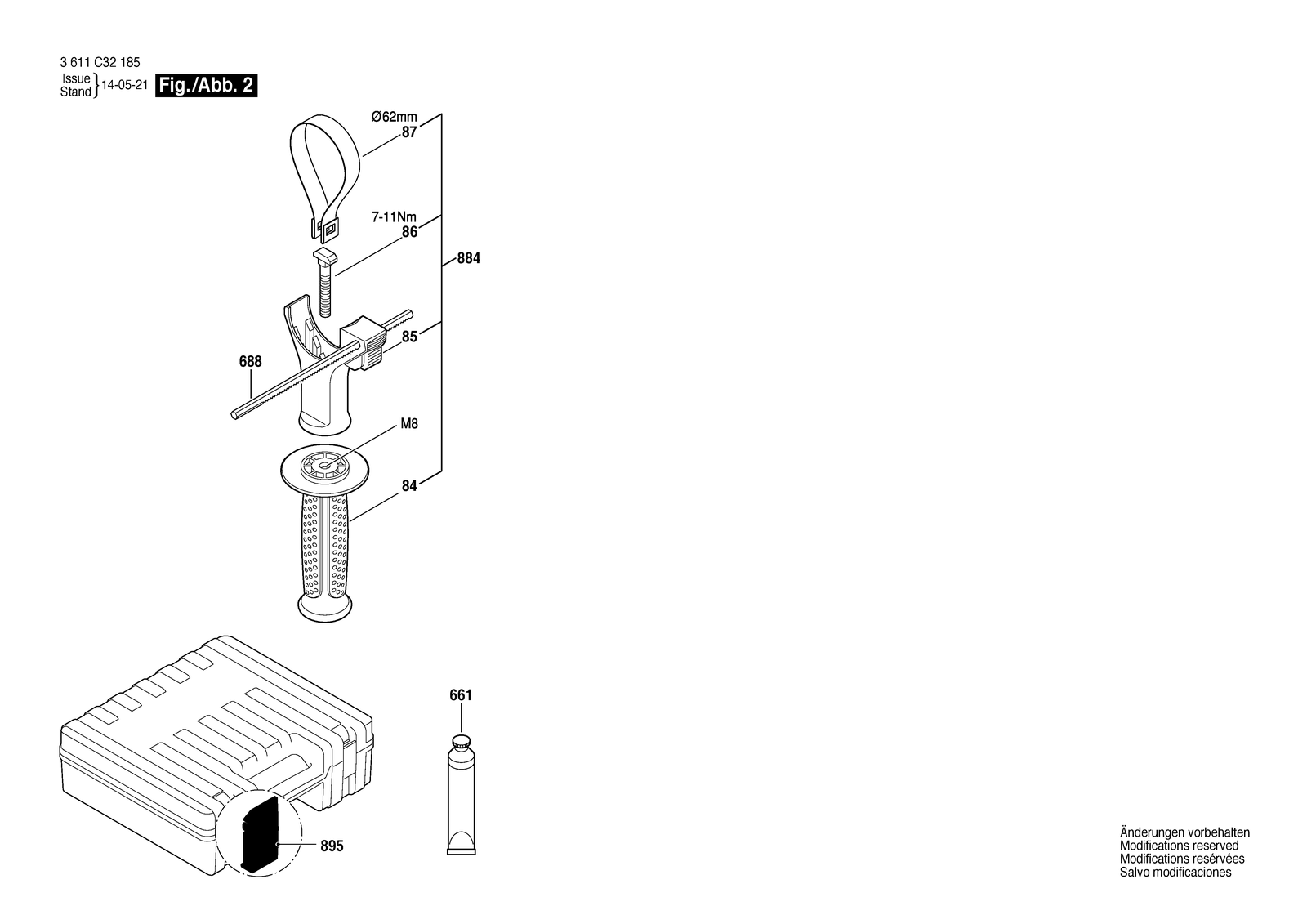

All parts of Bosch GBH 4 DFR: 124 positions on 2 sheets
Bosch GBH 4 DFR parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 102 | 1610102079 | Shim Thick 0,8 MM |
| 102 | 1610102080 | Shim Thick 0,9 MM |
| 102 | 1610102081 | Shim Thick 1,0 MM |
| 103 | 1610200027 | Plain bearing |
| 104 | 1610210196 | O-Ring 46,0X3,5 MM |
| 111 | 1600502023 | Intermediate Ring |
| 113 | 1613435038 | Lens Head Screw |
| 118 | 1616455007 | Clutch Sleeve |
| 119 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 121 | 1610200028 | Plain bearing |
| 126 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 127 | 1610422021 | Bushing |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 138 | 1611015058 | Sealing Frame |
| 14 | 1610905036 | Groove ball bearing 10X26X8 |
| 141 | 1600A0089A | Rotary shaft lip seal |
| 142 | 1610205012 | Felt Washer |
| 143 | 2916540015 | Retaining ring DIN 7993-28 |
| 144 | 1610241001 | Collar |
| 145 | 1614611023 | Compression Spring |
| 146 | 1610200029 | Backup ring |
| 147 | 1610390056 | Guide Sleeve Black |
| 15 | 1616610100 | Fan |
| 154 | 1614601062 | Spring retaining ring |
| 161 | 1610290092 | Damping Ring |
| 163 | 1600A009VC | Shaft Seal |
| 165 | 1610210199 | O-Ring 21,0X3,5 MM |
| 167 | 1610283030 | Rotary shaft lip seal DIN 3760-A ,Ø32X42X7X6 MM |
| 171 | 2916080911 | Locking washer |
| 172 | 1613490013 | Thread-forming tap. Screw |
| 174 | 1613490014 | Thread-forming tap. Screw |
| 176 | 2912738178 | Socket head cap screw |
| 188 | 1610209008 | Grip-Spring Tensioning E |
| 189 | 1610209009 | Clamping Piece |
| 192 | 1614611016 | Compression Spring |
| 194 | 1610099008 | Screw Plate |
| 195 | 1610099009 | Clamping Piece |
| 198 | 1612099000 | Switch Slide |
| 199 | 1610284002 | Bellows |
| 2 | 1619P08340 | Field 230V |
| 200 | 1610284001 | Bellows |
| 27 | 1610591043 | Air-Deflector Ring Black |
| 325 | 1619P10517 | Tool Holding Fixture |
| 325/203 | 1610508047 | Protective Cap |
| 34 | 1611322004 | Fixing Plate |
| 36 | 1615104049 | Housing Section |
| 4/178 | 1614412055 | Connecting Cable |
| 4/179 | 1614412056 | Connecting Cable |
| 4/4 | 160720030N | Switch |
| 4/4 | 1617200127 | Switch |
| 4/4 | 1617200128 | Switch |
| 4/5 | 1604460221 | Power supply cord SAM 4,15M 2 X 208MM SJ 14/2 |
| 4/5 | 1614460026 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 4/5 | 1614460052 | Power supply cord |
| 4/5 | 1614460090 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 4/5 | 1619P15855 | Power supply cord |
| 4/5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 4/5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 4/6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 4/6 | 1600703035 | Grommet Ø8,7-Ø9,6X66 MM |
| 41 | 1619P11442 | Striker Pin |
| 42 | 1614336072 | Brush Holder |
| 43 | 1619P11444 | Fan Cover |
| 43/4 | 1613490007 | Clamp Screw |
| 44 | 1614611025 | Rocker Foot Black |
| 47 | 1616328049 | Gear Sleeve |
| 48 | 1610290085 | Clutch Sleeve |
| 51 | 1616333044 | Crown Gear |
| 52 | 1614601061 | Spring retaining ring |
| 53 | 1610102634 | Supporting Disc |
| 54 | 1610101020 | Stop Disc |
| 55 | 1612099001 | Rocker Arm Black |
| 60 | 1616317076 | Cylindrical Gear |
| 61 | 1616333046 | Pinion |
| 62 | 1610026002 | Damping rubber |
| 63 | 1614611026 | Compression Spring |
| 64 | 1616409024 | Clutch Ring |
| 65 | 1610301007 | Plain bearing |
| 656/217 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 66 | 1616455006 | Eccentric |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 67 | 1616232006 | Leaf Spring |
| 68 | 1610913021 | Needle-Roller Assembly |
| 688 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 7 | 1601302017 | Fastening Clamp |
| 70 | 1612001041 | Connecting Rod |
| 72 | 1619P11452 | Eccentric Cog Wheel |
| 74 | 1614336075 | Support Plate |
| 80/193 | 1612026126 | Switch-Pawl Red |
| 80/80 | 1615133033 | Handle Blue |
| 801 | 1615108150 | Motor Housing Black |
| 802 | 1614220192 | Field 100V |
| 802 | 1619P08136 | Field |
| 803 | 1614010252 | Armature With Fan 230V |
| 803 | 1617000659 | Armature With Fan 100V |
| 803 | 1617000660 | Armature With Fan 120V |
| 804 | 1617200128 | Switch |
| 81 | 16170006AE | Handle Cover Black |
| 81 | 1619P10891 | Handle Cover |
| 810 | 1614321079 | Carbon-Brush Set |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 82 | 1610205010 | Felt Seal |
| 824 | 1613123013 | Eccentric Shaft |
| 835 | 1615806229 | Hammer Pipe |
| 84 | 160202507H | Auxiliary Handle |
| 840 | 1615190168 | Impact Mechanism Housing |
| 843 | 1615500384 | Fan Cover Black |
| 849 | 1611329030 | Control Fork Black |
| 85 | 1618040087 | Support clamp |
| 856 | 1618700093 | Hammer Piston |
| 857 | 1618710094 | Striker |
| 86 | 1613490002 | T-Head Bolt M8X40 MM |
| 861 | 1616333048 | Pinion |
| 87 | 1611316019 | Clamping Band Ø62 MM |
| 873 | 1615500411 | Housing Cover |
| 884 | 1612025079 | Auxiliary Handle |
| 891 | 1615806230 | Hammer Pipe |
| 895 | 1615438426 | Lock For 1 615 438 395 |
| 897 | 1610314006 | Sealing Sleeve |
| 899 | 1617000897 | Wear and Tear Part Set |
| 96 | 1614601060 | Retaining ring |
| 97 | 1610314005 | Sealing Sleeve |
| 98 | 1610211019 | Spacer Sleeve |
| 99 | 1610101626 | Supporting Disc Thick 1,0 MM |
