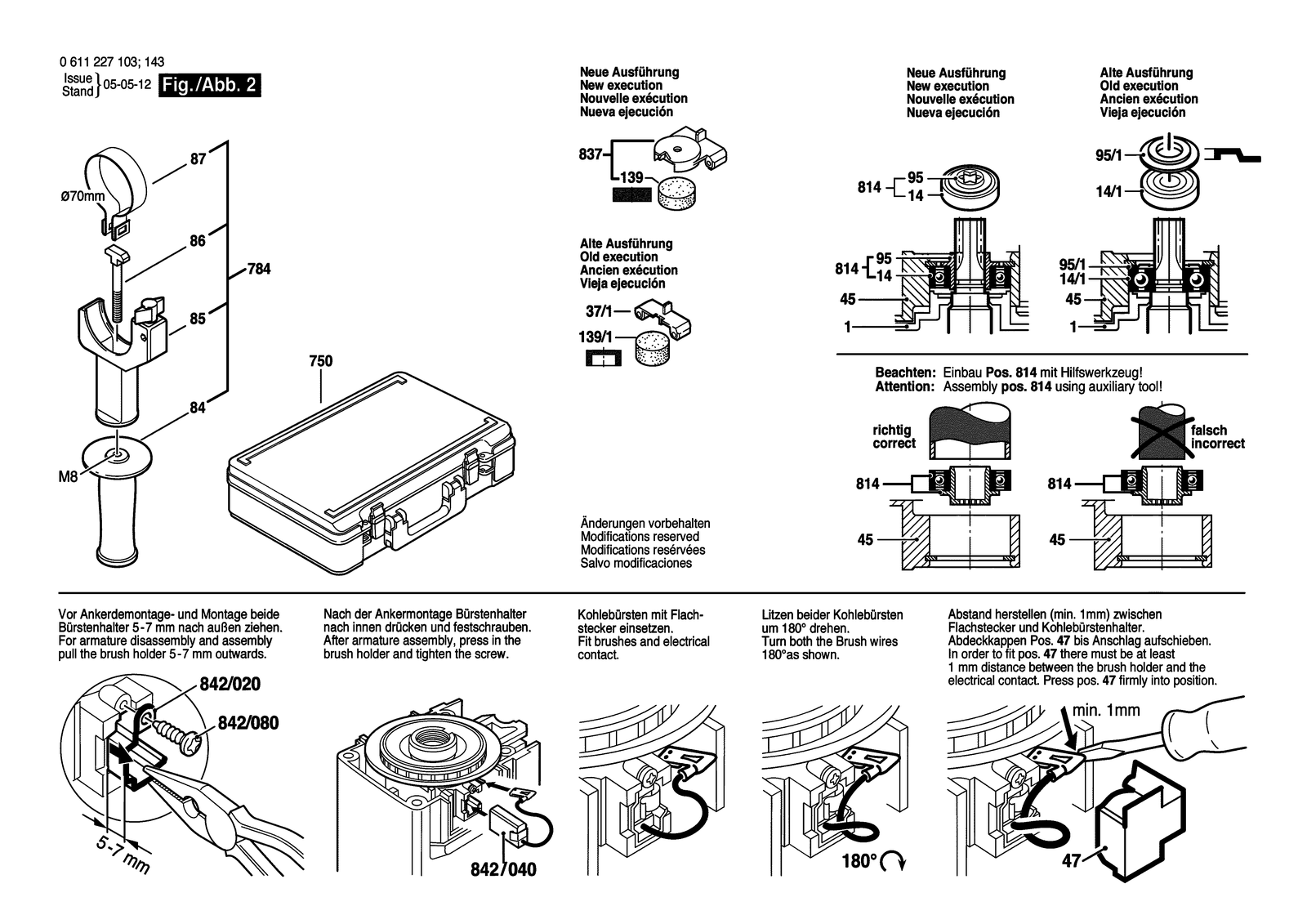

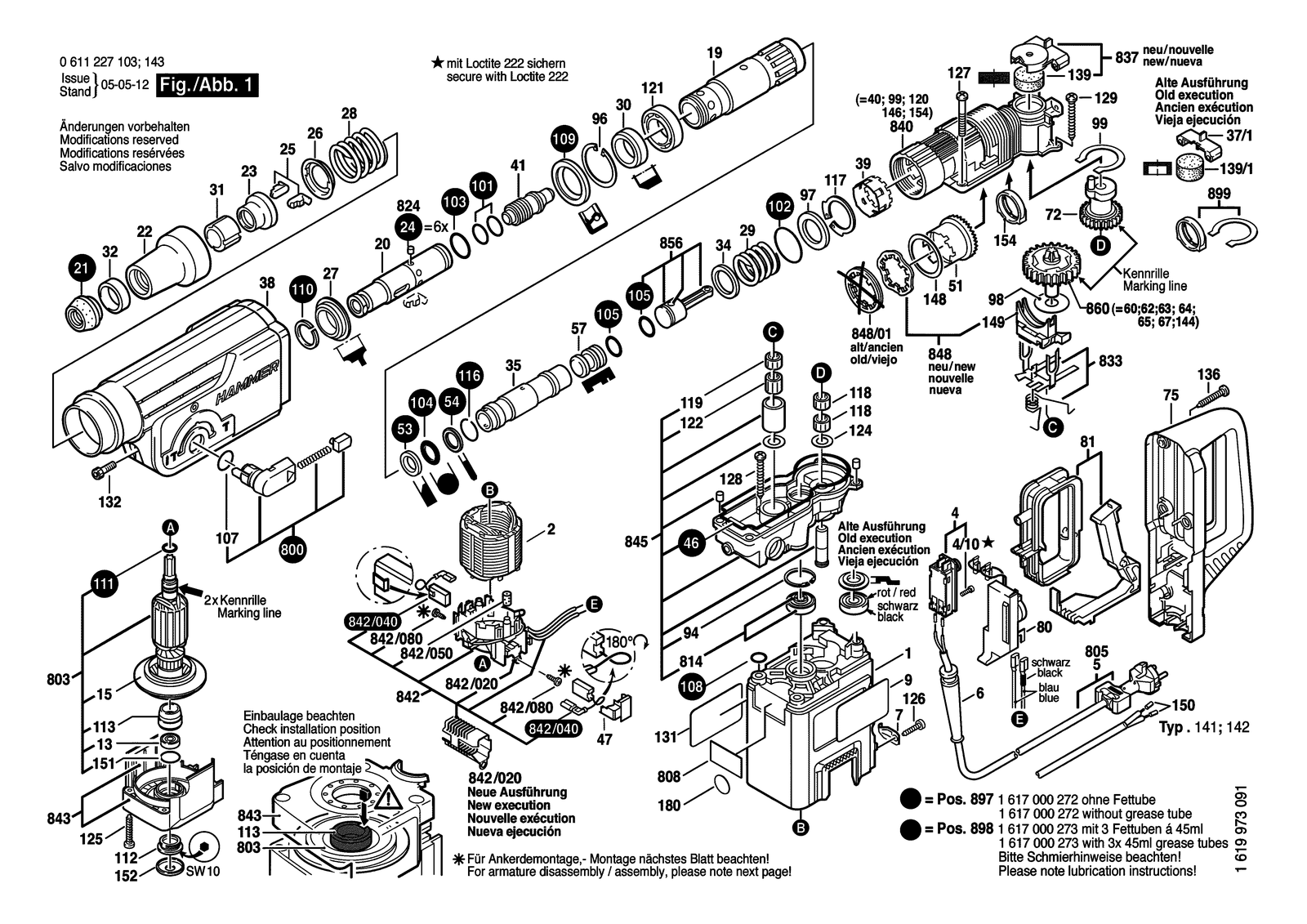

Bosch GBH 38 rotary hammer: exploded parts diagram, 2 sheets, 224 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 38: 224 positions on 2 sheets
Bosch GBH 38 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615102142 | Motor Housing Blue |
| 1 | 1615102142 | Motor Housing Blue |
| 101 | 1610210094 | O-Ring 20,0X3,0 MM |
| 101 | 1610210094 | O-Ring 20,0X3,0 MM |
| 102 | 1610210095 | O-Ring 55,0X2,0 MM |
| 102 | 1610210095 | O-Ring 55,0X2,0 MM |
| 103 | 1610210100 | O-Ring 27,0X1,5 MM |
| 103 | 1610210100 | O-Ring 27,0X1,5 MM |
| 104 | 1610210093 | O-Ring 17,0X8,0 MM |
| 104 | 1610210093 | O-Ring 17,0X8,0 MM |
| 105 | 1610210096 | O-Ring 21,0X3,5 MM |
| 105 | 1610210096 | O-Ring 21,0X3,5 MM |
| 107 | 1610210116 | O-Ring 14,0X2,0 MM |
| 107 | 1610210116 | O-Ring 14,0X2,0 MM |
| 108 | 1900210103 | O-Ring 8,0X1,5 MM |
| 108 | 1900210103 | O-Ring 8,0X1,5 MM |
| 109 | 1610283028 | Rotary shaft lip seal DIN 3760-BS, Ø40X55X7 MM |
| 109 | 1610283028 | Rotary shaft lip seal DIN 3760-BS, Ø40X55X7 MM |
| 110 | 1610116003 | Spring retaining ring |
| 110 | 1610116003 | Spring retaining ring |
| 111 | 1610210081 | O-Ring 10,0X1,0 MM |
| 111 | 1610210081 | O-Ring 10,0X1,0 MM |
| 112 | 1613461001 | Threaded Ring M24X1,5MM, SW10 |
| 112 | 1613461001 | Threaded Ring M24X1,5MM, SW10 |
| 113 | 1610501036 | Bushing |
| 113 | 1610501036 | Bushing |
| 116 | 1610116004 | Spring retaining ring |
| 116 | 1610116004 | Spring retaining ring |
| 117 | 1610119008 | Spring retaining ring |
| 117 | 1610119008 | Spring retaining ring |
| 118 | 1610913009 | Needle-Roller Assembly |
| 118 | 1610913009 | Needle-Roller Assembly |
| 119 | 1610913011 | Needle-Roller Assembly Ø10 MM |
| 119 | 1610913011 | Needle-Roller Assembly Ø10 MM |
| 121 | 1610905014 | Groove ball bearing |
| 121 | 1610905014 | Groove ball bearing |
| 122 | 1610913029 | Needle-Roller Assembly |
| 122 | 1610913029 | Needle-Roller Assembly |
| 124 | 1610101008 | Thrust Bearing Disc Thick 1,0 MM |
| 124 | 1610101008 | Thrust Bearing Disc Thick 1,0 MM |
| 125 | 2912401036 | Tapping Screw DIN7981-ST4,8X25-C-Z |
| 125 | 2912401036 | Tapping Screw DIN7981-ST4,8X25-C-Z |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 127 | 2912311166 | Oval-Head Screw DIN 7985-M5X30-8.8 |
| 127 | 2912311166 | Oval-Head Screw DIN 7985-M5X30-8.8 |
| 128 | 2910211037 | Tapping Screw DIN 7971-BZ4,8X32 |
| 128 | 2910211037 | Tapping Screw DIN 7971-BZ4,8X32 |
| 129 | 2912401037 | Tapping Screw DIN 7981-ST4,8X32C-Z |
| 129 | 2912401037 | Tapping Screw DIN 7981-ST4,8X32C-Z |
| 13 | 1610900025 | Groove ball bearing 7X22X7 |
| 13 | 1610900025 | Groove ball bearing 7X22X7 |
| 131 | 1611110673 | Manufacturer's nameplate |
| 131 | 1611110673 | Manufacturer's nameplate |
| 132 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 132 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 136 | 2910211236 | Tapping Screw DIN 7971-ST4,8X25-C |
| 136 | 2910211236 | Tapping Screw DIN 7971-ST4,8X25-C |
| 139 | 1610005002 | Felt Disc Ø39X15 MM |
| 139 | 1617000291 | Retaining Bracket Black |
| 139 | 1610005002 | Felt Disc Ø39X15 MM |
| 148 | 1610102627 | Shim Thick 0,2 MM |
| 148 | 1610102633 | Shim Thick 0,3 MM |
| 148 | 1610102627 | Shim Thick 0,2 MM |
| 148 | 1610102633 | Shim Thick 0,3 MM |
| 149 | 1612388021 | Adapting Piece |
| 149 | 1612388021 | Adapting Piece |
| 15 | 1616610071 | Fan |
| 15 | 1616610071 | Fan |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 151 | 2600210028 | O-Ring 21,0X2,0 MM |
| 151 | 2600210028 | O-Ring 21,0X2,0 MM |
| 152 | 1610508030 | Cover |
| 152 | 1610508030 | Cover |
| 154 | 1610222010 | Retaining snap ring |
| 154 | 1610222010 | Retaining snap ring |
| 180 | 1611110855 | Sticker |
| 19 | 1615806121 | Guide Tube |
| 19 | 1615806121 | Guide Tube |
| 2 | 1604220343 | Field 220-230V |
| 2 | 1614220131 | Field 115-120V |
| 2 | 1614220132 | Field 100V |
| 2 | 1604220343 | Field 220-230V |
| 20 | 1618597071 | Toolholder |
| 20 | 1618597071 | Toolholder |
| 21 | 1610508017 | Protective Cap |
| 21 | 1610508017 | Protective Cap |
| 22 | 1610591009 | Protection Sleeve |
| 22 | 1610591009 | Protection Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 25 | 1612300027 | Stopping Device |
| 25 | 1612300027 | Stopping Device |
| 26 | 1610290025 | Indexing Disk |
| 26 | 1610290025 | Indexing Disk |
| 27 | 1610222008 | Retaining snap ring |
| 27 | 1610222008 | Retaining snap ring |
| 28 | 1614621000 | Compression Spring |
| 28 | 1614621000 | Compression Spring |
| 29 | 1614616008 | Compression Spring |
| 29 | 1614616008 | Compression Spring |
| 30 | 1610250007 | Ball Race |
| 30 | 1610250007 | Ball Race |
| 31 | 1610390015 | Spacer Tube |
| 31 | 1610390015 | Spacer Tube |
| 32 | 1610202016 | Cylinder Sleeve |
| 32 | 1610202016 | Cylinder Sleeve |
| 34 | 1610102622 | Supporting Disc Thick 1,5 MM |
| 34 | 1610102622 | Supporting Disc Thick 1,5 MM |
| 35 | 1615806089 | Hammer Pipe |
| 35 | 1615806089 | Hammer Pipe |
| 38 | 1615190064 | Covering hood Blue |
| 38 | 1615190064 | Covering hood Blue |
| 39 | 1610290024 | Clutch Ring |
| 39 | 1610290024 | Clutch Ring |
| 4 | 1617200048 | Switch |
| 4 | 1617200048 | Switch |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 41 | 1613124036 | Striker Pin |
| 41 | 1613124036 | Striker Pin |
| 46 | 1611015036 | Sealing Frame |
| 46 | 1611015036 | Sealing Frame |
| 47 | 1610591012 | Cover |
| 47 | 1610591012 | Cover |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460449 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460047 | Power supply cord IL 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460060 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07RN-F |
| 5 | 1614460075 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 51 | 1616333023 | Crown Gear Z=37 |
| 51 | 1616333023 | Crown Gear Z=37 |
| 53 | 1610190023 | Stop Disc |
| 53 | 1610190023 | Stop Disc |
| 54 | 1610101014 | Stop Disc |
| 54 | 1610101014 | Stop Disc |
| 57 | 1618710053 | Striker |
| 57 | 1618710053 | Striker |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 72 | 1616337004 | Eccentric Cog Wheel Z=35 |
| 72 | 1616337004 | Eccentric Cog Wheel Z=35 |
| 75 | 1615132059 | Handle Blue |
| 75 | 1615132059 | Handle Blue |
| 750 | 2605438314 | Carrying Case |
| 750 | 2605438314 | Carrying Case |
| 784 | 2602025062 | Auxiliary Handle Ø 70 Mm, M8 |
| 784 | 2602025062 | Auxiliary Handle Ø 70 Mm, M8 |
| 80 | 1617233024 | Speed governor 230-240V |
| 80 | 1617233025 | Speed governor 100-120V |
| 80 | 1617233024 | Speed governor 230-240V |
| 800 | 1617000945 | Clamp Handle Black |
| 800 | 1617000945 | Clamp Handle Black |
| 803 | 1614010186 | Armature 220-240V |
| 803 | 1614010187 | Armature 100-110V |
| 803 | 1614010188 | Armature 120V |
| 803 | 1614010186 | Armature 220-240V |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 81 | 1612026055 | Switch-Pawl Gray |
| 81 | 1612026055 | Switch-Pawl Gray |
| 814 | 1617000822 | Groove ball bearing |
| 814 | 1617000822 | Groove ball bearing |
| 824 | 1617000271 | Cylindrical Roller |
| 824 | 1617000271 | Cylindrical Roller |
| 833 | 1617000949 | Control Fork |
| 833 | 1617000949 | Control Fork |
| 837 | 1617000291 | Retaining Bracket Black |
| 837 | 1617000291 | Retaining Bracket Black |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 160202507H | Auxiliary Handle |
| 840 | 1617000811 | Impact Mechanism Housing |
| 840 | 1617000811 | Impact Mechanism Housing |
| 842 | 1614336009 | Brush Holder |
| 842 | 1614336009 | Brush Holder |
| 842/020 | 1614336043 | Brush Guide |
| 842/020 | 1614336043 | Brush Guide |
| 842/040 | 1617014122 | Carbon-Brush Set |
| 842/040 | 1617014122 | Carbon-Brush Set |
| 842/050 | 1613212004 | Rubber Buffer |
| 842/050 | 1613212004 | Rubber Buffer |
| 842/080 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 842/080 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 843 | 1615808078 | Bearing cover Blue |
| 843 | 1615808078 | Bearing cover Blue |
| 845 | 1617000823 | Gear Housing |
| 845 | 1617000962 | Gear Housing |
| 845 | 1617000823 | Gear Housing |
| 848 | 1617000415 | Clutch Sleeve |
| 848 | 1617000415 | Clutch Sleeve |
| 85 | 1618040056 | Support clamp Ø 70 MM |
| 85 | 1618040056 | Support clamp Ø 70 MM |
| 856 | 1617000999 | Hammer Piston |
| 856 | 1617000999 | Hammer Piston |
| 86 | 1613490001 | T-Head Bolt M8X80 MM |
| 86 | 1613490001 | T-Head Bolt M8X80 MM |
| 860 | 1617000817 | Spur Wheel Clutch |
| 860 | 1617000817 | Spur Wheel Clutch |
| 87 | 1611316008 | Clamping Band Ø70 MM |
| 87 | 1611316008 | Clamping Band Ø70 MM |
| 897 | 1617000272 | Wear and Tear Part Set |
| 897 | 1617000272 | Wear and Tear Part Set |
| 898 | 1617000273 | Wear and Tear Part Set |
| 898 | 1617000273 | Wear and Tear Part Set |
| 899 | 1617000293 | Holding Plate |
| 899 | 1617000293 | Holding Plate |
| 9 | 1611110672 | Manufacturer's nameplate |
| 9 | 1611110672 | Manufacturer's nameplate |
| 94 | 1610119007 | Spring retaining ring |
| 94 | 1610119007 | Spring retaining ring |
| 96 | 2916660024 | Spring retaining ring 55X2MM, DIN 472 |
| 96 | 2916660024 | Spring retaining ring 55X2MM, DIN 472 |
| 97 | 2916190284 | Shim ring DIN 988-45X55 |
| 97 | 2916190284 | Shim ring DIN 988-45X55 |
| 98 | 1610101622 | Friction Washer Thick 0,5 MM |
| 98 | 1610101622 | Friction Washer Thick 0,5 MM |
| 99 | 1610190030 | Holding Plate |
| 99 | 1610190030 | Holding Plate |
