Bosch GBH 240

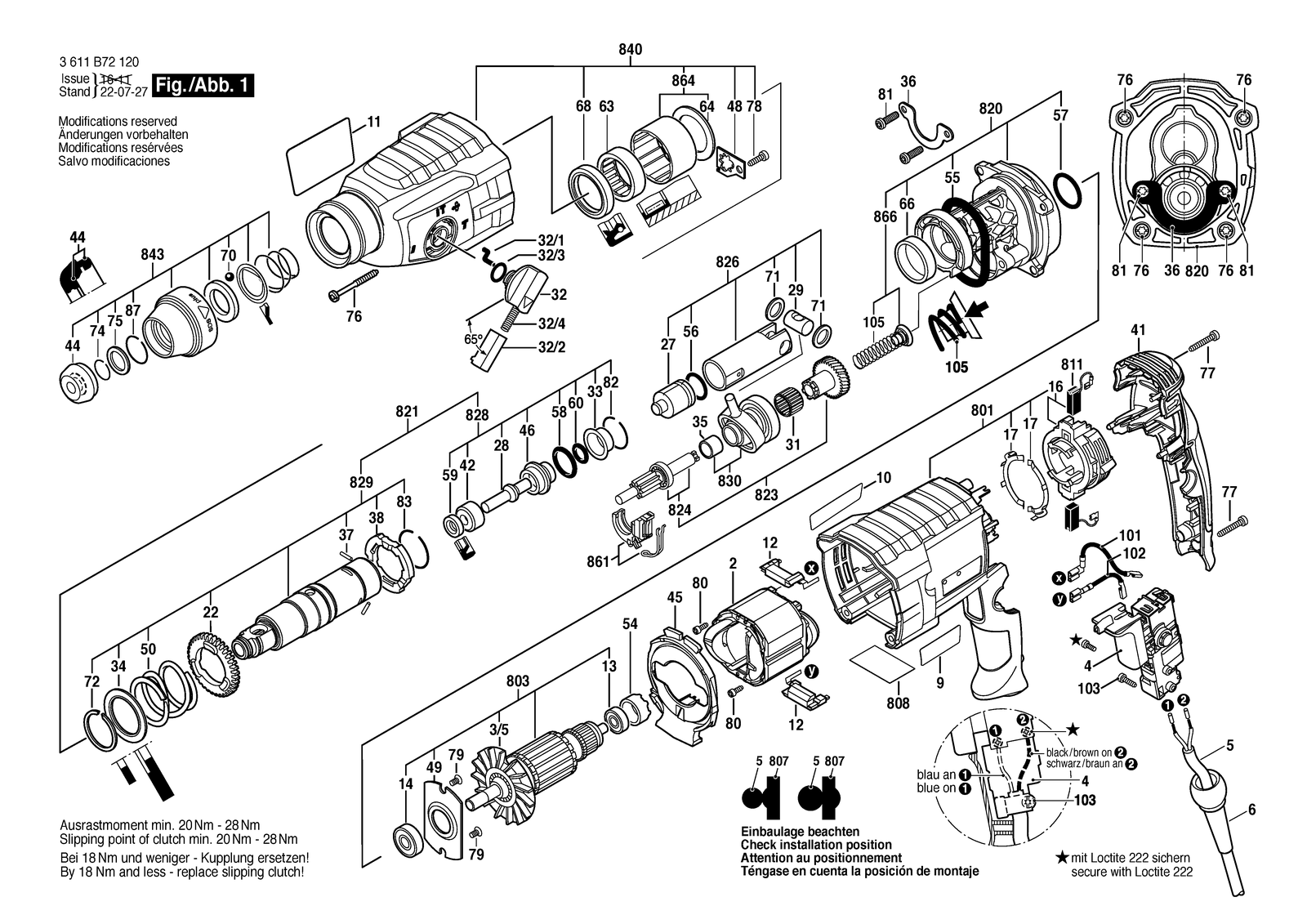

Bosch GBH 240 rotary hammer: exploded parts diagram, 2 sheets, 98 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 240: 98 positions on 2 sheets
Bosch GBH 240 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 160111C1VK | Manufacturer's nameplate |
| 101 | 1614449014 | Connecting Cable |
| 102 | 1614449015 | Connecting Cable |
| 103 | 1613435034 | Lens Head Screw 3X10 St |
| 105 | 1619P14136 | Compression Spring |
| 11 | 160111C1VH | Reference Plate |
| 12 | 1614465011 | Suppression Filter |
| 120 | 1618B00500 | Auxiliary Handle |
| 120/120 | 160202507H | Auxiliary Handle |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/802 | 1617000475 | Support clamp |
| 13 | 1610905032 | Groove ball bearing 7X19X6 |
| 14 | 1610905048 | Groove ball bearing 9X24X7 |
| 16 | 1619P16871 | Brush Plate |
| 17 | 1616B10337 | Switch Contact |
| 2 | 160422055N | Field |
| 22 | 1616312004 | Cylindrical Gear |
| 27 | 1610311018 | Striker |
| 28 | 1613124081 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 3/5 | 1619P12021 | Fan |
| 31 | 1610913016 | Needle-Roller Assembly |
| 32 | 1612026156 | Knob |
| 32/1 | 1619P09571 | Driver Pin |
| 32/2 | 1612026035 | Switch Button Red |
| 32/3 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/4 | 1614611006 | Compression Spring |
| 33 | 1610590014 | Holding Jacket |
| 34 | 1619P12280 | Supporting Disc |
| 35 | 1616B10325 | Plain bearing |
| 36 | 1615808106 | Bearing Holder |
| 37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 38 | 1610190048 | Catch Disk |
| 4 | 160720032D | Switch |
| 41 | 1619P12191 | Housing Cover |
| 42 | 1610102073 | Thrust Ring |
| 44 | 1610508034 | Protective Cap |
| 45 | 1619P12192 | Air-Deflector Ring |
| 46 | 2608670714 | Guide Bushing |
| 48 | 1616B10336 | Tab Washer |
| 49 | 1615700044 | End Shield |
| 5 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 50 | 1614611020 | Compression Spring |
| 54 | 1610502016 | Rubber Bushing |
| 55 | 1619P18144 | O-Ring |
| 56 | 1616B00086 | O-Ring |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 58 | 1610210178 | O-Ring |
| 59 | 1610283035 | Rotary shaft lip seal |
| 6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 60 | 1610210176 | O-Ring 9,0X3,5 MM |
| 63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 64 | 1619P10546 | Bushing |
| 651 | 2609005615 | Depth-Gauge |
| 66 | 1610202021 | Plain bearing |
| 68 | 1610283017 | Rotary shaft lip seal |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 72 | 1604601027 | Retaining ring |
| 74 | 1614601027 | Retaining ring |
| 75 | 1610101629 | Retaining Washer |
| 76 | 1613435022 | Thread-forming tap. Screw |
| 77 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 78 | 2603490022 | Screw 4X16 |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 1619P08803 | Thread-forming tap. Screw |
| 801 | 1619P13454 | Motor Housing Blue |
| 803 | 1604010B87 | Armature |
| 807 | 2601035001 | Cable Clip |
| 808 | 160111A454 | Nameplate |
| 81 | 1613435029 | Thread-forming tap. Screw Silver M5X16-TORX,T25 |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 82 | 1614601034 | Retaining ring |
| 820 | 1619P13451 | Intermediate Flange |
| 821 | 1619P13452 | Pipe |
| 823 | 1619P13456 | Toothed Shaft |
| 824 | 1619P13457 | Toothed Shaft |
| 826 | 1617000557 | Hammer Piston |
| 828 | 1619P13453 | Striker Pin |
| 829 | 1619P13455 | Pipe |
| 83 | 1604601028 | Retaining ring A22 DIN 7993 |
| 830 | 1615819028 | Drive bearing |
| 840 | 1619P13462 | Gear Housing |
| 843 | 1619P13459 | Protective Cap |
| 861 | 1619P13460 | Switching Element |
| 864 | 1619P13461 | Supporting Disc |
| 866 | 1614611022 | Plain bearing |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 870 | 1617000154 | Drill Chuck Shank Sds-Plus 1/2" |
| 870/1 | 2603421207 | Countersunk-Head Screw Lefthand Threads M6X27-KØ11 |
| 871 | 1608571088 | Chuck |
| 872 | 2607950007 | Chuck Wrench SG2 |
| 892 | 1615430001 | Grease Tube 225 Ml |
| 893 | 1615430002 | Grease Tube 225 Ml |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1615430019 | Oil Reservoir 1000 Ml |
| 9 | 160111C1VJ | Manufacturer's nameplate |
