Bosch GBH 24 VRE cordless rotary hammer: exploded parts diagram, 2 sheets, 91 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 24 VRE: 91 positions on 2 sheets

Bosch GBH 24 VRE parts list (2 sheets)

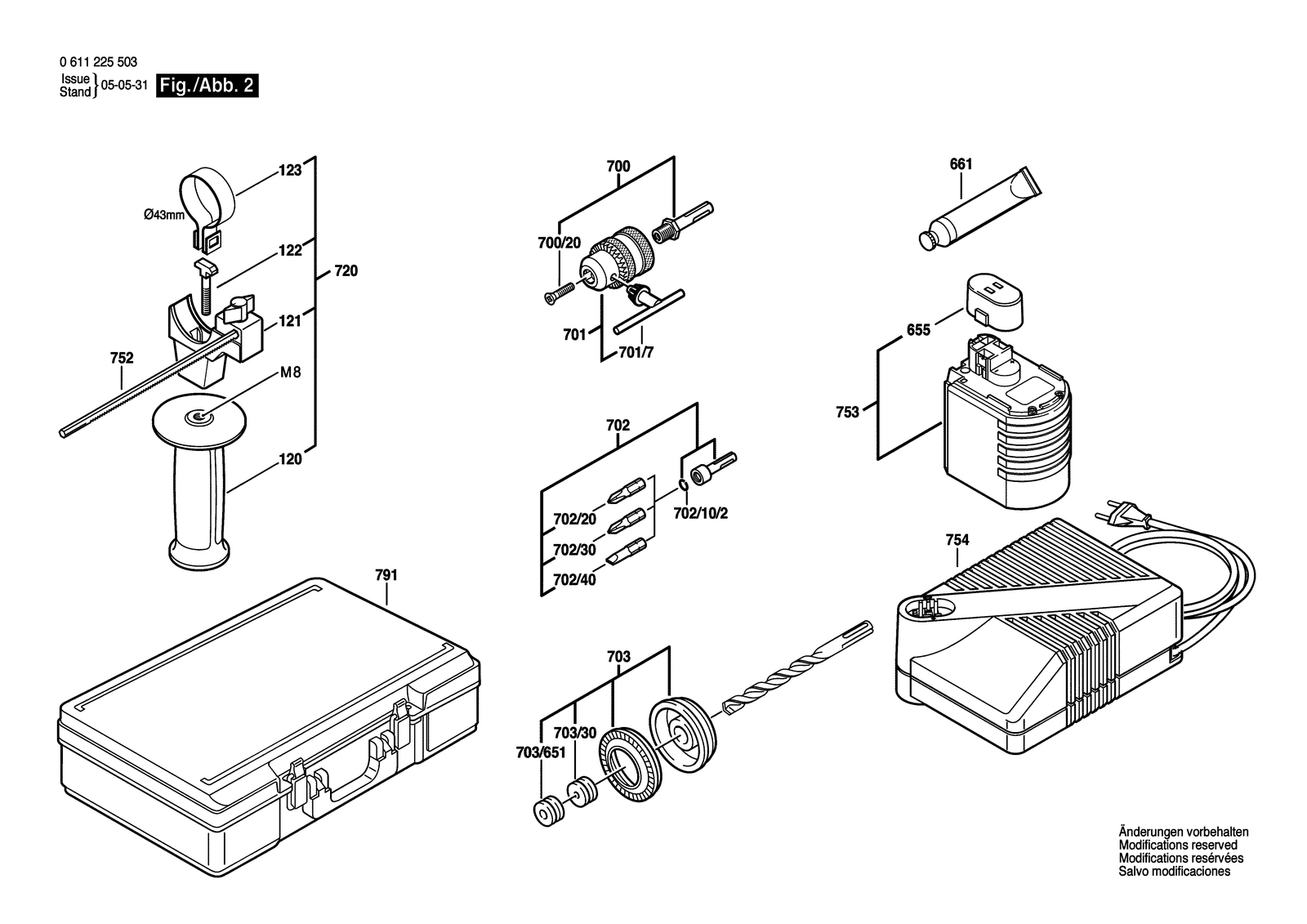

Bosch GBH 24 VRE parts diagram, sheet 1Bosch GBH 24 VRE parts diagram, sheet 2
No.Part numberPart name
11615104011Housing Section Blue
1001611110914Reference Plate
111611110910Reference Plate
111611110935Reference Plate
1201612025019Auxiliary Handle M8
1211618040067Support clamp Ø43 MM
1221613490002T-Head Bolt M8X40 MM
1231611316006Clamping Band Ø43 MM
131600905033Groove ball bearing 8X22X7
142600905052Groove ball bearing 8X22X7
151616610080Fan
171614652008Spiral Spring
182603100056Damping rubber
1803601119137Warning Plate Caution
22610942109Pole housing 14;4-24V
201616409012Catch Disk
221616317613Cylindrical Gear Z=53
271618710068Striker
301611911000Drive Lever
331614634008Compression Spring
341613100021Bearing Pin
361610190021Supporting Disc
391610508021Protective Cap Sds-Plus
41617200067On-Off Switch
431610190020Supporting Disc
451616316602Drive pinion Z=9
461613160022Straight Pin
531610910077Needle bearing
551610920012Roller Thrust Bearing
561610102030Support Disc Thick 1,0 MM
571610920009Roller Thrust Bearing Black
601610280006Seal Ring
621610210125O-Ring 18,0X2,5 MM
631903230013Ball DIN 5401-Ø7MM-III-ST
651614601018Retaining ring
6551610508032Protective Cap Red
6611615430010Grease Tube 30 Ml
673600224038Spring retaining ring
7001617000132Drill Chuck Shank Sds-Plus
700/202603421226Countersunk-Head Screw Lefthand Threads M6X27
7011608571088Chuck
701/72607950007Chuck Wrench SG2
7021617000133Parts Set
702/10/22604601004Retaining ring
702/201608521004Screwdriver Blade NR.2,1/4"
702/302607000248Screwdriver Bit 3 Piece
702/401608511020Screwdriver Blade GR.1,0X6, 1/4"
7031615439003Dust Tray
703/301610312001Rubber Bushing Ø5-7 MM
703/6511610312002Rubber Bushing Ø8-10 MM
721610100007Shim washer Thick 1,0 MM
7202602025092Auxiliary Handle Black Ø43 MM
741611015045Sealing Frame
751611015041Sealing Frame
7521613001009Depth-Gauge SW 6X210 MM
7532607335082Slide-In Accu Package 24V, 1,7AH, Nicd
7532607335216Accumulator package 24V, 3,0AH, Nicd
7542607224484Fast Charger EU 230/7,2-24V, 15 Min.
7542607224486Fast Charger GB 230/7,2-24V, 15 Min.
7542607224488Fast Charger AUS 240/7,2-24V, 15 Min.
7542607224492Fast Charger SAM 115/7,2-24V, 15 Min.
7542607224494Fast Charger J 100/7,2-24V, 15 Min.
7542607224496Fast Charger ROK 220/7,2-24V, 15 Min.
761610210138Seal Ring
7912605438358Carrying Case
801610100008Sealing disk
8031617000319Armature With Fan 24V
808160111A3H9Nameplate
811610290043Locating Ring
8101617014131Carbon-Brush Set
8161617000379Brush Holder Blue L=145 MM
8171617000380Brush Holder Red L=45 MM
821610591017Air-Deflector Ring
8211617000320Hammer Pipe Sds-Plus
821/011617000375Hammer Pipe Sds-Plus
8241617000314Jack Shaft Z=31/12
8411617000303Protection Sleeve Sds-Plus
8441617000322Clamp Handle Black
851613231006Switch Slide Red
8501617000975Bushing
861609280157Contact retainer
8641613100019Straight Pin DIN6325-2,5X12-RIKO
871614611012Compression Spring
91611110909Manufacturer's nameplate
91611110934Manufacturer's nameplate
901613231007Catch Slide
922912401021Tapping Screw DIN7981-ST3,9X22-C-Z
932912401019Tapping Screw DIN7981-ST3,9X16-C-Z
942912401005Tapping Screw DIN7981-ST2,9X9,5C-Z
981614416012Connecting Cable Red L=260 MM
991614416011Connecting Cable Blue L=270 MM
