Bosch GBH 24 VRE
Bosch GBH 24 VRE cordless rotary hammer: exploded parts diagram, 2 sheets, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

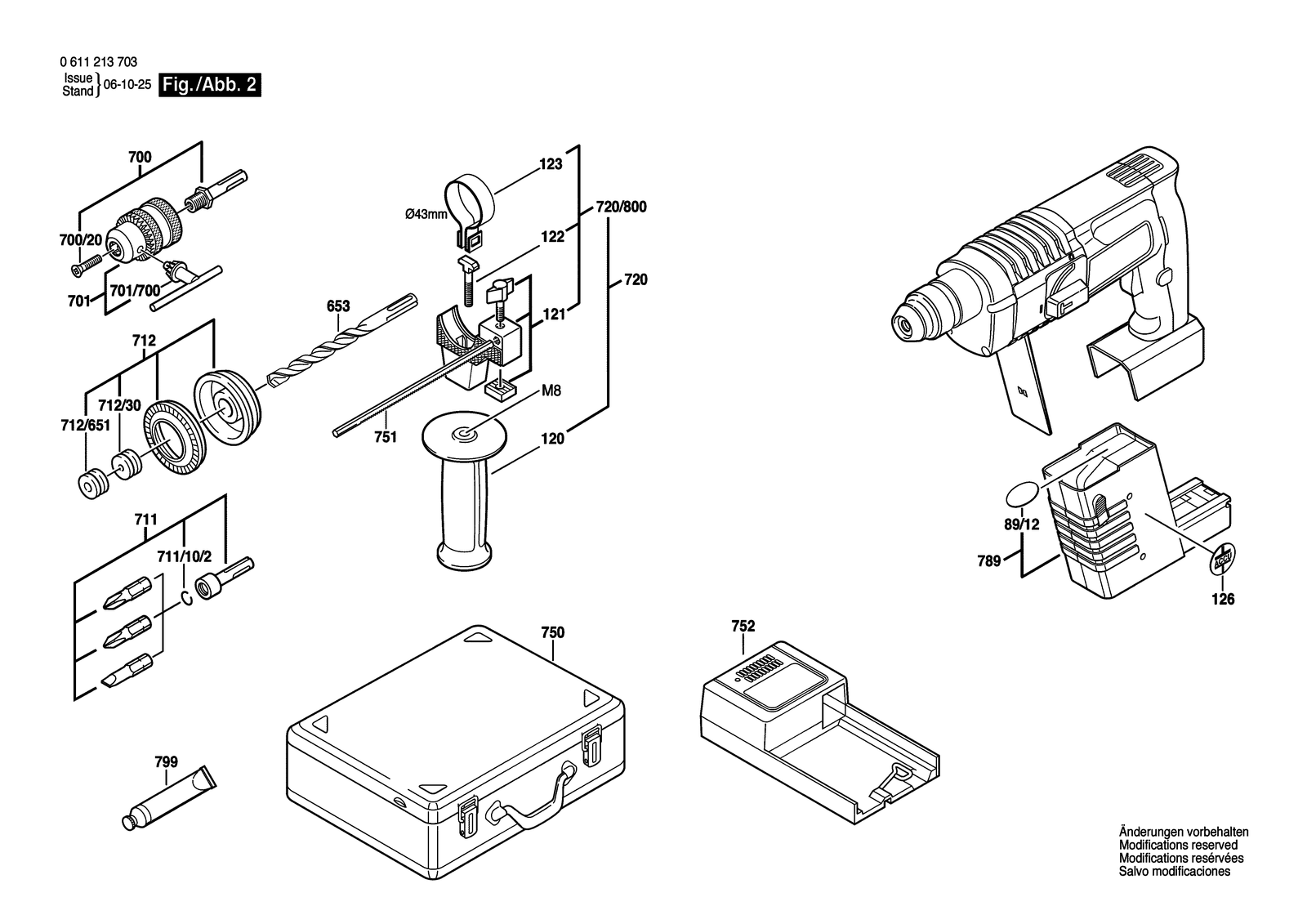

All parts of Bosch GBH 24 VRE: 101 positions on 2 sheets
Bosch GBH 24 VRE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108046 | Motor Housing Blue |
| 10 | 1611110421 | Manufacturer's nameplate |
| 10 | 1611110449 | Manufacturer's nameplate |
| 10 | 1611110732 | Reference Plate |
| 120 | 1612025019 | Auxiliary Handle M8 |
| 121 | 1618040048 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 126 | 1611110274 | Sticker Rechargable Batery |
| 17 | 1615132041 | Housing Cover Blue |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 1615100007 | Pole housing 24V |
| 20 | 1615700037 | Intermediate Flange |
| 21 | 1616490058 | Ratchet Sleeve Sds-Plus |
| 22 | 1616320007 | Cylindrical Gear Z=46 |
| 23 | 1616320002 | Cylindrical Gear Z=6/21 |
| 24 | 1613060010 | Toothed Shaft Z=6/10 |
| 26 | 1618700052 | Hammer Piston |
| 28 | 1613124026 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 30 | 1615819005 | Drive bearing |
| 31 | 1610100003 | Support Disc Thick 0,8 MM |
| 32 | 1612026023 | Clamp Handle Black |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 35 | 1610206021 | Rubber Ring |
| 37 | 1610390011 | Damping Bushing |
| 38 | 1610102022 | Supporting Disc |
| 39 | 1613100013 | Straight Pin |
| 4 | 1617200041 | On-Off Switch |
| 40 | 1614690001 | Holding Spring |
| 41 | 1610920003 | Roller-Cage Assembly |
| 43 | 2601015047 | Brush Plate |
| 44 | 1614633001 | Compression Spring |
| 45 | 1614614001 | Compression Spring |
| 54 | 1610210068 | O-Ring 24,0X2,5 MM |
| 55 | 1610206023 | Seal Ring |
| 56 | 1610210070 | O-Ring 14,0X3,0 MM |
| 58 | 1610210058 | O-Ring 18,0X3,0 MM |
| 59 | 1610210069 | O-Ring 6,0X2,5 MM |
| 60 | 1610210073 | O-Ring 10,0X3,5 MM |
| 61 | 1610283017 | Rotary shaft lip seal |
| 62 | 1610202026 | Plain bearing |
| 63 | 1610905012 | Groove ball bearing |
| 65 | 1900900228 | Groove ball bearing 8X22X7 |
| 653 | 1618596490 | Masonry Drill |
| 66 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 67 | 1610910064 | Needle bearing |
| 68 | 1610920004 | Roller-Cage Assembly |
| 69 | 1610102618 | Support Disc Thick 1,0 MM |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700/20 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 701 | 1608571088 | Chuck |
| 701/700 | 2607950007 | Chuck Wrench SG2 |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 711 | 1617000133 | Parts Set |
| 711/10/2 | 2604601004 | Retaining ring |
| 712 | 1615439003 | Dust Tray |
| 712 | 1615439009 | Dust Tray |
| 712/30 | 1610312001 | Rubber Bushing Ø5-7 MM |
| 712/651 | 1610312002 | Rubber Bushing Ø8-10 MM |
| 72 | 2916540018 | Retaining ring DIN 7993-A32 |
| 720 | 2602025070 | Auxiliary Handle Ø43 MM |
| 720/800 | 1617000925 | Parts Set |
| 73 | 1614601009 | Retaining ring DIN 9045-24 |
| 750 | 1615438120 | Carrying Case |
| 750 | 1615438149 | Carrying Case |
| 751 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 752 | 1617224001 | Battery Charger EU 220V |
| 752 | 1617224007 | Battery Charger EU 220V |
| 752 | 1617224008 | Battery Charger USA 115V |
| 752 | 1617224009 | Battery Charger AUS 240V |
| 752 | 1617224010 | Battery Charger J 100V |
| 752 | 1617224012 | Battery Charger GB 240V |
| 76 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 77 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 78 | 2910211217 | Tapping Screw DIN 7971-B3,9X9,5 |
| 789 | 1617334003 | Cadmium-Nickel Battery 24V, 1,4AH, Nicd |
| 79 | 2910211206 | Tapping Screw DIN 7971-B 2,9X13 |
| 799 | 3605430009 | Grease Tube 225 Ml |
| 80 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 803 | 1614010114 | Armature 24V |
| 811 | 1617014119 | Carbon-Brush Set |
| 816 | 1615806077 | Gear Housing Black |
| 821 | 1617000931 | Ratchet Sleeve |
| 827 | 1617000338 | Striker |
| 83 | 1903230309 | Ball 5 MM V DIN 5401 |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 84 | 1610120024 | Fastening Flange |
| 864 | 1610905032 | Groove ball bearing 7X19X6 |
| 866 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 88 | 1615719016 | Console |
| 89/12 | 2601110999 | Sticker |
| 896 | 1617200042 | Switch |
| 9 | 1611110355 | Manufacturer's nameplate |
| 9 | 1611110420 | Manufacturer's nameplate |
| 9 | 1611110731 | Manufacturer's nameplate |
| 90 | 1610499010 | Insulating Sleeve |
| 91 | 1611329006 | Contact Spring |
| 94 | 1613120017 | Detent Pin |
