Bosch GBH 24 VFR

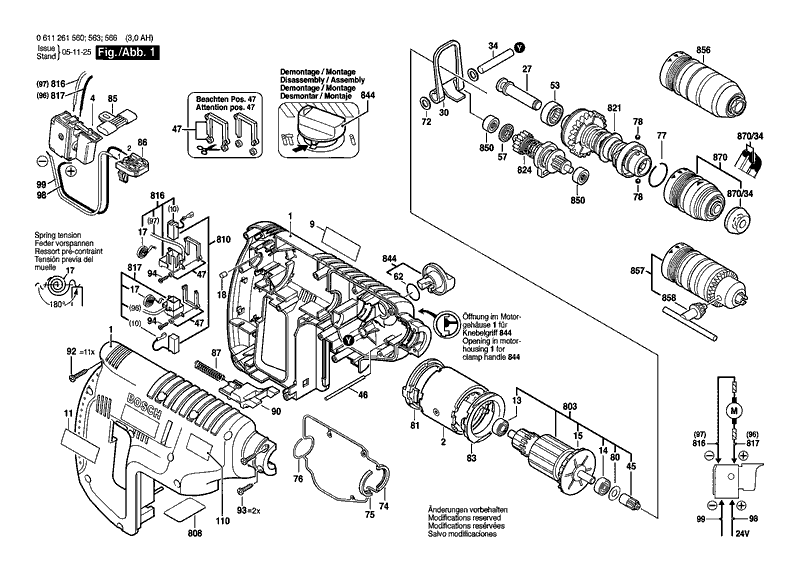

Bosch GBH 24 VFR cordless rotary hammer: exploded parts diagram, 2 sheets, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 24 VFR: 67 positions on 2 sheets
Bosch GBH 24 VFR parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615104033 | Housing Section Blue |
| 11 | 1611110A98 | Reference Plate |
| 11 | 1611110X46 | Reference Plate |
| 110 | 2601119110 | Warning Plate Japan |
| 13 | 1600905033 | Groove ball bearing 8X22X7 |
| 14 | 2600905052 | Groove ball bearing 8X22X7 |
| 15 | 1616610092 | Fan |
| 17 | 1619P14306 | Spiral Spring |
| 18 | 2603100056 | Damping rubber |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 27 | 1618710076 | Striker |
| 30 | 1611911000 | Drive Lever |
| 34 | 1613100021 | Bearing Pin |
| 4 | 1617200067 | On-Off Switch |
| 45 | 1616316602 | Drive pinion Z=9 |
| 46 | 1613160022 | Straight Pin |
| 47 | 1601010010 | Insulating Plate |
| 53 | 1610910077 | Needle bearing |
| 57 | 1610920009 | Roller Thrust Bearing Black |
| 62 | 1610210125 | O-Ring 18,0X2,5 MM |
| 652 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 653 | 2607335163 | Accumulator package 24V, 1,7AH, Nicd |
| 653 | 2607335223 | Accumulator package 24V, 3,0AH, Nicd |
| 654 | 2607224493 | Fast Charger J 100/7,2-24V, 15 Min. |
| 654 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 654 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 655 | 1610508032 | Protective Cap Red |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 72 | 1610100007 | Shim washer Thick 1,0 MM |
| 74 | 1611015045 | Sealing Frame |
| 75 | 1611015041 | Sealing Frame |
| 76 | 1610210138 | Seal Ring |
| 77 | 1614601026 | Retaining ring |
| 78 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 80 | 1610100008 | Sealing disk |
| 803 | 1617000511 | Armature With Fan 24V |
| 808 | 160111A3H9 | Nameplate |
| 81 | 1610290043 | Locating Ring |
| 810 | 1617014131 | Carbon-Brush Set |
| 816 | 1617000379 | Brush Holder Blue L=145 MM |
| 817 | 1617000380 | Brush Holder Red L=45 MM |
| 820 | 2602025118 | Auxiliary Handle Ø43 MM |
| 820/120 | 1612025019 | Auxiliary Handle M8 |
| 820/124 | 1611316006 | Clamping Band Ø43 MM |
| 820/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 820/802 | 2608040176 | Support clamp Ø43 MM |
| 821 | 1617000387 | Hammer Pipe |
| 824 | 1617000314 | Jack Shaft Z=31/12 |
| 83 | 1610290078 | Locating Ring |
| 844 | 1617000322 | Clamp Handle Black |
| 85 | 1613231006 | Switch Slide Red |
| 850 | 1617000975 | Bushing |
| 856 | 1617000332 | Keyless Chuck |
| 857 | 1618571029 | Key Chuck |
| 858 | 2607950007 | Chuck Wrench SG2 |
| 86 | 1609280157 | Contact retainer |
| 87 | 1614611012 | Compression Spring |
| 870 | 1617000327 | Quick-Change Collet Chuck Sds-Plus |
| 870/34 | 1610508047 | Protective Cap |
| 9 | 1611110A97 | Manufacturer's nameplate |
| 9 | 1611110X45 | Manufacturer's nameplate |
| 90 | 1613231007 | Catch Slide |
| 92 | 2912401021 | Tapping Screw DIN7981-ST3,9X22-C-Z |
| 93 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 94 | 2912401007 | Tapping Screw DIN 7981-ST2,9X16,0-C-Z |
| 98 | 1614416012 | Connecting Cable Red L=260 MM |
| 99 | 1614416011 | Connecting Cable Blue L=270 MM |
