Bosch GBH 2-28 DBV
Bosch GBH 2-28 DBV rotary hammer: exploded parts diagram, 2 sheets, 110 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

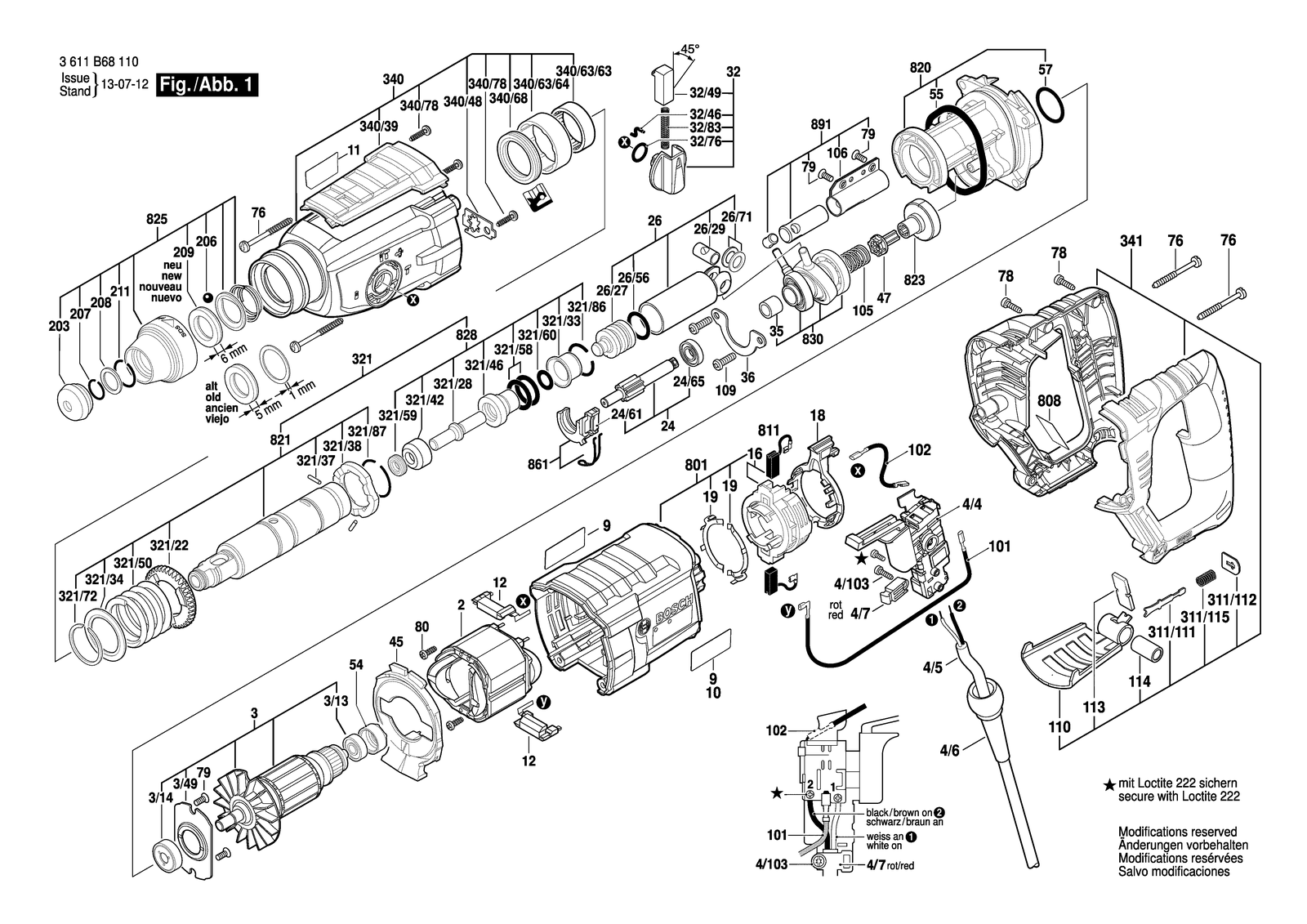

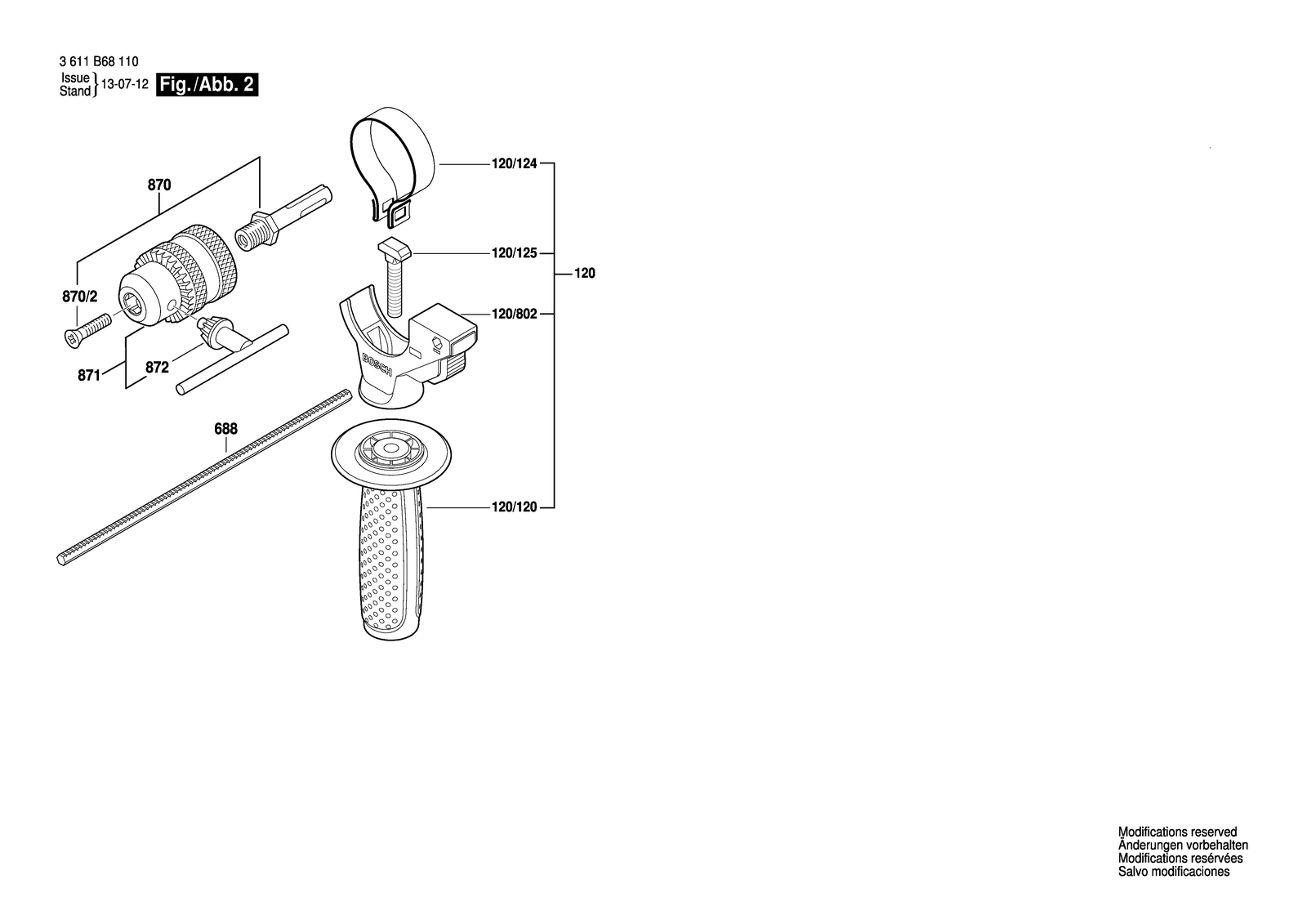

All parts of Bosch GBH 2-28 DBV: 110 positions on 2 sheets
Bosch GBH 2-28 DBV parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1611110W52 | Manufacturer's nameplate RH228VC |
| 101 | 1614449018 | Connecting Cable |
| 102 | 1614449019 | Connecting Cable |
| 105 | 1614643027 | Compression Spring |
| 106 | 1610590024 | Protective Sleeve |
| 109 | 160343508E | Thread-forming tap. Screw |
| 11 | 1611110W40 | Warning Plate |
| 110 | 1615510007 | Strap |
| 113 | 1611015057 | Stop Plate |
| 114 | 1610301006 | Bushing |
| 12 | 1600A0032J | Adapter module |
| 12 | 1614465011 | Suppression Filter |
| 120 | 160202508X | Auxiliary Handle |
| 120/120 | 160202507H | Auxiliary Handle |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/802 | 1617000475 | Support clamp |
| 16 | 1614336064 | Brush Plate |
| 18 | 1610290183 | Clutch Sleeve |
| 19 | 1611329024 | Switch Contact |
| 2 | 1614220222 | Pole Shoe 240V |
| 2 | 1614220224 | Pole Shoe 120V |
| 203 | 1610508047 | Protective Cap |
| 206 | 1613230003 | Ball Ø7,3 MM |
| 207 | 1614601027 | Retaining ring |
| 208 | 1610101629 | Retaining Washer |
| 209 | 1610102638 | Friction Washer |
| 211 | 2916540012 | Retaining ring DIN 7993-A22 |
| 24 | 16170006EJ | Toothed Shaft |
| 24/61 | 1615820097 | Switching Element |
| 24/65 | 1610905016 | Groove ball bearing |
| 26 | 16170006A5 | Hammer Piston |
| 26/27 | 1610311019 | Striker |
| 26/29 | 1600A01TD0 | Piston Pin |
| 26/56 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 26/71 | 1610100016 | Guide Disc |
| 3 | 1614010272 | Armature 120V |
| 3 | 1614010281 | Armature 240V |
| 3/13 | 1610905032 | Groove ball bearing 7X19X6 |
| 3/14 | 1610905048 | Groove ball bearing 9X24X7 |
| 3/49 | 1615700044 | End Shield |
| 311/111 | 1611016004 | Tappet |
| 311/112 | 1611010008 | Pressure Plate |
| 311/115 | 1614643017 | Compression Spring |
| 32 | 1612026037 | Clamp Handle Black |
| 32/46 | 1614690002 | Driver Pin |
| 32/49 | 1612026035 | Switch Button Red |
| 32/76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/83 | 1614611006 | Compression Spring |
| 321 | 16170006CA | Toolholder |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/28 | 1613124098 | Striker Pin |
| 321/33 | 1610590020 | Holding Jacket |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610102084 | Thrust Ring |
| 321/46 | 1610390068 | Guide Bushing |
| 321/50 | 1614615008 | Compression Spring |
| 321/58 | 1610210105 | O-Ring 18,0X3,5 MM |
| 321/59 | 1600A009VC | Shaft Seal |
| 321/60 | 1610210209 | O-Ring 9,5X3,5 MM |
| 321/72 | 1604601027 | Retaining ring |
| 321/86 | 1614601034 | Retaining ring |
| 321/87 | 1604601028 | Retaining ring A22 DIN 7993 |
| 340 | 16170006BY | Gear Housing |
| 340/39 | 16055002CF | Cover |
| 340/48 | 1611098008 | Tab Washer |
| 340/63/63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 340/63/64 | 1610390069 | Bushing |
| 340/68 | 1610283036 | Rotary shaft lip seal |
| 340/78 | 2603490022 | Screw 4X16 |
| 341 | 16170006AF | Handle Cover |
| 35 | 1610202024 | Plain bearing |
| 36 | 1615808106 | Bearing Holder |
| 4/103 | 1613435034 | Lens Head Screw 3X10 St |
| 4/4 | 1617200132 | Switch |
| 4/4 | 1617200538 | Switch |
| 4/5 | 1614460054 | Power supply cord AUS 2,7M 2 X 1,0MM Pvc |
| 4/5 | 2610911990 | Power supply cord Usa/can 2,70M 2 X 0,82MM SJ 18/2 |
| 4/6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 4/7 | 1601035008 | Cable Clip |
| 45 | 1610522015 | Air-Deflector Ring |
| 47 | 1616312010 | Control Element |
| 54 | 1610502016 | Rubber Bushing |
| 55 | 1610290104 | O-Ring 59,5X5,0 MM |
| 57 | 1610210208 | O-Ring 24,0X2,0 MM |
| 688 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 76 | 160343000A | Thread-forming tap. Screw |
| 78 | 2603490022 | Screw 4X16 |
| 79 | 1613435042 | Thread-forming tap. Screw |
| 80 | 1613435043 | Screw |
| 801 | 16170006DT | Motor Housing |
| 808 | 160111A3H5 | Nameplate |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 820 | 16170006BT | Intermediate Flange |
| 821 | 16170006C9 | Tool Holding Fixture |
| 823 | 16170006BW | Gear Sleeve |
| 825 | 16170006CB | Tool Holding Fixture |
| 828 | 1617000697 | Striker Pin |
| 830 | 16170006BX | Drive bearing |
| 861 | 1615820097 | Switching Element |
| 870 | 1613523011 | Drill Chuck Shank 1/2", Sds-Plus |
| 870/2 | 2603421207 | Countersunk-Head Screw Lefthand Threads M6X27-KØ11 |
| 871 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 872 | 2607950007 | Chuck Wrench SG2 |
| 891 | 16170006BZ | Weight |
| 9 | 160111C01F | Manufacturer's nameplate RH228VC-1 |
| 9 | 1611110W52 | Manufacturer's nameplate RH228VC |
| 9 | 161111C01K | Manufacturer's nameplate RH228VC-1 |
