Bosch GBH 2-28 D

Bosch GBH 2-28 D rotary hammer: exploded parts diagram, 2 sheets, 98 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 2-28 D: 98 positions on 2 sheets

Bosch GBH 2-28 D parts list (2 sheets)

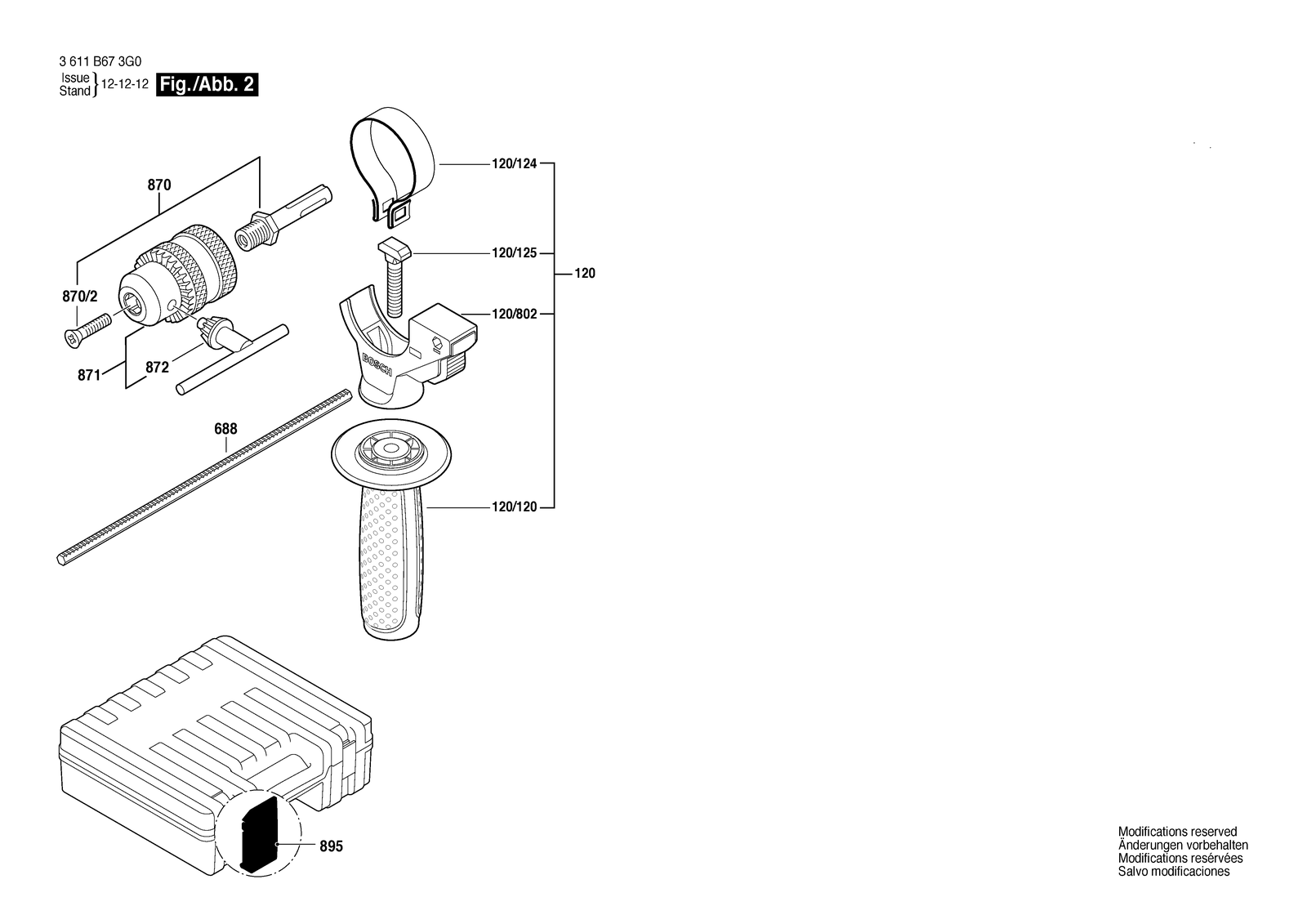

Bosch GBH 2-28 D parts diagram, sheet 1Bosch GBH 2-28 D parts diagram, sheet 2
No.Part numberPart name
101611110Z99Manufacturer's nameplate GBH 2-28 D
1011614449014Connecting Cable
1051614643027Compression Spring
109160343508EThread-forming tap. Screw
111611110W02Reference Plate
121600A0032JAdapter module
120160202508XAuxiliary Handle
120/120160202507HAuxiliary Handle
120/1241611316021Clamping Band Ø50 MM
120/1251613490002T-Head Bolt M8X40 MM
120/8021617000475Support clamp
161614336093Brush Plate
191611329024Switch Contact
21614220221Pole Shoe 220V
21614220223Pole Shoe 127V
2031610508047Protective Cap
2061613230003Ball Ø7,3 MM
2071614601027Retaining ring
2081610101629Retaining Washer
2091610102638Friction Washer
2112916540012Retaining ring DIN 7993-A22
2416170006EJToothed Shaft
24/611615820097Switching Element
24/651610905016Groove ball bearing
2616170006A5Hammer Piston
26/271610311019Striker
26/291600A01TD0Piston Pin
26/561610210121O-Ring Green 17,0X3,0 MM
26/711610100016Guide Disc
31614010270Armature 220V
31614010271Armature 127V
3/131610905032Groove ball bearing 7X19X6
3/141610905048Groove ball bearing 9X24X7
3/491615700044End Shield
321612026037Clamp Handle Black
32/461614690002Driver Pin
32/491612026035Switch Button Red
32/761610210046O-Ring 10,5X2,7 MM
32/831614611006Compression Spring
32116170006CAToolholder
321/221616312004Cylindrical Gear
321/281613124098Striker Pin
321/331610590020Holding Jacket
321/341610190067Supporting Disc
321/371613100019Straight Pin DIN6325-2,5X12-RIKO
321/381600A008AGCatch Disk
321/421610102084Thrust Ring
321/461610390068Guide Bushing
321/501614615008Compression Spring
321/581610210105O-Ring 18,0X3,5 MM
321/591600A009VCShaft Seal
321/601610210209O-Ring 9,5X3,5 MM
321/721604601027Retaining ring
321/861614601034Retaining ring
321/871604601028Retaining ring A22 DIN 7993
34016170006DMGear Housing
340/3916055002CFCover
340/481611098008Tab Washer
340/63/631610910063Needle bearing Ø30XØ37X12 MM
340/63/641610390069Bushing
340/681610283036Rotary shaft lip seal
340/782603490022Screw 4X16
361615808106Bearing Holder
4/1021614449015Connecting Cable
4/1031613435034Lens Head Screw 3X10 St
4/41617200131Switch
4/41617200136Switch
4/51604460249Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2
4/51614460087Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F
4/51614460095Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F
4/61600703034Grommet Ø7,3-Ø8,6X66 MM
411615500428Housing Cover
451610522015Air-Deflector Ring
471616312010Control Element
541610502016Rubber Bushing
551610290104O-Ring 59,5X5,0 MM
571610210208O-Ring 24,0X2,0 MM
6881613001009Depth-Gauge SW 6X210 MM
76160343000AThread-forming tap. Screw
772603490024Torx Oval-Head Screw 4X25
791613435042Thread-forming tap. Screw
801613435043Screw
80116170006BSMotor Housing
808160111A3H5Nameplate
8111617000525Carbon-Brush Set 220 V / 127 V
82016170006BTIntermediate Flange
82116170006C9Tool Holding Fixture
82316170006BWGear Sleeve
82516170006CBTool Holding Fixture
8281617000697Striker Pin
83016170006CTDrive bearing
8611615820097Switching Element
8701613523011Drill Chuck Shank 1/2", Sds-Plus
870/22603421207Countersunk-Head Screw Lefthand Threads M6X27-KØ11
8711608571069Chuck Ø1,5-13 Mm, 1/2"
8722607950007Chuck Wrench SG2
8951615438409Lock For 1 615 438 486+...358+...367
91611110Z98Manufacturer's nameplate GBH 2-28 D
