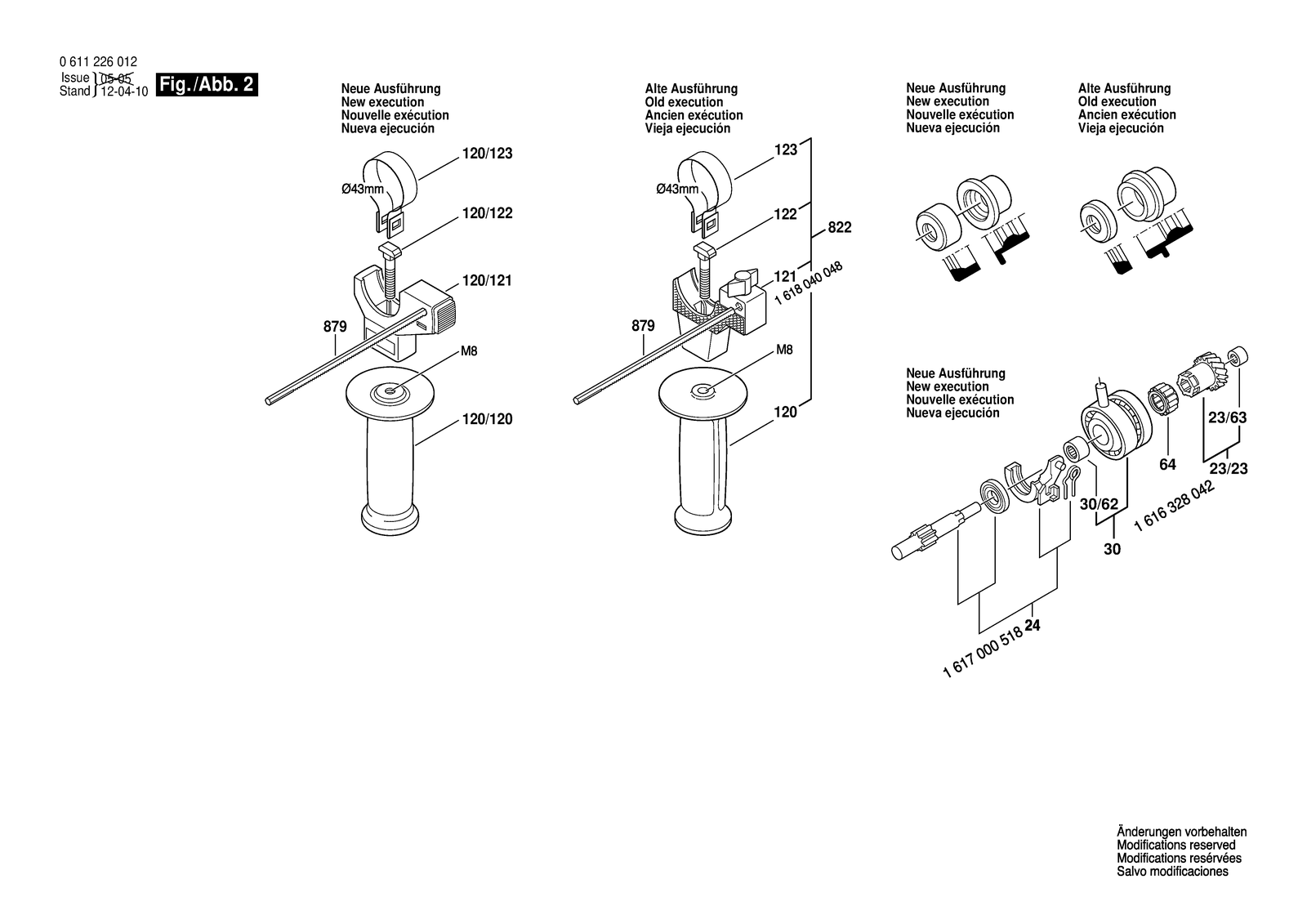

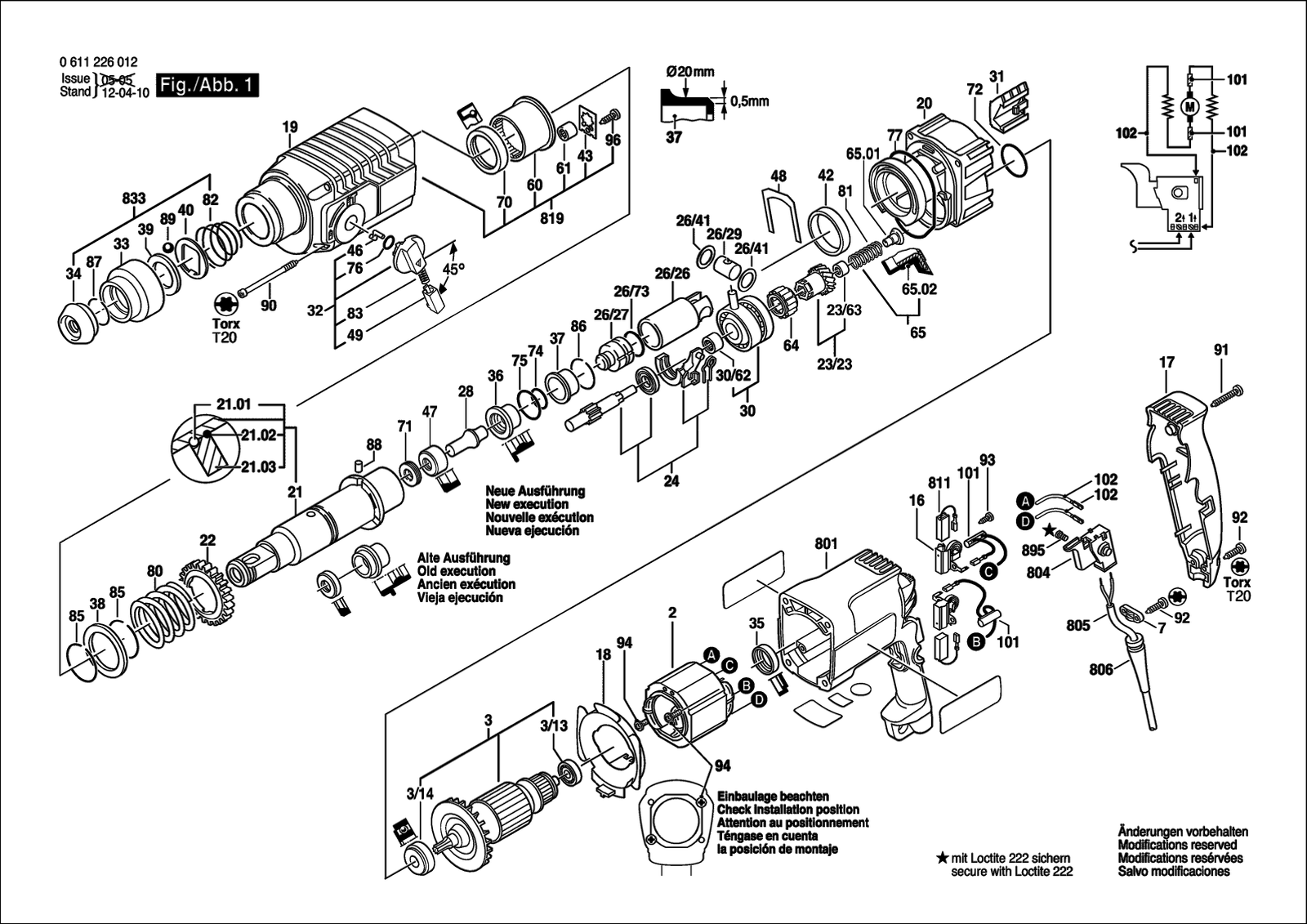

Bosch GBH 2-24 DSE hf rotary hammer: exploded parts diagram, 2 sheets, 170 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 2-24 DSE: 170 positions on 2 sheets
Bosch GBH 2-24 DSE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | F000610015 | Cable |
| 101 | F000610015 | Cable |
| 102 | F000610014 | Cable routing |
| 102 | F000610014 | Cable routing |
| 120 | 2602025118 | Auxiliary Handle Ø43 MM |
| 120/120 | 1612025019 | Auxiliary Handle M8 |
| 120/120 | 1612025019 | Auxiliary Handle M8 |
| 120/121 | 1618040048 | Support clamp Ø43 MM |
| 120/121 | 1618040048 | Support clamp Ø43 MM |
| 120/122 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/122 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/123 | 1611316006 | Clamping Band Ø43 MM |
| 120/123 | 1611316006 | Clamping Band Ø43 MM |
| 16 | 1617000343 | Brush Holder |
| 16 | 1617000343 | Brush Holder |
| 17 | 1615132089 | Housing Cover |
| 17 | 1615132089 | Housing Cover |
| 18 | 1610522009 | Air-Deflector Ring |
| 18 | 1610522009 | Air-Deflector Ring |
| 19 | 1615806185 | Gear Housing |
| 19 | 1615806162 | Gear Housing |
| 2 | F000607032 | Stator 220V |
| 2 | F000607033 | Pole Shoe 127V |
| 2 | F000607032 | Stator 220V |
| 2 | F000607033 | Pole Shoe 127V |
| 20 | 1615700035 | Intermediate Flange |
| 20 | 1615700035 | Intermediate Flange |
| 21 | 1618598241 | Tool Holding Fixture |
| 21 | 1618598241 | Tool Holding Fixture |
| 22 | 1616317602 | Cylindrical Gear Z=50 |
| 22 | 1616317602 | Cylindrical Gear Z=50 |
| 23/23 | 1616328041 | Gear Sleeve |
| 23/23 | 1616328041 | Gear Sleeve |
| 23/63 | 1610910064 | Needle bearing |
| 23/63 | 1610910064 | Needle bearing |
| 24 | 1617000518 | Toothed Shaft Z=3/9 |
| 24 | 1617000518 | Toothed Shaft Z=3/9 |
| 26/26 | 1618700062 | Hammer Piston |
| 26/26 | 1618700062 | Hammer Piston |
| 26/27 | 1618710057 | Striker |
| 26/27 | F000613036 | Striker |
| 26/29 | 1613105012 | Piston Pin |
| 26/29 | 1613105012 | Piston Pin |
| 26/41 | 1610101011 | Shim washer Thick 1,2 MM |
| 26/41 | 1610101011 | Shim washer Thick 1,2 MM |
| 26/73 | 1610210187 | O-Ring |
| 26/73 | 1610210187 | O-Ring |
| 28 | 1613124040 | Striker Pin |
| 28 | 1613124040 | Striker Pin |
| 3 | F000605051 | Armature |
| 3 | F000605052 | Armature |
| 3 | F000605051 | Armature |
| 3 | F000605052 | Armature |
| 3/13 | 1610905025 | Groove ball bearing 7X19X6 |
| 3/13 | 1610905025 | Groove ball bearing 7X19X6 |
| 3/14 | 1610905048 | Groove ball bearing 9X24X7 |
| 3/14 | 1610905048 | Groove ball bearing 9X24X7 |
| 30 | 1615819018 | Drive bearing |
| 30 | 1615819018 | Drive bearing |
| 30/62 | 1610910074 | Needle bearing |
| 30/62 | 1610910074 | Needle bearing |
| 31 | 1615510003 | Protective Grille |
| 31 | 1615510003 | Protective Grille |
| 32 | 1612026037 | Clamp Handle Black |
| 32 | 1612026037 | Clamp Handle Black |
| 33 | 1610499012 | Protection Sleeve Black |
| 33 | 1610499012 | Protection Sleeve Black |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 35 | 1610206021 | Rubber Ring |
| 35 | 1610206021 | Rubber Ring |
| 36 | 1610390038 | Guide Bushing |
| 36 | 1610390038 | Guide Bushing |
| 37 | 1610390017 | Damping Bushing |
| 37 | 1610390017 | Damping Bushing |
| 38 | 1610102026 | Supporting Disc |
| 38 | 1610102026 | Supporting Disc |
| 39 | 1610102025 | Friction Washer |
| 39 | 1610102025 | Friction Washer |
| 40 | 1610190011 | Holding Plate |
| 40 | 1610190011 | Holding Plate |
| 42 | 1610202015 | Plain bearing |
| 42 | 1610202015 | Plain bearing |
| 43 | 1611098005 | Tab Washer |
| 43 | 1611098005 | Tab Washer |
| 46 | 1614690002 | Driver Pin |
| 46 | 1614690002 | Driver Pin |
| 47 | 1610290057 | Guide Ring |
| 47 | 1610290057 | Guide Ring |
| 48 | 1611016003 | Holding Plate |
| 48 | 1611016003 | Holding Plate |
| 49 | 1612026035 | Switch Button Red |
| 49 | 1612026035 | Switch Button Red |
| 60 | 1610910073 | Needle-Roller Bearing |
| 60 | 1610910073 | Needle-Roller Bearing |
| 61 | 2600910006 | Needle bearing Ø7 MM |
| 61 | 2600910006 | Needle bearing Ø7 MM |
| 64 | 1610913010 | Needle-Roller Assembly |
| 64 | 1610913010 | Needle-Roller Assembly |
| 65 | 1610591013 | Plain bearing |
| 65 | 1610591016 | Plain bearing |
| 7 | 1611035005 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 70 | 1610283019 | Shaft Seal |
| 70 | 1610283019 | Shaft Seal |
| 71 | 1610290029 | Scraper |
| 71 | 1610290029 | Scraper |
| 72 | 1610210068 | O-Ring 24,0X2,5 MM |
| 72 | 1610210068 | O-Ring 24,0X2,5 MM |
| 74 | 1610210104 | O-Ring 11,0X3,5 MM |
| 74 | 1610210104 | O-Ring 11,0X3,5 MM |
| 75 | 1610210105 | O-Ring 18,0X3,5 MM |
| 75 | 1610210105 | O-Ring 18,0X3,5 MM |
| 76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 77 | 1610210106 | O-Ring 60,0X3,0 MM |
| 77 | 1610210106 | O-Ring 60,0X3,0 MM |
| 80 | 1614634005 | Compression Spring |
| 80 | 1614634005 | Compression Spring |
| 801 | F000601122 | Housing Section |
| 801 | F000601122 | Housing Section |
| 804 | 1617200047 | On-Off Switch |
| 804 | 2607200204 | Switch |
| 804 | 2607200205 | Switch |
| 805 | F000609125 | Power supply cord |
| 805 | F000609272 | Power supply cord SAM 4,00M 2 X 1,00MM H07 Rnf |
| 805 | F000609278 | Power supply cord SAM 4,00M 2 X 1,00MM H07 Rnf |
| 805 | F000609125 | Power supply cord |
| 805 | F000609165 | Power supply cord SAM 4,00M 2 X 1,00MM H07 Rnf |
| 805 | F000609166 | Power supply cord AR 4,00M 2 X 1,00MM H07 Rnf |
| 806 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 806 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 81 | 1614611009 | Compression Spring |
| 81 | 1614611009 | Compression Spring |
| 811 | F000611028 | Carbon Brush |
| 811 | F000611028 | Carbon Brush |
| 819 | F000602004 | Gear Housing |
| 819 | F000602005 | Gear Housing |
| 82 | 1614643003 | Compression Spring |
| 82 | 1614643003 | Compression Spring |
| 83 | 1614611006 | Compression Spring |
| 83 | 1614611006 | Compression Spring |
| 833 | F000634124 | Protection Sleeve |
| 833 | F000634124 | Protection Sleeve |
| 85 | 1614601011 | Retaining ring |
| 85 | 1614601011 | Retaining ring |
| 86 | 1614601012 | Retaining ring |
| 86 | 1614601012 | Retaining ring |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 879 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 879 | 1618040048 | Support clamp Ø43 MM |
| 88 | 1613200007 | Roller |
| 88 | 1613200007 | Roller |
| 89 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 89 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 895 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 895 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 90 | 1603435036 | Tapping Screw 4,8X78 Mm, Torx T-20 |
| 90 | F000600215 | Tapping Screw |
| 91 | 9618087101 | Tapping Screw |
| 91 | 9618087101 | Tapping Screw |
| 92 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 92 | 9618087100 | Tapping Screw 4X20 MM |
| 93 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 93 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 94 | F000616052 | Cross Recessed-Head Screw |
| 94 | F000616052 | Cross Recessed-Head Screw |
| 96 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 96 | 2910211218 | Tapping Screw DIN 7971-ST3,9X13-C |
