Bosch GBH 2-22 E

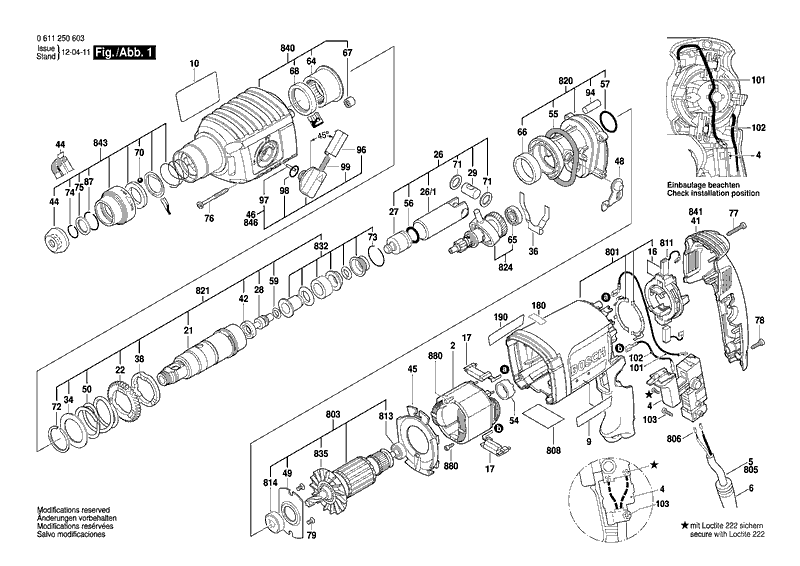

Bosch GBH 2-22 E rotary hammer: exploded parts diagram, 2 sheets, 97 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 2-22 E: 97 positions on 2 sheets
Bosch GBH 2-22 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1611110A79 | Reference Plate |
| 101 | 1614449014 | Connecting Cable |
| 102 | 1614449015 | Connecting Cable |
| 103 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 103 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 16 | 1614336058 | Brush Plate |
| 17 | 1600A0032J | Adapter module |
| 17 | 1614465011 | Suppression Filter |
| 190 | 1611110X80 | Manufacturer's nameplate |
| 2 | 2604220683 | Field 220-230V |
| 2 | 2604220684 | Field 110-120V |
| 21 | 2608670730 | Ratchet Sleeve |
| 22 | 1616312003 | Cylindrical Gear |
| 26 | 1617000534 | Hammer Piston |
| 26/1 | 1618700075 | Hammer Piston |
| 27 | 1618710080 | Striker |
| 28 | 1613124077 | Striker Pin Ø7,5 MM |
| 29 | 1613105012 | Piston Pin |
| 34 | 1610190067 | Supporting Disc |
| 36 | 1601329040 | Tensioning Bracket |
| 38 | 1610190045 | Catch Disk |
| 4 | 1617200532 | Switch |
| 4 | 1617200559 | Switch |
| 41 | 1615500333 | Housing Cover Blue |
| 42 | 1610422017 | Backup ring |
| 44 | 1610508047 | Protective Cap |
| 45 | 1610522012 | Air-Deflector Ring |
| 46 | 1612026097 | Clamp Handle Black |
| 48 | 1601021005 | Shift Plate |
| 49 | 1615700044 | End Shield |
| 5 | 1614460049 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460095 | Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 50 | 1604611037 | Compression Spring |
| 54 | 1610502012 | Rubber Bushing |
| 55 | 1610290226 | Seal Ring 53,0X7,0 MM |
| 56 | 1610210187 | O-Ring |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 59 | 1610210177 | O-Ring 9,0X2,0 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 64 | 1610202026 | Plain bearing |
| 65 | 1600900037 | Groove ball bearing |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 651 | 2603001009 | Depth-Gauge |
| 66 | 1610202020 | Plain bearing |
| 67 | 1610910098 | Needle bearing |
| 67 | 1610913019 | Needle bearing Ø7 MM |
| 68 | 1610283017 | Rotary shaft lip seal |
| 691/895 | 1615438409 | Lock For 1 615 438 486+...358+...367 |
| 691/895 | 1615438431 | Lock For 1 615 438 429 + 1 615 438 430 |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 72 | 1604601027 | Retaining ring |
| 73 | 1614601057 | Retaining ring |
| 74 | 1614601027 | Retaining ring |
| 75 | 1610101629 | Retaining Washer |
| 76 | 160343000A | Thread-forming tap. Screw |
| 76 | 1613435022 | Thread-forming tap. Screw |
| 77 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 78 | 2603490022 | Screw 4X16 |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 801 | 1617000536 | Motor Housing Blue |
| 801 | 1619P01026 | Motor Housing |
| 803 | 1617000524 | Armature With Fan 220-230V |
| 803 | 1617000543 | Armature With Fan 110-120V |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 806 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 808 | 160111A3H5 | Nameplate |
| 811 | 1607000485 | Carbon-Brush Set 10 X 1 617 000 525 |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 813 | 1610905025 | Groove ball bearing 7X19X6 |
| 814 | 1610905048 | Groove ball bearing 9X24X7 |
| 820 | 1617000526 | Intermediate Flange |
| 821 | 1617000V81 | Ratchet Sleeve |
| 822 | 2602025118 | Auxiliary Handle Ø43 MM |
| 822/120 | 1612025019 | Auxiliary Handle M8 |
| 822/124 | 1611316006 | Clamping Band Ø43 MM |
| 822/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 822/802 | 2608040176 | Support clamp Ø43 MM |
| 824 | 1617000892 | Toothed Shaft |
| 832 | 1617000529 | Guide Sleeve |
| 835 | 1616610093 | Fan |
| 840 | 1617000530 | Gear Housing Black |
| 843 | 1617000531 | Protection Sleeve Black |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 870 | 1617000154 | Drill Chuck Shank Sds-Plus 1/2" |
| 870/2 | 2603421207 | Countersunk-Head Screw Lefthand Threads M6X27-KØ11 |
| 871 | 1608571088 | Chuck |
| 872 | 2607950007 | Chuck Wrench SG2 |
| 880 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 9 | 1611110A82 | Manufacturer's nameplate |
| 94 | 1610205010 | Felt Seal |
| 96 | 1612026035 | Switch Button Red |
| 97 | 1903201118 | Needle Roller |
| 98 | 1610210046 | O-Ring 10,5X2,7 MM |
| 99 | 1614611006 | Compression Spring |
