Bosch GBH 2-21

Bosch GBH 2-21 rotary hammer: exploded parts diagram, 2 sheets, 109 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 2-21: 109 positions on 2 sheets

Bosch GBH 2-21 parts list (2 sheets)

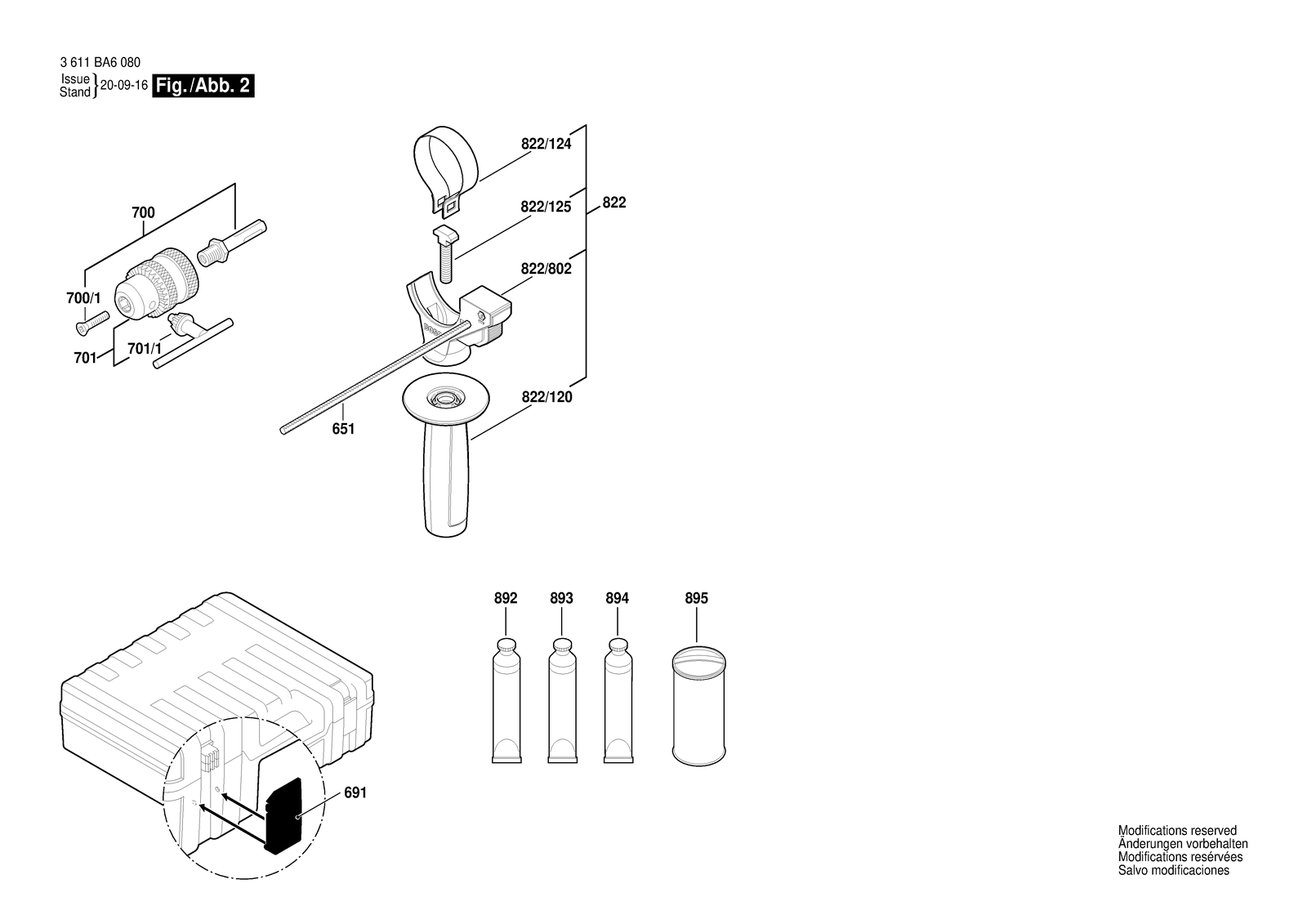

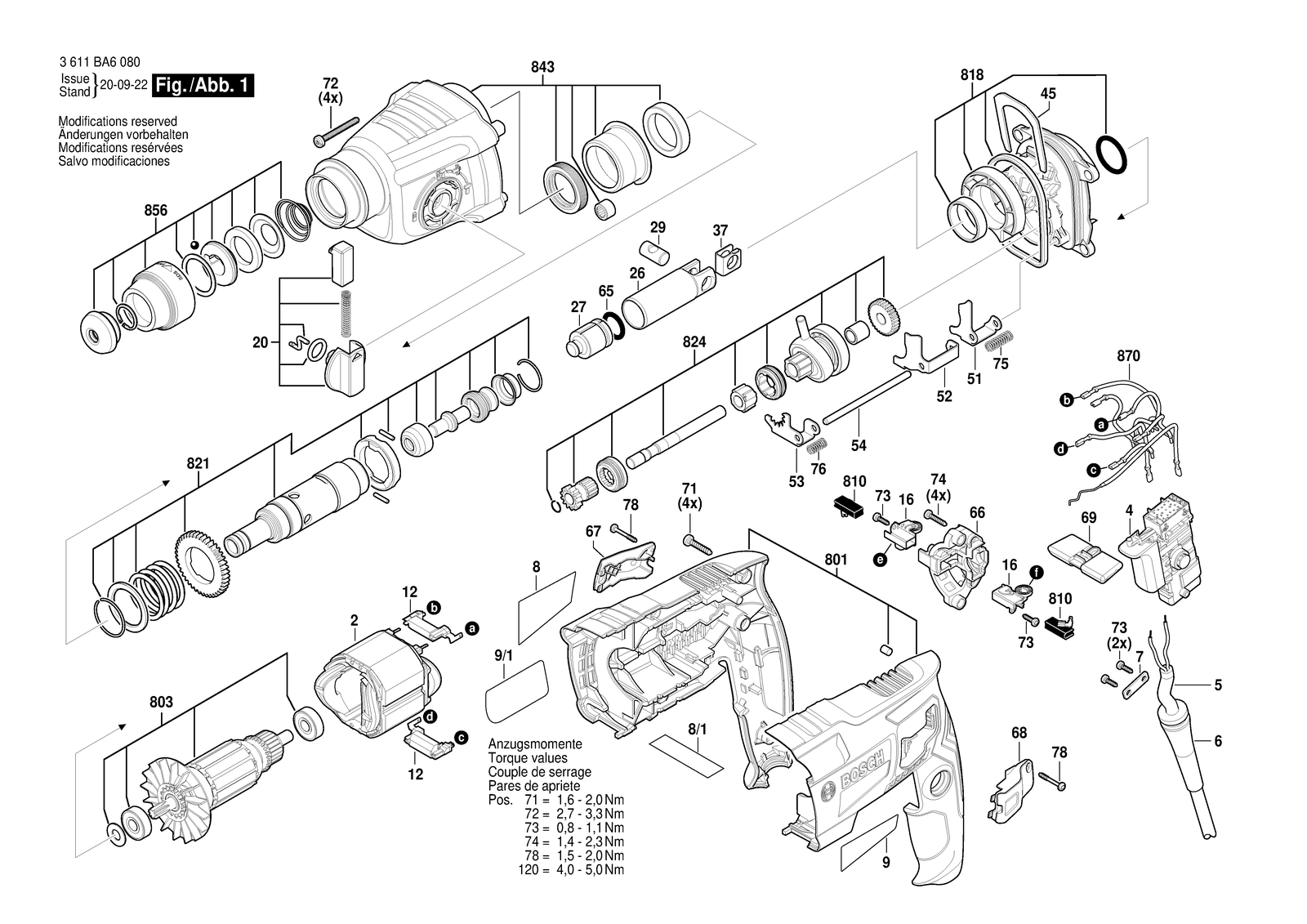

Bosch GBH 2-21 parts diagram, sheet 1Bosch GBH 2-21 parts diagram, sheet 2
No.Part numberPart name
121600A0032JAdapter module
121617328032Suppression Filter
161619P20535Brush Holder
21619P16394Field 127 V
21619P16396Field 110 V
21619P21229Field
21619PS1129Field
201612026151Clamp Handle Black
261619P20540Hammer Piston
271619P20541Striker
291613100034Piston Pin
371610100016Guide Disc
41607200372Switch
41607200373Switch
451611016003Holding Plate
51604460450Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
5160446072WPower supply cord
51614460026Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
51614460052Power supply cord
51614460061Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F
51614460087Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F
51614460090Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F
51614460095Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F
52610387247Power supply cord SAM 2,65M 2 X 082MM SJ 18/2
53604460084Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F
511610021004Shift Plate
521610021006Shift Plate
531610021005Shift Plate
541613023005Guide Rod
62600703018Grommet Ø7,3-Ø8,6X76 MM
62600703019Grommet Ø8,7-Ø9,6X76 MM
651610210070O-Ring 14,0X3,0 MM
6512603001009Depth-Gauge
661619P20537Bracket
671619P20547Insulating Cap
681619P20548Insulating Cap
691619P20702Change-Over Switch
6911615438409Lock For 1 615 438 486+...358+...367
6911615438426Lock For 1 615 438 395
6911615438431Lock For 1 615 438 429 + 1 615 438 430
71611035007Cable Clip
71611035008Cable Clip
7001617000154Drill Chuck Shank Sds-Plus 1/2"
700/12603421207Countersunk-Head Screw Lefthand Threads M6X27-KØ11
7011608571088Chuck
701/12607950007Chuck Wrench SG2
712603490023Torx Oval-Head Screw 4X20
721619P09645Torx Oval-Head Screw
731619P00220Torx Oval-Head Screw 3X10
741619P00219Tapping Screw
751614643025Compression Spring
761614643023Compression Spring
781619P20563Tapping Screw
81619P16243Nameplate
81619P16245Nameplate
81619P16247Nameplate
81619P16249Nameplate
81619P16251Nameplate
81619P16253Nameplate
81619P16255Nameplate
81619P16257Nameplate
81619P16259Nameplate
81619P16262Nameplate
81619P16264Nameplate
81619P16266Nameplate
81619P16268Nameplate
81619P16270Nameplate
81619P16272Nameplate
8/11619P16244Nameplate
8/11619P16246Nameplate
8/11619P16248Nameplate
8/11619P16250Nameplate
8/11619P16252Nameplate
8/11619P16254Nameplate
8/11619P16256Nameplate
8/11619P16258Nameplate
8/11619P16260Nameplate
8/11619P16263Nameplate
8/11619P16265Nameplate
8/11619P16267Nameplate
8/11619P16269Nameplate
8/11619P16271Nameplate
8/11619P16273Nameplate
8011619P16274Motor Housing
8031619P16276Armature
8031619P17023Armature 127 V
8031619P17024Armature 110 V
8031619P17025Armature 100 V
8101617000525Carbon-Brush Set 220 V / 127 V
8181619P16278Intermediate Flange
8211619P16280Hammer Pipe
822160202508XAuxiliary Handle
822/120160202507HAuxiliary Handle
822/1241611316021Clamping Band Ø50 MM
822/1251613490002T-Head Bolt M8X40 MM
822/8021617000475Support clamp
8241619P16282Jack Shaft
8431619P16284Gear Housing
85616170006D3Protection Sleeve
8701619P16327Connecting Cable
8701619P17026Connecting Cable
8921615430001Grease Tube 225 Ml
8931615430002Grease Tube 225 Ml
8941615430020Grease Tube 225 Ml
8951615430019Oil Reservoir 1000 Ml
91619P16242Manufacturer's nameplate GBH 220
91619P16261Manufacturer's nameplate GBH 2-21
9/11619P16241Reference Plate GBH 220
9/11619P16275Reference Plate GBH 2-21
