Bosch GBH 2-20 SE

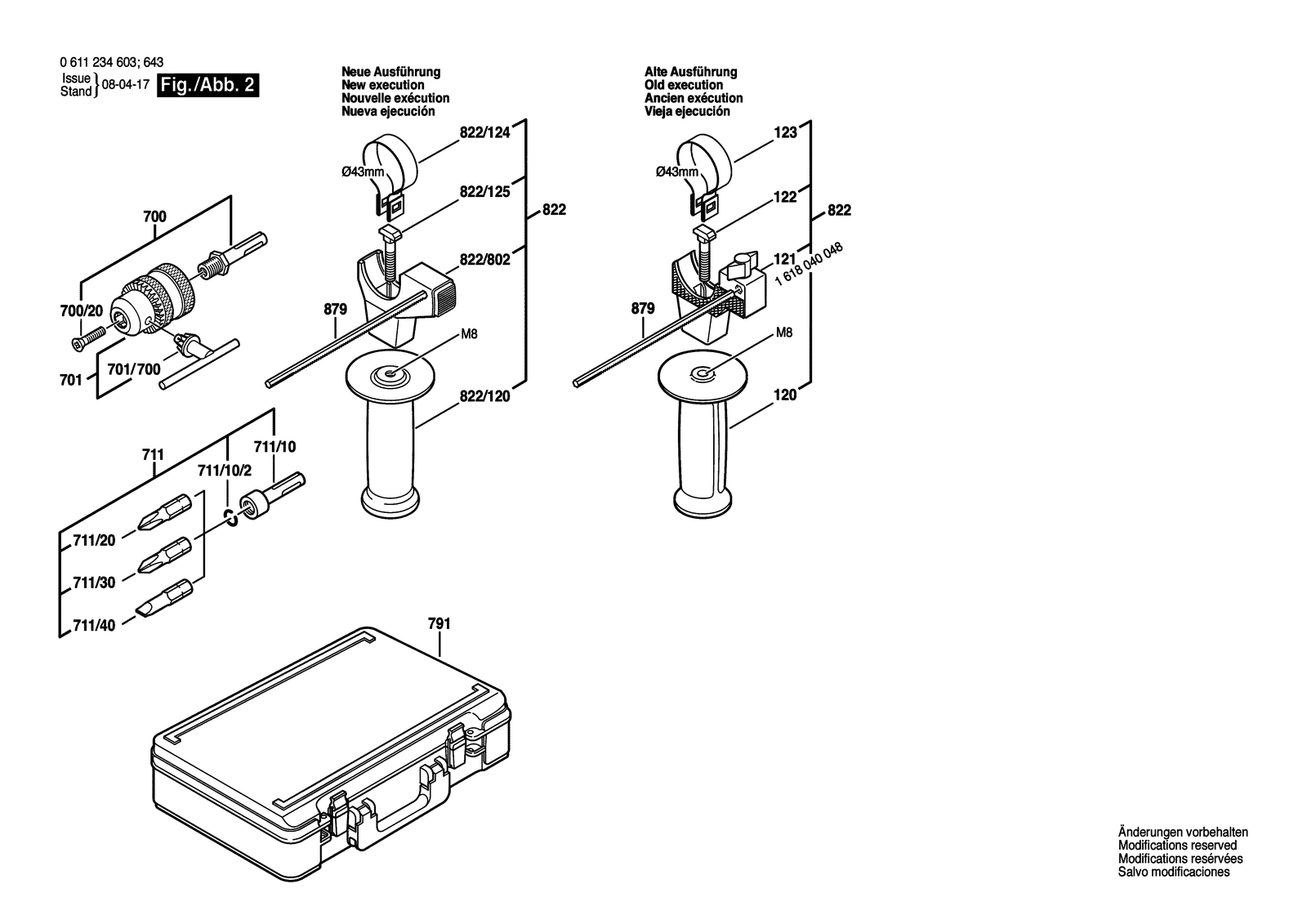

Bosch GBH 2-20 SE rotary hammer: exploded parts diagram, 2 sheets, 276 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 2-20 SE: 276 positions on 2 sheets
Bosch GBH 2-20 SE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108112 | Motor Housing Blue |
| 1 | 1615108112 | Motor Housing Blue |
| 1 | 1615108112 | Motor Housing Blue |
| 10 | 1611110837 | Manufacturer's nameplate |
| 10 | 1611110963 | Manufacturer's nameplate |
| 10 | 1611110964 | Manufacturer's nameplate |
| 10 | 1611111X08 | Nameplate |
| 10 | 1611110X08 | Manufacturer's nameplate |
| 10 | 1611110X08 | Manufacturer's nameplate |
| 12 | 1617328025 | Suppression Filter |
| 12 | 1617328025 | Suppression Filter |
| 12 | 1617328025 | Suppression Filter |
| 120 | 2602025070 | Auxiliary Handle Ø43 MM |
| 121 | 1618040048 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 13 | 1617000343 | Brush Holder |
| 13 | 1617000343 | Brush Holder |
| 13 | 1617000343 | Brush Holder |
| 14 | 1614465008 | Suppression Filter White L=55 MM |
| 14 | 1614465008 | Suppression Filter White L=55 MM |
| 14 | 1614465008 | Suppression Filter White L=55 MM |
| 17 | 1615132065 | Housing Cover Blue |
| 17 | 1615132065 | Housing Cover Blue |
| 17 | 1615132065 | Housing Cover Blue |
| 18 | 1610522008 | Air-Deflector Ring |
| 18 | 1610522008 | Air-Deflector Ring |
| 18 | 1610522008 | Air-Deflector Ring |
| 180 | 3601119137 | Warning Plate Caution |
| 180 | 1619P00002 | Sticker |
| 181 | 1611110922 | Warning Plate |
| 20 | 1615700037 | Intermediate Flange |
| 20 | 1615700037 | Intermediate Flange |
| 20 | 1615700037 | Intermediate Flange |
| 21 | 1616490058 | Ratchet Sleeve Sds-Plus |
| 21 | 1616490058 | Ratchet Sleeve Sds-Plus |
| 21 | 1616490058 | Ratchet Sleeve Sds-Plus |
| 22 | 1616320007 | Cylindrical Gear Z=46 |
| 22 | 1616320007 | Cylindrical Gear Z=46 |
| 22 | 1616320007 | Cylindrical Gear Z=46 |
| 23 | 1616320002 | Cylindrical Gear Z=6/21 |
| 23 | 1616320006 | Cylindrical Gear Z=6/21 |
| 23 | 1616320006 | Cylindrical Gear Z=6/21 |
| 23 | 1616320006 | Cylindrical Gear Z=6/21 |
| 24 | 1613060010 | Toothed Shaft Z=6/10 |
| 24 | 1613060010 | Toothed Shaft Z=6/10 |
| 24 | 1613060010 | Toothed Shaft Z=6/10 |
| 26 | 1618700052 | Hammer Piston |
| 26 | 1618700052 | Hammer Piston |
| 26 | 1618700052 | Hammer Piston |
| 28 | 1613124026 | Striker Pin |
| 28 | 1613124026 | Striker Pin |
| 28 | 1613124026 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 29 | 1613105012 | Piston Pin |
| 29 | 1613105012 | Piston Pin |
| 3/50 | 1616610072 | Fan Black |
| 3/50 | 1616610072 | Fan Black |
| 3/50 | 2606610049 | Fan |
| 3/50 | 1616610072 | Fan Black |
| 30 | 1615819005 | Drive bearing |
| 30 | 1615819005 | Drive bearing |
| 30 | 1615819005 | Drive bearing |
| 31 | 1610100003 | Support Disc Thick 0,8 MM |
| 31 | 1610100003 | Support Disc Thick 0,8 MM |
| 31 | 1610100003 | Support Disc Thick 0,8 MM |
| 32 | 1612026023 | Clamp Handle Black |
| 32 | 1612026023 | Clamp Handle Black |
| 32 | 1612026023 | Clamp Handle Black |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 35 | 1610206021 | Rubber Ring |
| 35 | 1610206021 | Rubber Ring |
| 35 | 1610206021 | Rubber Ring |
| 37 | 1610390011 | Damping Bushing |
| 37 | 1610390011 | Damping Bushing |
| 37 | 1610390011 | Damping Bushing |
| 38 | 1610102022 | Supporting Disc |
| 38 | 1610102022 | Supporting Disc |
| 38 | 1610102022 | Supporting Disc |
| 39 | 1613100013 | Straight Pin |
| 39 | 1613100013 | Straight Pin |
| 39 | 1613100013 | Straight Pin |
| 4 | 1617200075 | On-Off Switch |
| 4 | 1617200086 | Switch |
| 4 | 1617200086 | Switch |
| 40 | 1614690001 | Holding Spring |
| 40 | 1614690001 | Holding Spring |
| 40 | 1614690001 | Holding Spring |
| 41 | 1610920003 | Roller-Cage Assembly |
| 41 | 1610920003 | Roller-Cage Assembly |
| 41 | 1610920003 | Roller-Cage Assembly |
| 44 | 1614633001 | Compression Spring |
| 44 | 1614633001 | Compression Spring |
| 44 | 1614633001 | Compression Spring |
| 45 | 1614614001 | Compression Spring |
| 45 | 1614614001 | Compression Spring |
| 45 | 1614614001 | Compression Spring |
| 49 | 2604448005 | Cable White L=130 MM |
| 49 | 2604448005 | Cable White L=130 MM |
| 49 | 2604448005 | Cable White L=130 MM |
| 5 | 1614460049 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460052 | Power supply cord |
| 5 | 1614460054 | Power supply cord AUS 2,7M 2 X 1,0MM Pvc |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460095 | Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460052 | Power supply cord |
| 5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460090 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 54 | 1610210068 | O-Ring 24,0X2,5 MM |
| 54 | 1610210068 | O-Ring 24,0X2,5 MM |
| 54 | 1610210068 | O-Ring 24,0X2,5 MM |
| 55 | 1610206023 | Seal Ring |
| 55 | 1610206023 | Seal Ring |
| 55 | 1610206023 | Seal Ring |
| 56 | 1610210070 | O-Ring 14,0X3,0 MM |
| 56 | 1610210070 | O-Ring 14,0X3,0 MM |
| 56 | 1610210070 | O-Ring 14,0X3,0 MM |
| 58 | 1610210058 | O-Ring 18,0X3,0 MM |
| 58 | 1610210058 | O-Ring 18,0X3,0 MM |
| 58 | 1610210058 | O-Ring 18,0X3,0 MM |
| 59 | 1610210069 | O-Ring 6,0X2,5 MM |
| 59 | 1610210069 | O-Ring 6,0X2,5 MM |
| 59 | 1610210069 | O-Ring 6,0X2,5 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1610210073 | O-Ring 10,0X3,5 MM |
| 60 | 1610210073 | O-Ring 10,0X3,5 MM |
| 60 | 1610210073 | O-Ring 10,0X3,5 MM |
| 61 | 1610283017 | Rotary shaft lip seal |
| 61 | 1610283017 | Rotary shaft lip seal |
| 61 | 1610283017 | Rotary shaft lip seal |
| 62 | 1610202026 | Plain bearing |
| 62 | 1619P00306 | Needle-Roller Bearing |
| 62 | 1619P00306 | Needle-Roller Bearing |
| 62 | 1619P00306 | Needle-Roller Bearing |
| 65 | 1900900228 | Groove ball bearing 8X22X7 |
| 65 | 1900900228 | Groove ball bearing 8X22X7 |
| 65 | 1900900228 | Groove ball bearing 8X22X7 |
| 66 | 1610301000 | Bushing Ø30XØ37X15,7 MM |
| 66 | 1610301000 | Bushing Ø30XØ37X15,7 MM |
| 66 | 1610301000 | Bushing Ø30XØ37X15,7 MM |
| 67 | 1610910064 | Needle bearing |
| 67 | 1610910064 | Needle bearing |
| 67 | 1610910064 | Needle bearing |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 700 | 1617000154 | Drill Chuck Shank Sds-Plus 1/2" |
| 700 | 1617000154 | Drill Chuck Shank Sds-Plus 1/2" |
| 700/20 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 700/20 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 701 | 1608571088 | Chuck |
| 701 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 701/700 | 2607950007 | Chuck Wrench SG2 |
| 701/700 | 2607950007 | Chuck Wrench SG2 |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 711 | 1617000133 | Parts Set |
| 711 | 1617000133 | Parts Set |
| 711/10/2 | 2604601004 | Retaining ring |
| 711/10/2 | 2604601004 | Retaining ring |
| 711/20 | 1608521004 | Screwdriver Blade NR.2,1/4" |
| 711/20 | 1608521004 | Screwdriver Blade NR.2,1/4" |
| 711/30 | 2607000248 | Screwdriver Bit 3 Piece |
| 711/30 | 2607000248 | Screwdriver Bit 3 Piece |
| 711/40 | 1608511020 | Screwdriver Blade GR.1,0X6, 1/4" |
| 711/40 | 1608511020 | Screwdriver Blade GR.1,0X6, 1/4" |
| 72 | 2916540018 | Retaining ring DIN 7993-A32 |
| 72 | 2916540018 | Retaining ring DIN 7993-A32 |
| 72 | 2916540018 | Retaining ring DIN 7993-A32 |
| 73 | 1614601009 | Retaining ring DIN 9045-24 |
| 73 | 1614601009 | Retaining ring DIN 9045-24 |
| 73 | 1614601009 | Retaining ring DIN 9045-24 |
| 76 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 76 | 1619P00027 | Torx Oval-Head Screw |
| 76 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 76 | 1619P00027 | Torx Oval-Head Screw |
| 77 | 1603435051 | Tapping Screw Silver ST3,9X32 |
| 77 | 1619P00106 | Screw |
| 77 | 1619P00106 | Screw |
| 77 | 1619P00106 | Screw |
| 78 | 1603435050 | Tapping Screw ST3,9X19-TORX,T20 |
| 78 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 78 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 78 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 79 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 79 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 79 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 79 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 791 | 1615438146 | Carrying Case |
| 791 | 1615438146 | Carrying Case |
| 80 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 80 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 80 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 80 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 802 | 2604220427 | Field 100V |
| 802 | 2604220428 | Field 110-120V |
| 802 | 2604220429 | Field 220-230V |
| 802 | 2604220430 | Field 240V |
| 802 | 2604220428 | Field 110-120V |
| 802 | 2604220429 | Field 220-230V |
| 802 | 2604220429 | Field 220-230V |
| 803 | 1614010052 | Armature With Fan 220-240V |
| 803 | 1614010053 | Armature With Fan 100V |
| 803 | 1614010054 | Armature With Fan 110-120V |
| 803 | 1614010055 | Armature With Fan 240V |
| 803 | 1619P00124 | Armature |
| 803 | 1619P00126 | Armature |
| 803 | 1614010052 | Armature With Fan 220-240V |
| 804 | 1617200075 | On-Off Switch |
| 804 | 1617200086 | Switch |
| 805 | 1614460026 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H5 | Nameplate |
| 808 | 1619P00581 | Nameplate |
| 808 | 1619P00582 | Nameplate |
| 808 | 1619P00586 | Nameplate |
| 81 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 81 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 81 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 813 | 1617014132 | Carbon-Brush Set |
| 813 | 1617014127 | Carbon-Brush Set |
| 813 | 1617014127 | Carbon-Brush Set |
| 816 | 1615806077 | Gear Housing Black |
| 816 | 1615806077 | Gear Housing Black |
| 816 | 1615806077 | Gear Housing Black |
| 821 | 1617000812 | Ratchet Sleeve Sds-Plus |
| 821 | 1617000812 | Ratchet Sleeve Sds-Plus |
| 821 | 1617000812 | Ratchet Sleeve Sds-Plus |
| 822 | 2602025118 | Auxiliary Handle Ø43 MM |
| 822 | 2602025118 | Auxiliary Handle Ø43 MM |
| 822/120 | 1612025019 | Auxiliary Handle M8 |
| 822/120 | 1612025019 | Auxiliary Handle M8 |
| 822/124 | 1611316006 | Clamping Band Ø43 MM |
| 822/124 | 1611316006 | Clamping Band Ø43 MM |
| 822/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 822/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 822/802 | 2608040176 | Support clamp Ø43 MM |
| 822/802 | 2608040176 | Support clamp Ø43 MM |
| 827 | 1617000338 | Striker |
| 827 | 1617000338 | Striker |
| 83 | 1903230309 | Ball 5 MM V DIN 5401 |
| 83 | 1903230309 | Ball 5 MM V DIN 5401 |
| 83 | 1903230309 | Ball 5 MM V DIN 5401 |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 863 | 1610905048 | Groove ball bearing 9X24X7 |
| 863 | 1610905048 | Groove ball bearing 9X24X7 |
| 863 | 1610905048 | Groove ball bearing 9X24X7 |
| 864 | 1610905025 | Groove ball bearing 7X19X6 |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 879 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 879 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 899 | 1617000353 | Impact Mechanism |
| 899 | 1617000353 | Impact Mechanism |
| 899 | 1617000353 | Impact Mechanism |
| 9 | 1611110837 | Manufacturer's nameplate |
| 9 | 1611110963 | Manufacturer's nameplate |
| 9 | 1611110964 | Manufacturer's nameplate |
| 9 | 1611111X08 | Nameplate |
| 9 | 1611110X08 | Manufacturer's nameplate |
| 9 | 1611110X08 | Manufacturer's nameplate |
| 94 | 1613120017 | Detent Pin |
| 94 | 1613120017 | Detent Pin |
| 94 | 1613120017 | Detent Pin |
Selected parts0
