Bosch GBH 2-20 D

Bosch GBH 2-20 D rotary hammer: exploded parts diagram, 2 sheets, 99 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 2-20 D: 99 positions on 2 sheets

Bosch GBH 2-20 D parts list (2 sheets)

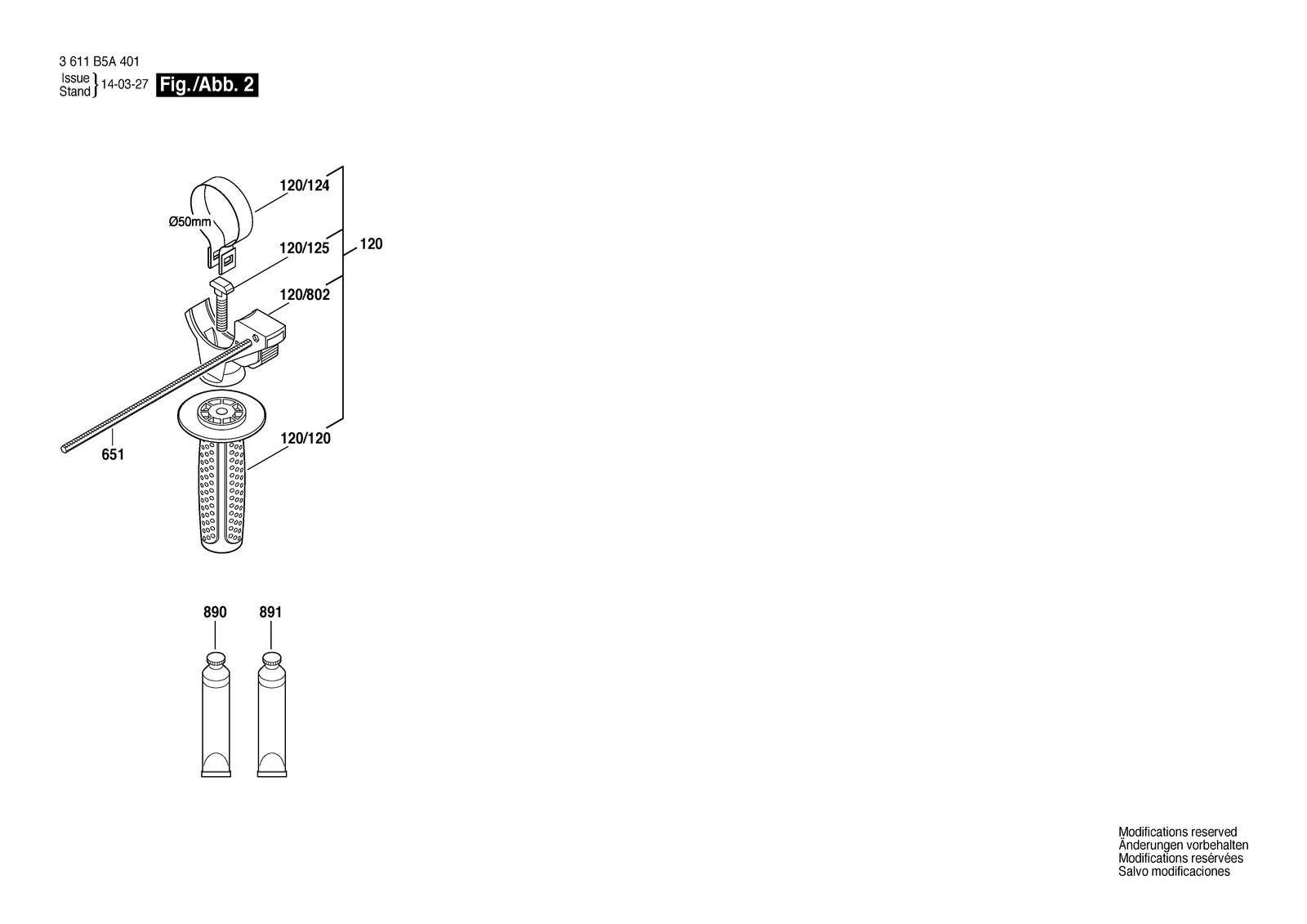

Bosch GBH 2-20 D parts diagram, sheet 1Bosch GBH 2-20 D parts diagram, sheet 2
No.Part numberPart name
101600A0012AManufacturer's nameplate GBH 2000
10161111C02ZManufacturer's nameplate GBH 200
101618B0002HManufacturer's nameplate GBH 2-20 D
101619P11794Manufacturer's nameplate GBH 2-20 D
11160111C002Reference Plate
111618B00401Reference Plate
121617328032Suppression Filter
1201618B00500Auxiliary Handle
120/120160202507HAuxiliary Handle
120/1241611316021Clamping Band Ø50 MM
120/1251613490002T-Head Bolt M8X40 MM
120/8021617000475Support clamp
141615806187Bearing Bracket
152603100056Damping rubber
171610290108O-Ring
191610210184O-Ring 22,0X2,5 MM
20/21614690009Driver Pin
20/31612026035Switch Button Red
20/41610210046O-Ring 10,5X2,7 MM
20/51614611006Compression Spring
211619P09815Hammer Pipe
221616328053Gear Sleeve
261618700083Hammer Piston
271618710085Striker
281613124084Striker Pin
291613100034Piston Pin
3/51616610113Fan
311614601053Retaining ring
321610508051Rubber Bushing
331615820103Switching Element
341619P00829Retaining ring
361610551008Holding Plate
371610100016Guide Disc
381616317084Cylindrical Gear
391614601055Retaining ring
41617200542Switch
401613100019Straight Pin DIN6325-2,5X12-RIKO
411610102072Ratchet Disc
441610102092Friction Washer
451611016003Holding Plate
461614630003Compression Spring
491615820104Switching Element
51604460450Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
51614460087Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F
51614460095Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F
53604460084Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F
501619P11562Guide Bushing
511610021004Shift Plate
521610021006Shift Plate
531610021005Shift Plate
541613023005Guide Rod
551610508052Protective Cap
62600703018Grommet Ø7,3-Ø8,6X76 MM
601614601077Spring retaining ring
631903230013Ball DIN 5401-Ø7MM-III-ST
651610210186O-Ring 13,0X3,0 MM
6512603001009Depth-Gauge
662609110491Ball Bearing
671610905047Groove ball bearing
681600100037Plain Washer
691613231030Change-Over Switch
712603490023Torx Oval-Head Screw 4X20
721613435039Torx Oval-Head Screw
731613435034Lens Head Screw 3X10 St
751614643025Compression Spring
761614643023Compression Spring
771619P09722Shaft Seal
80116170006B8Motor Housing
8021614220219Field 230-240V
8031614010B1CArmature 230V
8051607000392Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
8051614460026Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
808160111A16BNameplate
808160111A1GRNameplate
808160111A1HUNameplate
808160111A3H6Nameplate
8081619P11799Nameplate
8081619P11848Nameplate
8161617014146Carbon-Brush Set
8161619P01777Carbon-Brush Set
82016170006BBIntermediate Flange
8211600A0013VHammer Pipe
8221612026151Clamp Handle Black
82416170006BCJack Shaft
8251607000E0PJack Shaft
8261600A0013XHammer Piston
8401600A009CVGear Housing
84016170006BFGear Housing
84316170006D3Protection Sleeve
8431619P02182Protection Sleeve
8471600A0013UPlain bearing
8541600A0013WGuide Rod
8701619P01776Connecting Cable
8901615430020Grease Tube 225 Ml
8911615430001Grease Tube 225 Ml
91600A00129Manufacturer's nameplate GBH 2000
9161111C02YManufacturer's nameplate GBH 200
91618B0002GManufacturer's nameplate GBH 2-20 D
91619P11793Manufacturer's nameplate GBH 2-20 D
