Bosch GBH 2-20 D

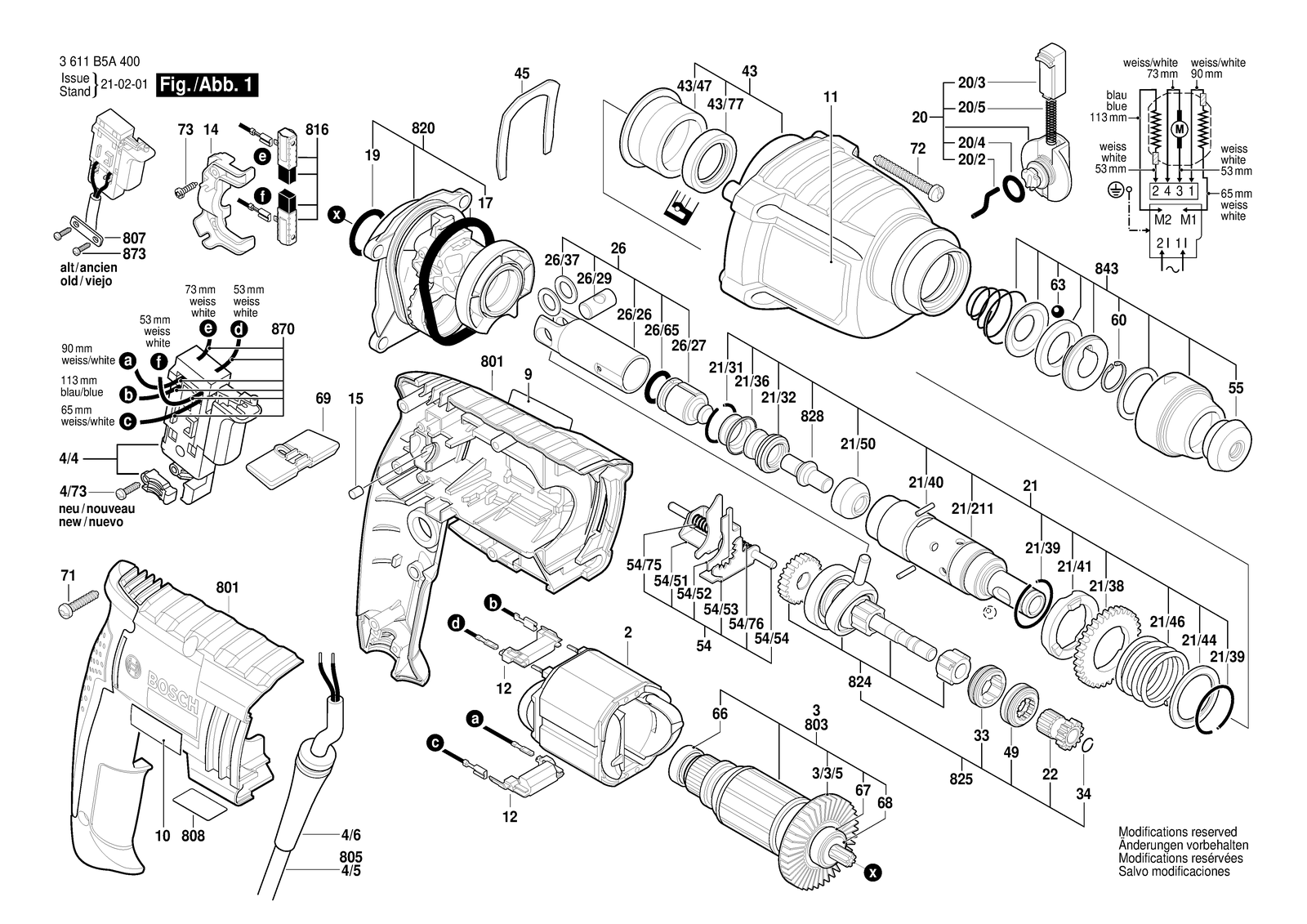

Bosch GBH 2-20 D rotary hammer: exploded parts diagram, 2 sheets, 93 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 2-20 D: 93 positions on 2 sheets
Bosch GBH 2-20 D parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1600A0012A | Manufacturer's nameplate GBH 2000 |
| 10 | 1611110Z92 | Manufacturer's nameplate Shadow Side GBH 2-20 D |
| 10 | 161111C02Z | Manufacturer's nameplate GBH 200 |
| 11 | 160111C002 | Reference Plate |
| 11 | 1618B00401 | Reference Plate |
| 12 | 1617328032 | Suppression Filter |
| 120 | 160202508X | Auxiliary Handle |
| 120/120 | 160202507H | Auxiliary Handle |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/802 | 1617000475 | Support clamp |
| 14 | 1615806187 | Bearing Bracket |
| 15 | 2603100056 | Damping rubber |
| 17 | 1610290108 | O-Ring |
| 19 | 1610210184 | O-Ring 22,0X2,5 MM |
| 2 | 1614220219 | Field 230-240V |
| 20 | 1612026151 | Clamp Handle Black |
| 20/2 | 1614690009 | Driver Pin |
| 20/3 | 1612026035 | Switch Button Red |
| 20/4 | 1610210046 | O-Ring 10,5X2,7 MM |
| 20/5 | 1614611006 | Compression Spring |
| 21 | 16170006B7 | Hammer Pipe |
| 21/211 | 1619P09815 | Hammer Pipe |
| 21/31 | 1614601053 | Retaining ring |
| 21/32 | 1610508051 | Rubber Bushing |
| 21/36 | 1610551008 | Holding Plate |
| 21/38 | 1616317084 | Cylindrical Gear |
| 21/39 | 160460102U | Retaining ring |
| 21/40 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 21/41 | 1610102072 | Ratchet Disc |
| 21/44 | 1610102092 | Friction Washer |
| 21/46 | 1614630003 | Compression Spring |
| 21/50 | 1600A00FL3 | Thrust Ring |
| 21/50 | 1619P11562 | Guide Bushing |
| 22 | 1616328053 | Gear Sleeve |
| 26 | 1600A0013X | Hammer Piston |
| 26/26 | 1618700083 | Hammer Piston |
| 26/27 | 1618710085 | Striker |
| 26/29 | 1613100034 | Piston Pin |
| 26/37 | 1610100016 | Guide Disc |
| 26/65 | 1610210186 | O-Ring 13,0X3,0 MM |
| 3 | 1614010711 | Armature 230V |
| 3/3/5 | 1616610113 | Fan |
| 33 | 1615820103 | Switching Element |
| 34 | 1619P00829 | Retaining ring |
| 4/4 | 1617200542 | Switch |
| 4/5 | 1604460450 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 4/5 | 1614460087 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 4/5 | 1614460095 | Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F |
| 4/5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 4/6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 4/73 | 1613435034 | Lens Head Screw 3X10 St |
| 43 | 1600A009CV | Gear Housing |
| 43 | 16170006BF | Gear Housing |
| 43/47 | 1610202031 | Plain bearing |
| 43/77 | 1610283019 | Shaft Seal |
| 45 | 1611016003 | Holding Plate |
| 49 | 1615820104 | Switching Element |
| 54 | 1600A0013W | Guide Rod |
| 54/51 | 1610021004 | Shift Plate |
| 54/52 | 1610021006 | Shift Plate |
| 54/53 | 1610021005 | Shift Plate |
| 54/54 | 1613023005 | Guide Rod |
| 54/75 | 1614643025 | Compression Spring |
| 54/76 | 1614643023 | Compression Spring |
| 55 | 1610508052 | Protective Cap |
| 60 | 1614601077 | Spring retaining ring |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 651 | 2603001009 | Depth-Gauge |
| 66 | 2609110491 | Ball Bearing |
| 67 | 1610905047 | Groove ball bearing |
| 68 | 1600100037 | Plain Washer |
| 69 | 1613231030 | Change-Over Switch |
| 71 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 72 | 1613435039 | Torx Oval-Head Screw |
| 73 | 1613435034 | Lens Head Screw 3X10 St |
| 801 | 16170006B8 | Motor Housing |
| 803 | 1614010711 | Armature 230V |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 807 | 1611035007 | Cable Clip |
| 808 | 160111A3H5 | Nameplate |
| 808 | 160111A3H6 | Nameplate |
| 816 | 1617014146 | Carbon-Brush Set |
| 820 | 16170006BB | Intermediate Flange |
| 824 | 16170006BC | Jack Shaft |
| 825 | 1607000E0P | Jack Shaft |
| 828 | 1613124084 | Striker Pin |
| 843 | 16170006D3 | Protection Sleeve |
| 870 | 1619P01776 | Connecting Cable |
| 873 | 1613435034 | Lens Head Screw 3X10 St |
| 9 | 1600A00129 | Manufacturer's nameplate GBH 2000 |
| 9 | 1611110Z91 | Manufacturer's nameplate Sunny Side GBH 2-20 D |
| 9 | 161111C02Y | Manufacturer's nameplate GBH 200 |
