Bosch GBH 2-20
Bosch GBH 2-20 rotary hammer: exploded parts diagram, 2 sheets, 90 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

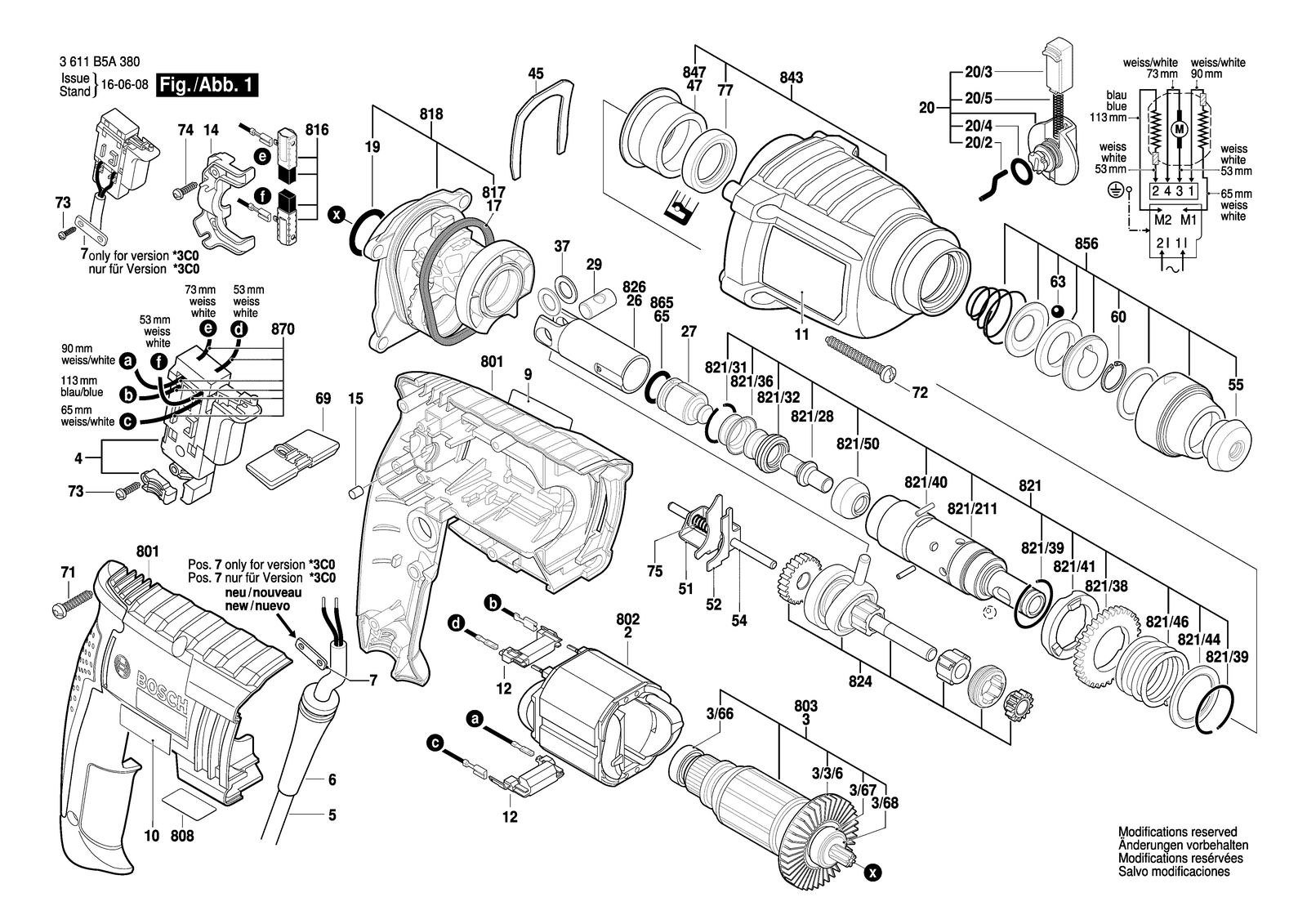

All parts of Bosch GBH 2-20: 90 positions on 2 sheets
Bosch GBH 2-20 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1617328032 | Suppression Filter |
| 14 | 1615806187 | Bearing Bracket |
| 15 | 2603100056 | Damping rubber |
| 17 | 1610290108 | O-Ring |
| 19 | 1610210184 | O-Ring 22,0X2,5 MM |
| 2 | 1619P08117 | Field 115V |
| 2 | 1619P08306 | Field 230V |
| 2 | 1619P08313 | Field 240V |
| 20 | 1612026151 | Clamp Handle Black |
| 20/2 | 1614690009 | Driver Pin |
| 20/3 | 1612026035 | Switch Button Red |
| 20/4 | 1610210046 | O-Ring 10,5X2,7 MM |
| 20/5 | 1614611006 | Compression Spring |
| 26 | 1618700083 | Hammer Piston |
| 27 | 1618710085 | Striker |
| 29 | 1613100034 | Piston Pin |
| 3/3/6 | 2606610097 | Fan |
| 3/66 | 1900905029 | Ball Bearing 8X22X7 |
| 3/67 | 1610905047 | Groove ball bearing |
| 3/68 | 1600100037 | Plain Washer |
| 37 | 1610100016 | Guide Disc |
| 4 | 1617200542 | Switch |
| 4 | 1617200543 | Switch |
| 45 | 1611016003 | Holding Plate |
| 47 | 1619P09954 | Plain bearing |
| 5 | 1614460026 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460052 | Power supply cord |
| 5 | 1614460054 | Power supply cord AUS 2,7M 2 X 1,0MM Pvc |
| 5 | 1614460090 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460095 | Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 51 | 1610021004 | Shift Plate |
| 52 | 1610021006 | Shift Plate |
| 54 | 1613023005 | Guide Rod |
| 55 | 1610508052 | Protective Cap |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 60 | 1614601077 | Spring retaining ring |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 65 | 1619P09814 | O-Ring |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 69 | 1613231030 | Change-Over Switch |
| 7 | 1611035007 | Cable Clip |
| 7 | 1614477008 | Cable Clip |
| 71 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 72 | 1619P09645 | Torx Oval-Head Screw |
| 73 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 74 | 1619P00219 | Tapping Screw |
| 75 | 1614643025 | Compression Spring |
| 77 | 1619P09722 | Shaft Seal |
| 801 | 16170006B8 | Motor Housing |
| 801 | 1619P10313 | Motor Housing |
| 803 | 1614010B1C | Armature 230V |
| 803 | 1619P09817 | Armature 220V |
| 803 | 1619P09818 | Armature 230V |
| 803 | 1619P10236 | Armature 115V |
| 816 | 1617014146 | Carbon-Brush Set |
| 816 | 1619P01777 | Carbon-Brush Set |
| 818 | 16170006BB | Intermediate Flange |
| 818 | 1619P09616 | Intermediate Flange |
| 821 | 1600A0013V | Hammer Pipe |
| 821 | 1619P09617 | Hammer Pipe |
| 821/211 | 1619P09815 | Hammer Pipe |
| 821/28 | 1613124084 | Striker Pin |
| 821/31 | 1614601053 | Retaining ring |
| 821/31 | 1619P09816 | Retaining ring |
| 821/32 | 1610508051 | Rubber Bushing |
| 821/36 | 1610551008 | Holding Plate |
| 821/38 | 1616317084 | Cylindrical Gear |
| 821/39 | 1614601055 | Retaining ring |
| 821/40 | 1613100032 | Straight Pin |
| 821/41 | 1610102072 | Ratchet Disc |
| 821/44 | 1610102092 | Friction Washer |
| 821/46 | 1614630003 | Compression Spring |
| 821/50 | 1619P11562 | Guide Bushing |
| 822 | 160202508X | Auxiliary Handle |
| 822/120 | 160202507H | Auxiliary Handle |
| 822/124 | 1611316021 | Clamping Band Ø50 MM |
| 822/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 822/802 | 1617000475 | Support clamp |
| 824 | 1619P09619 | Jack Shaft |
| 826 | 1618700083 | Hammer Piston |
| 843 | 1619P09620 | Gear Housing |
| 847 | 1600A0013U | Plain bearing |
| 856 | 16170006D3 | Protection Sleeve |
| 865 | 1610210186 | O-Ring 13,0X3,0 MM |
| 870 | 1619P01776 | Connecting Cable |
| 892 | 1615430020 | Grease Tube 225 Ml |
| 893 | 1615430001 | Grease Tube 225 Ml |
