Bosch GBH 18V-26 D
Bosch GBH 18V-26 D rotary hammer: exploded parts diagram, 2 sheets, 90 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

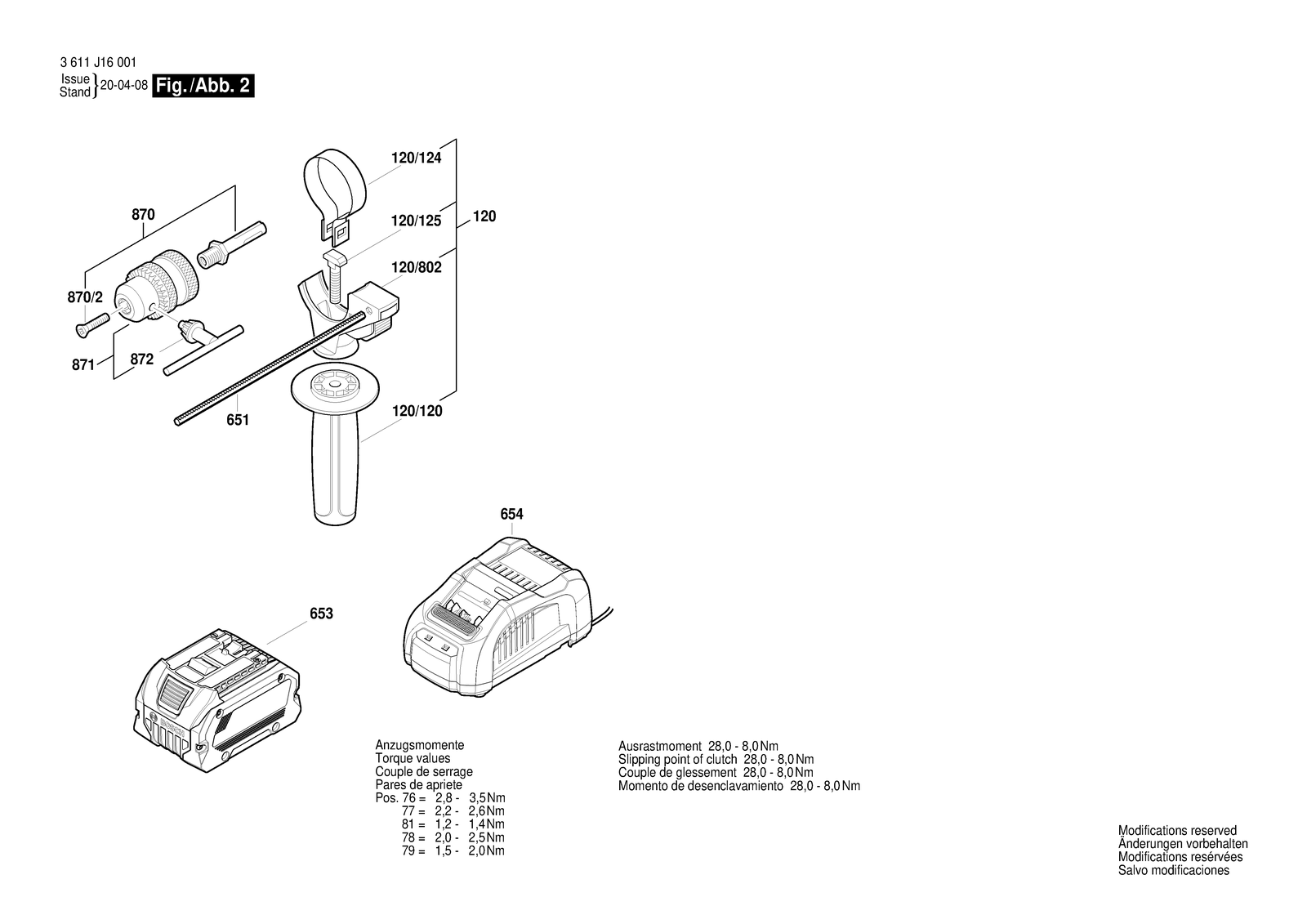

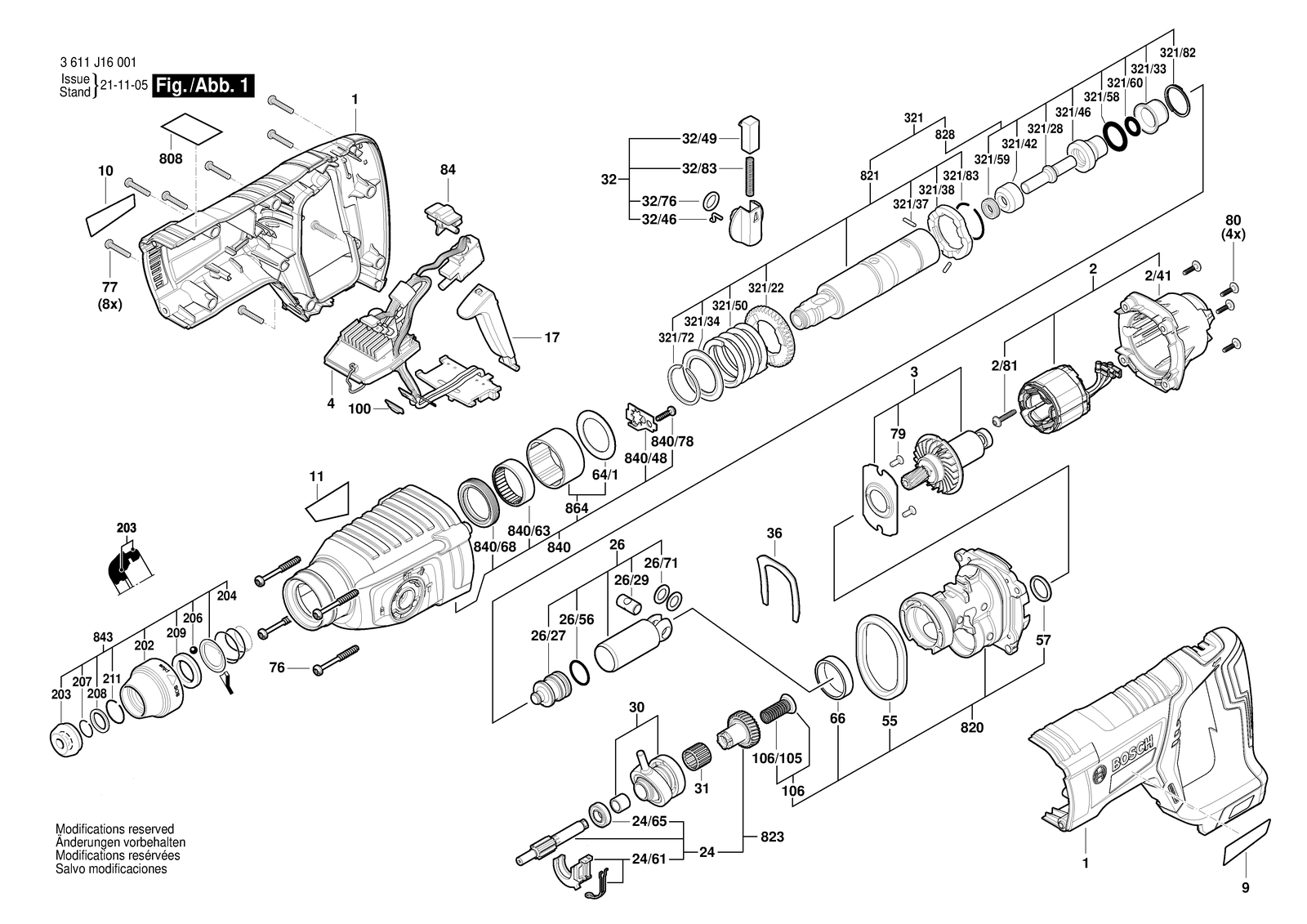

All parts of Bosch GBH 18V-26 D: 90 positions on 2 sheets
Bosch GBH 18V-26 D parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082HZ | Motor Housing |
| 10 | 160111C2N1 | Manufacturer's nameplate |
| 10 | 160111C304 | Manufacturer's nameplate |
| 100 | 1600A000LE | Lens |
| 106 | 1614611022 | Plain bearing |
| 106/105 | 1614611021 | Compression Spring |
| 11 | 1611110X17 | Reference Plate |
| 120 | 160202509X | Auxiliary Handle |
| 120/120 | 160202509C | Auxiliary Handle |
| 120/120 | 1612025083 | Auxiliary Handle Black |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/802 | 1617000475 | Support clamp |
| 17 | 1600A01U4C | Switch-Pawl |
| 2 | 1600A01T3V | Stator |
| 2/41 | 1600A016CC | Stator Casing |
| 2/81 | 1603435086 | Torx head screw |
| 202 | 1600A028AU | Protection Sleeve |
| 203 | 1610508047 | Protective Cap |
| 204 | 1614643003 | Compression Spring |
| 206 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 207 | 1614601027 | Retaining ring |
| 208 | 1610101629 | Retaining Washer |
| 209 | 1610102025 | Friction Washer |
| 211 | 160460102S | Retaining ring |
| 24 | 1600A014E1 | Toothed Shaft |
| 24/61 | 1615820097 | Switching Element |
| 24/65 | 1610905016 | Groove ball bearing |
| 26 | 1600A00H7D | Hammer Piston |
| 26/27 | 1600A00733 | Striker |
| 26/29 | 1600A01TD0 | Piston Pin |
| 26/56 | 1610210187 | O-Ring |
| 26/71 | 1610100016 | Guide Disc |
| 3 | 1600A015AA | Rotor |
| 30 | 1600A00H7E | Drive bearing Auf Zeichnung POS.830 |
| 31 | 1610913016 | Needle-Roller Assembly |
| 32 | 1612026037 | Clamp Handle Black |
| 32/46 | 1614690002 | Driver Pin |
| 32/49 | 1612026035 | Switch Button Red |
| 32/76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/83 | 1614611006 | Compression Spring |
| 321 | 161859712H | Toolholder |
| 321/22 | 1600A007JW | Cylindrical Gear |
| 321/28 | 1613124081 | Striker Pin |
| 321/33 | 1610590014 | Holding Jacket |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610102073 | Thrust Ring |
| 321/46 | 1610390051 | Guide Bushing |
| 321/50 | 1614611020 | Compression Spring |
| 321/58 | 1610210178 | O-Ring |
| 321/59 | 1610283035 | Rotary shaft lip seal |
| 321/60 | 1610210176 | O-Ring 9,0X3,5 MM |
| 321/72 | 1604601027 | Retaining ring |
| 321/82 | 160015002R | Retaining ring |
| 321/83 | 1604601028 | Retaining ring A22 DIN 7993 |
| 36 | 1611016003 | Holding Plate |
| 4 | 1600A029LE | Electronics Module |
| 55 | 1610290226 | Seal Ring 53,0X7,0 MM |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 64/1 | 1610190060 | Supporting Disc |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 653 | 1607A350AM | Battery Pack Kor GBA 18V 4.0AH Procore Scm |
| 653 | 1607A350AS | Battery Pack Kor GBA 18V 8.0AH Procore Scm |
| 654 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 66 | 1610202021 | Plain bearing |
| 76 | 1613435022 | Thread-forming tap. Screw |
| 77 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 160343000V | Torx Oval-Head Screw |
| 808 | 160111A3H9 | Nameplate |
| 820 | 1600A01AH5 | Intermediate Flange |
| 821 | 1607000D92 | Toolholder |
| 823 | 1600A01AH6 | Toothed Shaft |
| 828 | 1600A019F0 | Striker Pin |
| 84 | 1600A015UH | Switch Slide |
| 840 | 1607000C5N | Gear Housing |
| 840/48 | 1611098008 | Tab Washer |
| 840/63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 840/68 | 1610283036 | Rotary shaft lip seal |
| 840/78 | 2603490022 | Screw 4X16 |
| 843 | 1617000582 | Protection Sleeve |
| 864 | 1617000A07 | Supporting Disc |
| 870 | 1613523011 | Drill Chuck Shank 1/2", Sds-Plus |
| 870/2 | 2603421207 | Countersunk-Head Screw Lefthand Threads M6X27-KØ11 |
| 871 | 1608571088 | Chuck |
| 872 | 2607950007 | Chuck Wrench SG2 |
| 9 | 160111C2N0 | Manufacturer's nameplate |
| 9 | 160111C303 | Manufacturer's nameplate |
