Bosch GBH 18V-18

Bosch GBH 18V-18 cordless rotary hammer: exploded parts diagram, 2 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 18V-18: 46 positions on 2 sheets

Bosch GBH 18V-18 parts list (2 sheets)

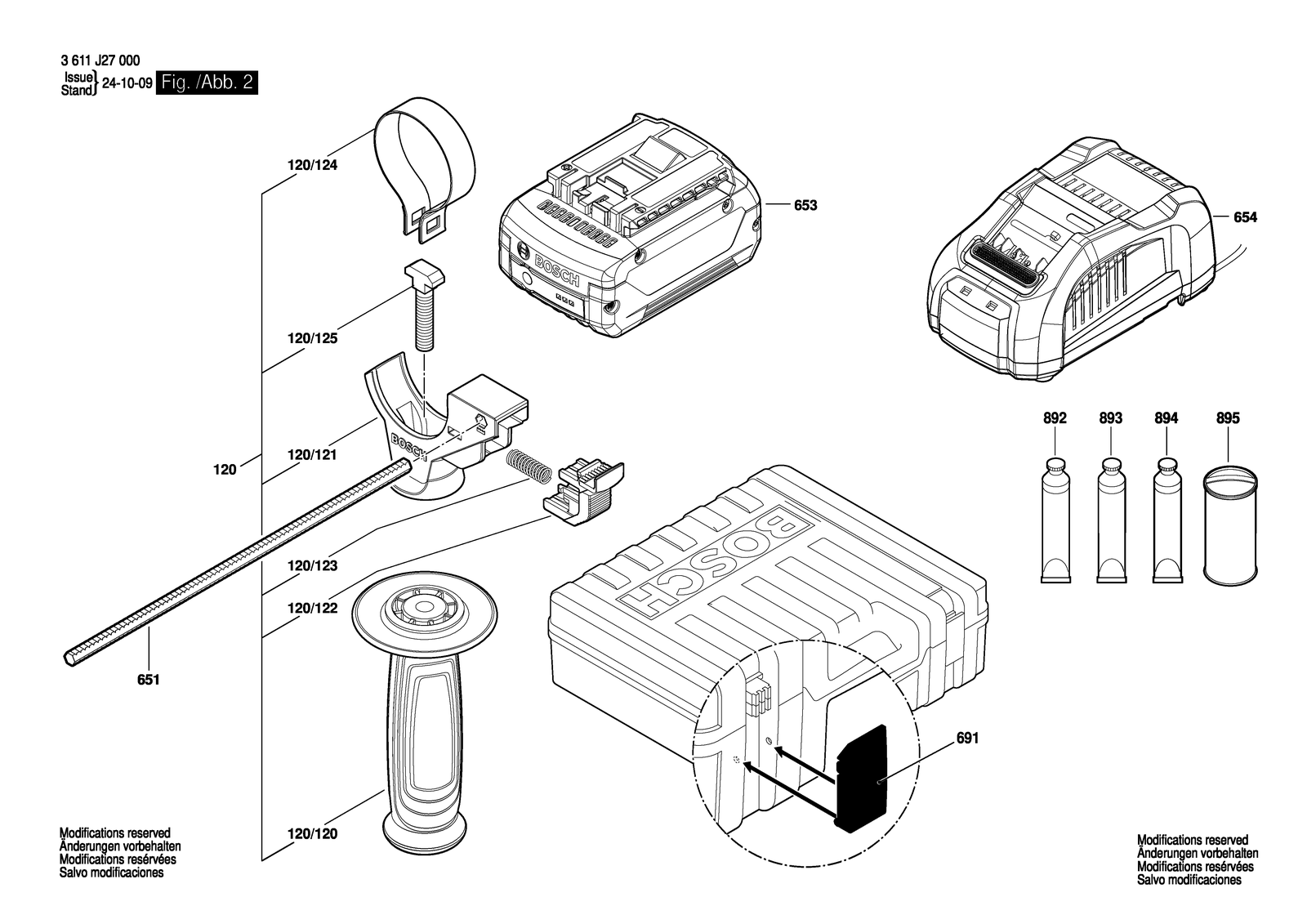

Bosch GBH 18V-18 parts diagram, sheet 1Bosch GBH 18V-18 parts diagram, sheet 2
No.Part numberPart name
11619PS1379Housing Section
1201619P16971Auxiliary Handle
120/1201619P20196Auxiliary Handle
120/1211617000475Support clamp
120/1221613231010Push-Button
120/1232604610028Compression Spring
120/1241611316021Clamping Band Ø50 MM
120/1251613490002T-Head Bolt M8X40 MM
171619PS1381O-Ring
21619PS1376Stator
41619PS1377Electronic Module
421619PS1382Bearing Flange
431619PS1380Impact Mechanism Housing
52604690055Compression Spring
551610508052Protective Cap
561610499060Protection Sleeve
571610102025Friction Washer
581619P16959Support
591610102045Friction Washer Thick 1,0 MM
61619P13744Lens
601614601077Spring retaining ring
611610551005Holding Plate
621619P01799Conical helical spring
631903230013Ball DIN 5401-Ø7MM-III-ST
6511613001009Depth-Gauge SW 6X210 MM
6531607A350M0Battery Pack GBA 18V 4.0AH
6531607A350MABattery Pack GBA 18V 2.0AH
6542607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6542607226283Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
6542607226297Fast Charger Cn GAL 18V-20 220V 12V-18V 2A
691619PS1378Changeover Lever
6911619P17425Latch
712603490023Torx Oval-Head Screw 4X20
8031619PS1361Rotor
8081619PS1383Label
8081619PS1825Label
8181619PS1362Intermediate Flange
8201619PS1366Knob
8211619PS1363Hammer Pipe
8241619PS1365Transmission Shaft
8261619PS1367Hammer Piston
85616170006D3Protection Sleeve
8921615430001Grease Tube 225 Ml
8931615430002Grease Tube 225 Ml
8941615430020Grease Tube 225 Ml
8951615430019Oil Reservoir 1000 Ml
