Bosch GBH 18 V-EC
Bosch GBH 18 V-EC cordless rotary hammer: exploded parts diagram, 2 sheets, 139 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

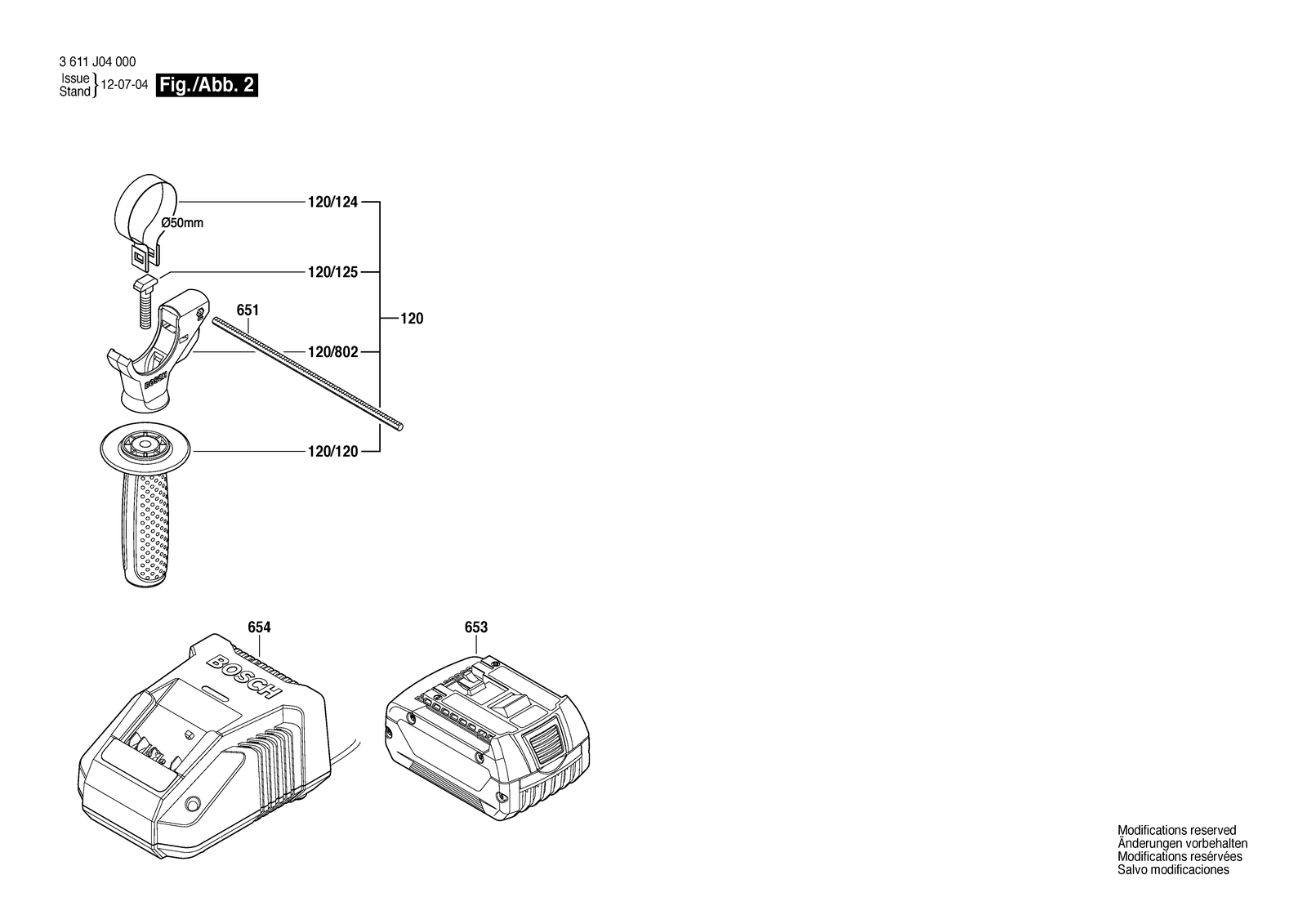

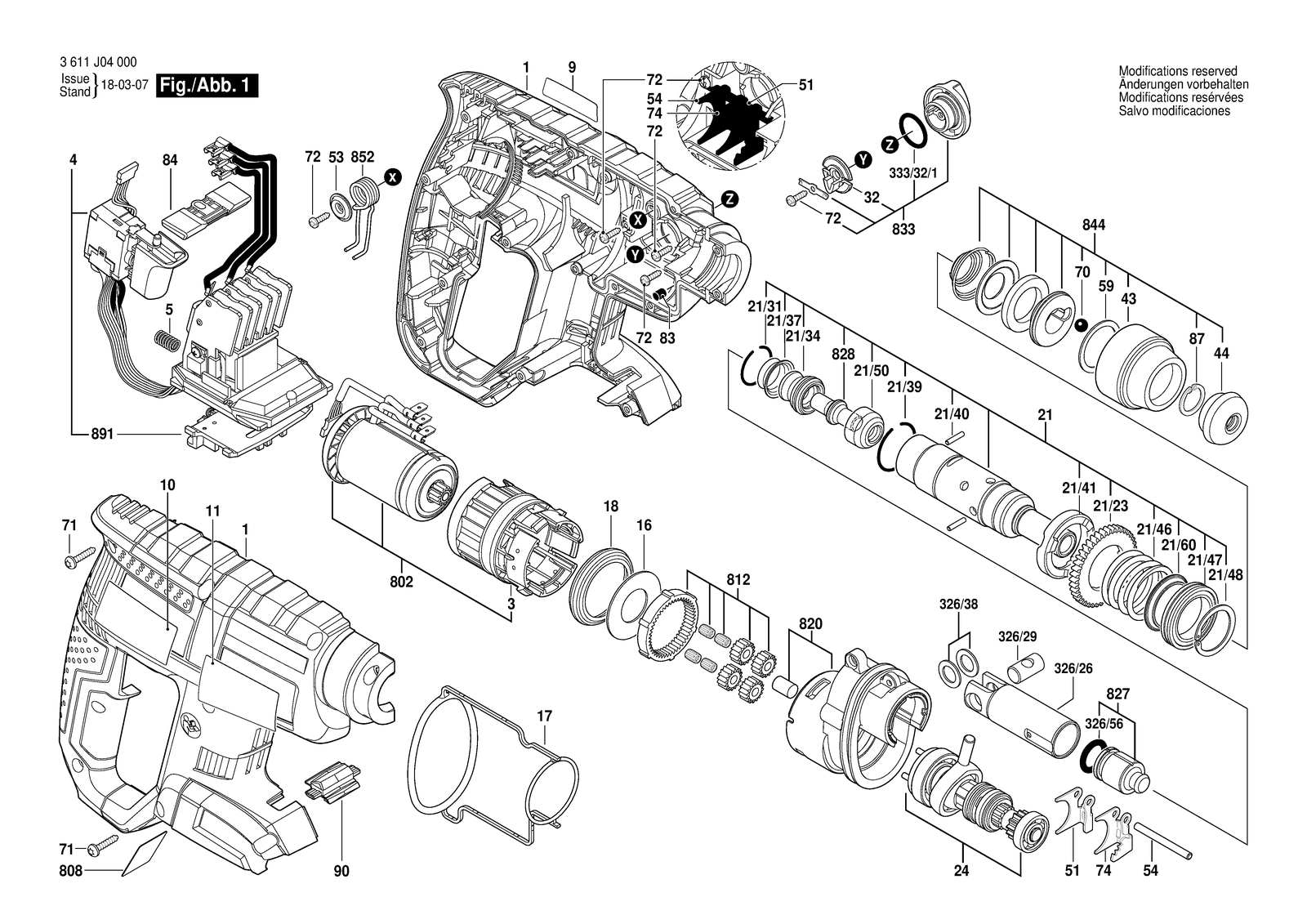

All parts of Bosch GBH 18 V-EC: 139 positions on 2 sheets
Bosch GBH 18 V-EC parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082CK | Housing Section |
| 1 | 1615104066 | Housing Section |
| 1 | 1615104066 | Housing Section |
| 10 | 160111C0N9 | Manufacturer's nameplate |
| 10 | 160111C0US | Manufacturer's nameplate |
| 10 | 160111C0CL | Manufacturer's nameplate |
| 11 | 1611110W68 | Reference Plate |
| 11 | 1611110W71 | Warning Plate |
| 120 | 160202508X | Auxiliary Handle |
| 120 | 160202508X | Auxiliary Handle |
| 120/120 | 160202507H | Auxiliary Handle |
| 120/120 | 160202507H | Auxiliary Handle |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/125 | 1613490002 | T-Head Bolt M8X40 MM |
| 120/802 | 1617000475 | Support clamp |
| 120/802 | 1617000475 | Support clamp |
| 16 | 1610102637 | Supporting Disc 12X38X0,5 |
| 16 | 1610102637 | Supporting Disc 12X38X0,5 |
| 17 | 1611015062 | Sealing Frame |
| 17 | 1611015062 | Sealing Frame |
| 18 | 1610290116 | Seal Ring |
| 18 | 1610290116 | Seal Ring |
| 21 | 1617000667 | Hammer Pipe |
| 21 | 1617000667 | Hammer Pipe |
| 21/23 | 1616317084 | Cylindrical Gear |
| 21/23 | 1616317084 | Cylindrical Gear |
| 21/31 | 1614601053 | Retaining ring |
| 21/31 | 1614601053 | Retaining ring |
| 21/34 | 1610508051 | Rubber Bushing |
| 21/34 | 1610508051 | Rubber Bushing |
| 21/37 | 1610551008 | Holding Plate |
| 21/37 | 1610551008 | Holding Plate |
| 21/39 | 160460102U | Retaining ring |
| 21/39 | 160460102U | Retaining ring |
| 21/40 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 21/40 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 21/41 | 1610102072 | Ratchet Disc |
| 21/41 | 1610102072 | Ratchet Disc |
| 21/46 | 1614630003 | Compression Spring |
| 21/46 | 1614630003 | Compression Spring |
| 21/47 | 1610905039 | Groove ball bearing |
| 21/47 | 1610905039 | Groove ball bearing |
| 21/48 | 1614601054 | Retaining ring |
| 21/48 | 1614601054 | Retaining ring |
| 21/50 | 1600A00FL3 | Thrust Ring |
| 21/50 | 1619P11562 | Guide Bushing |
| 21/50 | 1600A00FL3 | Thrust Ring |
| 21/60 | 1610190054 | Support Disc |
| 21/60 | 1610190054 | Support Disc |
| 24 | 1607000CC8 | Jack Shaft |
| 24 | 1607000CC8 | Jack Shaft |
| 3 | 1610499067 | Centering Sleeve |
| 3 | 1610499067 | Centering Sleeve |
| 32 | 1612026114 | Switch Button |
| 32 | 1612026114 | Switch Button |
| 326/26 | 1618700083 | Hammer Piston |
| 326/26 | 1618700083 | Hammer Piston |
| 326/29 | 1613100034 | Piston Pin |
| 326/29 | 1613100034 | Piston Pin |
| 326/38 | 1610100016 | Guide Disc |
| 326/38 | 1610100016 | Guide Disc |
| 326/56 | 1610210186 | O-Ring 13,0X3,0 MM |
| 326/56 | 1610210186 | O-Ring 13,0X3,0 MM |
| 333/32/1 | 1610210185 | O-Ring 16,5X2,0 MM |
| 333/32/1 | 1610210185 | O-Ring 16,5X2,0 MM |
| 4 | 1607233376 | Electronics Module |
| 4 | 1607233376 | Electronics Module |
| 43 | 1610499080 | Protection Sleeve |
| 43 | 1610499080 | Protection Sleeve |
| 44 | 1610508052 | Protective Cap |
| 44 | 1610508052 | Protective Cap |
| 5 | 1609280477 | Compression Spring |
| 5 | 1609280477 | Compression Spring |
| 51 | 1619P01787 | Shift Plate |
| 51 | 1619P01787 | Shift Plate |
| 53 | 1619P00828 | Pressure Disc |
| 53 | 1619P00828 | Pressure Disc |
| 54 | 1613100033 | Guide Rod |
| 54 | 1613100033 | Guide Rod |
| 59 | 1610102045 | Friction Washer Thick 1,0 MM |
| 59 | 1610102045 | Friction Washer Thick 1,0 MM |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 651 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 653 | 1607A350B2 | Battery Pack 18V 3.0AH LI Scm |
| 653 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 653 | 2607336851 | Battery Pack Bbs Mr-L, 18V, 2,0 Ah |
| 653 | 2607336943 | Battery Pack Bbs Mr-Xl, 18V, 4,0 Ah Jp |
| 653 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 653 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
| 654 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 654 | 2607225329 | Fast Charger LAM 120/10,8-18V, 30 Min |
| 654 | 2607225715 | Charger ARG 230V/14,4-18V, 30 Min |
| 654 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 654 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 654 | 2607225931 | Charger J GAL 1880 CV 100/14,4-18V |
| 654 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 654 | 2607225935 | Charger Br GAL 1880 CV 220V/14,4-18V |
| 654 | 2607225937 | Charger Cn GAL 1880 CV 220V/14,4-18V |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1613435036 | Torx Oval-Head Screw 35X16 |
| 71 | 1613435036 | Torx Oval-Head Screw 35X16 |
| 72 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 72 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 74 | 1613231031 | Shift Plate |
| 74 | 1613231031 | Shift Plate |
| 802 | 16170006BG | DC motor 18V |
| 802 | 16170006BG | DC motor 18V |
| 808 | 160111A3H9 | Nameplate |
| 808 | 160111A3H9 | Nameplate |
| 812 | 1617000665 | Planetary Gear Train |
| 812 | 1617000665 | Planetary Gear Train |
| 820 | 16170006BH | Intermediate Flange |
| 820 | 16170006BH | Intermediate Flange |
| 827 | 1617000669 | Striker |
| 827 | 1617000669 | Striker |
| 828 | 1613124084 | Striker Pin |
| 828 | 1613124084 | Striker Pin |
| 83 | 2603100056 | Damping rubber |
| 83 | 2603100056 | Damping rubber |
| 833 | 16170006EW | Clamp Handle |
| 833 | 16170006EW | Clamp Handle |
| 84 | 1613231029 | Switch Slide |
| 84 | 1613231029 | Switch Slide |
| 844 | 16170006D3 | Protection Sleeve |
| 844 | 16170006D3 | Protection Sleeve |
| 852 | 1614690010 | Coiled Spring |
| 852 | 1614690010 | Coiled Spring |
| 87 | 1614601077 | Spring retaining ring |
| 87 | 1614601077 | Spring retaining ring |
| 891 | 1609280478 | Contact retainer |
| 891 | 1609280478 | Contact retainer |
| 9 | 160111C0N8 | Manufacturer's nameplate |
| 9 | 160111C0UR | Manufacturer's nameplate |
| 9 | 160111C0CK | Manufacturer's nameplate |
| 90 | 1600A00071 | Lens |
| 90 | 1600A00071 | Lens |
