Bosch GBH 18

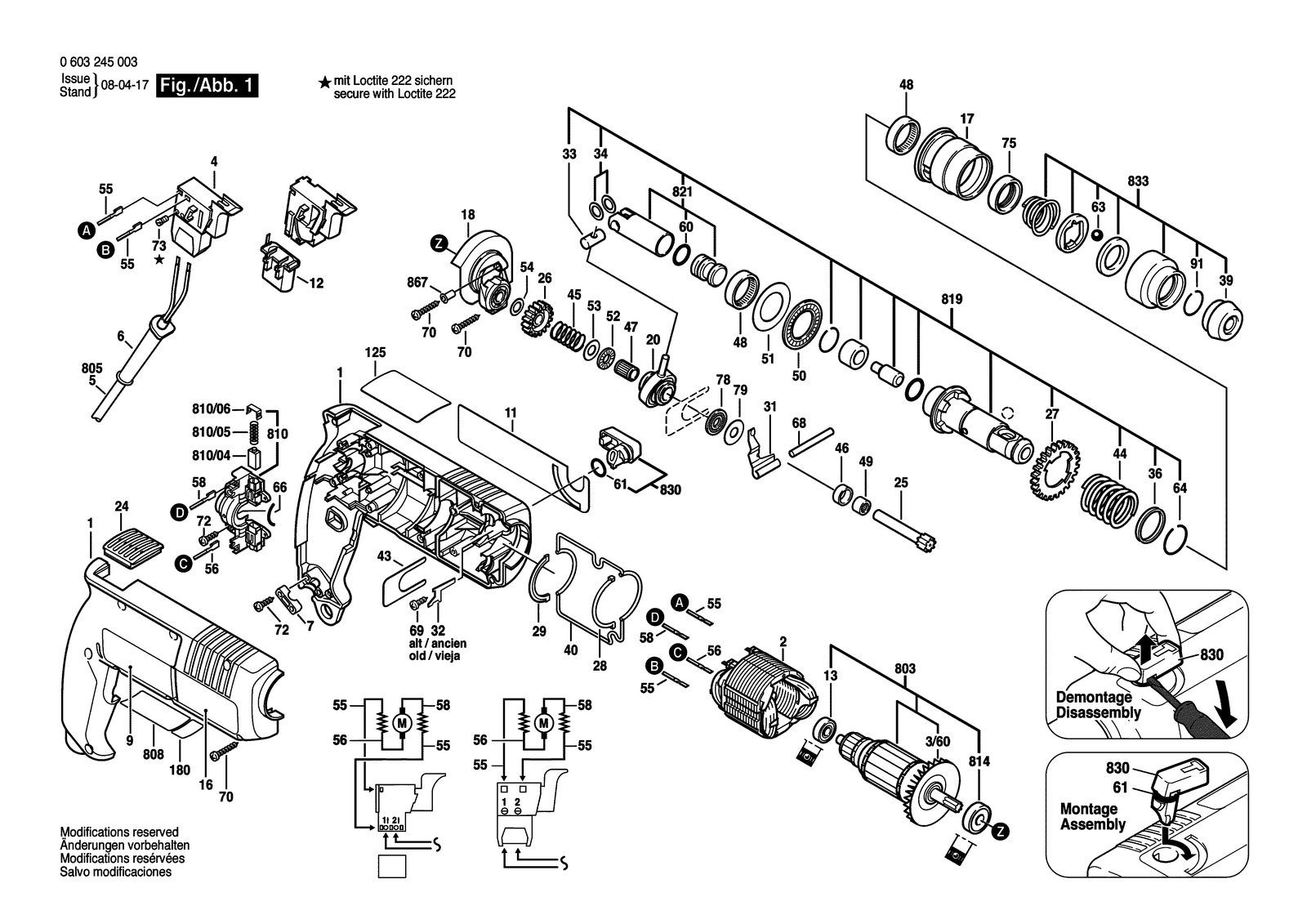

Bosch GBH 18 rotary hammer: exploded parts diagram, 2 sheets, 120 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 18: 120 positions on 2 sheets
Bosch GBH 18 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615104001 | Housing Section Blue |
| 1 | 1615104002 | Housing Section Green |
| 11 | 1611110370 | Manufacturer's nameplate |
| 11 | 1611110529 | Manufacturer's nameplate |
| 12 | 1607328040 | Suppression Filter |
| 120/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 120/30 | 1613480007 | Wing Screw M6X(15)55 |
| 120/50 | 2608040014 | Clamping Plate M6 |
| 120/60 | 1613480008 | Wing Screw M6X20 MM |
| 125 | 1611110376 | Manufacturer's nameplate Working Instructions |
| 125 | 1611110531 | Manufacturer's nameplate Working Instructions |
| 13 | 1610905032 | Groove ball bearing 7X19X6 |
| 16 | 1611110374 | Reference Plate |
| 16 | 1611110403 | Reference Plate |
| 16 | 1611110530 | Reference Plate |
| 17 | 1615819013 | Guide Sleeve |
| 18 | 1615700027 | Flanged Bearing |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 2604220411 | Field 240V |
| 2 | 2604220421 | Field 110-115V |
| 2 | 2604220422 | Field 110-115V |
| 2 | 2604220423 | Field 220-240V |
| 20 | 1615819012 | Drive bearing |
| 24 | 1612388019 | Protective Grille |
| 25 | 1613160008 | Toothed Shaft Z=9 |
| 26 | 1616317600 | Cylindrical Gear Z=31 |
| 27 | 1616317034 | Cylindrical Gear Z=48 |
| 28 | 1611015034 | Seal Ring |
| 29 | 1611015035 | Seal Ring |
| 3/60 | 1616610069 | Fan |
| 3/60 | 2606610022 | Fan |
| 31 | 1611329009 | Pressure Lever |
| 33 | 1613103006 | Piston Pin |
| 34 | 1610100608 | Shim washer Thick 1,2 MM |
| 36 | 1610102024 | Supporting Disc |
| 39 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 4 | 1617200047 | On-Off Switch |
| 4 | 2607200373 | Switch |
| 4 | 2607200404 | Switch |
| 40 | 1611015033 | Sealing Frame |
| 43 | 1611031005 | Holding Plate |
| 44 | 1614634002 | Compression Spring |
| 45 | 1614610005 | Compression Spring |
| 46 | 1610200014 | Retaining snap ring |
| 47 | 1610913008 | Needle-Roller Assembly |
| 48 | 1610910071 | Needle bearing |
| 49 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 5 | 1604460125 | Power supply cord GB 230V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460448 | Power supply cord CH 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460016 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 1614460052 | Power supply cord |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460091 | Power supply cord BR 220V 2,65M 2 X 1,0MM H07 Rn-F |
| 50 | 1610920002 | Roller-Cage Assembly |
| 51 | 1610102617 | Support Disc Thick 1,0 MM |
| 52 | 1610920005 | Thrust Needle Rim |
| 53 | 1610100602 | Support Disc |
| 54 | 1610100604 | Shim Thick 0,6 MM |
| 54 | 1610100605 | Shim Thick 0,8 MM |
| 54 | 1610100606 | Shim Thick 1,0 MM |
| 54 | 1610100607 | Shim Thick 1,2 MM |
| 55 | 2604448060 | Cable White L=173 MM |
| 56 | 1614448019 | Connecting Cable White L=66 MM |
| 58 | 1614448020 | Connecting Cable Blue L=83 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 1610210086 | O-Ring 13,0X2,5 MM |
| 61 | 1610210046 | O-Ring 10,5X2,7 MM |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 64 | 1614601007 | Retaining ring |
| 66 | 1610026001 | Damping rubber |
| 68 | 2917550133 | Straight Pin DIN 6325-5M6X45 |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 2912401022 | Tapping Screw DIN 7981-ST3,9X25-C-Z |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700/20 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 701 | 1608571062 | Key Chuck R/l Ø13 Mm, 1/2"-20 Unf |
| 701 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 701/7 | 2607950007 | Chuck Wrench SG2 |
| 702 | 1617000133 | Parts Set |
| 702/10/2 | 2604601004 | Retaining ring |
| 703 | 1615439003 | Dust Tray |
| 703/30 | 1610312001 | Rubber Bushing Ø5-7 MM |
| 703/651 | 1610312002 | Rubber Bushing Ø8-10 MM |
| 72 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 720 | 1619PB4323 | Auxiliary Handle |
| 73 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 75 | 1610283019 | Shaft Seal |
| 752 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 752 | 1613001006 | Depth-Gauge SW 6X210 MM |
| 753 | 1618596166 | Rotary hammer bit Ø6X50 MM |
| 754 | 2607000122 | Drill Holder |
| 777 | 0611999001 | Chisel Attachment |
| 778 | 1618580000 | Angle Drill Head Sds-Plus |
| 78 | 1610920006 | Roller-Cage Assembly |
| 79 | 1610100609 | Support Disc |
| 803 | 1614010085 | Armature With Fan 220-230V |
| 803 | 1614010086 | Armature With Fan 110-115V |
| 803 | 1614010087 | Armature With Fan 240V |
| 803 | 1614010091 | Armature With Fan 100V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 2609992600 | Brush Plate |
| 810/04 | 1617014117 | Carbon-Brush Set |
| 810/04 | 2604321905 | Carbon-Brush Set |
| 810/04 | 2607014001 | Carbon-Brush Set |
| 810/05 | 2604611026 | Compression Spring |
| 810/06 | 2601322013 | Ratchet Cap |
| 814 | 1610905048 | Groove ball bearing 9X24X7 |
| 819 | 1617000936 | Ratchet Sleeve |
| 821 | 1617000215 | Parts Set |
| 830 | 1617000177 | Clamp Handle |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 867 | 2917160109 | Tubular rivet DIN 7340 A5X0,5X10 |
| 9 | 1611110373 | Manufacturer's nameplate |
| 9 | 1611110401 | Manufacturer's nameplate |
| 9 | 1611110528 | Manufacturer's nameplate |
| 91 | 2916540012 | Retaining ring DIN 7993-A22 |
