Bosch GBH 16-80 suction device: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 16-80: 18 positions on 1 sheet

Bosch GBH 16-80 parts list (1 sheet)

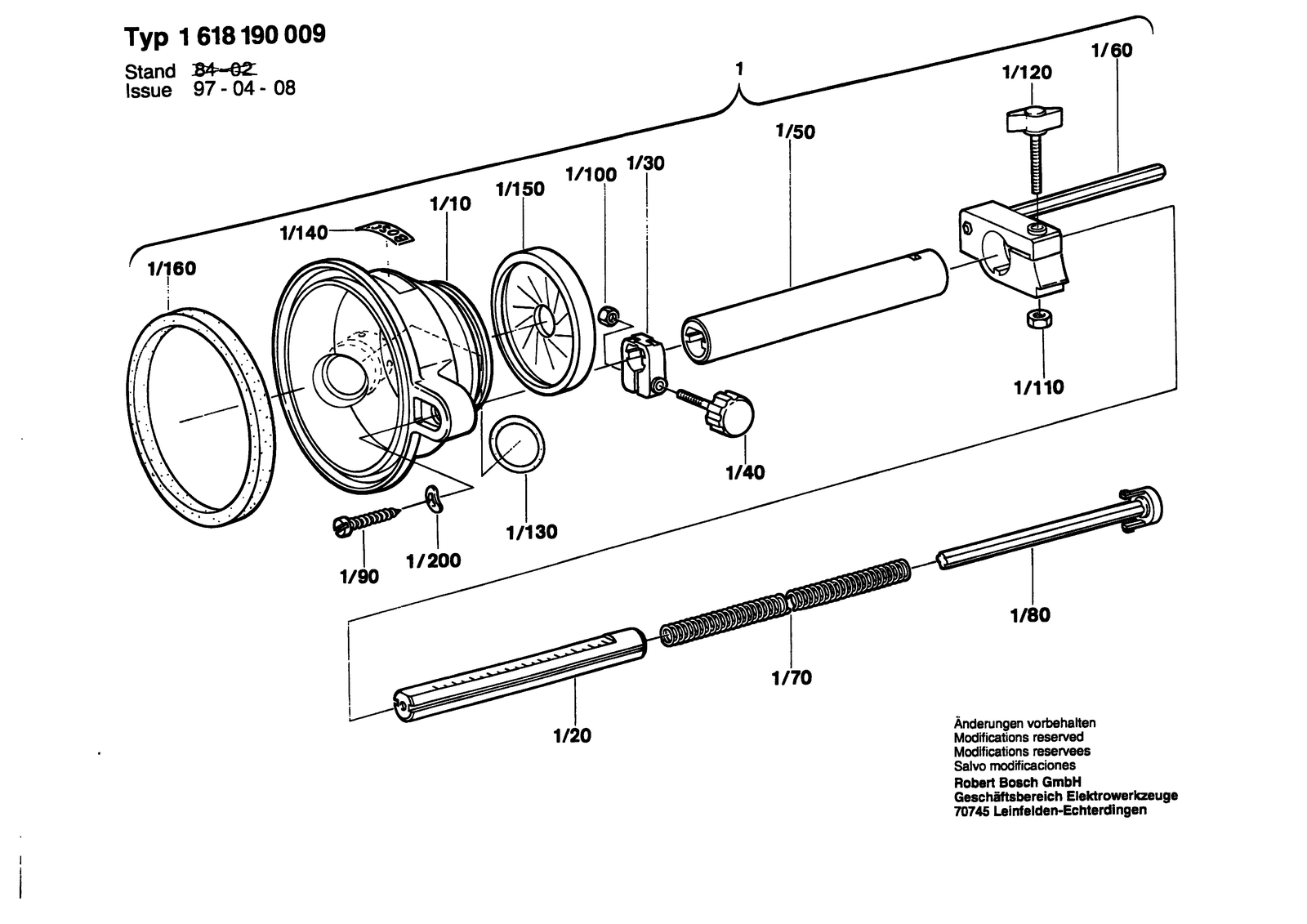

Bosch GBH 16-80 parts diagram, sheet 1
No.Part numberPart name
11618190009Suction Device
1/101615719019Extractor Head
1/1001613300006Hex Nut M6
1/1102915060004Hex Nut M 6 DIN 985-8
1/1201613480009Wing Screw M6X25 MM
1/1301610210045O-Ring 23,0X3,0 MM
1/1402601110601Manufacturer's nameplate
1/1501610502004Rubber Ring
1/1601612319002Seal Strip
1/201613002001Telescope Pipe
1/2002916060011Spring Washer DIN 137-B5-FST
1/301611315008Clamping Piece
1/401613481003Clamp Screw
1/501610715001Guide Tube
1/601618040045Support clamp
1/701614611003Compression Spring
1/801615500264Sealing cap Black
1/902910211234Tapping Screw DIN 7971-B4,8X19
