Bosch GBH 11 DE

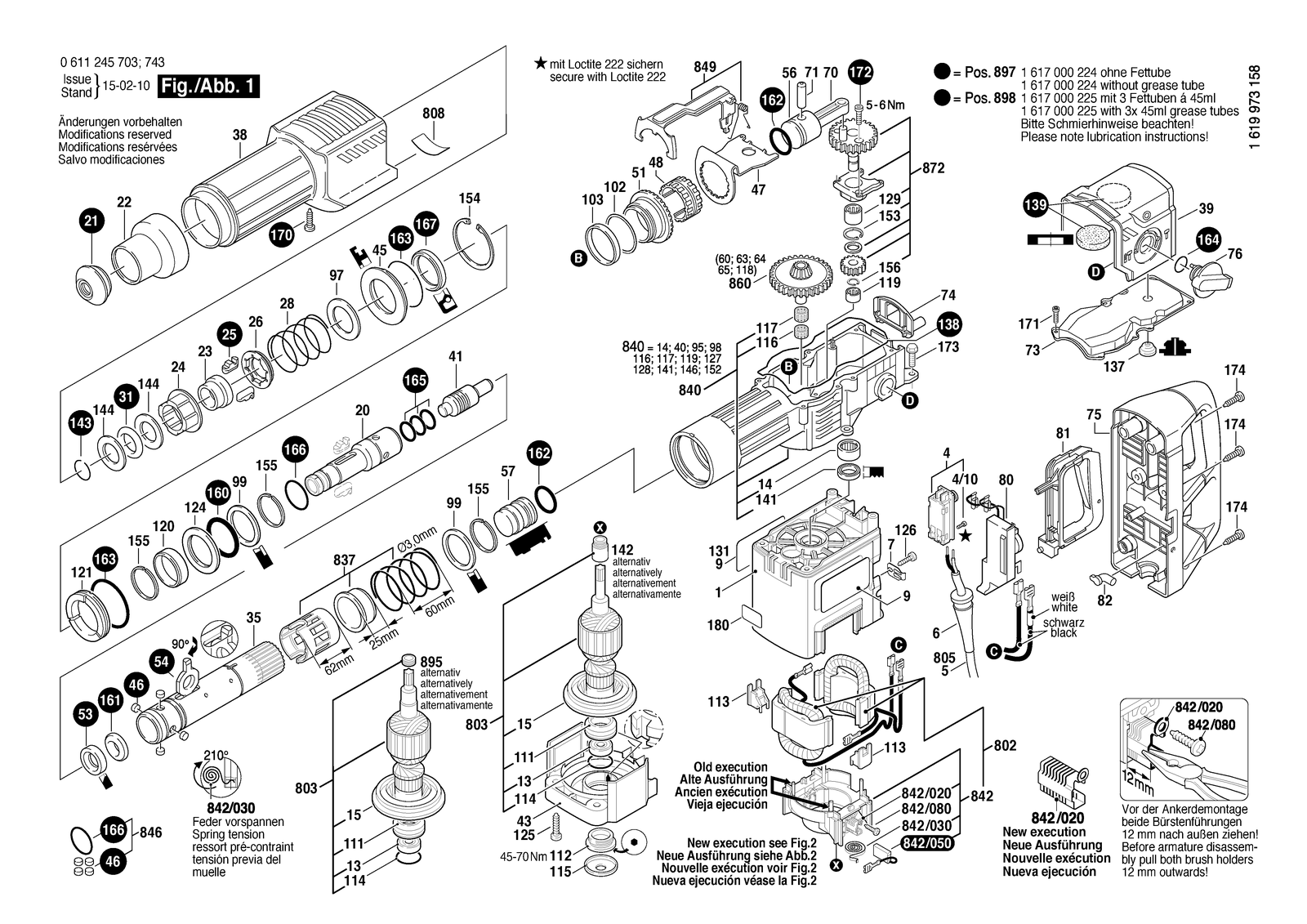

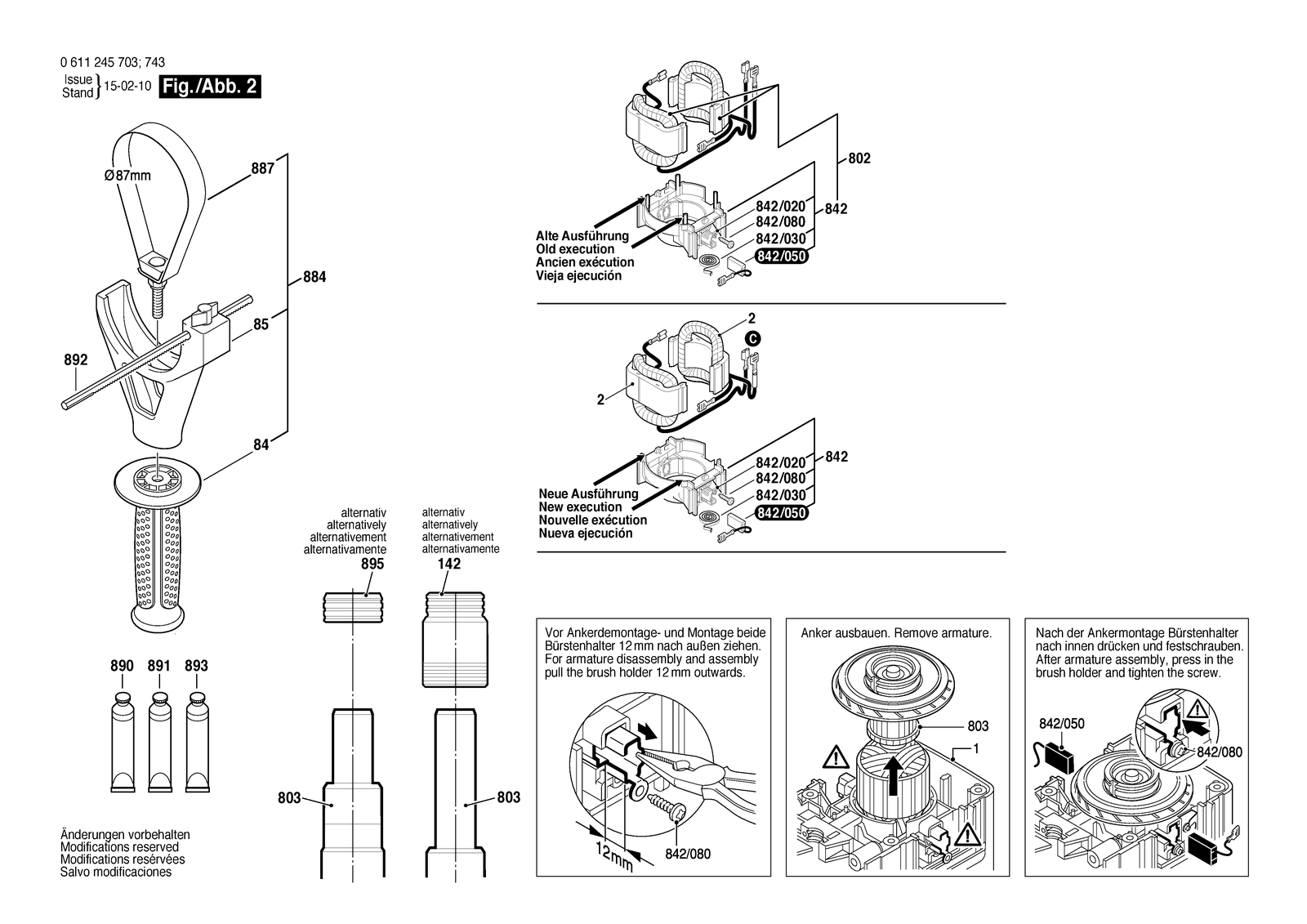

Bosch GBH 11 DE rotary hammer: exploded parts diagram, 2 sheets, 236 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBH 11 DE: 236 positions on 2 sheets
Bosch GBH 11 DE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108091 | Motor Housing Blue |
| 1 | 1615108091 | Motor Housing Blue |
| 102 | 1610102036 | Shim Thick 0,2 MM |
| 102 | 1610102036 | Shim Thick 0,2 MM |
| 103 | 1610290034 | Thrust Ring |
| 103 | 1610290034 | Thrust Ring |
| 111 | 3610501500 | Bushing |
| 111 | 3610501500 | Bushing |
| 112 | 3613461500 | Threaded Ring |
| 112 | 3613461500 | Threaded Ring |
| 113 | 1610009007 | Spacer |
| 113 | 1610009007 | Spacer |
| 114 | 1610210139 | O-Ring 30,0X2,5 MM |
| 114 | 1610210139 | O-Ring 30,0X2,5 MM |
| 115 | 1610508027 | Protective Cap Black |
| 115 | 1610508027 | Protective Cap Black |
| 116 | 1610913029 | Needle-Roller Assembly |
| 116 | 1610913029 | Needle-Roller Assembly |
| 117 | 1610913011 | Needle-Roller Assembly Ø10 MM |
| 117 | 1610913011 | Needle-Roller Assembly Ø10 MM |
| 119 | 1610910081 | Needle-Roller Bearing |
| 119 | 1610910081 | Needle-Roller Bearing |
| 120 | 1610290037 | Inner Ring |
| 120 | 1610290037 | Inner Ring |
| 121 | 1610290035 | Bearing Ring |
| 121 | 1610290035 | Bearing Ring |
| 124 | 1610190029 | Thrust Bearing Disc |
| 124 | 1610190029 | Thrust Bearing Disc |
| 125 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 125 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 129 | 1610910085 | Needle-Roller Bearing |
| 129 | 1610910085 | Needle-Roller Bearing |
| 13 | 2610909310 | Groove ball bearing |
| 13 | 2610909310 | Groove ball bearing |
| 137 | 1610591015 | Plug |
| 137 | 1610591015 | Plug |
| 138 | 1611015043 | Sealing Frame |
| 138 | 1611015043 | Sealing Frame |
| 139 | 1610290036 | Sealing disk |
| 139 | 1610290036 | Sealing disk |
| 14 | 1610910096 | Needle-Roller Bearing |
| 14 | 1610910096 | Needle-Roller Bearing |
| 141 | 1610290028 | Rotary shaft lip seal |
| 141 | 1610290028 | Rotary shaft lip seal |
| 142 | 1610300063 | Bushing |
| 142 | 1610300063 | Bushing |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 143 | 1614601021 | Retaining ring DIN 7993-28X2 |
| 144 | 1610190028 | Supporting Disc |
| 144 | 1610190028 | Supporting Disc |
| 15 | 1616610083 | Fan |
| 15 | 1616610083 | Fan |
| 153 | 2916660007 | Spring retaining ring DIN 472-22X1MM |
| 153 | 2916660007 | Spring retaining ring DIN 472-22X1MM |
| 154 | 2916660040 | Spring retaining ring DIN 472-68X2,5MM |
| 154 | 2916660040 | Spring retaining ring DIN 472-68X2,5MM |
| 155 | 1614601020 | Retaining ring |
| 155 | 1614601020 | Retaining ring |
| 156 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 156 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 160 | 1610210132 | O-Ring 45,0X6,0 MM |
| 160 | 1610210132 | O-Ring 45,0X6,0 MM |
| 161 | 1610290031 | Damping Ring |
| 161 | 1610290031 | Damping Ring |
| 162 | 1610210133 | O-Ring 28,0X5,0 MM |
| 162 | 1610210133 | O-Ring 28,0X5,0 MM |
| 163 | 1610210134 | O-Ring 62,0X3,0 MM |
| 163 | 1610210134 | O-Ring 62,0X3,0 MM |
| 164 | 1900210117 | O-Ring 18X3 MM |
| 164 | 1900210117 | O-Ring 18X3 MM |
| 165 | 1610210096 | O-Ring 21,0X3,5 MM |
| 165 | 1610210096 | O-Ring 21,0X3,5 MM |
| 166 | 1610210084 | O-Ring 34,0X2,0 MM |
| 166 | 1610210084 | O-Ring 34,0X2,0 MM |
| 167 | 1610283026 | Rotary shaft lip seal |
| 167 | 1610283026 | Rotary shaft lip seal |
| 170 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 170 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 171 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 171 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 172 | 1613414021 | Microencapsulated Screw |
| 172 | 1613414021 | Microencapsulated Screw |
| 173 | 1613433001 | Screw and washer assembly 6,3X32 |
| 173 | 1613433001 | Screw and washer assembly 6,3X32 |
| 174 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 174 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 180 | 1611110C08 | Sticker |
| 180 | 1611110E91 | Sticker |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 160422052J | Field 230V |
| 2 | 160422052K | Field 110-120V |
| 2 | 160422052L | Field 100V |
| 2 | 160422052J | Field 230V |
| 20 | 1618597068 | Toolholder |
| 20 | 1618597068 | Toolholder |
| 21 | 1610508023 | Protective Cap |
| 21 | 1610508023 | Protective Cap |
| 22 | 1610591014 | Protection Sleeve |
| 22 | 1610591014 | Protection Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 24 | 1610590006 | Spacer Tube |
| 24 | 1610590006 | Spacer Tube |
| 25 | 1612300027 | Stopping Device |
| 25 | 1612300027 | Stopping Device |
| 26 | 1610290025 | Indexing Disk |
| 26 | 1610290025 | Indexing Disk |
| 28 | 1614621000 | Compression Spring |
| 28 | 1614621000 | Compression Spring |
| 31 | 1610290030 | Damping Ring |
| 31 | 1610290030 | Damping Ring |
| 35 | 1615806113 | Hammer Pipe |
| 35 | 1615806113 | Hammer Pipe |
| 38 | 1615190094 | Covering hood Blue |
| 38 | 1615190094 | Covering hood Blue |
| 39 | 1615190096 | Covering hood Blue |
| 39 | 1615190096 | Covering hood Blue |
| 4 | 1617200048 | Switch |
| 4 | 1617200048 | Switch |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 41 | 1600A01BG6 | Striker Pin |
| 41 | 1600A01BG6 | Striker Pin |
| 43 | 1615808083 | Bearing cover Blue |
| 43 | 1615808083 | Bearing cover Blue |
| 45 | 1610290032 | Intermediate Ring |
| 45 | 1610290032 | Intermediate Ring |
| 47 | 1611329016 | Notched Plate |
| 47 | 1611329016 | Notched Plate |
| 48 | 1616334011 | Gear Sleeve |
| 48 | 1616334011 | Gear Sleeve |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460348 | Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460449 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460047 | Power supply cord IL 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460056 | Power supply cord J 5M 2 X 1,25MM Gummi |
| 5 | 1614460070 | Power supply cord SAM 4,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1614460086 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460094 | Power supply cord BR 220V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460075 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 51 | 1616333031 | Crown Gear Z=49 |
| 51 | 1616333031 | Crown Gear Z=49 |
| 53 | 1610190026 | Stop Disc |
| 53 | 1610190026 | Stop Disc |
| 54 | 1610190024 | Control Disc |
| 54 | 1610190024 | Control Disc |
| 56 | 1618700066 | Hammer Piston |
| 56 | 1618700066 | Hammer Piston |
| 57 | 1618710066 | Striker |
| 57 | 1618710066 | Striker |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 70 | 1612001034 | Connecting Rod |
| 70 | 1612001034 | Connecting Rod |
| 71 | 1613100020 | Straight Pin |
| 71 | 1613100020 | Straight Pin |
| 73 | 1615500291 | Housing Cover |
| 73 | 1615500291 | Housing Cover |
| 74 | 1612386004 | Retaining Bracket |
| 74 | 1612386004 | Retaining Bracket |
| 75 | 1615132083 | Handle Blue |
| 75 | 1615132083 | Handle Blue |
| 76 | 1612026057 | Clamp Handle Black/red |
| 76 | 1612026057 | Clamp Handle Black/red |
| 80 | 16072335CR | Speed governor 220-240V |
| 80 | 16072335CU | Speed governor |
| 80 | 16072335CV | Speed governor 220-240V |
| 80 | 16072335CR | Speed governor 220-240V |
| 802 | 1607000C3V | Subassembly |
| 802 | 1607000C3W | Subassembly |
| 802 | 1607000C3X | Subassembly |
| 802 | 1607000C3V | Subassembly |
| 803 | 1614011072 | Armature 220-240V |
| 803 | 1614011073 | Armature 100V |
| 803 | 1614011074 | Armature 110-120V |
| 803 | 1614011072 | Armature 220-240V |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 81 | 1612026084 | Switch-Pawl Blue/grey |
| 81 | 1612026084 | Switch-Pawl Blue/grey |
| 82 | 1615510000 | Light Conductor |
| 82 | 1615510000 | Light Conductor |
| 837 | 1617000294 | Control Bushing |
| 837 | 1617000294 | Control Bushing |
| 84 | 160202507H | Auxiliary Handle |
| 84 | 160202507H | Auxiliary Handle |
| 840 | 1617000992 | Impact Mechanism Housing |
| 840 | 1617000992 | Impact Mechanism Housing |
| 842 | 1600A005AF | Brush Holder |
| 842 | 1600A005AF | Brush Holder |
| 842/020 | 1614336017 | Brush Guide |
| 842/020 | 1614336017 | Brush Guide |
| 842/030 | 1614652004 | Spiral Spring |
| 842/030 | 1614652004 | Spiral Spring |
| 842/050 | 1617014126 | Carbon-Brush Set |
| 842/050 | 1617014126 | Carbon-Brush Set |
| 842/080 | 2910611012 | Tapping Screw DIN 7981-ST3,5X16-C-H |
| 842/080 | 2910611012 | Tapping Screw DIN 7981-ST3,5X16-C-H |
| 846 | 1617000241 | Cylindrical Roller |
| 846 | 1617000241 | Cylindrical Roller |
| 849 | 1617000991 | Control Fork |
| 849 | 1617000991 | Control Fork |
| 85 | 1618040059 | Support clamp |
| 85 | 1618040059 | Support clamp |
| 860 | 1617000993 | Spur Wheel Clutch Z=53 |
| 860 | 1617000993 | Spur Wheel Clutch Z=53 |
| 872 | 1617000994 | Eccentric Cog Wheel Z=50 |
| 872 | 1617000994 | Eccentric Cog Wheel Z=50 |
| 884 | 1612025043 | Auxiliary Handle |
| 884 | 1612025043 | Auxiliary Handle |
| 887 | 1617000807 | Clamping Band Ø87 MM |
| 887 | 1617000807 | Clamping Band Ø87 MM |
| 890 | 1615430015 | Grease Tube 225 Ml |
| 891 | 1615430014 | Grease Tube 45 Ml |
| 892 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 892 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 893 | 1615430020 | Grease Tube 225 Ml |
| 895 | 3613344500 | Oil Return Ring |
| 895 | 3613344500 | Oil Return Ring |
| 897 | 1617000224 | Wear and Tear Part Set |
| 897 | 1617000224 | Wear and Tear Part Set |
| 898 | 1617000225 | Wear and Tear Part Set |
| 898 | 1617000225 | Wear and Tear Part Set |
| 9 | 1611110889 | Manufacturer's nameplate |
| 9 | 1611110889 | Manufacturer's nameplate |
| 97 | 1610102032 | Supporting Disc Thick 2,0 MM |
| 97 | 1610102032 | Supporting Disc Thick 2,0 MM |
| 99 | 1610114020 | Supporting Disc |
| 99 | 1610114020 | Supporting Disc |
