Bosch GBG 35-15

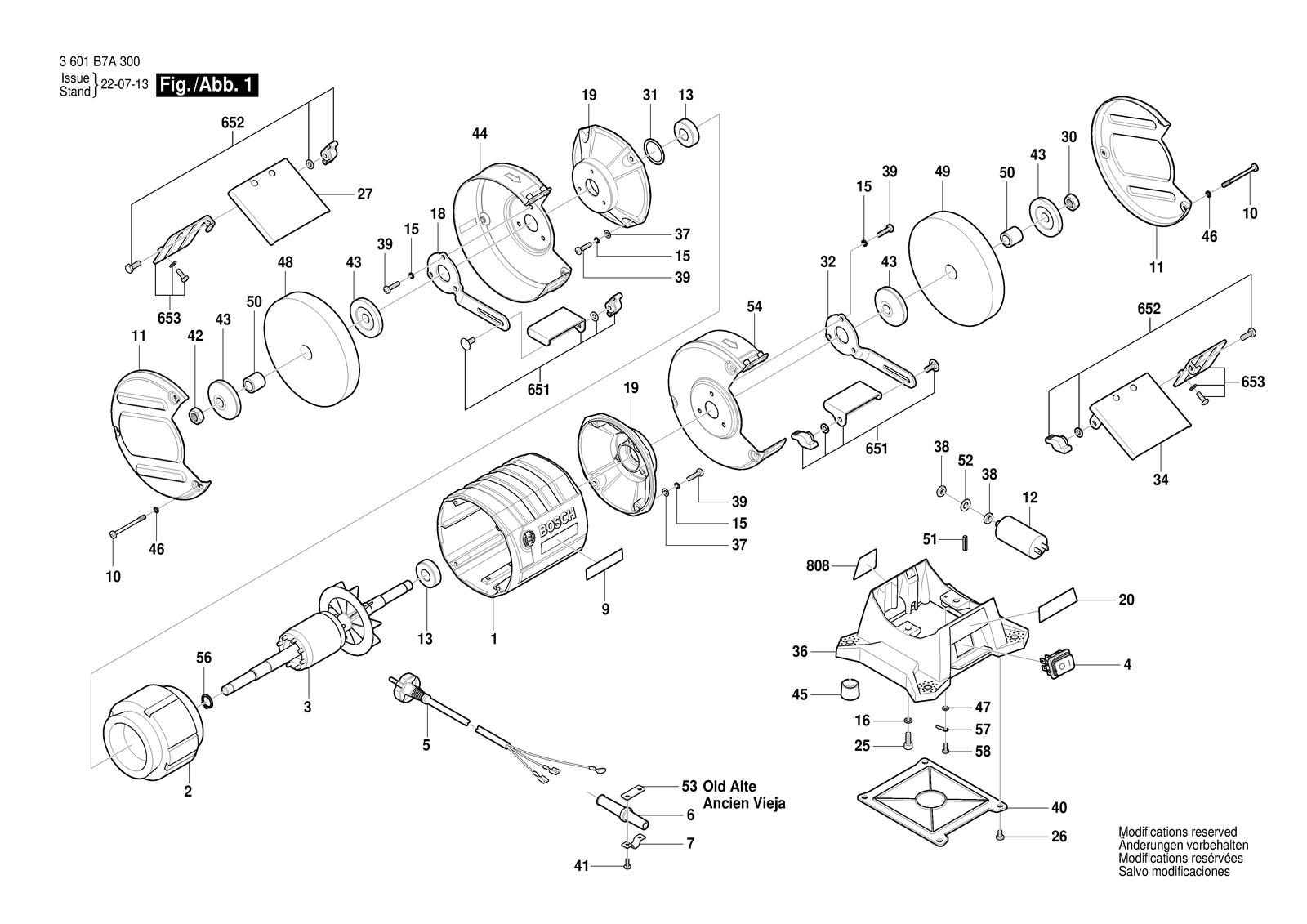

Bosch GBG 35-15 bench grinder: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GBG 35-15: 64 positions on 1 sheet
Bosch GBG 35-15 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB1466 | Motor Housing |
| 10 | 1619PB1500 | Screw |
| 11 | 1619PB1502 | Lateral Guard |
| 12 | 1619PB1504 | Suppression Capacitor |
| 13 | 1619PB1506 | Groove ball bearing |
| 15 | 1619PB1508 | Spring Washer |
| 16 | 1619PB1509 | Spring Washer |
| 18 | 1619PB1511 | Support Plate |
| 19 | 1619PB1513 | End Shield |
| 2 | 1619PB1468 | Field assembly |
| 20 | 1619PB1515 | Warning Label |
| 25 | 1619PB1521 | Screw |
| 26 | 1619PB1522 | Pan head screw |
| 27 | 1619PB1523 | Protective Glass |
| 3 | 1619PB1470 | Armature |
| 30 | 1619PB1526 | Hex Nut |
| 31 | 1619PB1527 | Corrugated Washer |
| 32 | 1619PB1529 | Support Plate |
| 34 | 1619PB1532 | Protective Glass |
| 36 | 1619PB1534 | Base |
| 37 | 1619PB1536 | Plain Washer |
| 38 | 1619PB1537 | Hex thin nut |
| 39 | 1619PB1538 | Screw |
| 4 | 1619PB1472 | Switch |
| 40 | 1619PB1539 | Base Plate |
| 41 | 1619PB1541 | Pan head screw |
| 42 | 1619PB1542 | Hex Nut |
| 43 | 1619PB1543 | Clamping Flange |
| 44 | 1619PB1545 | Protective Cover |
| 45 | 1619PB1547 | Supporting foot |
| 46 | 1619PB1548 | Spring Washer |
| 47 | 1619PB1549 | Toothed lock washer |
| 48 | 1619PB1446 | Grinding Wheel 150 MM 24# |
| 49 | 1619PB1448 | Grinding Wheel 150 MM 60# |
| 5 | 1619PB1473 | Power supply cord |
| 5 | 1619PB1474 | Power supply cord |
| 5 | 1619PB1475 | Power supply cord |
| 5 | 1619PB1476 | Power supply cord |
| 5 | 1619PB1477 | Power supply cord |
| 5 | 1619PB1478 | Power supply cord |
| 5 | 1619PB1479 | Power supply cord |
| 5 | 1619PB1587 | Power supply cord |
| 50 | 1619PB1550 | Reduction Sleeve |
| 51 | 1619PB1552 | Terminal Screw |
| 52 | 1619PB1553 | Toothed lock washer |
| 53 | 1619PB1554 | Support Plate |
| 54 | 1619PB1555 | Protective Cover |
| 56 | 1619PB1558 | Spacer Ring |
| 57 | 1619PB1668 | Spring Washer |
| 58 | 1619PB1780 | Pan head screw |
| 6 | 1619PB1480 | Grommet |
| 651 | 1619PB1781 | Support Plate |
| 652 | 1619PB1782 | Screw |
| 653 | 1619PB1783 | Guard Plate |
| 7 | 1619PB1481 | Clip |
| 808 | 1619PB2016 | Nameplate |
| 808 | 1619PB2017 | Nameplate |
| 808 | 1619PB2018 | Nameplate |
| 808 | 1619PB2019 | Nameplate |
| 808 | 1619PB2020 | Nameplate |
| 808 | 1619PB2021 | Nameplate |
| 808 | 1619PB2022 | Nameplate |
| 808 | 1619PB2023 | Nameplate |
| 9 | 1619PB1498 | Manufacturer's nameplate GBG 35-15 |
