Makita GB801
Makita GB801: exploded parts diagram, 1 sheet, 130 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GB801: 130 positions on 1 sheet

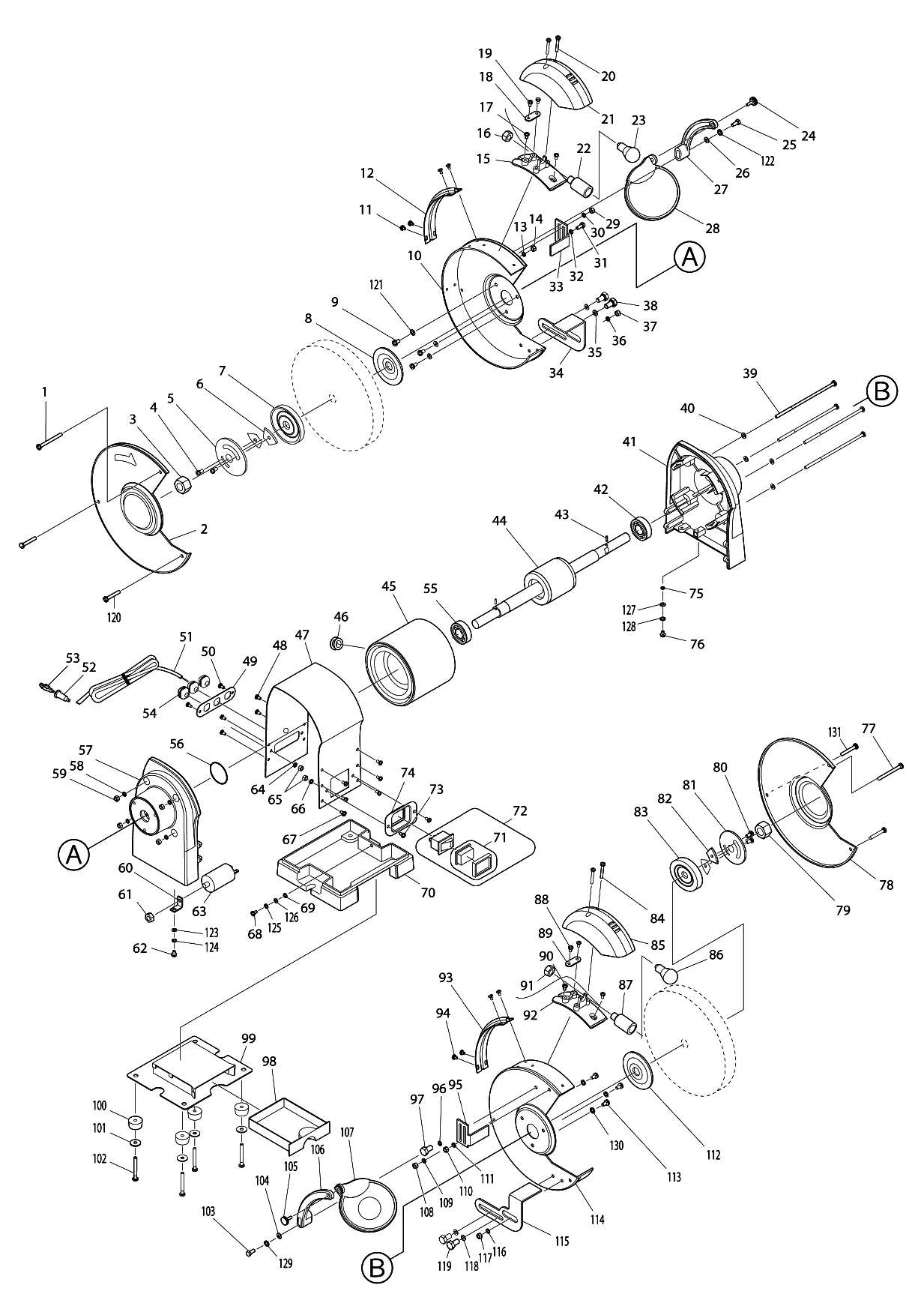

Sheet 1: Makita GB801 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911276-3 | Makita 911276-3 PAN HEAD SCREW M5X55 |
| 2 | AL00000057 | Makita AL00000057 LEFT WHEEL GUARD COVER, GB801 |
| 3 | AL00000058 | Makita AL00000058 I TYPE HEX NUT, GB801 |
| 4 | AL00000059 | Makita AL00000059 PHILIP SCREW, GB801 |
| 5 | AL00000060 | Makita AL00000060 BALANCE PLATE, GB801 |
| 6 | AL00000061 | Makita AL00000061 COUNTER BALANCE, GB801 |
| 7 | AL00000062 | Makita AL00000062 OUTER GRINDER FLANGE, GB801 |
| 8 | AL00000063 | Makita AL00000063 INNER GRINDER FLANGE |
| 9 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 10 | AL00000064 | Makita AL00000064 LEFT WHEEL GUARD COVER, GB801 |
| 11 | 911107-6 | Makita 911107-6 PAN HEAD SCREW M4X8 |
| 12 | AL00000065 | Makita AL00000065 CORD PRESS CLIP, GB801 |
| 13 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 14 | 931201-8 | |
| 15 | AL00000194 | Makita AL00000194 LAMP COVER BASE |
| 16 | AL00000009 | Makita AL00000009 LAMP HOLDER RETAINING NUT, GB602 |
| 17 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 18 | AL00000010 | Makita AL00000010 STRAIN RELIEF, GB602 |
| 19 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 20 | 911156-3 | Makita 911156-3 PAN HEAD SCREW M4X30 |
| 21 | AL00000011 | Makita AL00000011 LAMP COVER ASSY, GB602 |
| 22 | AL00000012 | Makita AL00000012 LAMP ASSY, GB602 |
| 23 | AL00000013 | Makita AL00000013 BULB, GB602 |
| 24 | AL00000014 | Makita AL00000014 EYESHIELD LOCK KNOT, GB602 |
| 25 | 921351-7 | Makita 921351-7 HEX. BOLT M6X30 |
| 26 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 27 | AL00000015 | Makita AL00000015 LEFT EYESHIELD MOUNT ROD, GB602 |
| 28 | AL00000016 | Makita AL00000016 EYESHIELD ASSY, GB602 |
| 29 | 931201-8 | |
| 30 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 31 | 921212-1 | Makita 921212-1 HEX. BOLT M5X12 |
| 32 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 33 | AL00000066 | Makita AL00000066 LEFT SPARK SHIELD, GB801 |
| 34 | AL00000067 | Makita AL00000067 LEFT WORK REST, GB801 |
| 35 | 941202-8 | Makita 941202-8 FLAT WASHER 8 |
| 36 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 37 | 931201-8 | |
| 38 | 921411-5 | |
| 39 | AL00000068 | Makita AL00000068 PHILIP SCREW, GB801 |
| 40 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 41 | AL00000069 | Makita AL00000069 RIGHT END CAP, GB801 |
| 42 | 211306-3 | Makita 211306-3 BALL BEARING 6204LLB |
| 43 | 951051-5 | Makita 951051-5 SPRING PIN 3-8 |
| 44 | AL00000222 | |
| 45 | AL00000221 | |
| 46 | AL00000022 | Makita AL00000022 WIRE BUSHING, GB602 |
| 47 | AL00000072 | |
| 48 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 49 | AL00000024 | |
| 50 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 51 | AL00000171 | Makita AL00000171 WIRE WITH PLUG, GB801 |
| 52 | ||
| 53 | ||
| 54 | AL00000026 | Makita AL00000026 CORD CLIP, GB602 |
| 55 | 211306-3 | Makita 211306-3 BALL BEARING 6204LLB |
| 56 | AL00000073 | Makita AL00000073 WAVE SPRING WASHER, GB801 |
| 57 | AL00000074 | Makita AL00000074 LEFT END CAP, GB801 |
| 58 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 59 | 931201-8 | |
| 60 | AL00000029 | Makita AL00000029 CAPACITOR SUPPORT, GB602 |
| 61 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 62 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 63 | AL00000099 | Makita AL00000099 CAPACITOR, GB801 |
| 64 | 942051-6 | Makita 942051-6 SPRING WASHER 4 |
| 65 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 66 | 942051-6 | Makita 942051-6 SPRING WASHER 4 |
| 67 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 68 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 69 | AL00000134 | Makita AL00000134 TOOTH LOCKED WASHER, GB602 |
| 70 | AL00000076 | Makita AL00000076 BASE, GB801 |
| 71 | AL00000033 | |
| 73 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 74 | AL00000031 | Makita AL00000031 SWITCH BOARD, GB602 |
| 75 | AL00000134 | Makita AL00000134 TOOTH LOCKED WASHER, GB602 |
| 76 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 77 | AL00000107 | Makita AL00000107 PHILIP SCREW, GB801 |
| 78 | AL00000077 | Makita AL00000077 RIGHT WHEEL GUARD COVER, GB801 |
| 79 | AL00000078 | Makita AL00000078 I TYPE HEX NUT, GB801 |
| 80 | AL00000059 | Makita AL00000059 PHILIP SCREW, GB801 |
| 81 | AL00000060 | Makita AL00000060 BALANCE PLATE, GB801 |
| 82 | AL00000061 | Makita AL00000061 COUNTER BALANCE, GB801 |
| 83 | AL00000062 | Makita AL00000062 OUTER GRINDER FLANGE, GB801 |
| 84 | 911156-3 | Makita 911156-3 PAN HEAD SCREW M4X30 |
| 85 | AL00000011 | Makita AL00000011 LAMP COVER ASSY, GB602 |
| 86 | AL00000013 | Makita AL00000013 BULB, GB602 |
| 87 | AL00000012 | Makita AL00000012 LAMP ASSY, GB602 |
| 88 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 89 | AL00000010 | Makita AL00000010 STRAIN RELIEF, GB602 |
| 90 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 91 | AL00000009 | Makita AL00000009 LAMP HOLDER RETAINING NUT, GB602 |
| 92 | AL00000194 | Makita AL00000194 LAMP COVER BASE |
| 93 | AL00000065 | Makita AL00000065 CORD PRESS CLIP, GB801 |
| 94 | 911107-6 | Makita 911107-6 PAN HEAD SCREW M4X8 |
| 95 | AL00000079 | Makita AL00000079 RIGHT SPARK SHIELD, GB801 |
| 96 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 97 | 921212-1 | Makita 921212-1 HEX. BOLT M5X12 |
| 98 | AL00000080 | Makita AL00000080 COOLANT TRAY, GB801 |
| 99 | AL00000081 | Makita AL00000081 COOLANT TRAY PLATE ASSY, GB801 |
| 100 | AL00000083 | Makita AL00000083 RUBBER FOOT, GB801 |
| 101 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 102 | 911267-4 | Makita 911267-4 PAN HEAD SCREW M5X45 |
| 103 | 921351-7 | Makita 921351-7 HEX. BOLT M6X30 |
| 104 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 105 | AL00000014 | Makita AL00000014 EYESHIELD LOCK KNOT, GB602 |
| 106 | AL00000038 | Makita AL00000038 RIGHT EYESHIELD MOUNT ROD, GB602 |
| 107 | AL00000037 | Makita AL00000037 MAGNIFYING GLASS ASSY, GB602 |
| 108 | 931201-8 | |
| 109 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 110 | 931201-8 | |
| 111 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 112 | AL00000063 | Makita AL00000063 INNER GRINDER FLANGE |
| 113 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 114 | AL00000084 | Makita AL00000084 RIGHT WHEEL GUARD COVER, GB801 |
| 115 | AL00000085 | Makita AL00000085 RIGHT WORK REST, GB801 |
| 116 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 117 | 931201-8 | |
| 118 | 941202-8 | Makita 941202-8 FLAT WASHER 8 |
| 119 | 921411-5 | |
| 120 | 911274-7 | |
| 121 | ||
| 122 | AL00000133 | Makita AL00000133 STANDARD SPRING WASHER, GB602 |
| 123 | ||
| 124 | ||
| 125 | ||
| 126 | ||
| 127 | ||
| 128 | ||
| 129 | AL00000133 | Makita AL00000133 STANDARD SPRING WASHER, GB602 |
| 130 | ||
| 131 | AL00000144 | Makita AL00000144 PHILIP SCREW, GB801 |
