Bosch GAS 900 RF

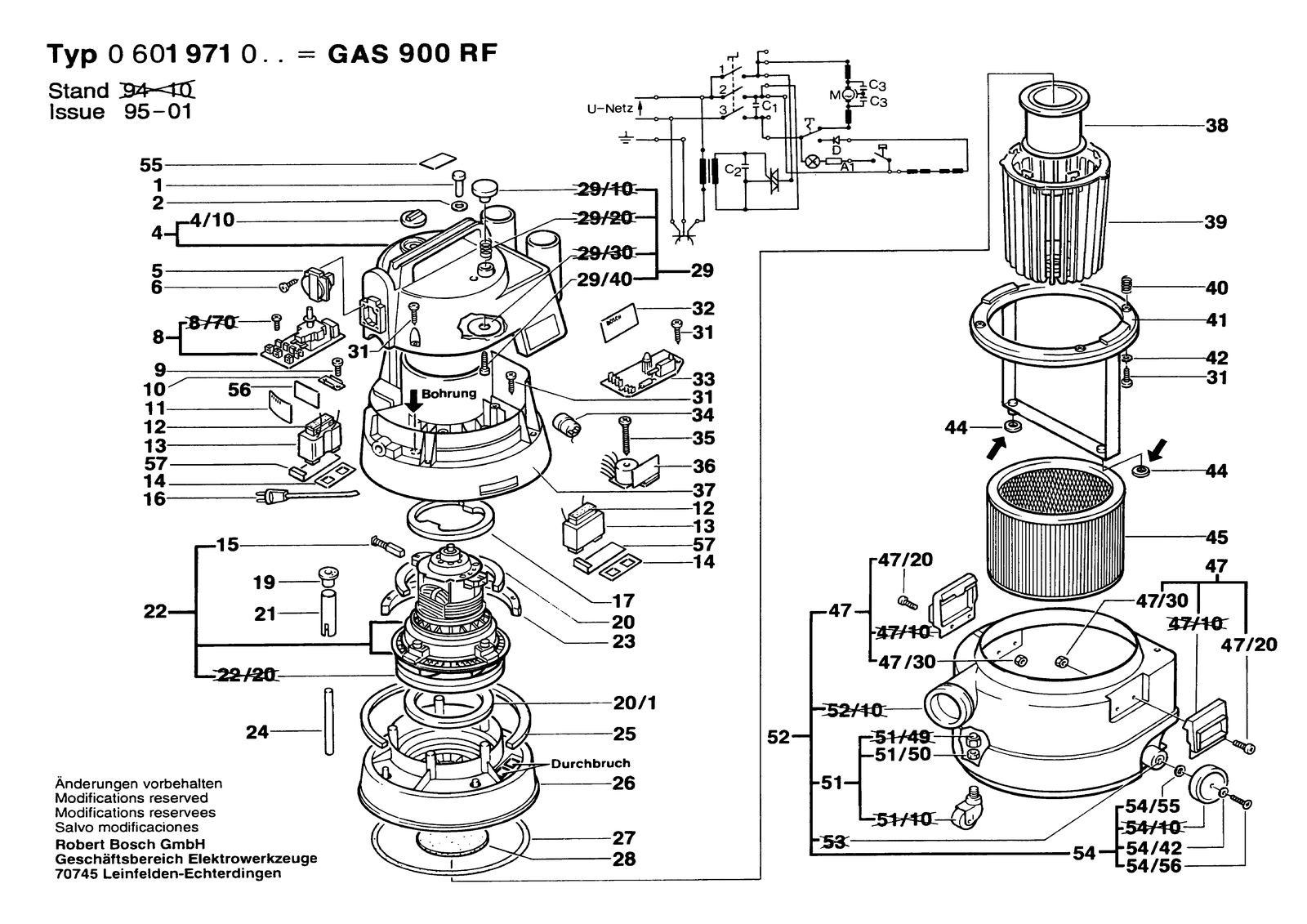

Bosch GAS 900 RF all purpose vacuum cleane: exploded parts diagram, 3 sheets, 102 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GAS 900 RF: 102 positions on 3 sheets
Bosch GAS 900 RF parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609201654 | Indicator Lamp |
| 10 | 1609201659 | Clamp |
| 11 | 1601110391 | Nameplate |
| 11 | 1601110392 | Nameplate |
| 11 | 1601110393 | Nameplate |
| 11 | 1601110394 | Nameplate |
| 11 | 1601110395 | Nameplate |
| 11 | 1601110396 | Nameplate |
| 11 | 1601110397 | Nameplate |
| 11 | 1601110398 | Nameplate |
| 11 | 1601110399 | Nameplate |
| 12 | 1609201660 | Damping Plate |
| 13 | 1609201662 | Attachment Vibrator 220-240V |
| 13 | 1609201703 | Attachment Vibrator 100-110V |
| 14 | 1609201663 | Sealing disk |
| 15 | 1609201664 | Carbon-Brush Set |
| 15 | 1609201699 | Carbon-Brush Set |
| 16 | 1609201665 | Power supply cord |
| 16 | 1609201694 | Power supply cord |
| 16 | 1609201708 | Connector Cable |
| 16 | 1609202195 | Power supply cord |
| 16 | 1609202196 | Power supply cord |
| 17 | 1609201666 | Air-Deflector Ring |
| 19 | 1609201668 | Seal Ring |
| 2 | 1609201655 | Seal Ring |
| 20 | 1609201669 | Seal Ring |
| 20/1 | 1609202374 | Seal Ring |
| 21 | 1609202573 | Guide Sleeve |
| 22 | 1609202369 | Suction Blower 110-115V |
| 22 | 1609202370 | Suction Blower 100V |
| 22 | 1609202371 | Suction Blower 240V |
| 22 | 1609202695 | Suction Blower 220V |
| 24 | 1609202573 | Guide Sleeve |
| 25 | 1609201674 | Air Filter |
| 26 | 1609201675 | Intermediate Flange |
| 27 | 1609201676 | Seal Ring |
| 28 | 1609201677 | Air Filter |
| 29 | 1609201678 | Push-Button |
| 29/40 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 31 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 32 | 1601110390 | Manufacturer's nameplate |
| 33 | 1609201679 | Connection plate |
| 33 | 1609201701 | Connection plate |
| 34 | 1609201680 | Pressure Switch |
| 35 | 1609201681 | Tapping Screw 3,5X32 MM |
| 36 | 1609202227 | Automatic Switching Unit |
| 36 | 1609203C05 | Automatic Switching Unit |
| 37 | 1609201683 | Intermediate housing |
| 38 | 1609200952 | Float |
| 39 | 1609201684 | Suction Basket |
| 4 | 1609202365 | Covering hood |
| 4/10 | 1609201656 | Switch Button |
| 4/10 | 1609203721 | Switch Button Red |
| 40 | 1609201685 | Compression Spring |
| 41 | 1609203182 | Retaining snap ring |
| 42 | 1609202726 | Plain Washer Ø4,2XØ11X1,2MM |
| 44 | 1609201688 | Sealing disk |
| 45 | 1609201646 | Air Filter Ø 245 MM |
| 47 | 1609201690 | Bent-Lever Closure |
| 47/20 | 2910021193 | Socket head cap screw DIN 84-AM6X12-8.8 |
| 47/30 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 5 | 1609200948 | Socket |
| 5 | 1609201707 | Socket |
| 5 | 1609201709 | Socket |
| 5 | 1609201721 | Socket |
| 5 | 1609202191 | Socket |
| 51 | 1609201691 | Impeller |
| 51/50 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 52 | 1609201692 | Dust container Blue |
| 54 | 1609201693 | Impeller |
| 54 | 1609202221 | Impeller |
| 54/42 | 1609202726 | Plain Washer Ø4,2XØ11X1,2MM |
| 54/55 | 2916011016 | Plain Washer DIN 125-A 8,4-ST |
| 54/56 | 2910611027 | Tapping Screw DIN 7981-B4,2X19 |
| 55 | 1601110400 | Reference Plate |
| 56 | 1601110265 | Reference Plate |
| 57 | 1609202192 | Leaf Spring |
| 6 | 2910612519 | Tapping Screw DIN 7983-ST3,9X19-C-H |
| 651 | 1609200968 | Suction Pipe Ø 49 Mm, L=0,5 M |
| 652 | 1609200969 | Suction Nozzle Ø 49 MM |
| 653 | 1609200970 | Suction Nozzle Ø 49 Mm, 350 MM |
| 653/10 | 1609201109 | Flat Brush |
| 653/20 | 1609201110 | Flat Brush |
| 654 | 1609200971 | Crevice Nozzle Ø 49 MM |
| 655 | 1609200976 | Suction Pipe Ø 49/35 MM |
| 700 | 2607000165 | Crevice Nozzle Ø 35 Mm, L= 250 MM |
| 702 | 1609200933 | Reduction Sleeve Ø 49/35 MM+3/4" |
| 705 | 1609201627 | Guide Bracket |
| 707 | 2607000163 | Air Hose Ø 35 Mm, 2 M,1 |
| 707/1 | 1609202230 | Air Hose Ø 35 Mm, L=5 M |
| 708 | 1609201229 | Suction Nozzle Ø 35 MM |
| 709 | 1609201230 | Suction Nozzle Ø 35 MM |
| 710 | 1609201231 | Suction Nozzle Ø 35 MM-200 MM |
| 711 | 1609201232 | Suction Pipe Ø 35 Mm, L=0,5 M |
| 712 | 1609201233 | Suction Nozzle Ø 35 MM |
| 713 | 1609201234 | Suction Brush |
| 714 | 1609201235 | Suction Nozzle Ø 49 MM |
| 750 | 2607000167 | Air Hose Ø 49 Mm, 3 M,1 |
| 8 | 1609201658 | On-Off Switch |
| 8 | 1609201706 | On-Off Switch |
| 8 | 1609202193 | On-Off Switch |
| 9 | 2910211208 | Tapping Screw DIN 7971-B2,9X19 |
