Bosch GAS 50

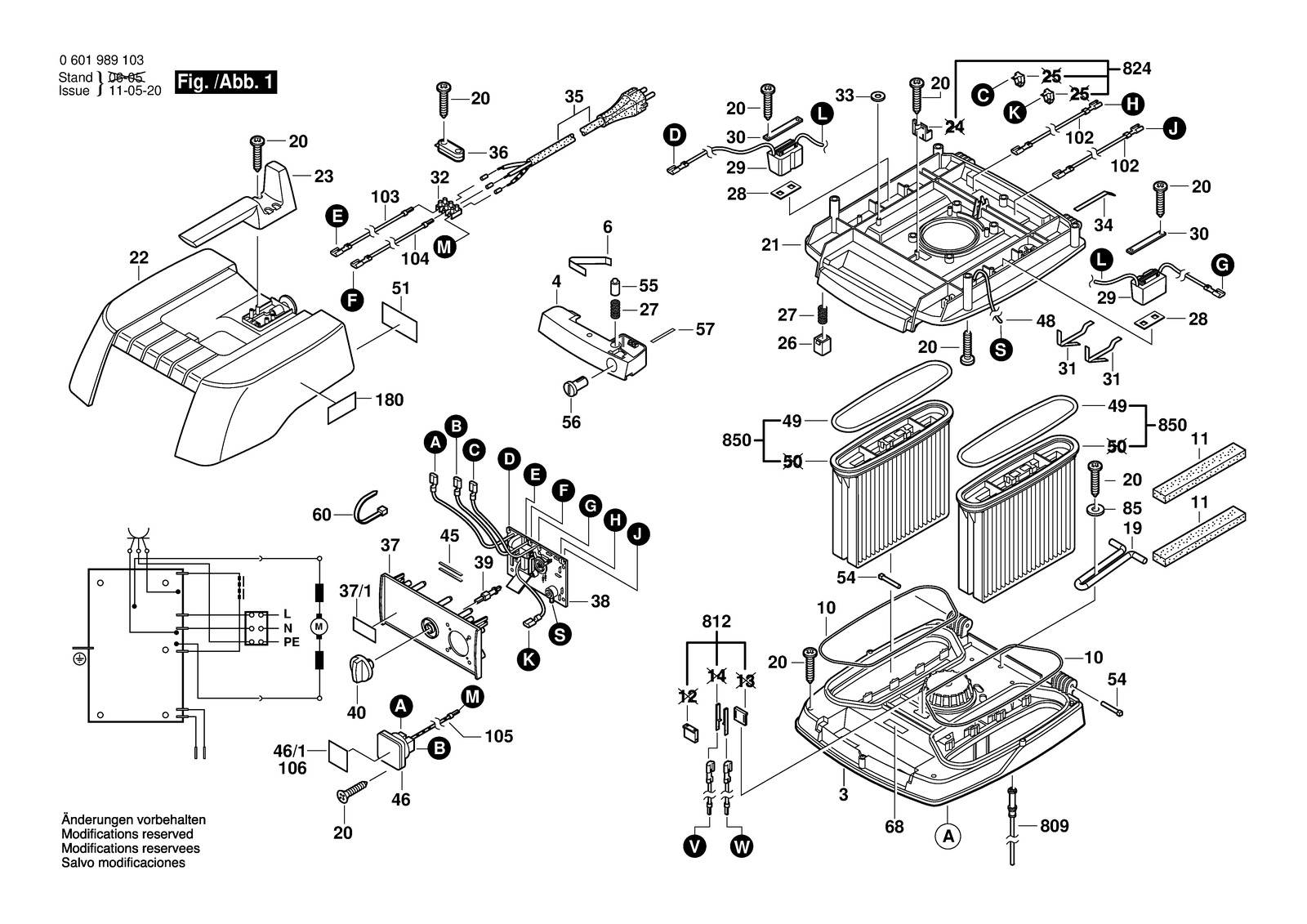

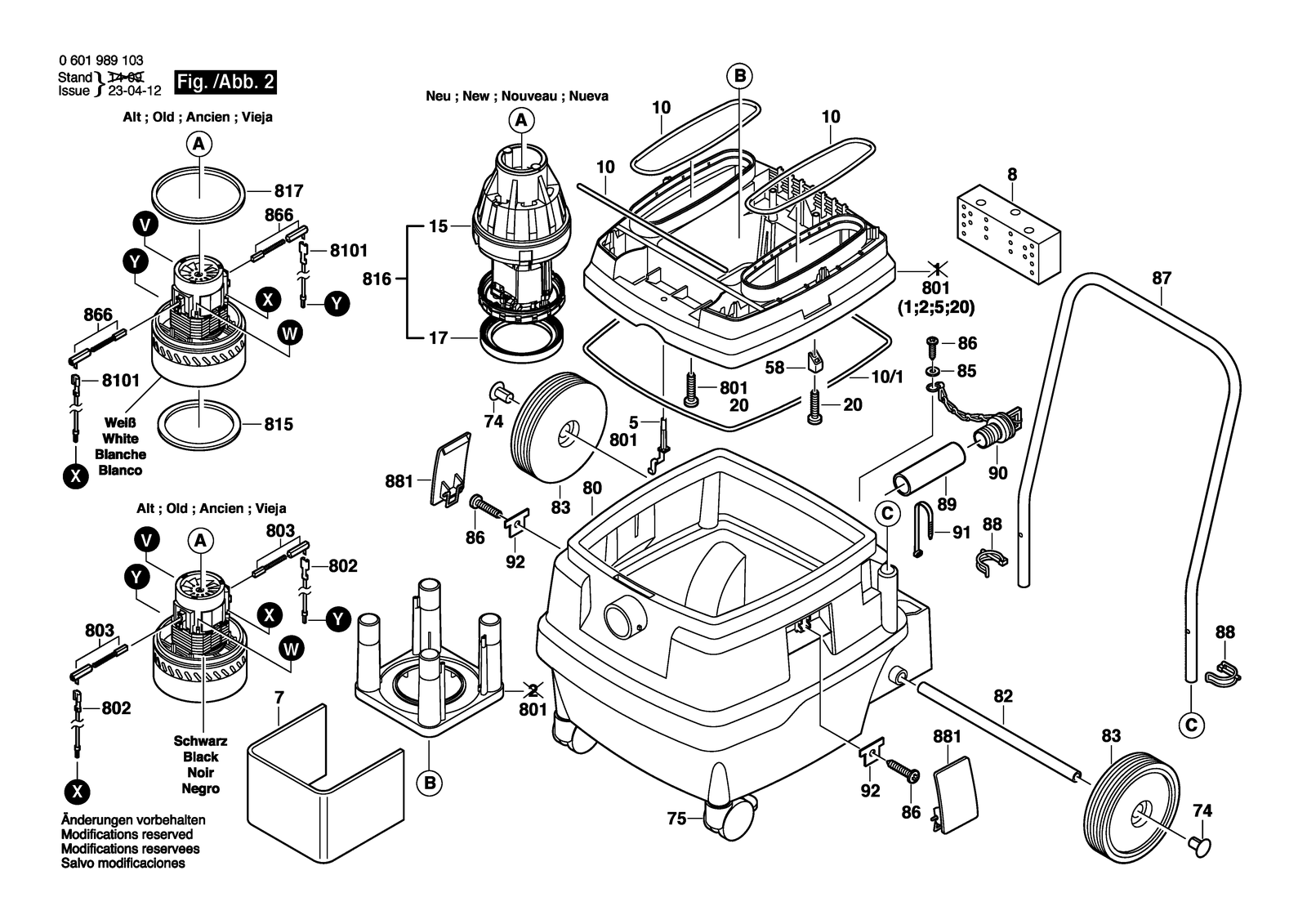

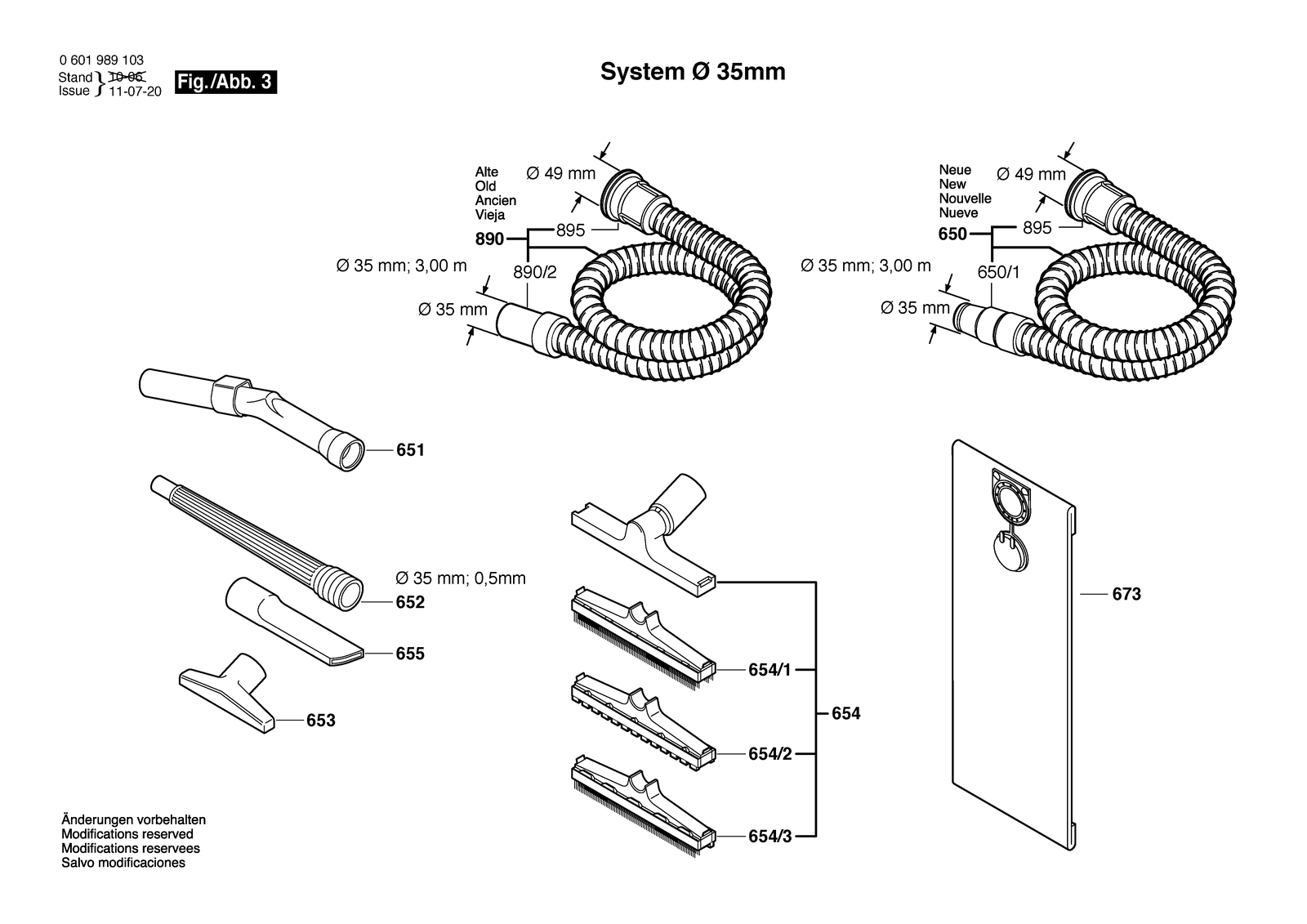

Bosch GAS 50 all purpose vacuum cleane: exploded parts diagram, 3 sheets, 108 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GAS 50: 108 positions on 3 sheets
Bosch GAS 50 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1609203C32 | Sealing Cord 3 M |
| 10/1 | 1609203C33 | Sealing Cord 1,5 M |
| 102 | 1609203C96 | Connecting Cable |
| 103 | 1609203C97 | Connecting Cable |
| 104 | 1609203C98 | Connecting Cable |
| 105 | 1609203U04 | Connecting Cable |
| 106 | 1601118M45 | Warning Plate |
| 11 | 1609203C34 | Air Filter |
| 15 | 1600A016H6 | Adapter |
| 17 | 1600A016H7 | Seal Ring |
| 19 | 1600A000RW | Load Absorber |
| 20 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 21 | 1600A000R7 | Intermediate housing |
| 22 | 1609203C42 | Covering hood |
| 23 | 1609203C43 | Handle |
| 26 | 1609203C46 | Thrust Member |
| 27 | 1609201685 | Compression Spring |
| 28 | 1609201663 | Sealing disk |
| 29 | 1609201662 | Attachment Vibrator 220-240V |
| 3 | 1600A000R5 | Motor Housing |
| 30 | 1609203C48 | Holding Plate |
| 31 | 1609203C49 | Contact Strap |
| 32 | 1609203C50 | Connecting terminal |
| 33 | 1609203C51 | Holding-Down-Appliance |
| 34 | 1609203C52 | Contact Spring |
| 35 | 160446077S | Power supply cord |
| 35 | 1609203189 | Power supply cord |
| 35 | 1609203875 | Power supply cord |
| 35 | 1609203C53 | Power supply cord |
| 35 | 1609203D74 | Power supply cord |
| 35 | 1609203S66 | Power supply cord |
| 35 | 1619P03449 | Power supply cord |
| 36 | 1609203C54 | Cable Clip |
| 37 | 1609203C38 | Front Shield |
| 38 | 1609203D12 | Printed-Board Assembly 230-240V |
| 39 | 1609203W42 | Axle |
| 4 | 1609203D07 | Locking-Bar |
| 40 | 1609203C58 | Switch Button |
| 45 | 1609203C62 | Switch Spring |
| 46 | 1609203C63 | Socket |
| 46 | 1609203D76 | Socket |
| 46 | 1609203D77 | Socket |
| 46 | 1609203D78 | Socket |
| 46 | 1609203D79 | Socket |
| 46 | 1609203D99 | Socket |
| 46 | 1609203S67 | Socket |
| 46 | 1619P03451 | Socket |
| 48 | 1609203C65 | Plastic Hose |
| 49 | 1609203C66 | Seal Ring |
| 5 | 1609203C27 | Contact Finger |
| 51 | 1601118C98 | Nameplate |
| 51 | 1601118D05 | Nameplate |
| 51 | 1601118E25 | Nameplate |
| 51 | 1601118E26 | Nameplate |
| 51 | 1601118E27 | Nameplate |
| 51 | 1601118E30 | Nameplate |
| 51 | 1601118E31 | Nameplate |
| 51 | 1601118E32 | Nameplate |
| 51 | 1619P03450 | Nameplate |
| 54 | 1609203C70 | Bearing bolt |
| 55 | 1609203C71 | Locking Pin |
| 56 | 1609203C72 | Coupler Link |
| 57 | 1609203C73 | Lock Spring |
| 58 | 1609203C74 | Support |
| 6 | 1609203C28 | Leaf Spring |
| 60 | 1609203C76 | Cable tie |
| 650 | 1600A000VY | Air Hose |
| 650/1 | 1609203V36 | Fitting |
| 651 | 1609202525 | Setting Tube |
| 652 | 1609202527 | Suction Pipe Ø 35X500 |
| 653 | 1609202526 | Suction Nozzle |
| 654 | 2609390006 | Suction Nozzle |
| 654/1 | 1609390493 | Flat Brush |
| 654/2 | 1609390494 | Flat Brush |
| 654/3 | 1609390495 | Strip brush |
| 655 | 1609202532 | Crevice Nozzle Ø 35 MM |
| 673 | 1609203C80 | Dust Bag |
| 68 | 1601118C61 | Warning Plate |
| 7 | 1609203C29 | Sound Insulation Mat |
| 74 | 1609202727 | Plug |
| 75 | 1609203K69 | Caster Wheel |
| 8 | 1609203C30 | Sound Insulation Mat |
| 80 | 1609203C88 | Dust container |
| 801 | 1609203C39 | Intermediate Flange |
| 802 | 1609203C95 | Connecting Cable |
| 803 | 1609203C81 | Carbon-Brush Set |
| 809 | 1609203M84 | Electrode |
| 812 | 1609203C40 | Connector |
| 815 | 1609201669 | Seal Ring |
| 816 | 1607000D4R | Suction Blower |
| 817 | 1609203B13 | Seal Ring |
| 82 | 1609203C90 | Axle |
| 824 | 1609203C75 | Socket Contact |
| 83 | 1609203C91 | Impeller |
| 85 | 1609202726 | Plain Washer Ø4,2XØ11X1,2MM |
| 850 | 1609203C78 | Air Filter |
| 86 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 866 | 1609203L60 | Carbon-Brush Set |
| 87 | 1609203C93 | Bow |
| 88 | 1609203C94 | Retaining Spring |
| 881 | 1609203L96 | Bent-Lever Closure |
| 89 | 1609203C87 | Hose Ø38XØ32X125MM |
| 890 | 1600A000VY | Air Hose |
| 890/2 | 1609203V36 | Fitting |
| 895 | 1600A000W0 | Fitting |
| 90 | 1609203D00 | Plug |
| 91 | 1609203D01 | Cable tie |
| 92 | 1609203E24 | Pressure Plate |
