Bosch GAS 400 A

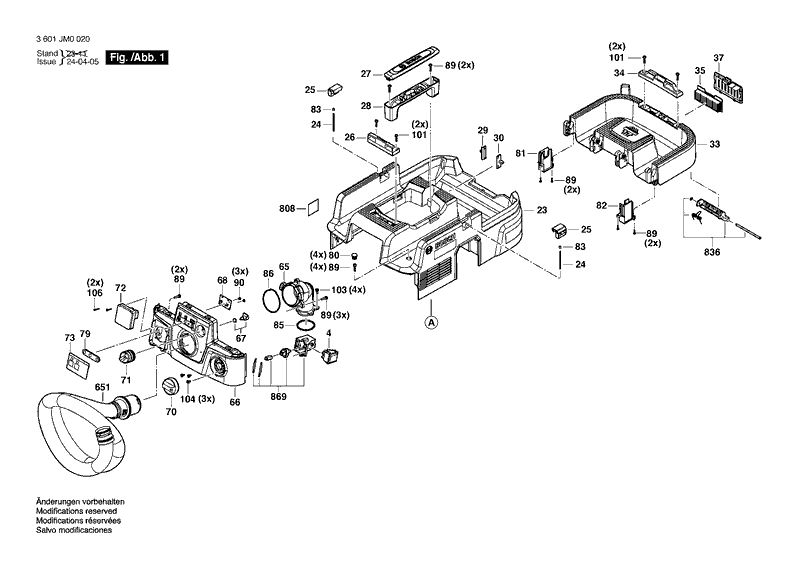

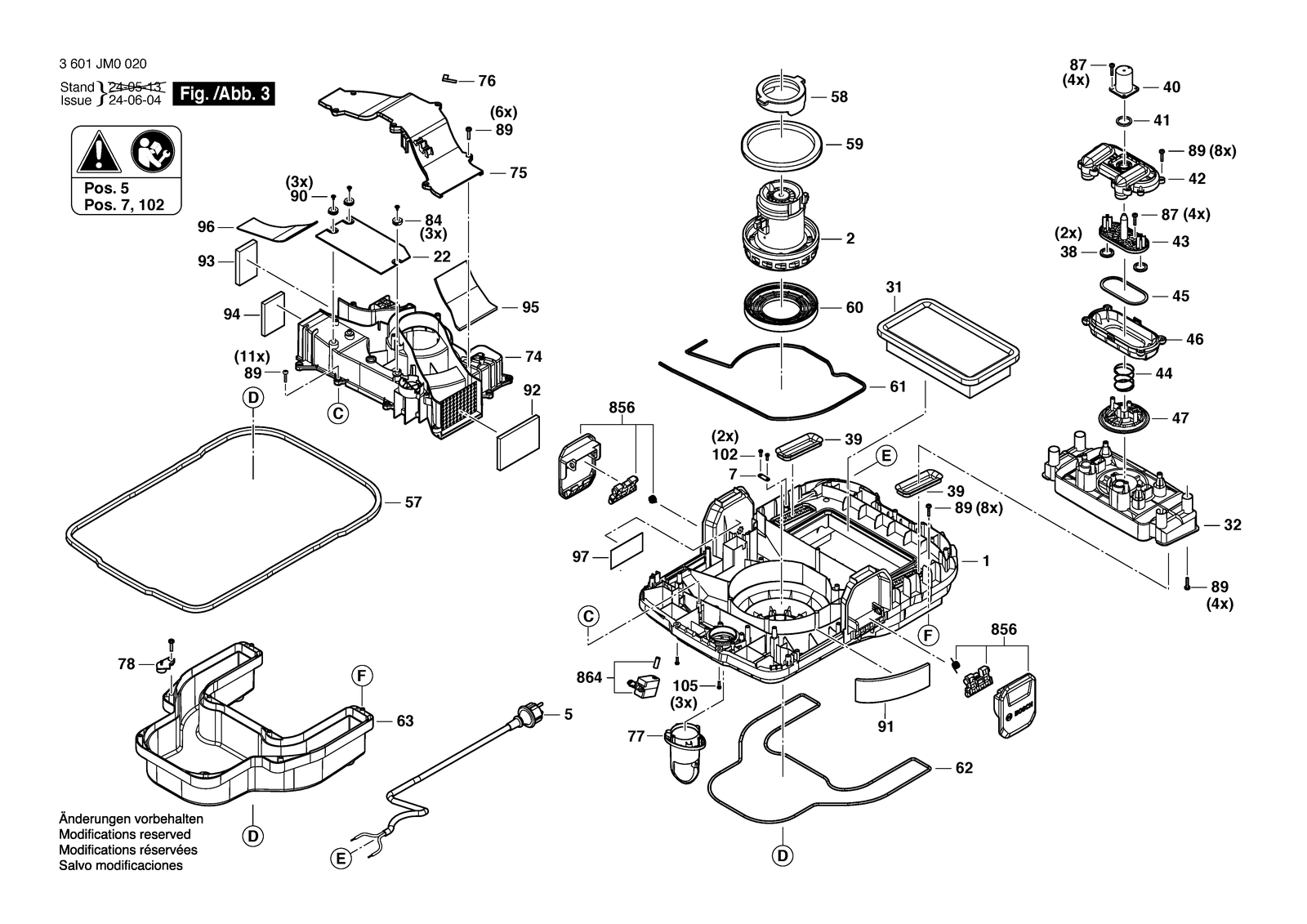

Bosch GAS 400 A all purpose vacuum cleane: exploded parts diagram, 3 sheets, 111 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GAS 400 A: 111 positions on 3 sheets
Bosch GAS 400 A parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PC1212 | Housing |
| 101 | 1619PC2954 | Screw |
| 102 | 1619PC2955 | Screw |
| 103 | 1619PC2956 | Screw |
| 104 | 1619PC2957 | Screw |
| 105 | 1619PC2958 | Screw |
| 106 | 1619PC2959 | Screw |
| 107 | 1619PC2960 | Plate |
| 108 | 1619PC2961 | Plate |
| 2 | 1619PC1213 | Motor |
| 2 | 1619PS0887 | Motor |
| 22 | 1600A02T2A | Electronic Board |
| 22 | 1619PS0899 | Electronic Board |
| 23 | 1619PC1220 | Upper Housing |
| 24 | 1619PC1221 | Cord |
| 25 | 1619PC1222 | Clip |
| 26 | 1619PC1223 | Interface |
| 27 | 1619PC1224 | Handle |
| 28 | 1619PC1225 | Handle |
| 29 | 1619PC1226 | Fixation |
| 30 | 1619PC1227 | Fixation |
| 31 | 1619PC1228 | Filter |
| 32 | 1619PC1229 | Housing |
| 33 | 1619PC1230 | Cover |
| 34 | 1619PC1231 | Interface |
| 35 | 1619PC1232 | AFC filter |
| 37 | 1619PC1234 | Filter holder |
| 38 | 1619PC1235 | Rubber |
| 39 | 1619PC1236 | Rubber |
| 4 | 1600A02RZ4 | Main Switch |
| 40 | 1619PC1237 | Electromagnet |
| 40 | 1619PS0889 | Electromagnet |
| 41 | 1619PC1238 | Rubber |
| 42 | 1619PC1239 | Housing |
| 43 | 1619PC1240 | Valve Body |
| 44 | 1619PC1241 | Spring |
| 45 | 1619PC1242 | Sealing Rubber |
| 46 | 1619PC1243 | Housing |
| 47 | 1619PC1244 | Valve Body |
| 48 | 1619PC1246 | Dust container |
| 49 | 1619PC1247 | Wheel |
| 5 | 1619PC1214 | Power supply cord |
| 5 | 1619PC2964 | Power supply cord |
| 5 | 1619PC2968 | Power supply cord |
| 5 | 1619PC2972 | Power supply cord |
| 5 | 1619PC2976 | Power supply cord |
| 5 | 1619PS0900 | Power supply cord |
| 50 | 1619PC1248 | Cover |
| 51 | 1619PC1249 | Shaft |
| 52 | 1619PC1250 | Clip |
| 54 | 1619PC1252 | Wheel |
| 55 | 1619PC1253 | Holder |
| 57 | 1619PC1255 | Sealing Rubber |
| 58 | 1619PC1256 | Rubber |
| 59 | 1619PC1257 | Rubber |
| 60 | 1619PC1259 | Rubber |
| 61 | 1619PC1258 | Rubber |
| 62 | 1619PC1260 | Rubber |
| 63 | 1619PC1261 | Inlet Cover |
| 65 | 1619PC1263 | Tube |
| 651 | 1619PC1629 | Hose |
| 652 | 1619PC1630 | Adapter |
| 653 | 1619PC1631 | Nozzle |
| 655 | 1619PC1633 | Dust Bag |
| 66 | 1619PC1264 | Operator Panel |
| 67 | 1619PC1265 | Electronic Board |
| 68 | 1619PC1266 | Electronic Board |
| 7 | 1619PC1215 | Fixation |
| 70 | 1619PC1269 | Switch Cover |
| 71 | 1619PC1270 | Switch Cover |
| 72 | 1619PC1271 | Socket |
| 72 | 1619PC2965 | Socket |
| 72 | 1619PC2969 | Socket |
| 72 | 1619PC2973 | Socket |
| 72 | 1619PC2977 | Socket |
| 72 | 1619PS0891 | Socket |
| 73 | 1619PC1277 | Sticker |
| 74 | 1619PC1278 | Cover |
| 75 | 1619PC1279 | Cover |
| 76 | 1619PC1280 | Hall Sensor |
| 77 | 1619PC1282 | Tube |
| 78 | 1619PC1283 | Valve Body |
| 79 | 1619PC1285 | Rubber |
| 80 | 1619PC1286 | Cover |
| 808 | 1619PC1217 | Nameplate |
| 808 | 1619PC2963 | Nameplate |
| 808 | 1619PC2967 | Nameplate |
| 808 | 1619PC2971 | Nameplate |
| 808 | 1619PC2975 | Nameplate |
| 808 | 1619PS0901 | Nameplate |
| 81 | 1619PC1287 | Holder |
| 82 | 1619PC1288 | Holder |
| 83 | 1619PC1289 | Clip |
| 836 | 1619PC1233 | Latch |
| 84 | 1619PC1290 | Rubber Pad |
| 85 | 1619PC1291 | Rubber |
| 856 | 1619PC1254 | Latch |
| 86 | 1619PC1293 | Rubber |
| 864 | 1619PC1262 | Float |
| 869 | 1619PC1268 | Switch Assembly |
| 87 | 1619PC1294 | Screw |
| 88 | 1619PC2137 | Screw |
| 89 | 1619PC2138 | Screw |
| 90 | 1619PC2139 | Screw |
| 91 | 1619PC2140 | Foam Plastics |
| 92 | 1619PC2141 | Foam Plastics |
| 93 | 1619PC2142 | Foam Plastics |
| 94 | 1619PC2143 | Foam Plastics |
| 95 | 1619PC2144 | Foam Plastics |
| 96 | 1619PC2145 | Foam Plastics |
| 97 | 1619PC2953 | Sticker |
