Bosch GAS 35 L AFC
Bosch GAS 35 L AFC all purpose vacuum cleane: exploded parts diagram, 6 sheets, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

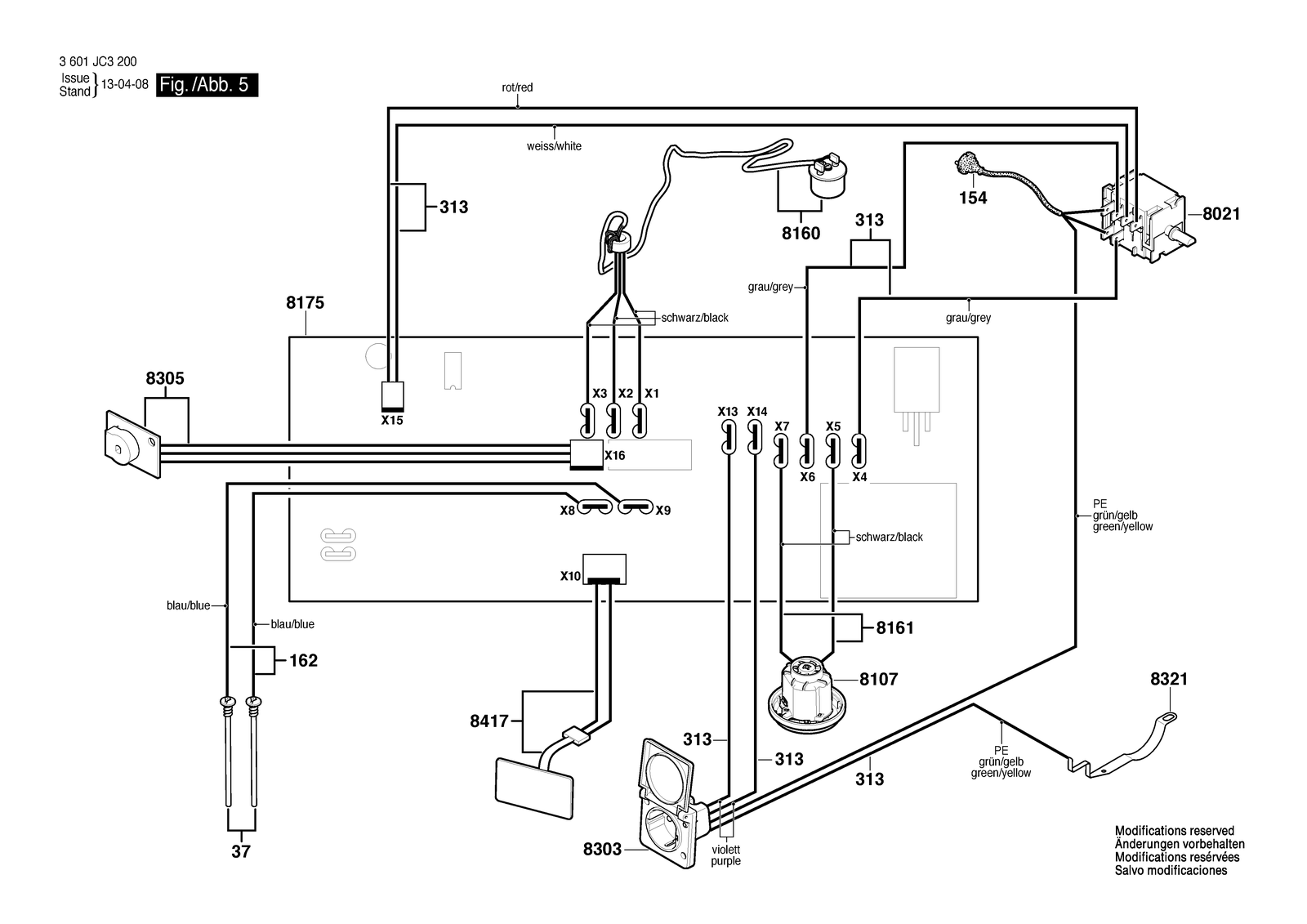

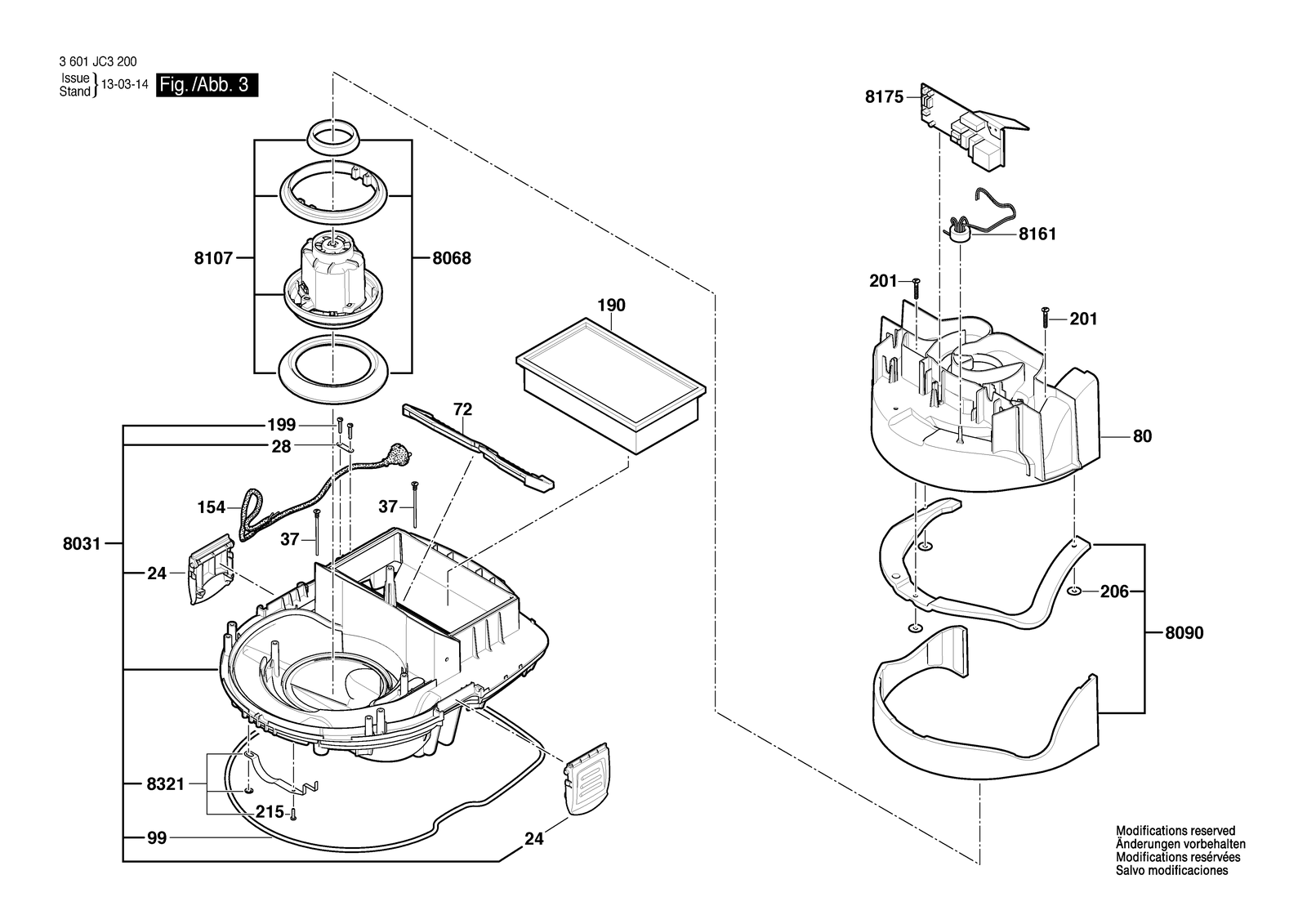

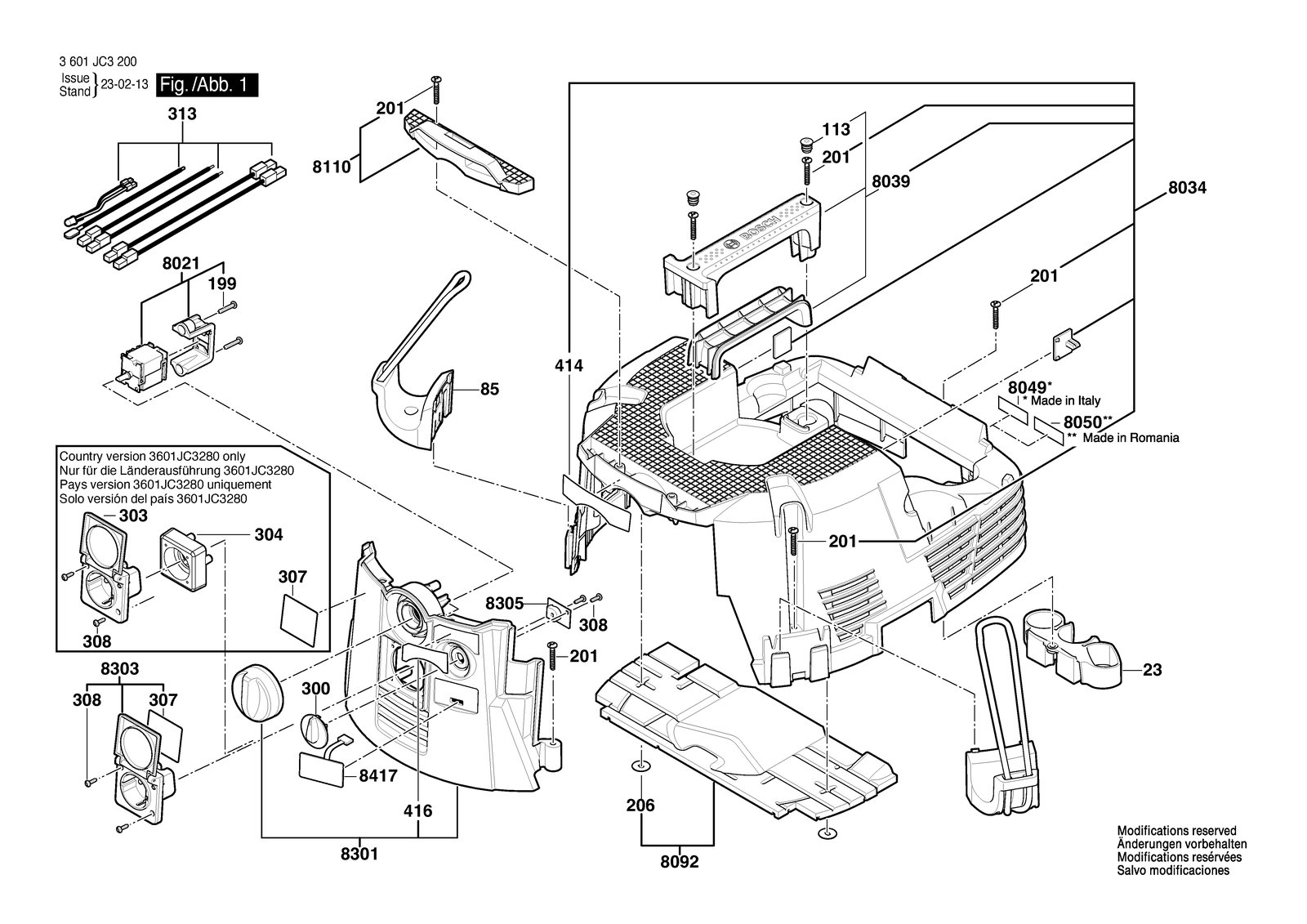

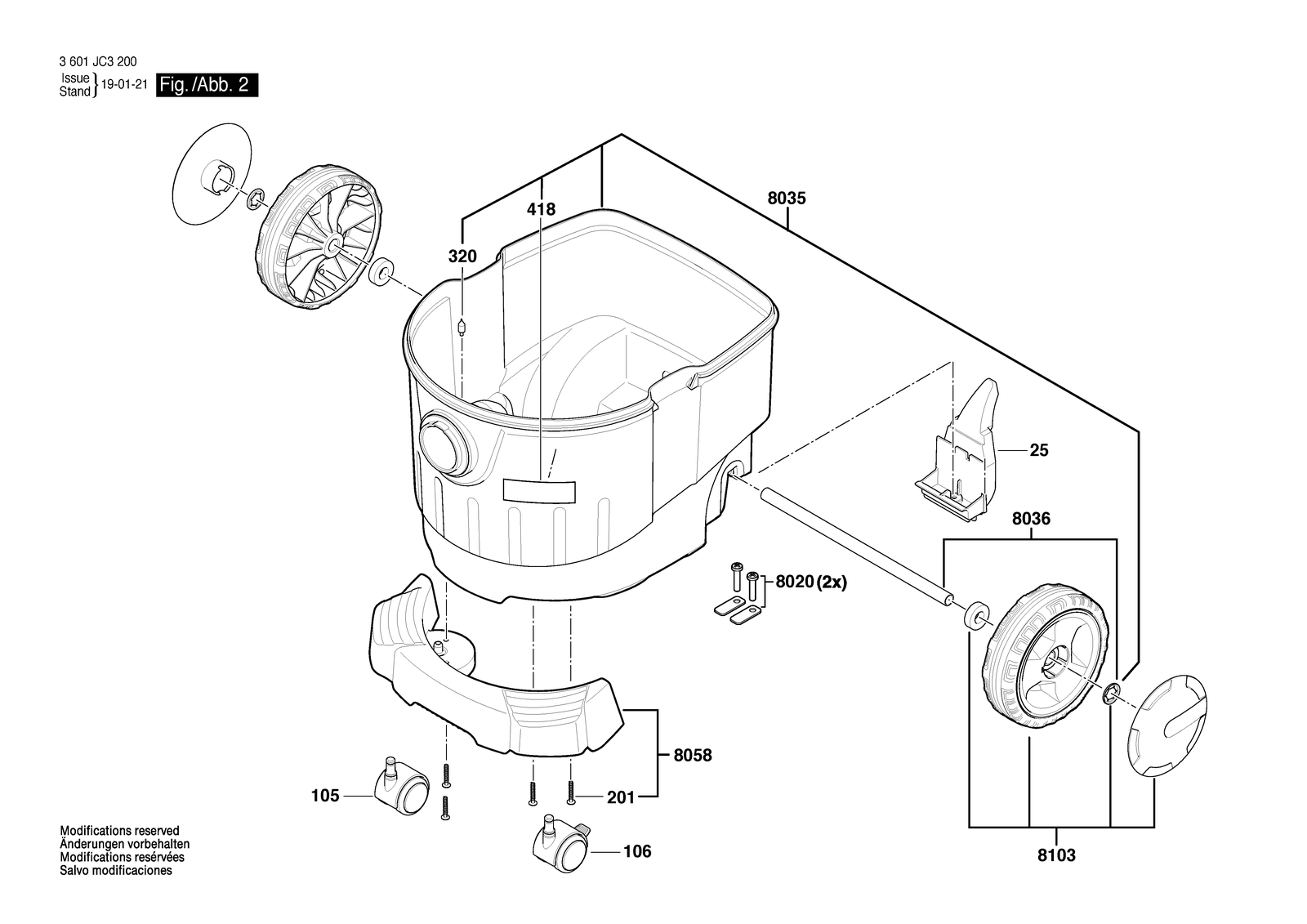

All parts of Bosch GAS 35 L AFC: 87 positions on 6 sheets
Bosch GAS 35 L AFC parts list (6 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2609200392 | O-Ring |
| 105 | 2609200450 | Caster Wheel |
| 106 | 2609200451 | Caster Wheel |
| 113 | 2609200406 | Plug |
| 154 | 1619PB8825 | Mains Cable |
| 154 | 2609200429 | Mains Cable EU |
| 154 | 2609200517 | Mains Cable Gb |
| 162 | 2609200426 | Cable |
| 170 | 2609200460 | Magnet |
| 190 | 2607432025 | Filter |
| 199 | 2609200422 | Screw |
| 201 | 2609200410 | Screw |
| 205 | 2609200400 | Screw |
| 206 | 2609200414 | Positioning Element |
| 210 | 2609200399 | Serrated Lock-Washer |
| 215 | 2609200397 | Lens Head Screw |
| 23 | 2609200453 | Support |
| 24 | 2609200425 | Locking Piece |
| 25 | 2609200452 | Support |
| 250 | 2609200454 | Clamping Ring |
| 251 | 2609200497 | Suction Pipe |
| 253 | 2608000A15 | Suction Pipe |
| 255 | 2609200455 | Nozzle |
| 259 | 2609200462 | Nozzle |
| 260 | 2609200496 | Socket |
| 27 | 2609200401 | Magnet |
| 28 | 2609200423 | Clamping Piece |
| 29 | 2609200390 | Support |
| 300 | 2609200445 | Rotary Knob |
| 303 | 1619PB9206 | Socket |
| 304 | 1600A02G45 | Adapter |
| 307 | 160111C4U9 | Sticker |
| 307 | 2609200447 | Sticker 2200W |
| 307 | 2609200512 | Sticker 1800W |
| 308 | 2609200438 | Screw |
| 313 | 2609200439 | Electrical accessories |
| 320 | 2609200456 | Bolt |
| 322 | 2609200461 | Fastening Part |
| 37 | 2609200427 | Sensor |
| 414 | 2609200441 | Sticker |
| 416 | 2609200443 | Sticker |
| 418 | 2609200490 | Plate |
| 419 | 2609200498 | Warning Plate |
| 420 | 2609200492 | Manufacturer's nameplate |
| 47 | 2609200483 | Spring |
| 72 | 2609200420 | Seal |
| 80 | 2609200489 | Motor Housing |
| 8020 | 1607000D8X | Support |
| 8021 | 2609200388 | Switch |
| 8030 | 1607000F50 | Valve Plate |
| 8031 | 2609200493 | Housing |
| 8032 | 2609200491 | Cover |
| 8033 | 2609200391 | Cover |
| 8034 | 2609200430 | Hood |
| 8035 | 2609200488 | Container |
| 8036 | 2609200458 | Axle |
| 8039 | 2609200444 | Handle |
| 8049 | 1619PB8827 | Nameplate Made In Italy |
| 8049 | 2609200495 | Nameplate GAS 35 L Afc Made In Italy |
| 8049 | 2609200502 | Nameplate GAS 35 L Afc Made In Italy |
| 8049 | 2609200518 | Nameplate GAS 35 L Afc Made In Italy |
| 8050 | 160111AA2C | Nameplate Made In Romania |
| 8050 | 160111AA2D | Nameplate Made In Romania |
| 8058 | 2609200449 | Bumper |
| 8068 | 2609200431 | Seal Kit |
| 8090 | 2609200413 | Sound Insulation Mat |
| 8092 | 2609200437 | Sound Insulation Mat |
| 8103 | 2609200432 | Wheel |
| 8107 | 2609200415 | Motor |
| 8110 | 2609200435 | Holder |
| 8111 | 2609200407 | Holder |
| 8113 | 2609200405 | Fastening parts kit |
| 8115 | 2609200393 | Filter Cover |
| 8160 | 2609200398 | Magnet |
| 8161 | 2609200412 | Cable |
| 8162 | 1600A01A4J | Cable |
| 8175 | 2609200385 | Wafer |
| 8257 | 2608000A05 | Hose |
| 8301 | 2609200494 | Operator Panel |
| 8303 | 2609200446 | Socket |
| 8303 | 2609200501 | Socket |
| 8303 | 2609200516 | Socket |
| 8305 | 2609200383 | Wafer |
| 8321 | 2609200428 | Spring Housing |
| 8417 | 2609200387 | Foil keyboard |
| 85 | 2609200436 | Hose Holder |
| 99 | 2609200424 | Cord |
