Bosch GAS 14,4 V-LI

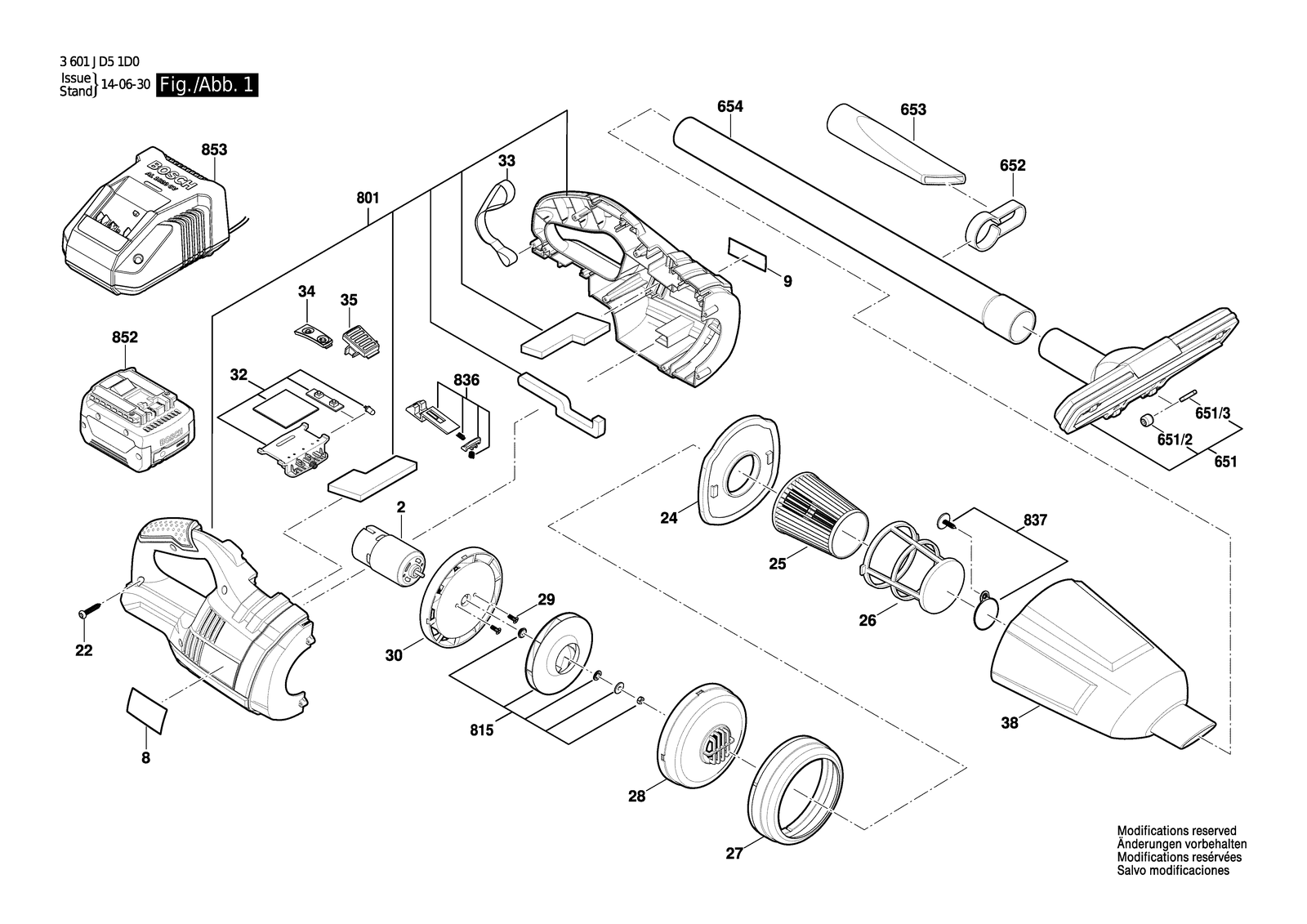

Bosch GAS 14,4 V-LI battery vacuum cleaner: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GAS 14,4 V-LI: 30 positions on 1 sheet
Bosch GAS 14,4 V-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 2 | 1619PA5182 | DC motor |
| 22 | 1619PA5185 | Tapping Screw |
| 24 | 1619PA7400 | Filter Housing |
| 25 | 1619PA5188 | Filter |
| 26 | 1619PA5187 | Filter Cover |
| 27 | 1619PA5190 | Rubber Retaining Ring |
| 28 | 1619PA5191 | Protective Cover |
| 29 | 1619PA5192 | Screw |
| 30 | 1619PA5193 | Motor Cradle |
| 32 | 1619PA5194 | Electronics Module |
| 33 | 1619PA5196 | Carrying Loop |
| 34 | 1619PA5197 | Switch Button |
| 35 | 1619PA5198 | Button |
| 38 | 1619PA5201 | Dust Chamber |
| 651 | 1619PA5202 | Floor nozzle |
| 651/2 | 1619PA7502 | Roller |
| 651/3 | 1619PA7501 | Shaft |
| 652 | 1619PA5203 | Holder |
| 653 | 1619PA5204 | Crevice Nozzle |
| 654 | 1619PA5205 | Suction Tube |
| 8 | 160111A1CM | Nameplate |
| 801 | 1619PA5181 | Housing Assembly |
| 815 | 1619PA5184 | Fan |
| 836 | 1619PA5199 | Switch Slide |
| 837 | 1619PA5200 | Rubber Disc |
| 852 | 2607336607 | Slide-In Accu Package 14,4V 1,3AH, Li, Alpha 18720MWH |
| 853 | 2607225779 | Battery Charger BR 127/10,8-18V, 30 Min |
| 853 | 2607225783 | Battery Charger AR 230/10,8-18V, 30 Min |
| 853 | 2607226091 | Fast Charger AL1814CV Brasil 127-220V 10,8-18V |
| 9 | 1619PA5170 | Manufacturer's nameplate GAS 14,4, LI |
