Bosch GAS 12-25

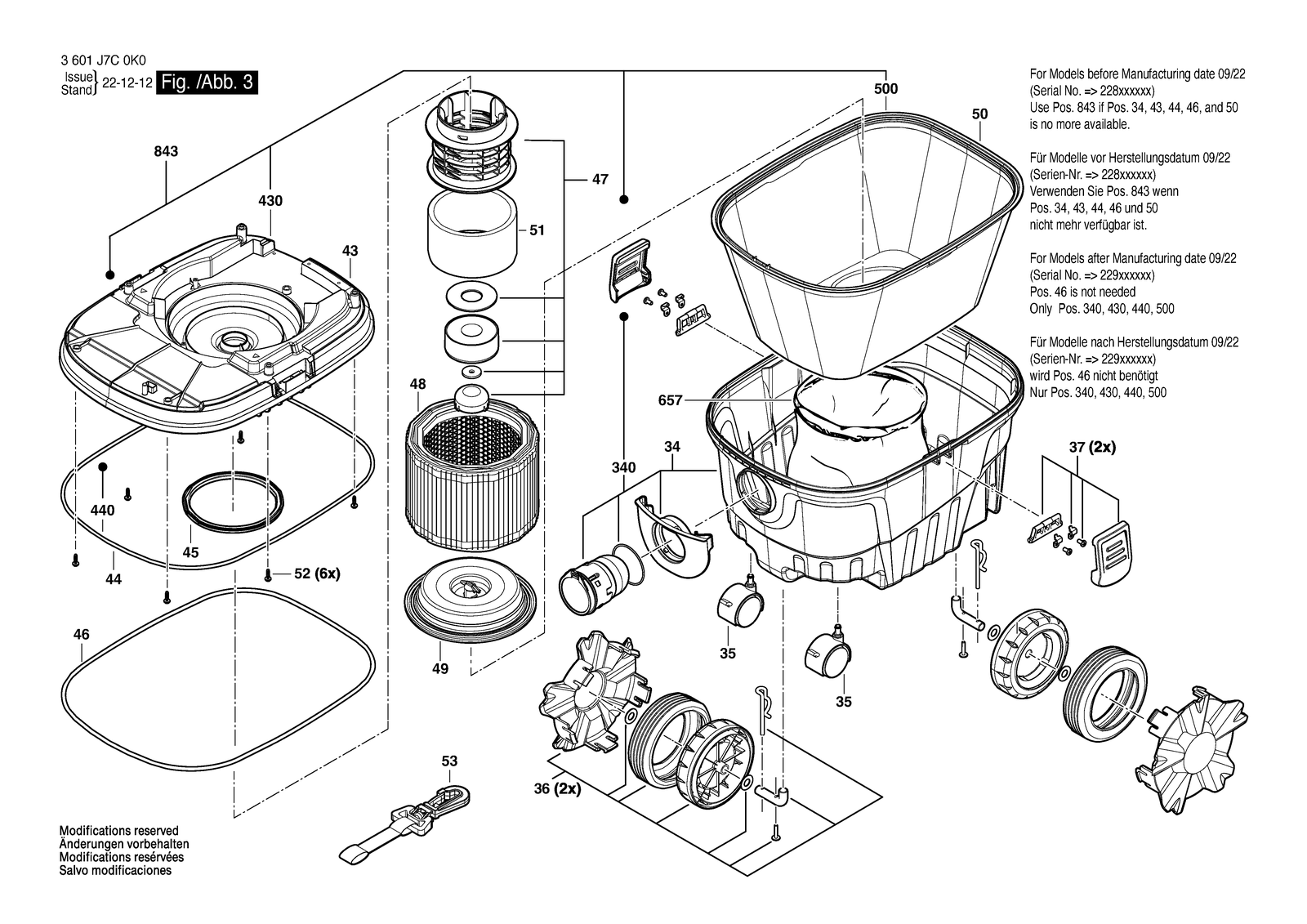

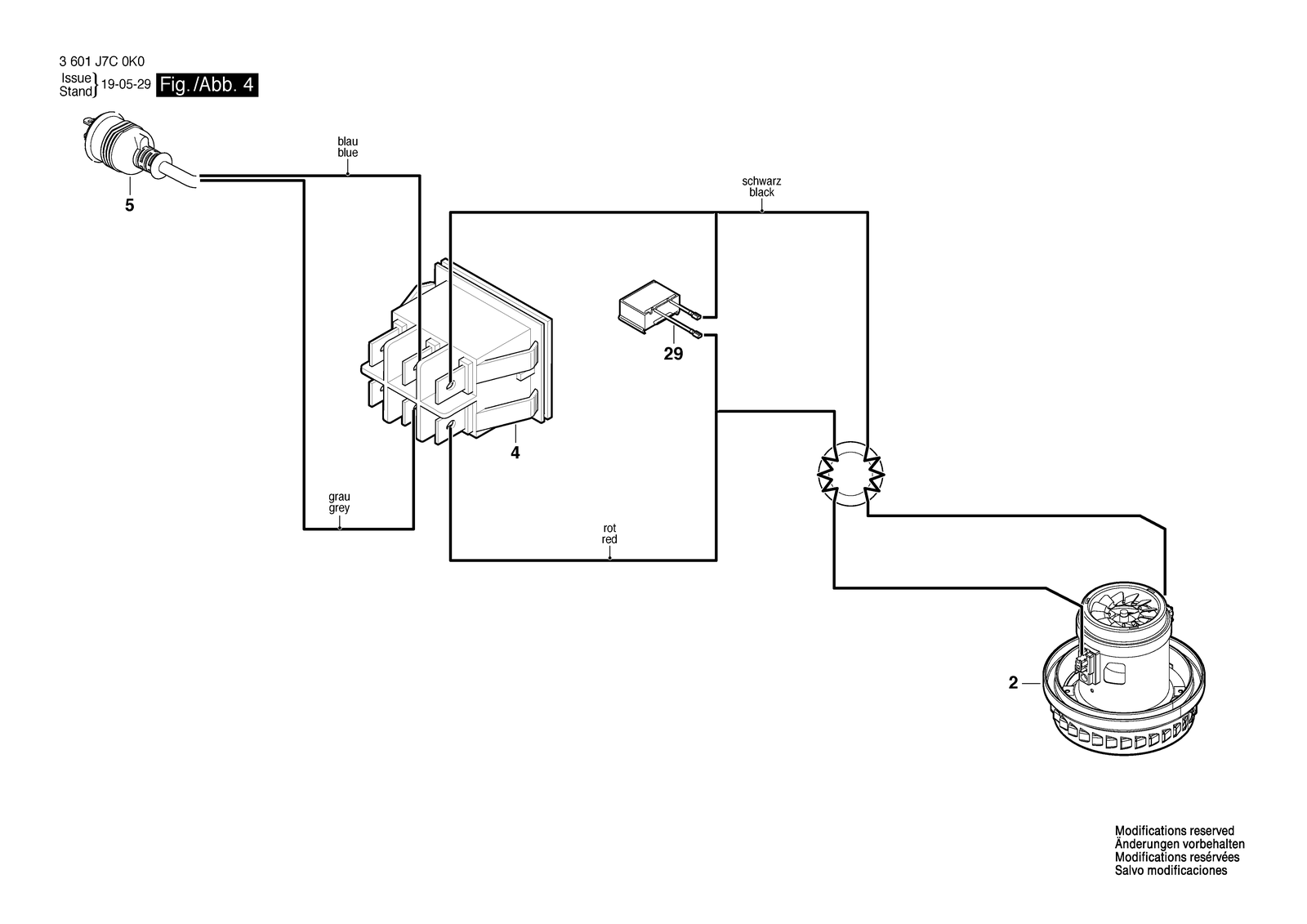

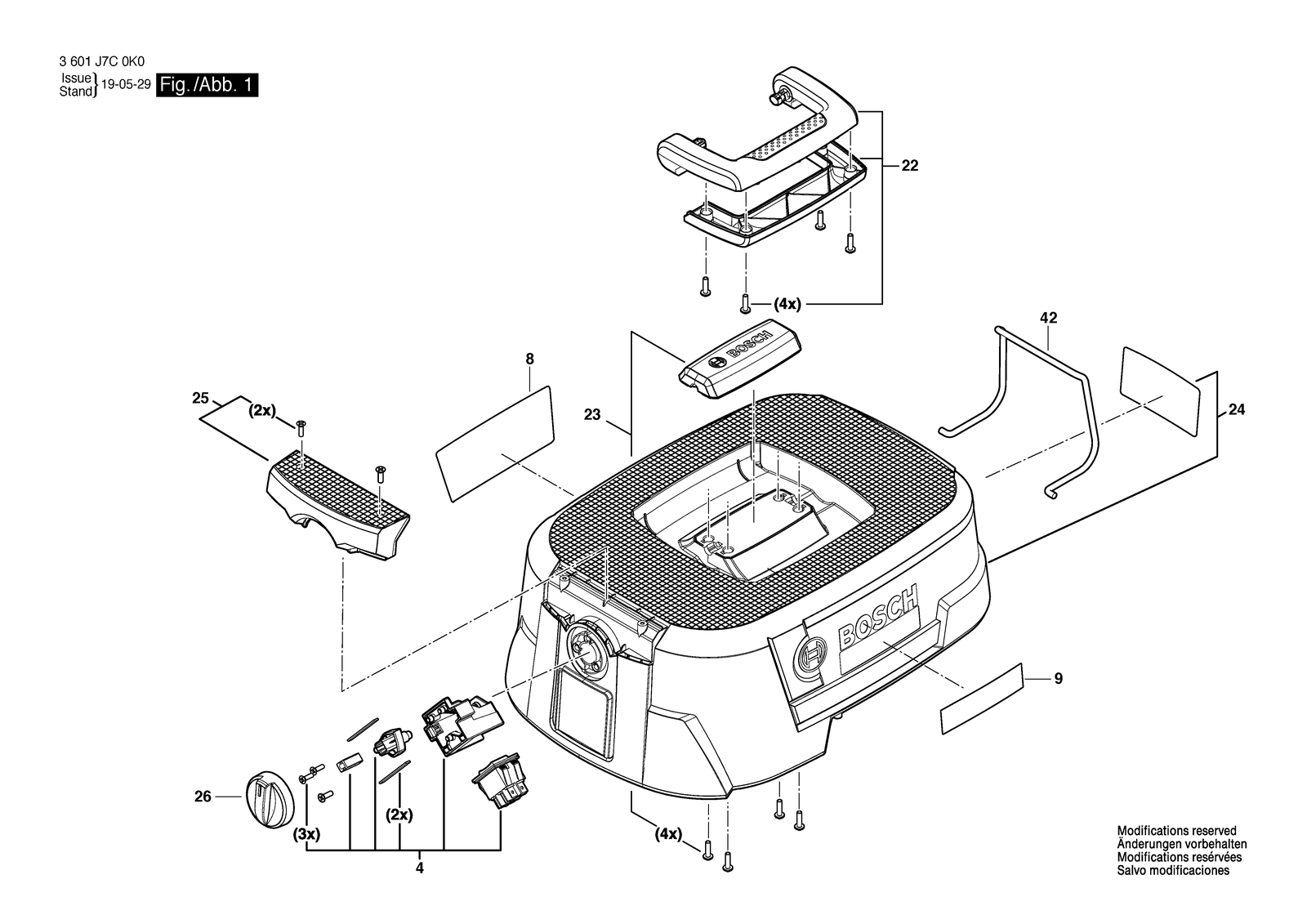

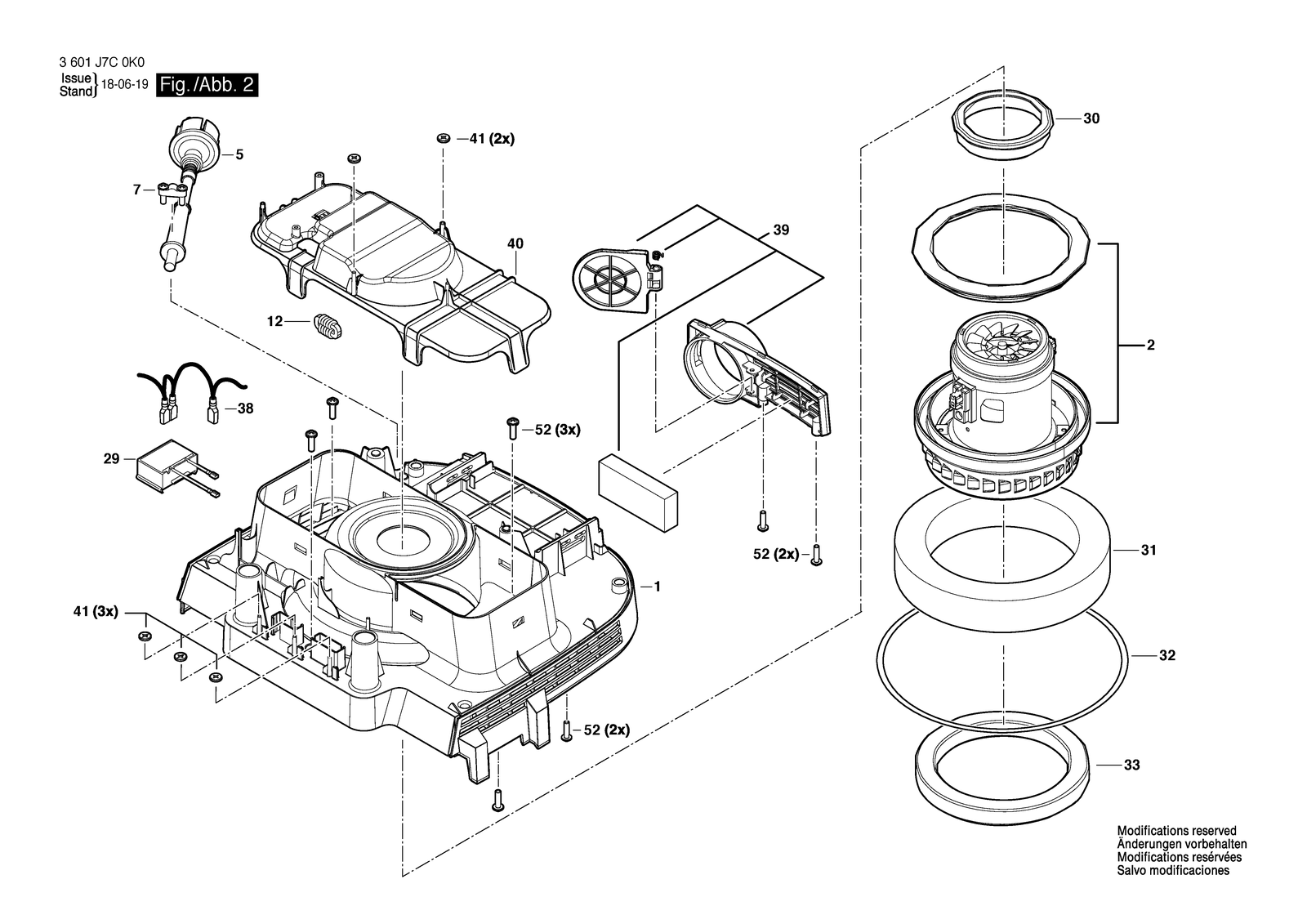

Bosch GAS 12-25 industrial vacuum cleaner: exploded parts diagram, 5 sheets, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GAS 12-25: 65 positions on 5 sheets
Bosch GAS 12-25 parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB3211 | Motor Housing |
| 12 | 1619PB3252 | Inductor |
| 2 | 1619PB3212 | Motor |
| 2 | 1619PB3214 | Motor |
| 22 | 1619PA7266 | Handle |
| 23 | 1619PA7268 | Cover |
| 24 | 1619PA7269 | Cover |
| 24 | 1619PB3253 | Hood |
| 25 | 1619PA7268 | Cover |
| 26 | 1619PA7290 | Rotary Knob |
| 29 | 1619PB3264 | Capacitor |
| 30 | 1619PB3265 | Cushion |
| 31 | 1619PB3266 | Sponge |
| 32 | 1619PB3267 | Seal |
| 33 | 1619PA7304 | Clamping Piece |
| 33 | 1619PB3268 | Seal |
| 34 | 1619PB3269 | Container |
| 340 | 1619PC0025 | Container |
| 35 | 1619PA7306 | Valve |
| 35 | 1619PB3270 | Caster Wheel |
| 36 | 1619PB3271 | Wheel |
| 37 | 1619PB3272 | Latch |
| 38 | 1619PB3273 | Cable |
| 39 | 1619PA7306 | Valve |
| 4 | 1619PA7289 | Switch Kit |
| 40 | 1619PB3274 | Cover |
| 41 | 1619PB3275 | Clamping Ring |
| 42 | 1619PB3276 | Mounting Bracket |
| 43 | 1619PB3277 | Housing |
| 430 | 1619PC0022 | Housing |
| 44 | 1619PA7316 | Filter holder |
| 44 | 1619PB3278 | Seal |
| 440 | 1619PC0023 | Seal |
| 45 | 1619PB3279 | Seal |
| 46 | 1619PB3280 | Seal |
| 47 | 1619PB3281 | Filter Bracket |
| 48 | 1619PB3282 | Filter |
| 49 | 1619PA7316 | Filter holder |
| 5 | 1619PB3215 | Power supply cord |
| 5 | 1619PB3216 | Power supply cord |
| 5 | 1619PB3224 | Power supply cord |
| 5 | 1619PB5905 | Power supply cord |
| 5 | 1619PB6454 | Power supply cord |
| 50 | 1619PB3283 | Filter |
| 500 | 1600A02EM2 | Filter |
| 51 | 1619PB3284 | Filter |
| 52 | 1619PB3285 | Tapping Screw |
| 53 | 1619PB3255 | Rope |
| 651 | 1619PB3826 | Hose Vacuuming |
| 652 | 1619PA7325 | Suction Pipe |
| 653 | 1619PA7324 | Suction Pipe |
| 655 | 1619PA7328 | Crevice Nozzle |
| 657 | 1619PB3827 | Dust Bag |
| 658 | 1619PA7326 | Adapter |
| 659 | 1619PB4751 | Dust Bag |
| 660 | 1619PB4750 | Hose |
| 666 | 1607000EC3 | Hose Blowing out |
| 7 | 1619PA7304 | Clamping Piece |
| 8 | 1619PB3229 | Nameplate |
| 8 | 1619PB3230 | Nameplate |
| 8 | 1619PB3232 | Nameplate |
| 8 | 1619PB3246 | Nameplate |
| 8 | 1619PB6455 | Manufacturer's nameplate |
| 843 | 1619PC0026 | Housing |
| 9 | 1619PB3249 | Nameplate GAS 12-25 |
