Bosch GAS 1000 RF
Bosch GAS 1000 RF all purpose vacuum cleane: exploded parts diagram, 3 sheets, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

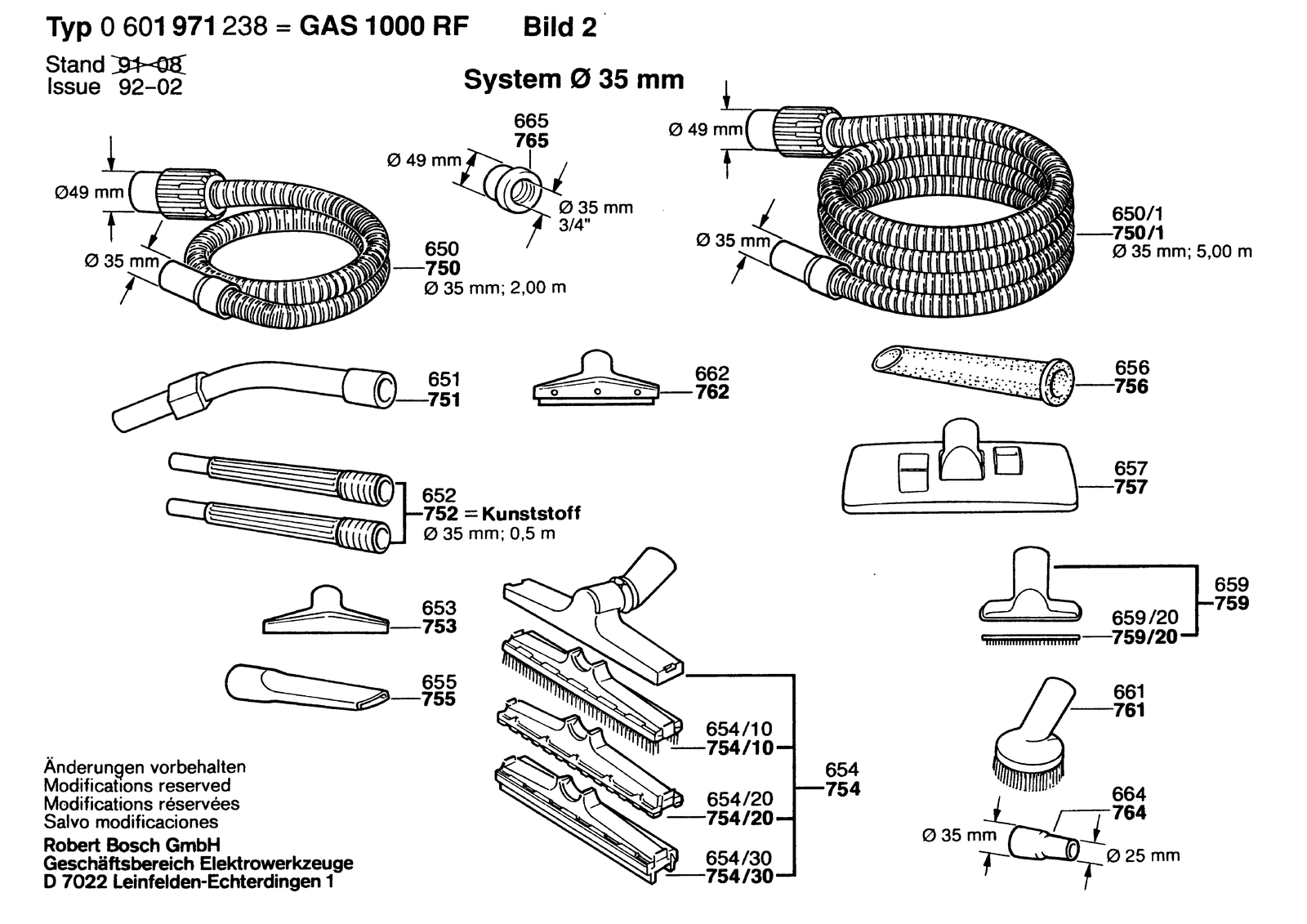

All parts of Bosch GAS 1000 RF: 88 positions on 3 sheets
Bosch GAS 1000 RF parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609201654 | Indicator Lamp |
| 10 | 1609201659 | Clamp |
| 11 | 1601110687 | Nameplate |
| 12 | 1609201660 | Damping Plate |
| 13 | 1609201703 | Attachment Vibrator 100-110V |
| 14 | 1609201663 | Sealing disk |
| 15 | 1609201699 | Carbon-Brush Set |
| 16 | 1609202196 | Power supply cord |
| 17 | 1609201666 | Air-Deflector Ring |
| 19 | 1609201668 | Seal Ring |
| 2 | 1609201655 | Seal Ring |
| 20 | 1609201669 | Seal Ring |
| 20/1 | 1609201669 | Seal Ring |
| 21 | 1609202573 | Guide Sleeve |
| 22 | 1609202370 | Suction Blower 100V |
| 23 | 1609201672 | Air Filter |
| 25 | 1609201674 | Air Filter |
| 26 | 1609201675 | Intermediate Flange |
| 27 | 1609201676 | Seal Ring |
| 28 | 1609201677 | Air Filter |
| 29 | 1609201678 | Push-Button |
| 29/40 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 31 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 32 | 1601110766 | Manufacturer's nameplate |
| 33 | 1609201701 | Connection plate |
| 34 | 1609201680 | Pressure Switch |
| 35 | 1609201681 | Tapping Screw 3,5X32 MM |
| 36 | 1609202227 | Automatic Switching Unit |
| 37 | 1609201683 | Intermediate housing |
| 38 | 1609200952 | Float |
| 39 | 1609201684 | Suction Basket |
| 4 | 1609202365 | Covering hood |
| 4/10 | 1609203721 | Switch Button Red |
| 40 | 1609201685 | Compression Spring |
| 41 | 1609203182 | Retaining snap ring |
| 42 | 1609201687 | Plain Washer Ø4,2XØ11X1,1MM |
| 44 | 1609202406 | Retaining Bracket |
| 45 | 1609202378 | Air Filter Ø 245X194 MM |
| 45/30 | 1601110830 | Reference Plate |
| 47 | 1609201690 | Bent-Lever Closure |
| 47/20 | 2910021193 | Socket head cap screw DIN 84-AM6X12-8.8 |
| 47/30 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 5 | 1609202191 | Socket |
| 51 | 1609201691 | Impeller |
| 51/50 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 52 | 1609201692 | Dust container Blue |
| 54 | 1609202221 | Impeller |
| 54/42 | 1609202726 | Plain Washer Ø4,2XØ11X1,2MM |
| 54/56 | 2910611027 | Tapping Screw DIN 7981-B4,2X19 |
| 55 | 1601110767 | Manufacturer's nameplate |
| 57 | 1609202192 | Leaf Spring |
| 6 | 2910612519 | Tapping Screw DIN 7983-ST3,9X19-C-H |
| 60 | 1601110831 | Reference Plate |
| 61 | 1601110833 | Reference Plate |
| 62 | 1601110832 | Reference Plate |
| 63 | 1601110834 | Reference Plate |
| 704 | 2607432010 | Dust Separator |
| 705 | 1609201627 | Guide Bracket |
| 705/20 | 1609201661 | Parts Set |
| 750 | 2607000163 | Air Hose Ø 35 Mm, 2 M,1 |
| 750/1 | 1609202230 | Air Hose Ø 35 Mm, L=5 M |
| 751 | 2607000164 | Setting Tube Ø 35 MM |
| 752 | 2607000162 | Suction Pipe Ø 35 Mm, 0,5 M |
| 753 | 2607000170 | Suction Nozzle Ø 35 MM |
| 754 | 1609390478 | Suction Nozzle Ø 35 MM |
| 754/10 | 1609390493 | Flat Brush |
| 754/20 | 1609390494 | Flat Brush |
| 754/30 | 1609390495 | Strip brush |
| 755 | 2607000165 | Crevice Nozzle Ø 35 Mm, L= 250 MM |
| 756 | 1609201229 | Suction Nozzle Ø 35 MM |
| 757 | 1609201230 | Suction Nozzle Ø 35 MM |
| 759 | 2607000166 | Suction Nozzle Ø 35 MM |
| 759/20 | 1609202534 | Brush Insert |
| 761 | 1609390481 | Suction Brush Ø 35 MM |
| 762 | 2607000168 | Suction Nozzle Ø 35 MM |
| 764 | 1600499005 | Fitting Ø 25X35 MM |
| 765 | 1609200933 | Reduction Sleeve Ø 49/35 MM+3/4" |
| 780 | 2607000167 | Air Hose Ø 49 Mm, 3 M,1 |
| 782 | 1609200968 | Suction Pipe Ø 49 Mm, L=0,5 M |
| 783 | 2607000169 | Suction Nozzle Ø 49 MM |
| 784 | 1609200970 | Suction Nozzle Ø 49 Mm, 350 MM |
| 784/10 | 1609201109 | Flat Brush |
| 784/20 | 1609201110 | Flat Brush |
| 786 | 1609200971 | Crevice Nozzle Ø 49 MM |
| 787 | 1609200976 | Suction Pipe Ø 49/35 MM |
| 788 | 1609201235 | Suction Nozzle Ø 49 MM |
| 8 | 1609201706 | On-Off Switch |
| 9 | 2910211208 | Tapping Screw DIN 7971-B2,9X19 |
