Bosch GAS 10 PS

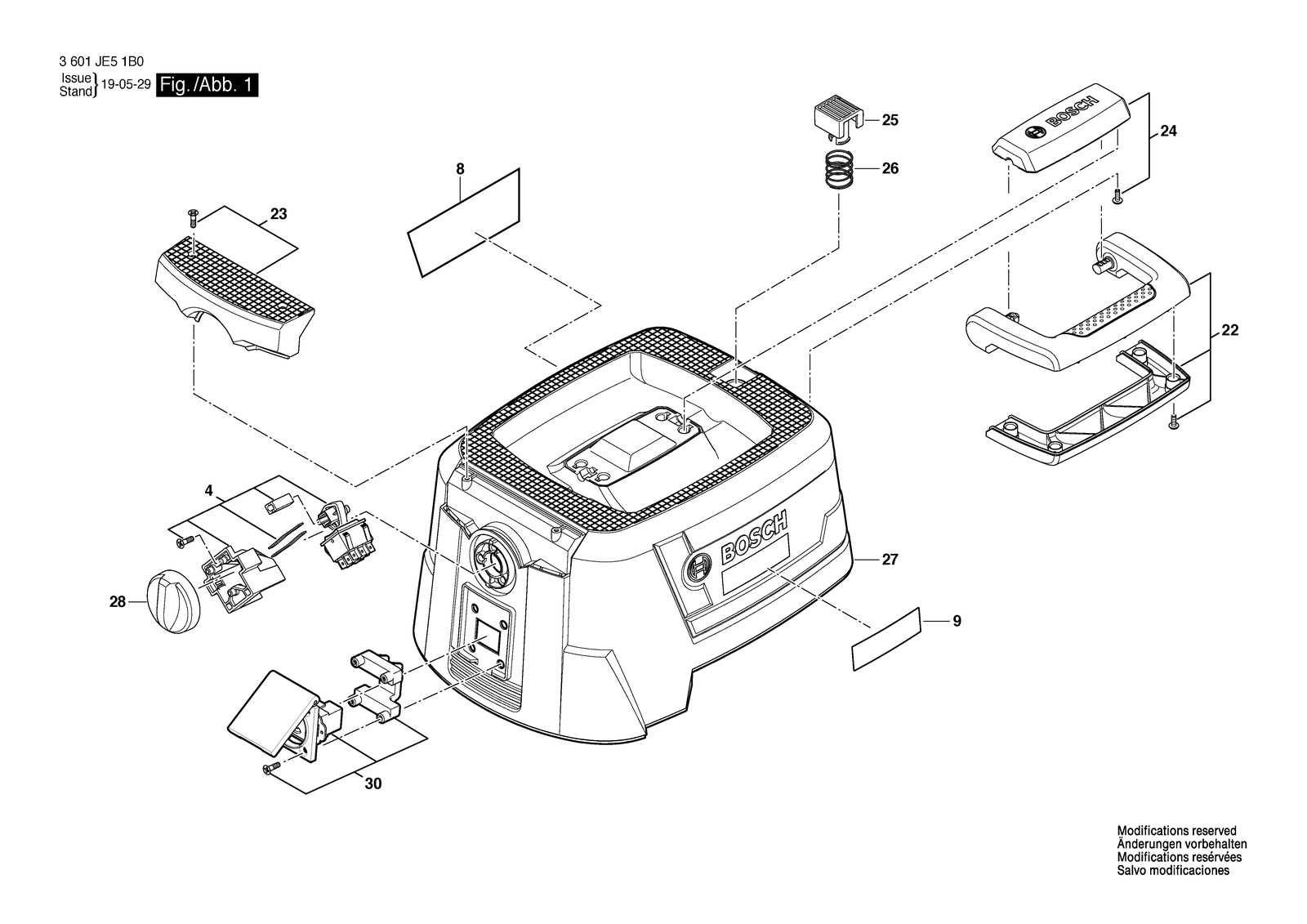

Bosch GAS 10 PS industrial vacuum cleaner: exploded parts diagram, 5 sheets, 44 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GAS 10 PS: 44 positions on 5 sheets
Bosch GAS 10 PS parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 22 | 1619PA7266 | Handle |
| 23 | 1619PA7267 | Cover |
| 24 | 1619PA7269 | Cover |
| 25 | 1619PA7270 | Button |
| 26 | 1619PA7271 | Compression Spring |
| 27 | 1619PA7280 | Hood |
| 28 | 1619PA7290 | Rotary Knob |
| 30 | 1619PA7293 | Socket |
| 30 | 1619PA7409 | Socket |
| 31 | 1600A01ZN0 | Electronics Module |
| 32 | 1619PA7301 | Seal |
| 33 | 1619PA7304 | Clamping Piece |
| 34 | 1619PA7305 | Connecting Rod |
| 35 | 1619PA7306 | Valve |
| 36 | 1619PA7307 | Motor Housing |
| 38 | 1619PA7310 | Motor |
| 39 | 1619PA7311 | Seal Kit |
| 4 | 1600A01ZM8 | Switch Kit |
| 40 | 1619PA7312 | Seal |
| 41 | 1619PA7313 | Housing |
| 42 | 1619PA7314 | Seal Ring |
| 43 | 1619PA7315 | Filter |
| 44 | 1619PA7316 | Filter holder |
| 45 | 1619PA7318 | Latch |
| 46 | 1619PA7319 | Caster Wheel |
| 47 | 1619PA7320 | Caster Wheel |
| 48 | 1619PA7331 | Container |
| 5 | 1619PA7298 | Power supply cord |
| 5 | 1619PA7299 | Power supply cord |
| 5 | 1619PA7800 | Power supply cord |
| 50 | 1619PA7410 | Filter Bracket |
| 61 | 1619PA8370 | Filter bag |
| 651 | 1619PA7322 | Hose Vacuuming |
| 652 | 1619PA7325 | Suction Pipe |
| 653 | 1619PA7324 | Suction Pipe |
| 654 | 1619PA7327 | Floor nozzle |
| 655 | 1619PA7328 | Crevice Nozzle |
| 656 | 1619PA7285 | Filter |
| 657 | 1619PA7329 | Dust Bag |
| 658 | 1619PA7326 | Adapter |
| 666 | 1607000EC3 | Hose Blowing out |
| 810 | 1619PA7345 | Carbon-Brush Set |
| 9 | 1619PB2131 | Manufacturer's nameplate GAS 10 Ps |
| 9 | 1619PB2133 | Manufacturer's nameplate GAS 15 Ps |
