Bosch GAC 250

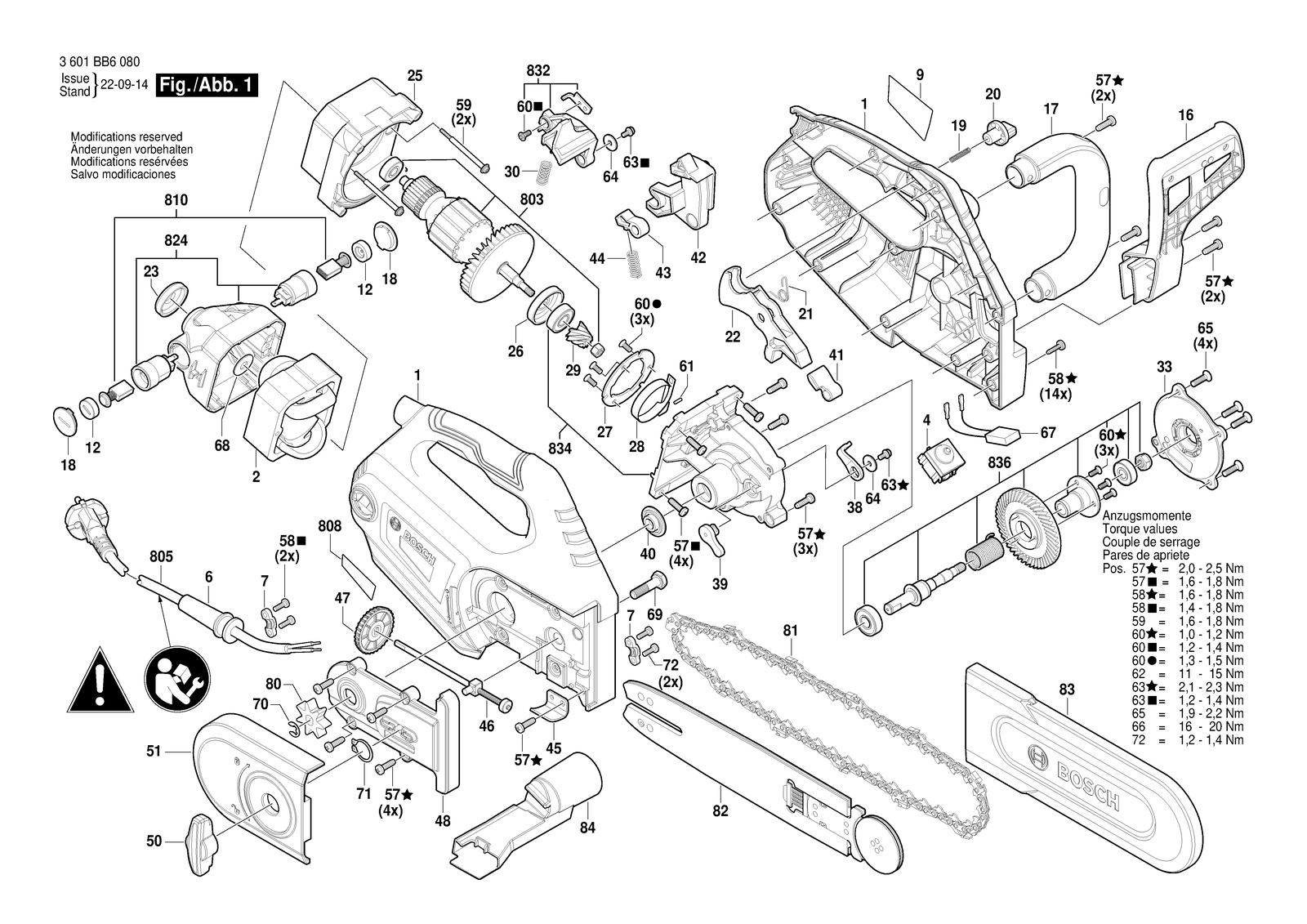

Bosch GAC 250 chain saw: exploded parts diagram, 1 sheet, 83 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GAC 250: 83 positions on 1 sheet
Bosch GAC 250 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB6692 | Housing Set |
| 12 | 1619PB6703 | Insulating Cap |
| 16 | 1619PB6707 | Protective Shield |
| 17 | 1619PB6708 | Auxiliary Handle |
| 18 | 1619PB6709 | Plastic covering |
| 19 | 1619PB6710 | Compression Spring |
| 2 | 1619PB6693 | Field assembly 220-240V |
| 2 | 1619PC0989 | Field assembly 127V |
| 20 | 1619PB6711 | Button |
| 21 | 1619PB6712 | Compression Spring |
| 22 | 1619PB6713 | Trigger |
| 23 | 1619PB6714 | Rubber damper |
| 25 | 1619PB6716 | Air-Deflector Ring |
| 26 | 1619PB6717 | Stop Wheel |
| 27 | 1619PB6718 | Plate |
| 28 | 1619PB6719 | Brake Band |
| 29 | 1619PB6720 | Pinion |
| 30 | 1619PB6721 | Compression Spring |
| 33 | 1619PB6724 | Gear Cover |
| 38 | 1619PB6729 | Brake Plate |
| 39 | 1619PB6730 | Lever |
| 4 | 1619PB6695 | Switch |
| 40 | 1619PB6731 | Plastic ring |
| 41 | 1619PB6732 | Pusher |
| 42 | 1619PB6733 | Lever Arm |
| 43 | 1619PB6734 | Lever Clamp |
| 44 | 1619PB6735 | Compression Spring |
| 45 | 1619PB6736 | Mounting Plate |
| 46 | 1619PB6737 | Adjusting Device |
| 47 | 1619PB6738 | Adjusting Roller |
| 48 | 1619PB6739 | Mounting Plate |
| 50 | 1619PB6741 | Wing Nut |
| 51 | 1619PB6742 | Plastic covering |
| 57 | 1619PB6748 | Pan head screw |
| 58 | 1619PB6749 | Screw |
| 59 | 1619PB6750 | Pan head screw |
| 6 | 1619PB6697 | Grommet |
| 60 | 1619PB6751 | Countersunk-Head Screw |
| 61 | 1619PB6752 | Pin |
| 63 | 1619PB6754 | Pan head screw |
| 64 | 1619PB6755 | Shim |
| 65 | 1619PB6756 | Countersunk-Head Screw |
| 67 | 1619PB6758 | Capacitor |
| 68 | 1619PB6759 | Shim |
| 69 | 1619PB6760 | Hex Screw |
| 7 | 1619PB6698 | Cable Clip |
| 70 | 1619PB6761 | Clip |
| 71 | 1619PB6762 | Clip |
| 72 | 1619PB9756 | Pan head screw |
| 80 | 1619PB6764 | Sprocket wheel |
| 803 | 1619PB9760 | Armature assembly 220-240V |
| 803 | 1619PC0991 | Armature assembly 127V |
| 805 | 1619PB9761 | Power supply cord |
| 805 | 1619PB9773 | Power supply cord |
| 805 | 1619PB9774 | Power supply cord |
| 805 | 1619PB9775 | Power supply cord |
| 805 | 1619PB9776 | Power supply cord |
| 805 | 1619PB9777 | Power supply cord |
| 805 | 1619PB9778 | Power supply cord |
| 805 | 1619PC0993 | Power supply cord |
| 805 | 1619PC0995 | Power supply cord |
| 808 | 1619PB9766 | Nameplate |
| 808 | 1619PB9767 | Nameplate |
| 808 | 1619PB9768 | Nameplate |
| 808 | 1619PB9769 | Nameplate |
| 808 | 1619PB9770 | Nameplate |
| 808 | 1619PB9771 | Nameplate |
| 808 | 1619PB9772 | Nameplate |
| 808 | 1619PC0106 | Nameplate |
| 808 | 1619PC0107 | Nameplate |
| 808 | 1619PC0108 | Nameplate |
| 81 | 1619PB6765 | Saw Chain |
| 810 | 1619PC0027 | Carbon-Brush Set |
| 810 | 1619PC0998 | Carbon-Brush Set |
| 82 | 1619PB6766 | Guide Rail |
| 824 | 1619PB9762 | Bracket |
| 824 | 1619PC0999 | Bracket |
| 83 | 1619PB6767 | Protective Sleeve |
| 832 | 1619PB9763 | Lever |
| 834 | 1619PB9764 | Gear Housing |
| 836 | 1619PB9765 | Bevel Gear Set |
| 84 | 1619PB6768 | Vacuum Adapter |
| 9 | 1619PB6700 | Manufacturer's nameplate |
