Makita GA9070
Makita GA9070: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA9070: 74 positions on 1 sheet

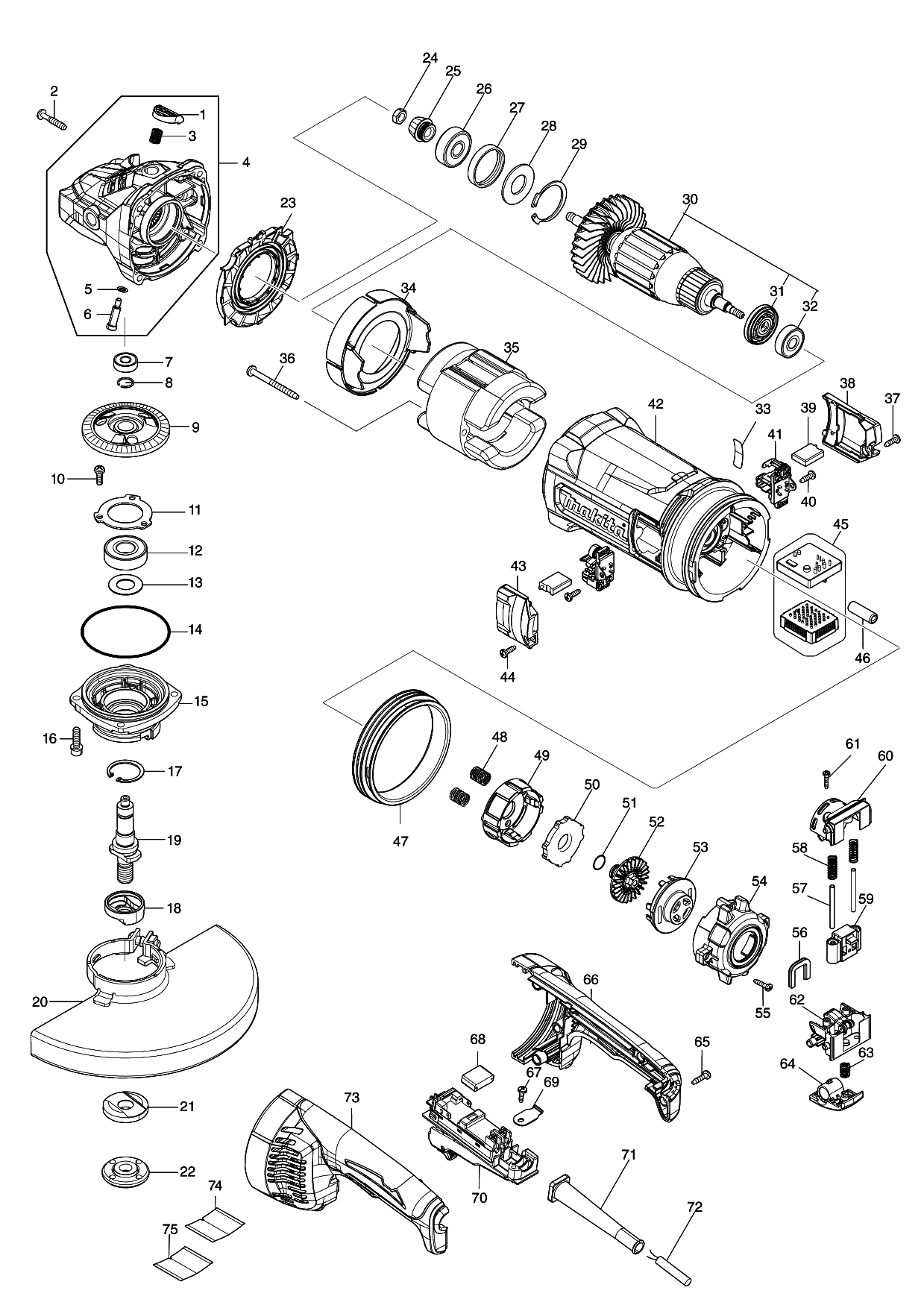

Sheet 1: Makita GA9070 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 456247-8 | Makita 456247-8 PIN CAP |
| 2 | 266553-1 | |
| 3 | 234391-9 | Makita 234391-9 COMPRESSION SPRING 8 |
| 5 | 213026-5 | Makita 213026-5 O RING 7, SA7000C |
| 6 | 256571-7 | Makita 256571-7 SHOULDER PIN 7 |
| 7 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 8 | 233925-5 | Makita 233925-5 RING SPRING 13, MT602 |
| 9 | 227653-2 | Makita 227653-2 SPIRAL BEVEL GEAR 54, GA9060 |
| 10 | 265120-9 | Makita 265120-9 PAN HEAD SCREW M5*16, MT580 |
| 11 | 285741-1 | Makita 285741-1 BEARING RETAINER 50 |
| 12 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 13 | 267487-1 | Makita 267487-1 FLAT WASHER 17 |
| 14 | 213760-7 | Makita 213760-7 O-RING 78, M5900B |
| 15 | 312A97-6 | |
| 16 | 265541-5 | Makita 265541-5 HEX.SOCKET HEAD BOLT M5X22, GA9020 |
| 17 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 18 | 310800-3 | Makita 310800-3 LEAD FLANGE |
| 19 | 327762-8 | |
| 20 | 122891-0 | Makita 122891-0 Toolless Wheel Cover 230mm for 9069 GA7020S GA9020S |
| 21 | 224447-6 | Makita 224447-6 INNER FLANGE 42B |
| 22 | 224485-8 | Makita 224485-8 LOCK NUT 14-45 |
| 23 | 456238-9 | Makita 456238-9 DIFFUSER |
| 24 | 252194-9 | Makita 252194-9 HEX NUT M8, GA9020 |
| 25 | 227652-4 | Makita 227652-4 SPIRAL BEVEL GEAR 13, GA9060 |
| 26 | 211132-0 | Makita 211132-0 BALL BEARING 6301DDW, 9069 |
| 27 | 262085-6 | Makita 262085-6 RUBBER RING 38, GA9020 |
| 28 | 267299-2 | Makita 267299-2 FLAT WASHER 20, GA9020 |
| 29 | 962211-4 | Makita 962211-4 RETAINING RING R-42, GA9020 |
| 30 | 511A14-5 | |
| 31 | 681025-9 | |
| 32 | 210267-4 | |
| 33 | 811P30-0 | |
| 34 | 456239-7 | Makita 456239-7 BAFFLE PLATE |
| 35 | 621924-3 | |
| 36 | 266044-2 | Makita 266044-2 TAPPING SCREW PT 5X60, 5806B |
| 37 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 38 | 183T24-2 | |
| 39 | 191T31-1 | |
| 40 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 41 | 644001-4 | |
| 42 | 413343-5 | |
| 43 | 183T24-2 | |
| 44 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 45 | 620D47-8 | |
| 46 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 47 | 422671-7 | |
| 48 | 232677-5 | |
| 49 | 312A98-4 | |
| 50 | 422672-5 | |
| 51 | 213118-0 | Makita 213118-0 O RING 12, 5277NB |
| 52 | 313360-4 | |
| 53 | 413388-3 | |
| 54 | 140Y86-3 | |
| 55 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 56 | 422669-4 | |
| 57 | 256225-6 | |
| 58 | 232676-7 | |
| 59 | 140Y87-1 | |
| 60 | 413381-7 | |
| 61 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 62 | 140Y88-9 | |
| 63 | 233375-4 | Makita 233375-4 COMPRESSION SPRING 7, MT580 |
| 64 | 413389-1 | |
| 65 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 66 | 183T22-6 | |
| 67 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 68 | 645088-9 | Makita 645088-9 Noise Suppressor for 9069 9067 9066 9015B |
| 69 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 70 | 632S37-9 | |
| 71 | 682573-1 | Makita 682573-1 Cord Guard 10 for JR3050T |
| 72 | 695107-1 | Makita 695107-1 Power Supply Cord 1.5-2-2.5 for 9047S |
| 73 | 183T22-6 | |
| 74 | 811P26-1 | |
| 75 | 8037A3-0 |
