Makita GA9020S: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA9020S: 48 positions on 1 sheet

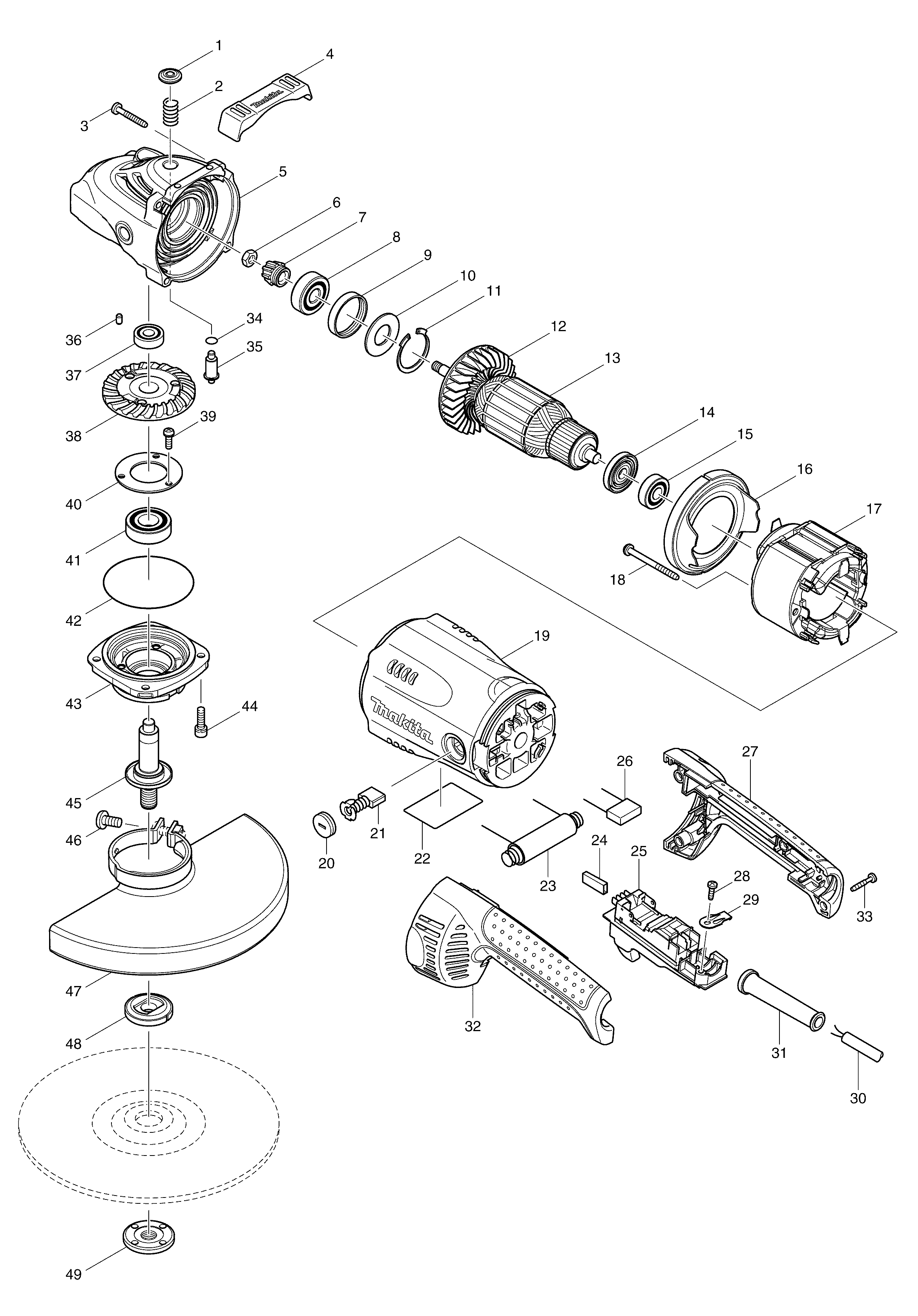

Sheet 1: Makita GA9020S parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 419133-4 | Makita 419133-4 Pin Cap for GA9020 |
| 2 | 233292-8 | Makita 233292-8 COMPRESSION SPRING 12, 9069 |
| 3 | 266373-3 | Makita 266373-3 TAPPING SCREW 5*35, GA9020 |
| 4 | 419144-9 | Makita 419144-9 Bumper for GA7020, GA7020S, GA7040S GA9020 |
| 5 | 154685-5 | Makita 154685-5 GEAR HOUSING COMPLETE, GA7020 |
| 6 | 252194-9 | Makita 252194-9 HEX NUT M8, GA9020 |
| 7 | 227490-4 | Makita 227490-4 Spiral Bevel Gear 12 for GA9020 |
| 8 | 211132-0 | Makita 211132-0 BALL BEARING 6301DDW, 9069 |
| 9 | 262085-6 | Makita 262085-6 RUBBER RING 38, GA9020 |
| 10 | 267299-2 | Makita 267299-2 FLAT WASHER 20, GA9020 |
| 11 | 962211-4 | Makita 962211-4 RETAINING RING R-42, GA9020 |
| 13 | 516943-1 | Makita 516943-1 ARMATURE ASS'Y 220-2GA9020SF |
| 14 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 15 | 210075-3 | Makita 210075-3 BALL BEARING 6200DDW, GA9020 |
| 16 | 419135-0 | Makita 419135-0 BAFFLE PLATE, GA9020 |
| 17 | 526159-0 | Makita 526159-0 FIELD ASSY GA9020SF |
| 18 | 266329-6 | Makita 266329-6 TAPPING SCREW 5*60, MT580 |
| 19 | 154671-6 | Makita 154671-6 Motor Housing Makita for GA7020 GA9020 |
| 20 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 21 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 22 | 861763-1 | Makita 861763-1 GA9020S NAME PLATEGA9020SF |
| 23 | 646658-7 | Makita 646658-7 RESISTORGA9020SF |
| 24 | 686036-9 | Makita 686036-9 RECEPTACLE SLEEVE, GA7020S |
| 25 | 651178-8 | Makita 651178-8 Switch for GA9020S GA9030S GA9040S GA7020S GA7030S |
| 26 | 645088-9 | Makita 645088-9 Noise Suppressor for 9069 9067 9066 9015B |
| 27 | 188059-8 | Makita 188059-8 HANDLE COVER COMPLETE, GA9020 |
| 28 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 29 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 30 | 695107-1 | Makita 695107-1 Power Supply Cord 1.5-2-2.5 for 9047S |
| 31 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 32 | 188059-8 | Makita 188059-8 HANDLE COVER COMPLETE, GA9020 |
| 33 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 34 | 213062-1 | Makita 213062-1 O-RING 9, GA9020 |
| 35 | 256491-5 | Makita 256491-5 SHOULDER PIN 5, GA9020 |
| 36 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 37 | 210067-2 | Makita 210067-2 BALL BEARING 6000ZZ, MT952 |
| 38 | 227491-2 | Makita 227491-2 SPIRAL BEVEL GEAR 53A, GA9020 |
| 39 | 265120-9 | Makita 265120-9 PAN HEAD SCREW M5*16, MT580 |
| 40 | 285724-1 | Makita 285724-1 BEARING RETAINER 50, GA9020 |
| 41 | 211285-5 | Makita 211285-5 BALL BEARING 6203DDW, GA9020 |
| 42 | 213760-7 | Makita 213760-7 O-RING 78, M5900B |
| 43 | 317988-0 | Makita 317988-0 BEARING BOX, GA9020 |
| 44 | 265541-5 | Makita 265541-5 HEX.SOCKET HEAD BOLT M5X22, GA9020 |
| 45 | 154682-1 | Makita 154682-1 SPINDLE COMPLETEGA9020SF |
| 46 | 265158-4 | Makita 265158-4 PAN HEAD SCREW M8X25, 9067 |
| 47 | 154672-4 | Makita 154672-4 Wheel Cover 230mm Angle Grinder 9069 GA7020S GA9020S |
| 48 | 122444-5 | |
| 49 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
