Makita GA9010C
Makita GA9010C: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA9010C: 54 positions on 1 sheet

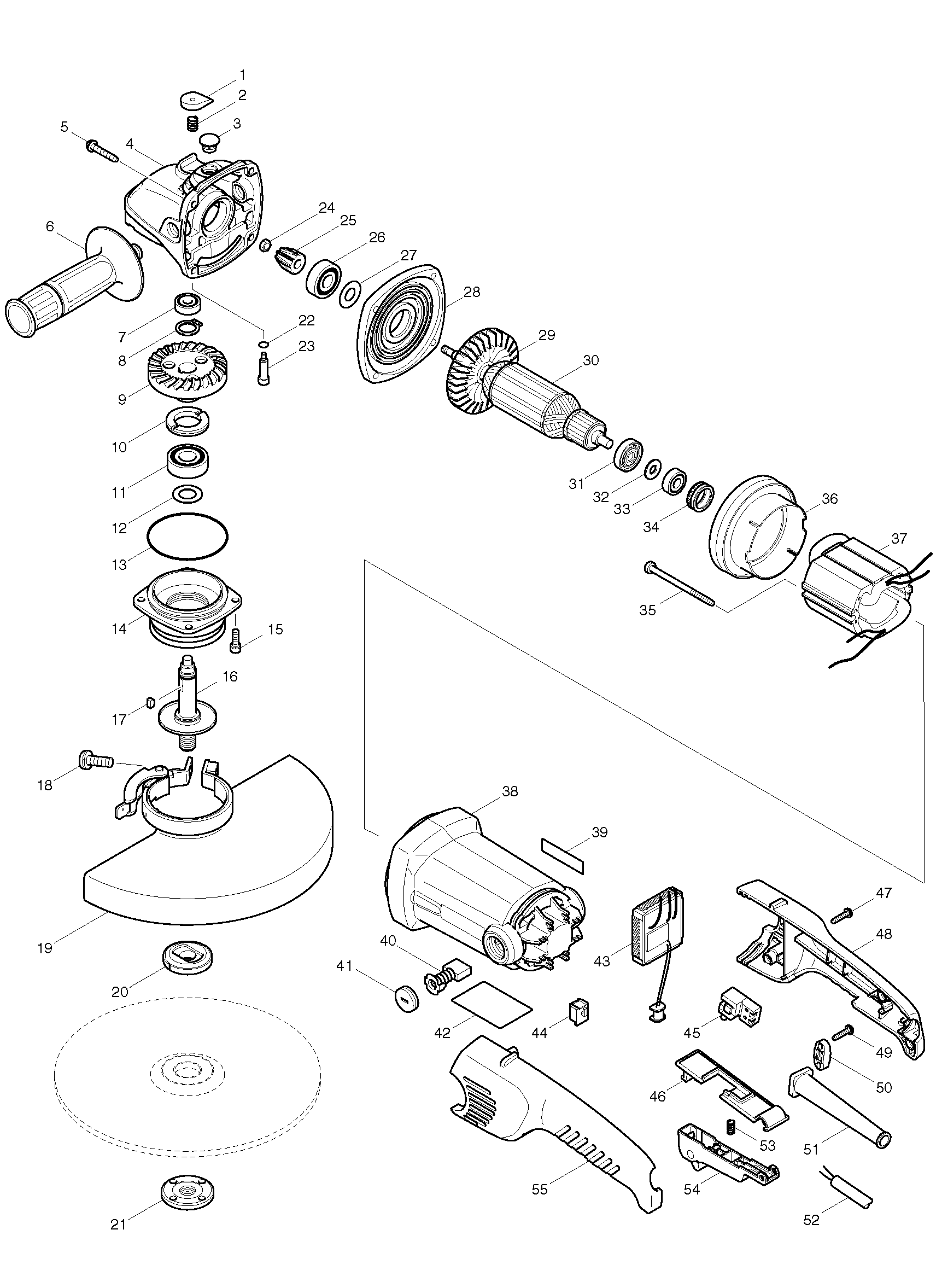

Sheet 1: Makita GA9010C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 418517-3 | Makita 418517-3 Pin Cap |
| 2 | 231037-8 | Makita 231037-8 COMPRESSION SPRING 7, 3612BR |
| 3 | 416972-3 | Makita 416972-3 CAP |
| 4 | 317752-9 | Makita 317752-9 GEAR HOUSING SA7000C |
| 5 | 266173-1 | Makita 266173-1 TAPPING SCREW 5X30 |
| 6 | 152539-0 | Makita 152539-0 Grip 36 Complete, 9067 |
| 7 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 8 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 9 | 227457-2 | Makita 227457-2 SPIRAL BEVEL GEAR 43, GA7011C |
| 10 | 285809-3 | Makita 285809-3 BEARING RETAINER 23-36, N5900B |
| 11 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 12 | 267215-4 | Makita 267215-4 FLAT WASHER 15, SA7000 |
| 13 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 14 | 317754-5 | Makita 317754-5 BEARING BOX, GA9010C |
| 15 | 922221-3 | Makita 922221-3 HEX. BOLT, GA9010 |
| 16 | 153785-8 | Makita 153785-8 SPINDLE COMPLETE SA7000C, GA9010C |
| 17 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 18 | 265050-4 | Makita 265050-4 PAN HEAD SCREW M8X25 |
| 19 | 163445-4 | Makita 163445-4 Wheel Cover 230mm Angle Grinder 9069 GA7020S GA9020S |
| 20 | 122444-5 | |
| 21 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 22 | 213026-5 | Makita 213026-5 O RING 7, SA7000C |
| 23 | 256483-4 | Makita 256483-4 SHOULDER, GA9010C |
| 24 | 931303-0 | Makita 931303-0 HEX. NUT M6 |
| 25 | 227456-4 | Makita 227456-4 SPIRAL BEVEL GEAR 9, GA7011C |
| 26 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 27 | 253759-0 | Makita 253759-0 FLAT WASHER 12, SA7000 |
| 28 | 317753-7 | Makita 317753-7 GEAR HOUSING COVER, GA9010C |
| 30 | 513568-2 | Makita 513568-2 Armature Assy 220-240V for GA9010C GA7010C |
| 31 | 681660-3 | Makita 681660-3 INSULATION WASHER, SA7000C |
| 32 | 267281-1 | Makita 267281-1 FLAT WASHER 15, GA9010C |
| 33 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 34 | 421720-7 | Makita 421720-7 Rubber Ring for GA5021C GA6021C GA7010C GA9010C |
| 35 | 266059-9 | Makita 266059-9 SELF-TAP FLANGE SCREW PT M5X75 |
| 36 | 418516-5 | Makita 418516-5 BAFFLE PLATE, GA9010C |
| 37 | 625704-9 | Makita 625704-9 FIELD 240V 80T, GA9010C |
| 38 | 183778-1 | Makita 183778-1 MOTOR HOUSING COMPLETE, GA9010C |
| 39 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 40 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 41 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 42 | 860297-1 | Makita 860297-1 NAME PLATE GA9010CF |
| 43 | 631598-2 | Makita 631598-2 Controller 240v for Grinder GA7010C GA9010C |
| 44 | 418518-1 | Makita 418518-1 SLEEVE, GA9010C |
| 45 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 46 | 418519-9 | Makita 418519-9 SWITCH BASE, GA9010C |
| 47 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 48 | 183783-8 | Makita 183783-8 HANDLE SET, GA9010C |
| 49 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 50 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 51 | 682573-1 | Makita 682573-1 Cord Guard 10 for JR3050T |
| 52 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 53 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 54 | 153787-4 | Makita 153787-4 SWITCH LEVER COMPLETE GA9010C, GA9010C |
| 55 | 183783-8 | Makita 183783-8 HANDLE SET, GA9010C |
